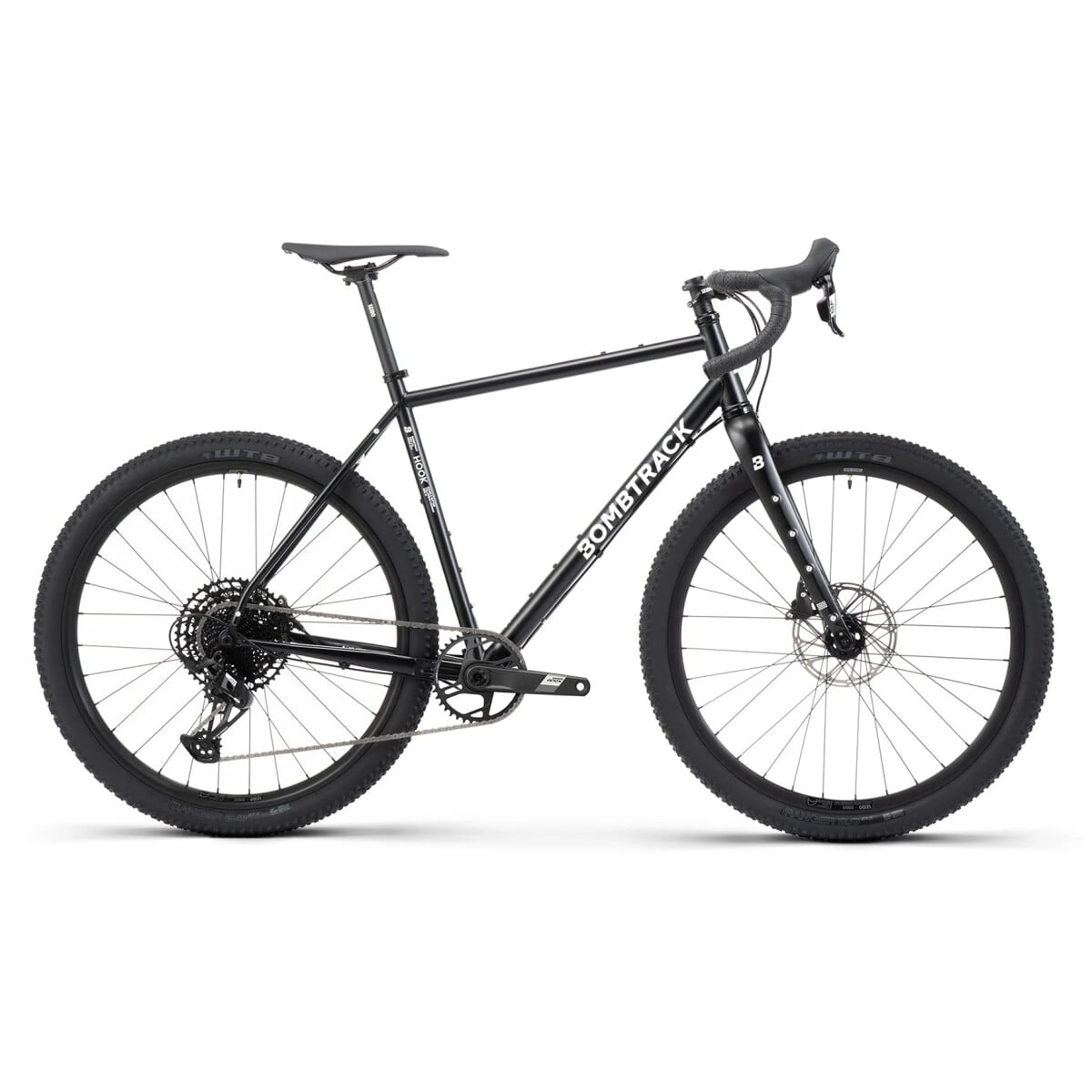

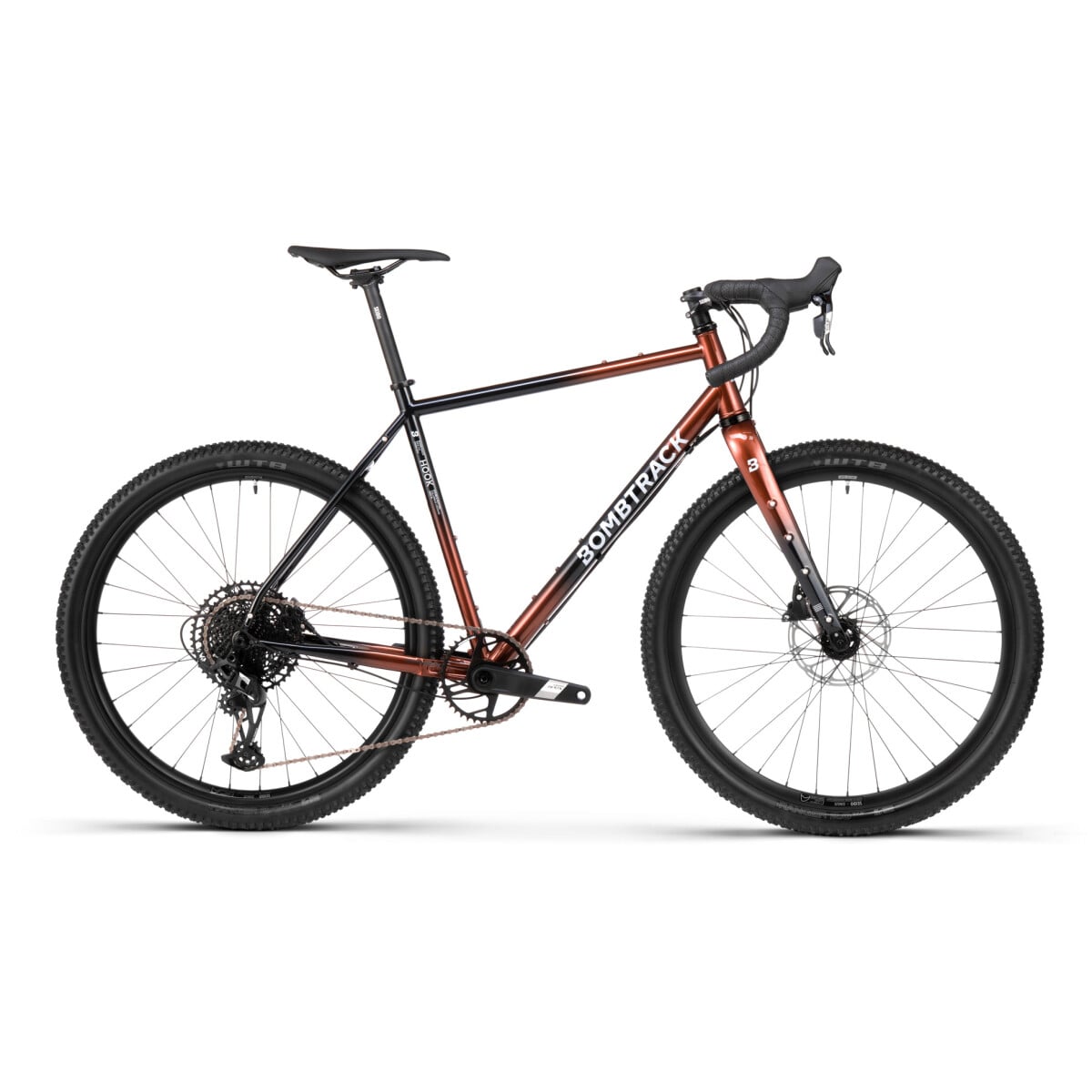

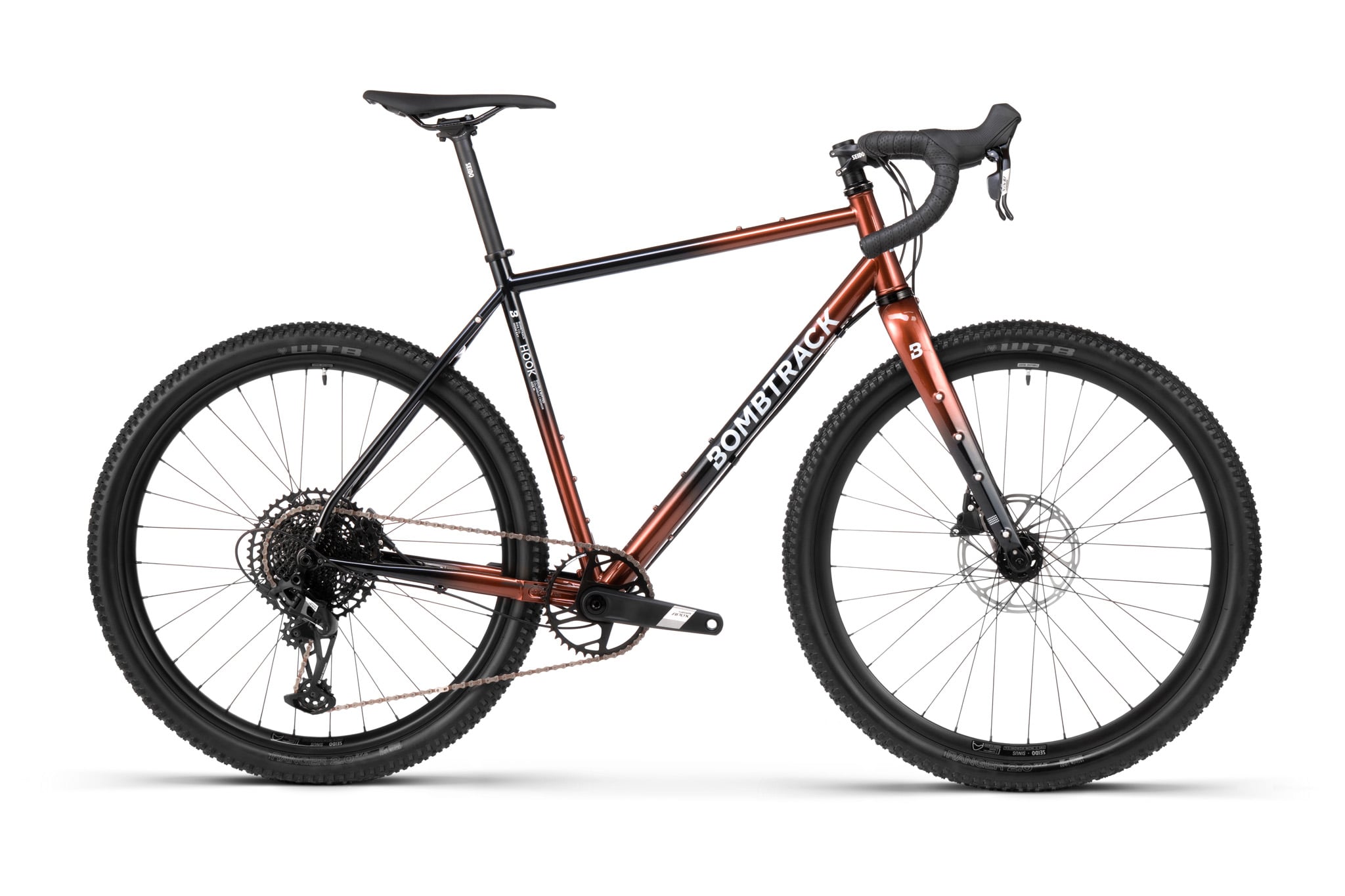

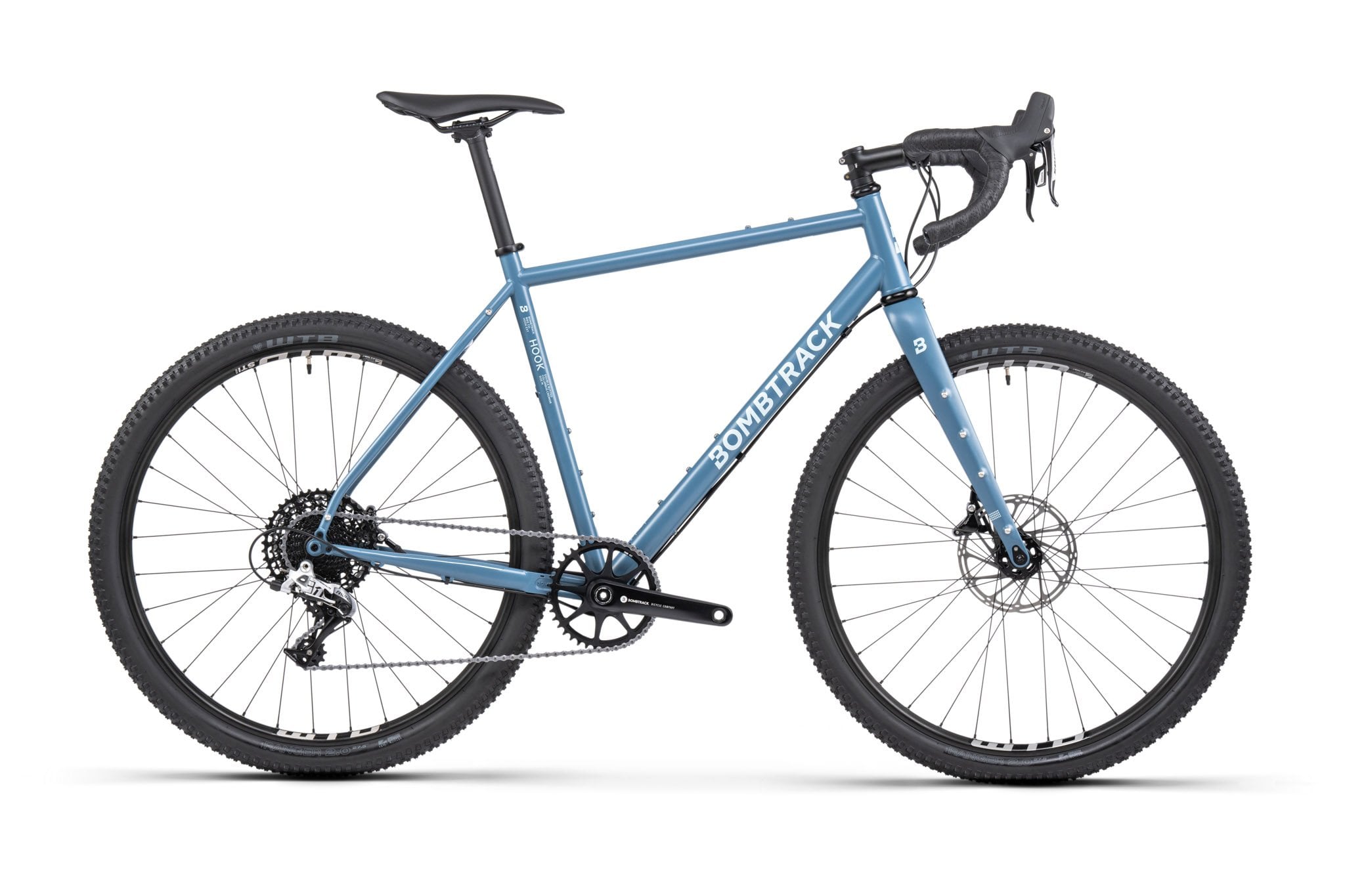

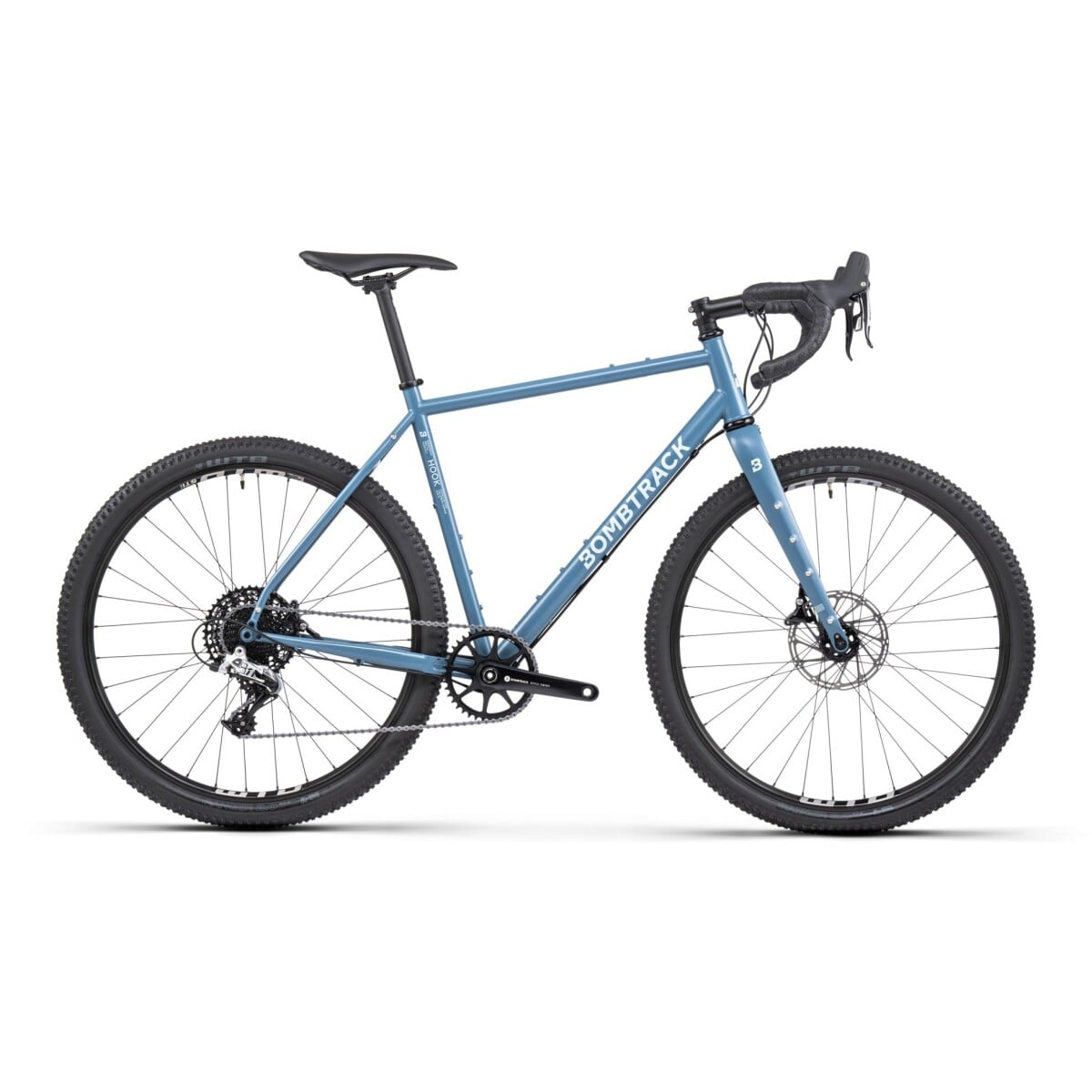

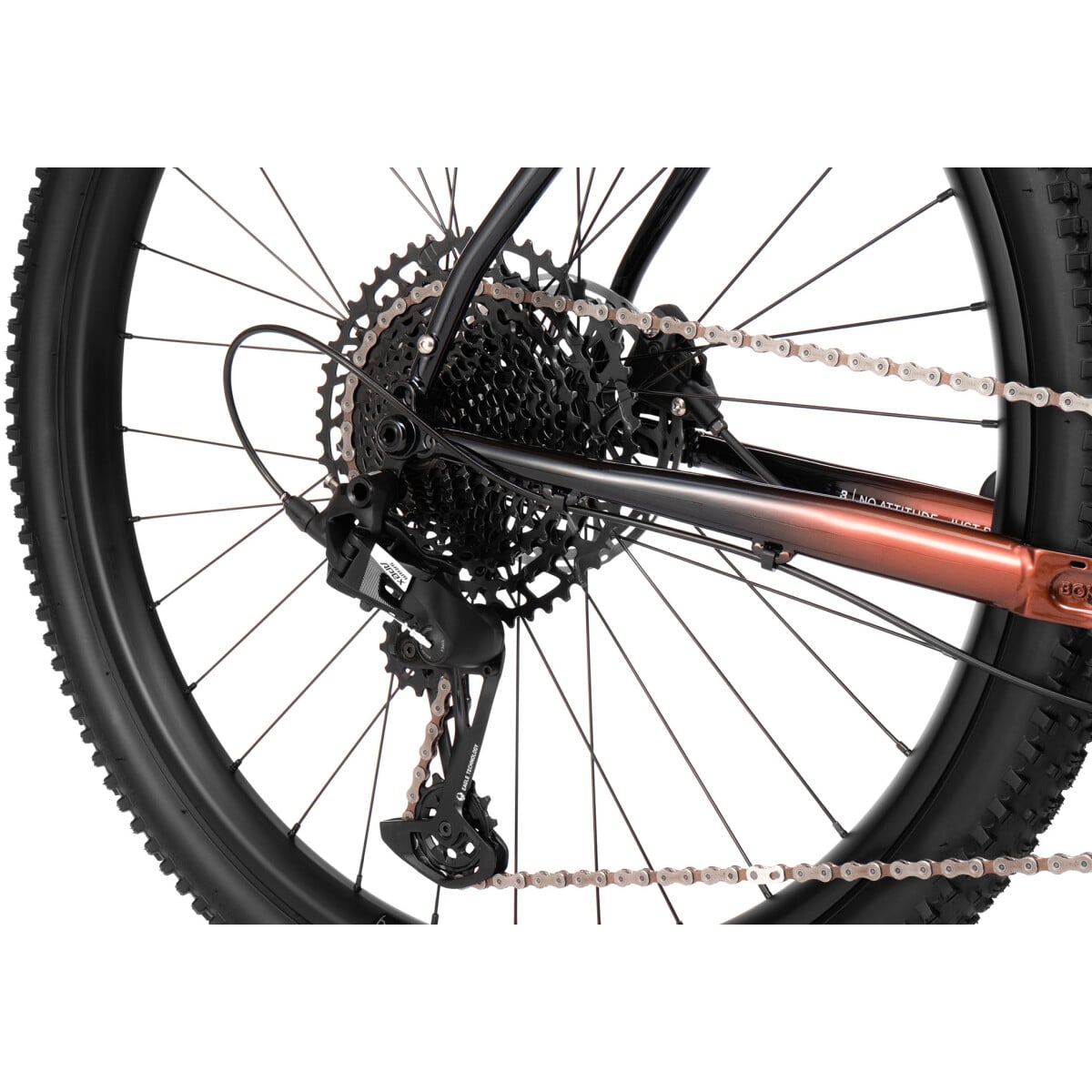

Bombtrack Hook EXT Apex Eagle

https://www.youtube.com/watch?v=lhhw1a0O21c

“As capable on backcountry campouts as it is on post-work blasts, the Hook EXT remains the choice when you’re unsure of the terrain, but know you want to have fun riding it.”

“Gravel racing is such a varied discipline, with courses spanning from 100km to Ultra Endurance distances – the Hook EXT is there for any competitive scenario”

Spec
Frame    Columbus Cromor double butted, TA, rack / fender mounts, internal light cable routing, rear light mount, 85.5 mm T47 BB shell

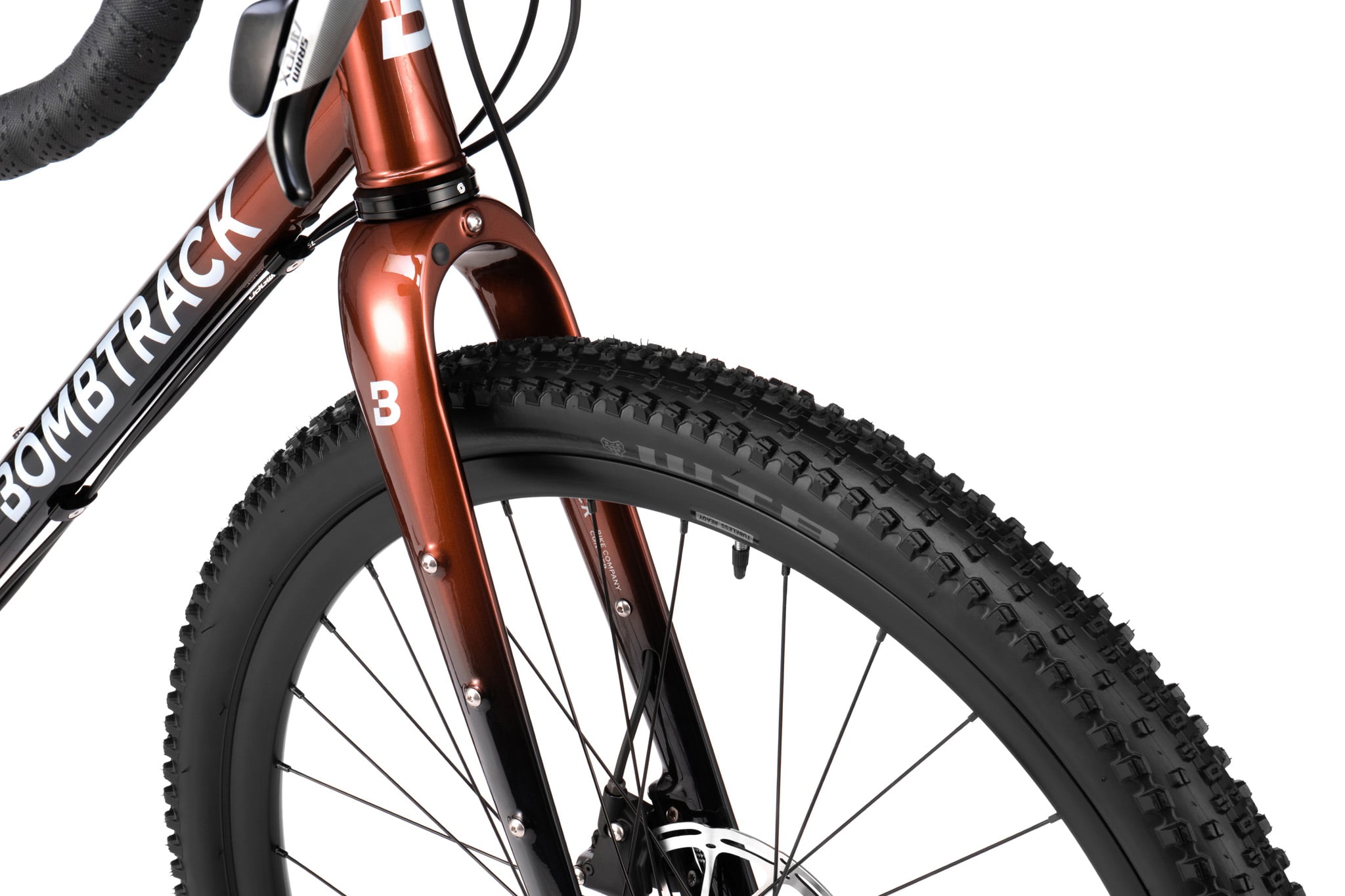

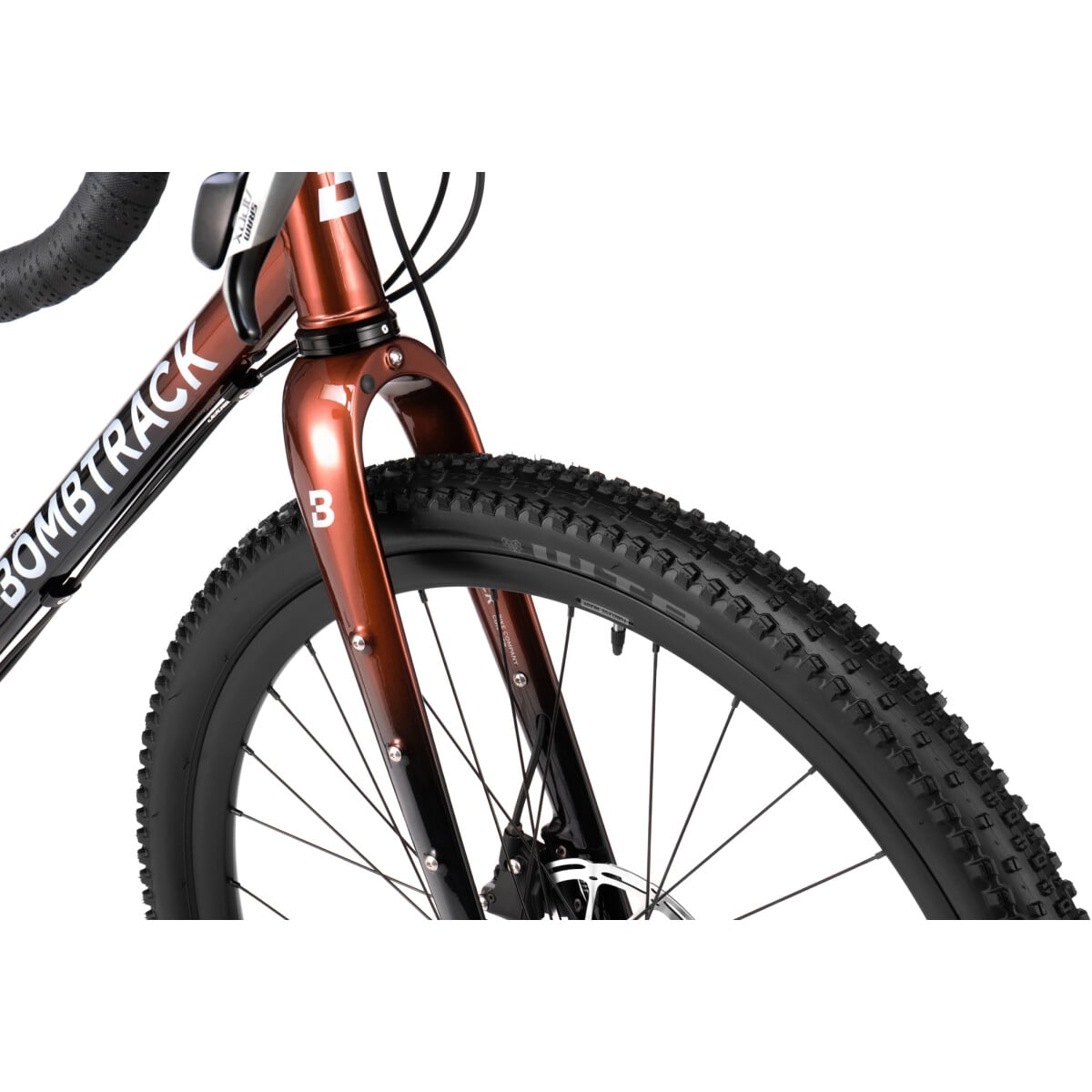

Fork    Seido MGV full carbon, TA, 1.1/2” – 1.1/8”, fender / triple cage mounts, 180 mm max rotor size, lowrider rack compatible, internal hub dynamo cable routing

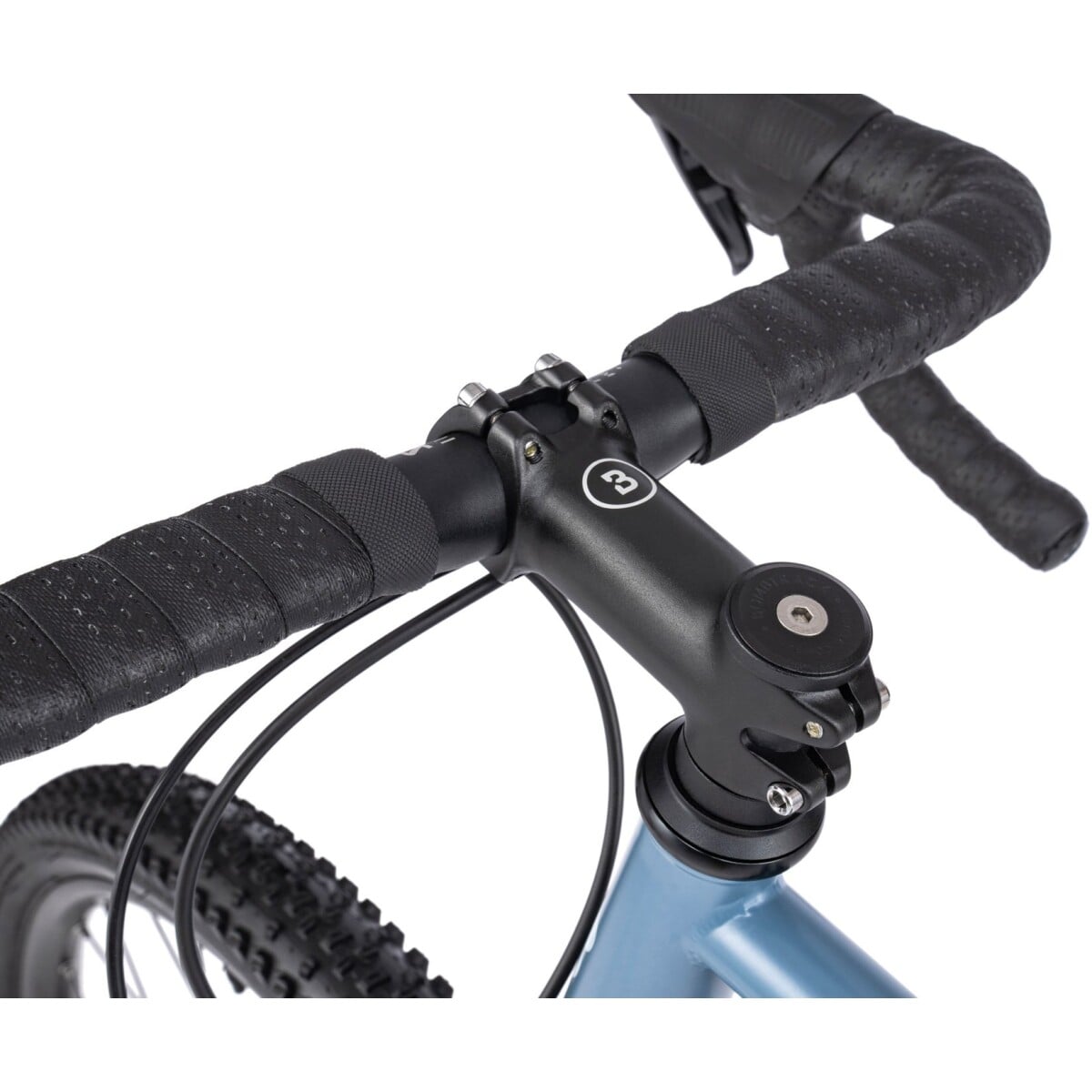

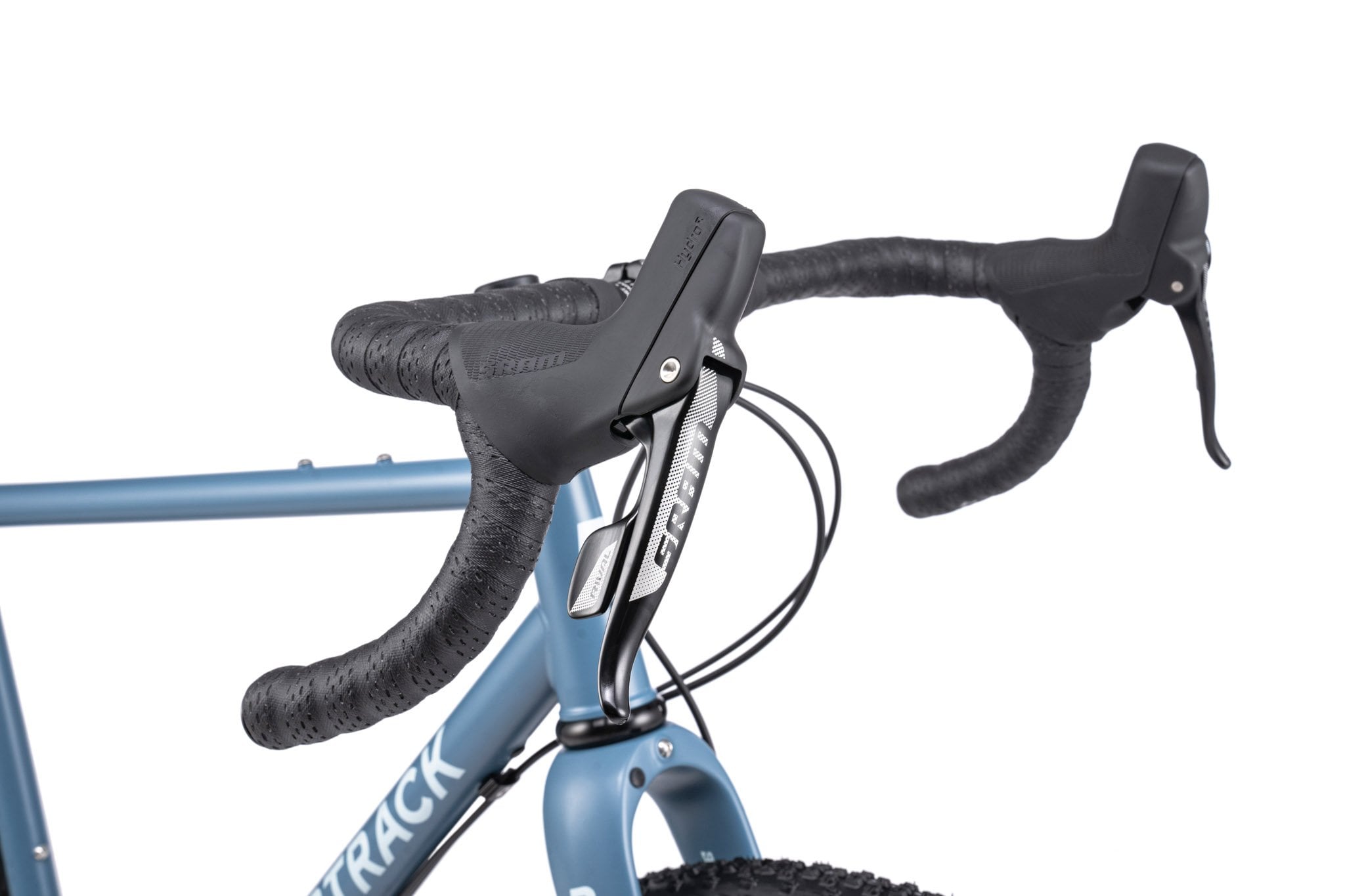

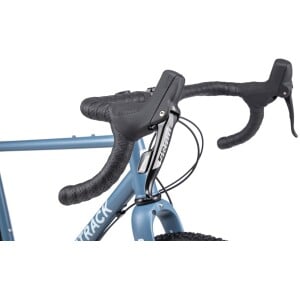

Handlebar    Seido Tackle drop bar, 31.8 mm, 16° flare
Grips    Bombtrack Escape bar tape

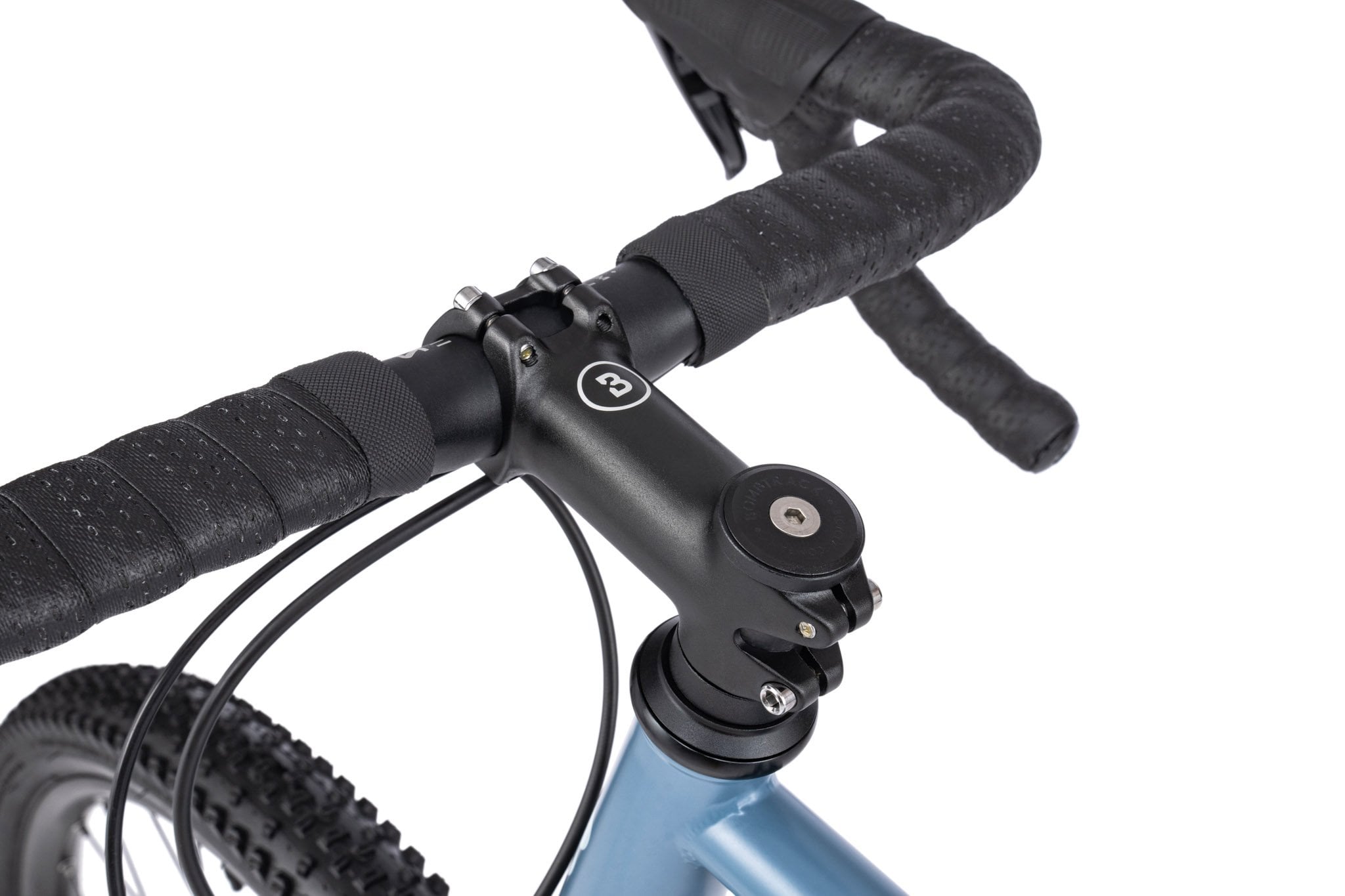

Stem    Seido Meander forged aluminium stem, -6°
Headset    Seido Pro EC sealed external headset, 1.1/2” – 1.1/8”

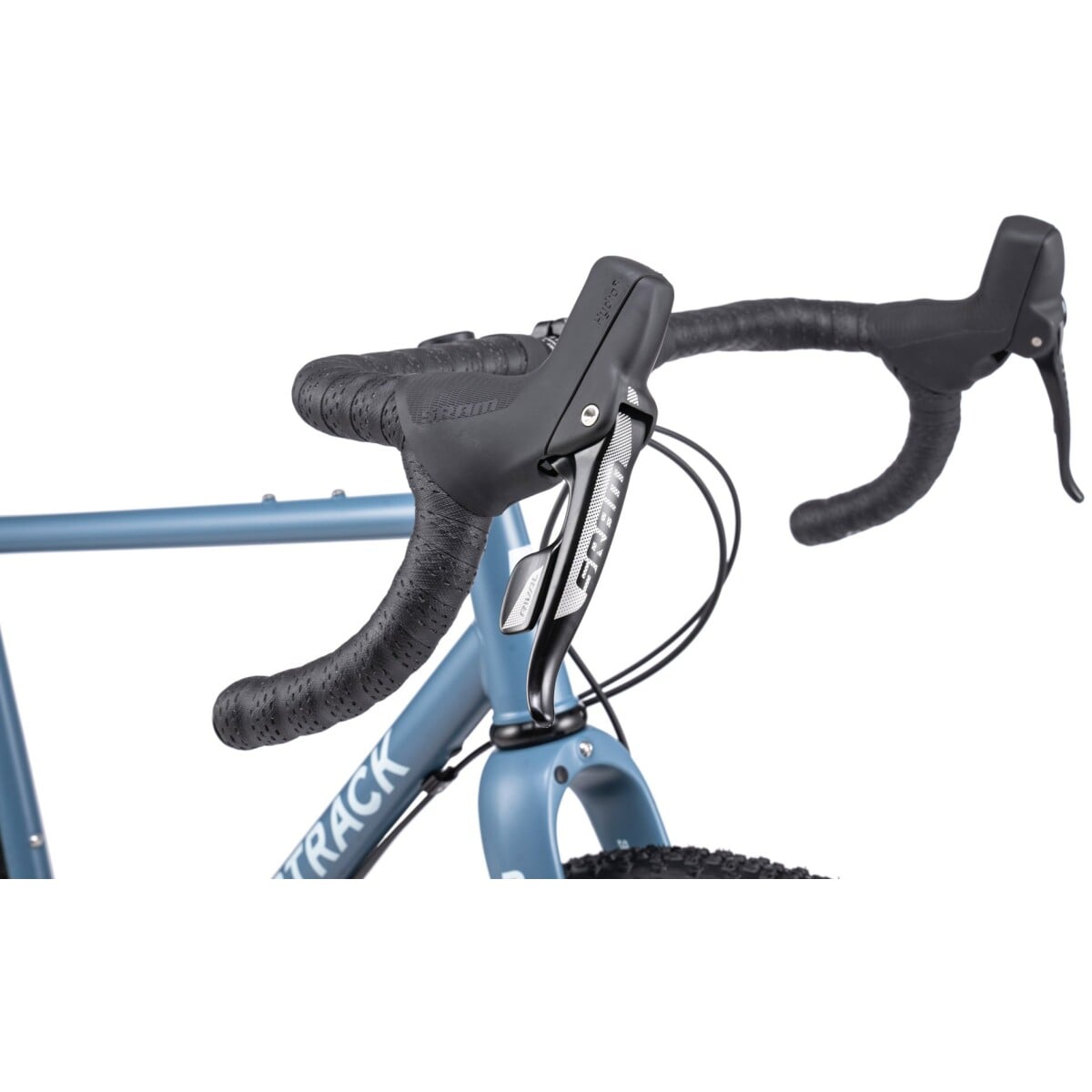

Levers    Sram Apex Eagle double tap hydraulic
Shifter    Sram Apex Eagle double tap 1×12

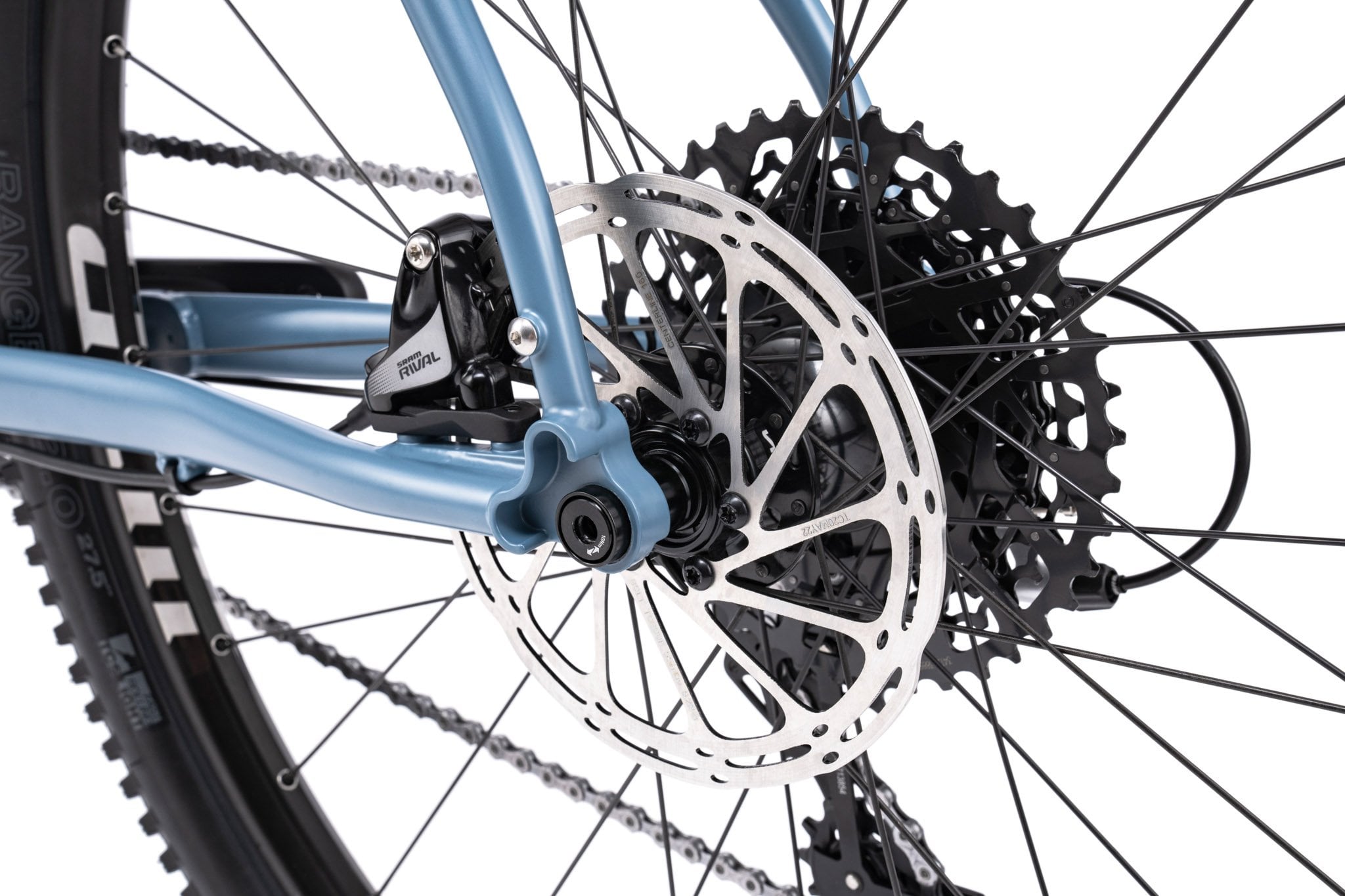

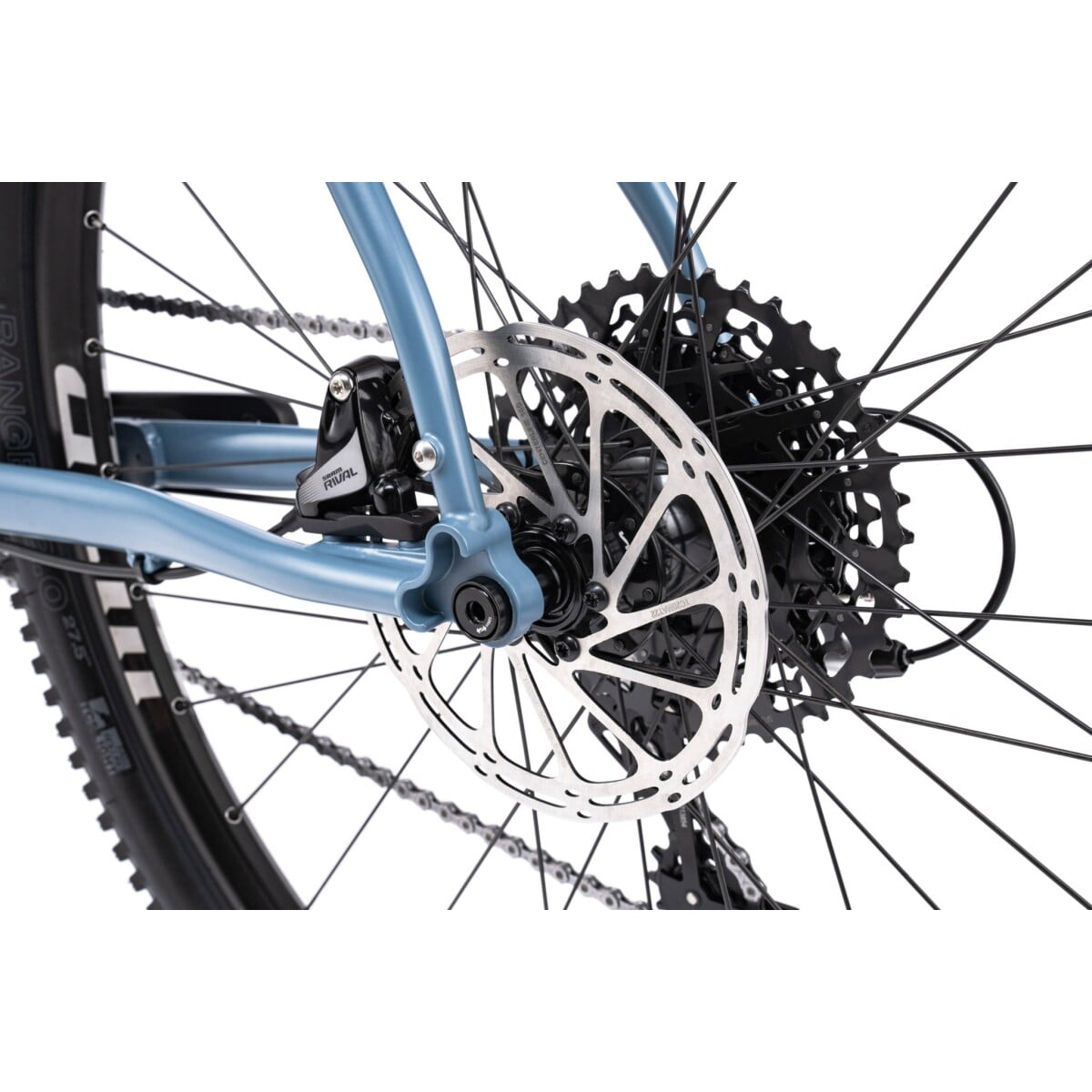

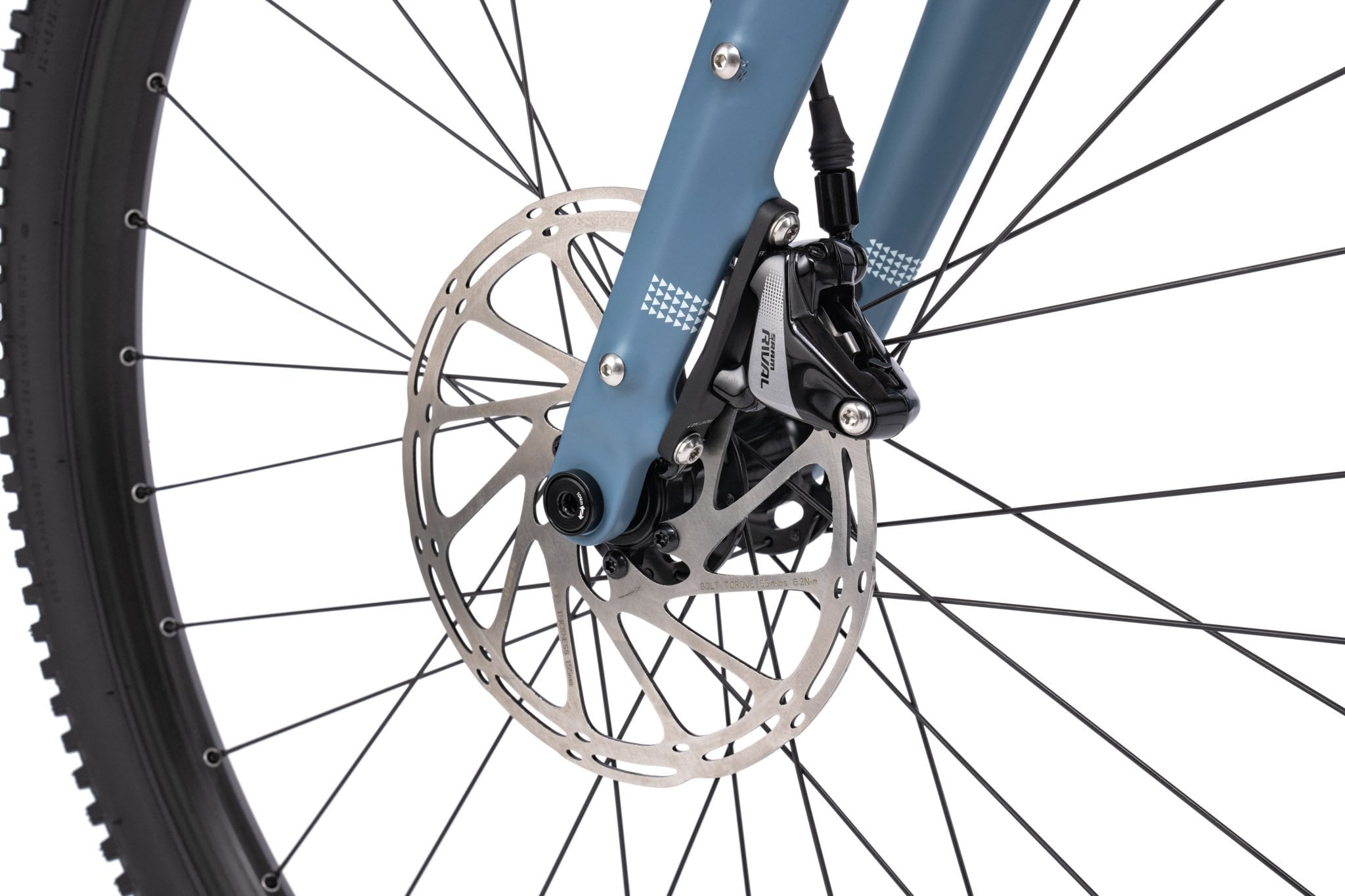

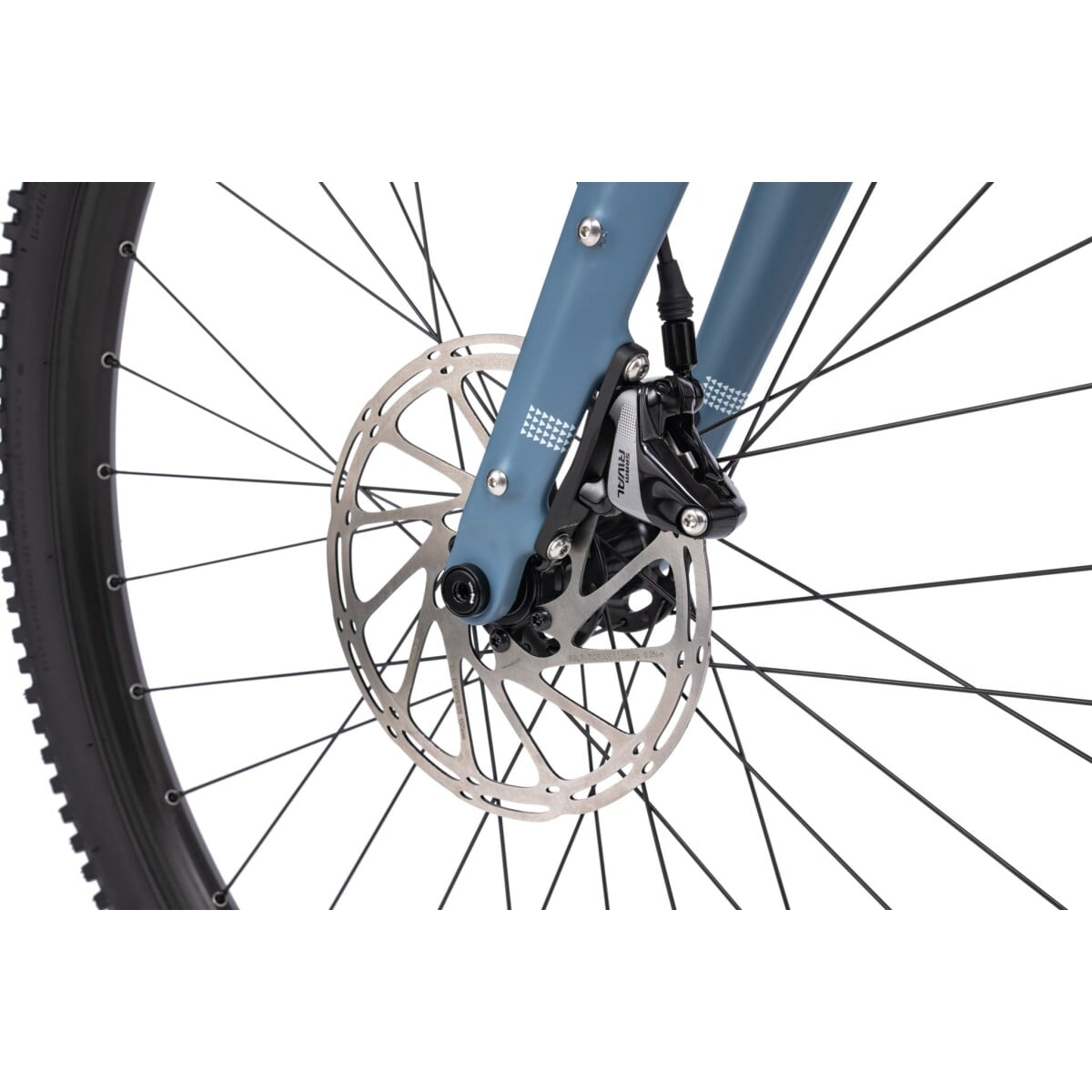

Brakes    Sram Apex flat mount hydraulic disc brakes
Rotor    Sram Centerline 180 mm front and 160 mm rear rotor

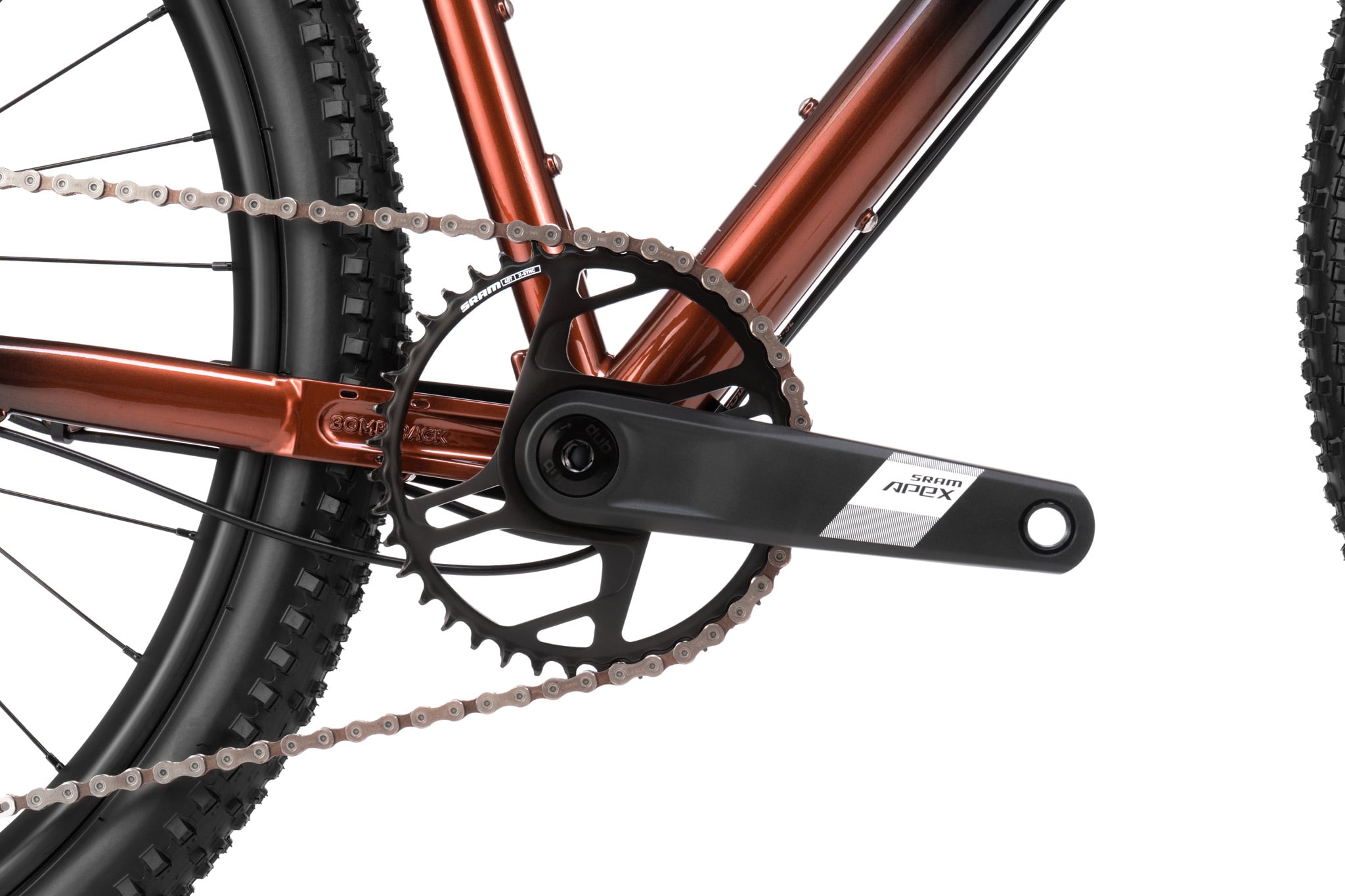

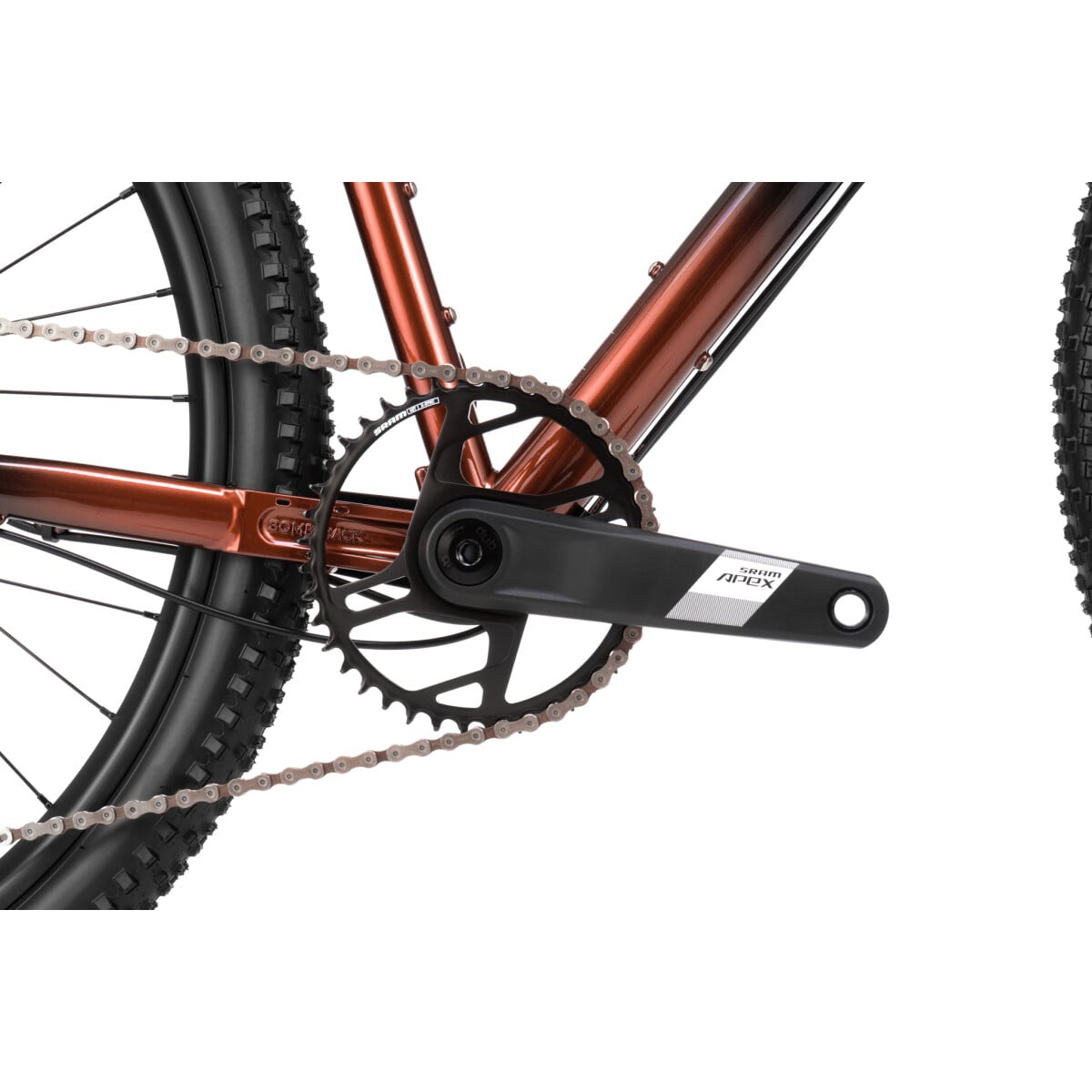

Crankset    Sram Apex Wide, DUB spindle
BB    Seido T47 Pro 85.5 mm for 30 mm spindle
Pedals    –
Chain    Sram Apex, flattop, 1/2” x 11/128”, 112L
Chainring    Sram Apex, 12-speed, 40 T

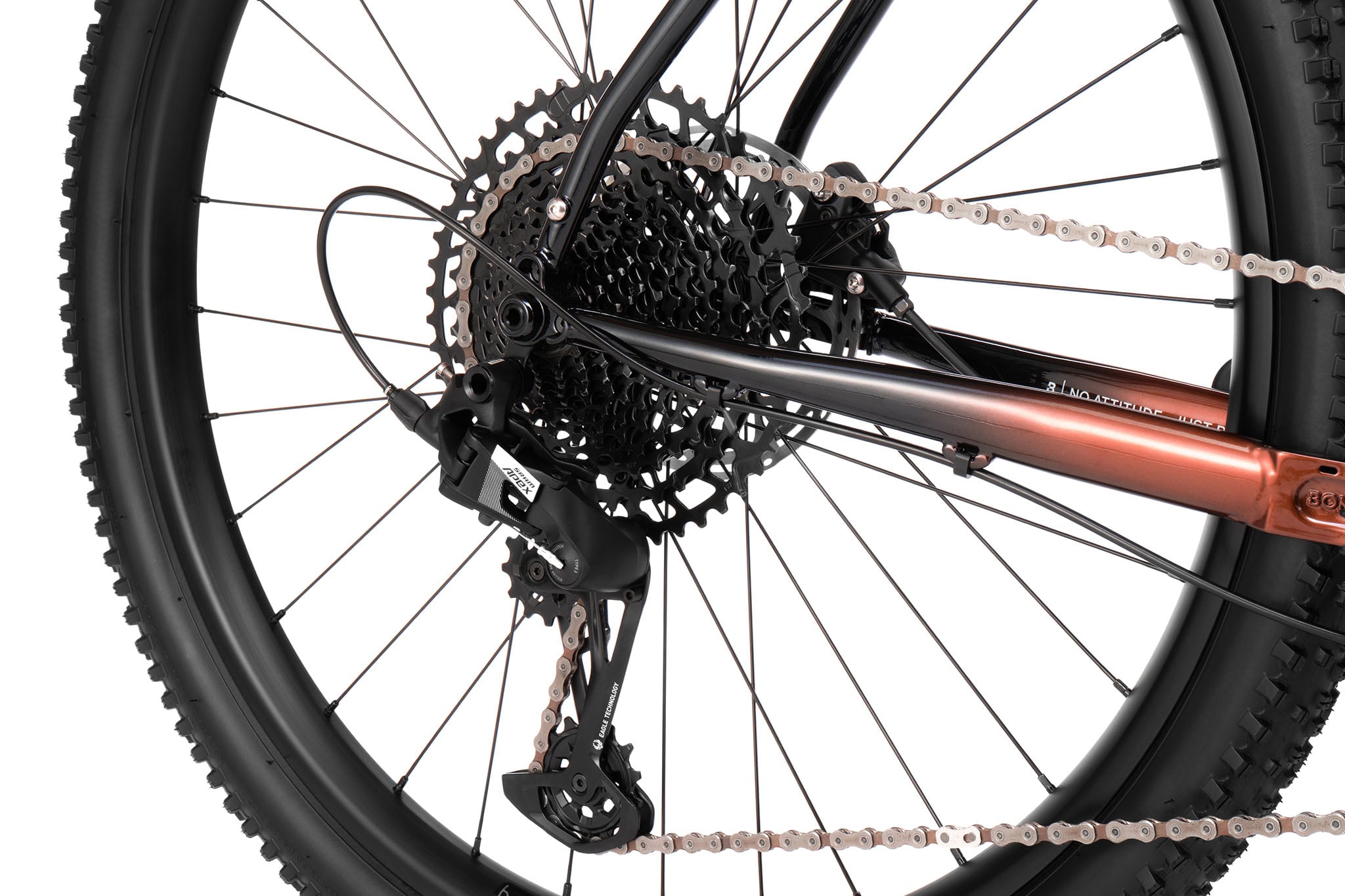

Cassette    Sram NX Eagle PG-1230 12-speed, 11 – 50 T
Front derailleur    –

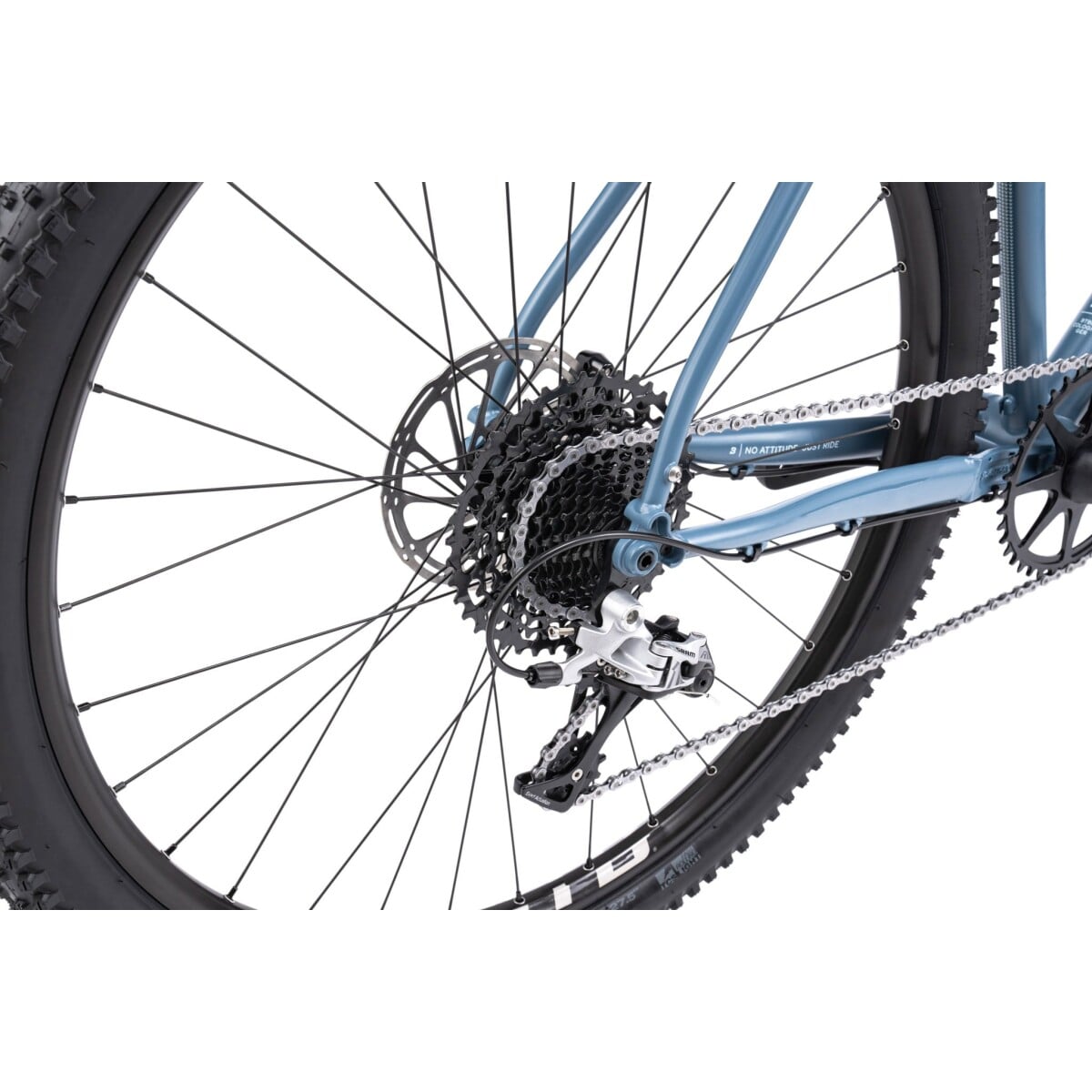

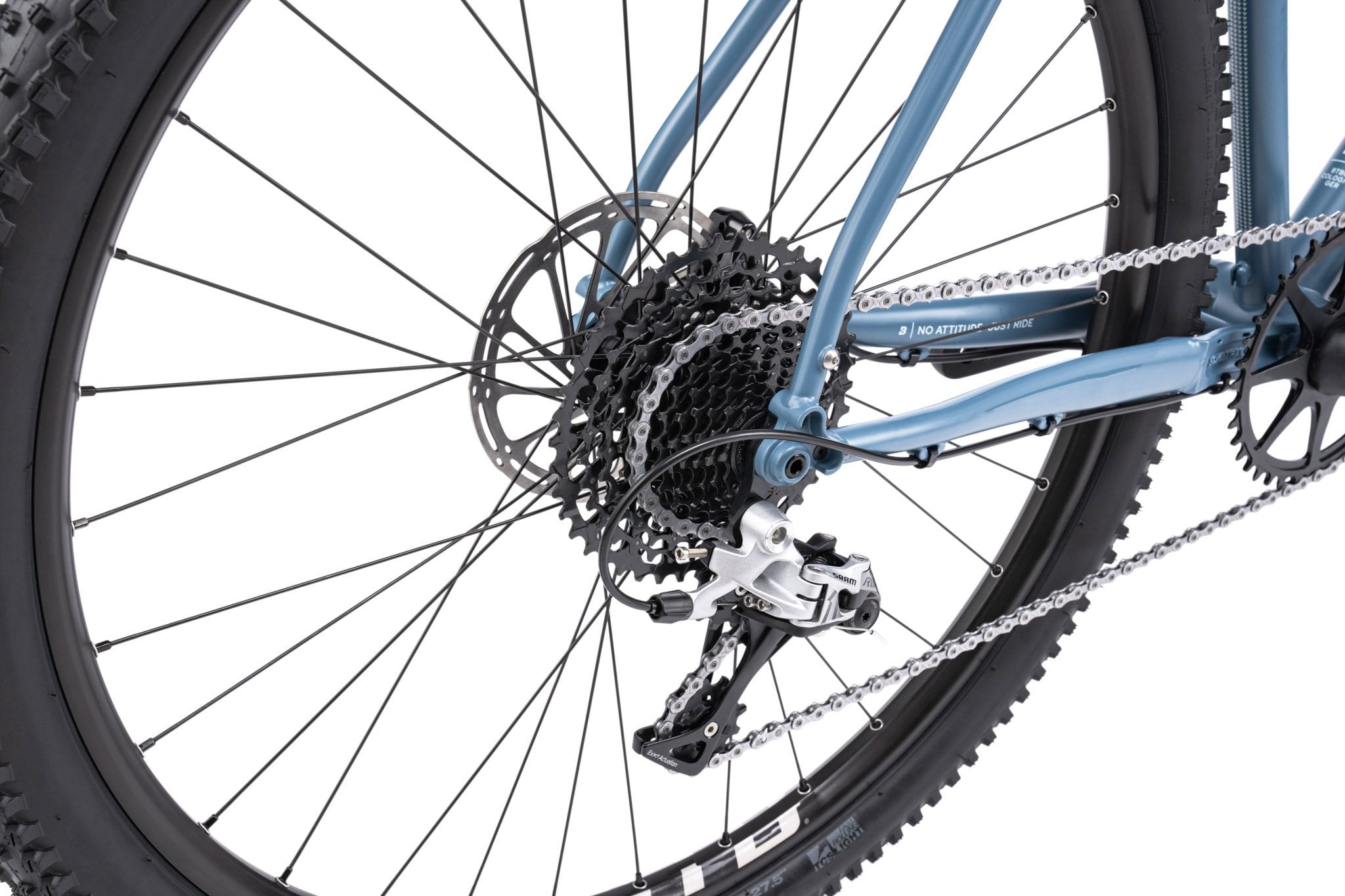

Rear derailleur    Sram Apex Eagle, clutch, long cage
Front hub    Seido Tau sealed hub, 6-bolt disc
Rear hub    Seido Tau sealed hub, HG driver, 6-bolt disc
Through axle    12 x 100 mm / 12 x 142 mm
Front rim    Seido Sinus i25 double wall asymmetric, tubeless ready, 32h
Rear rim    Seido Sinus i25 double wall asymmetric, tubeless ready, 32h

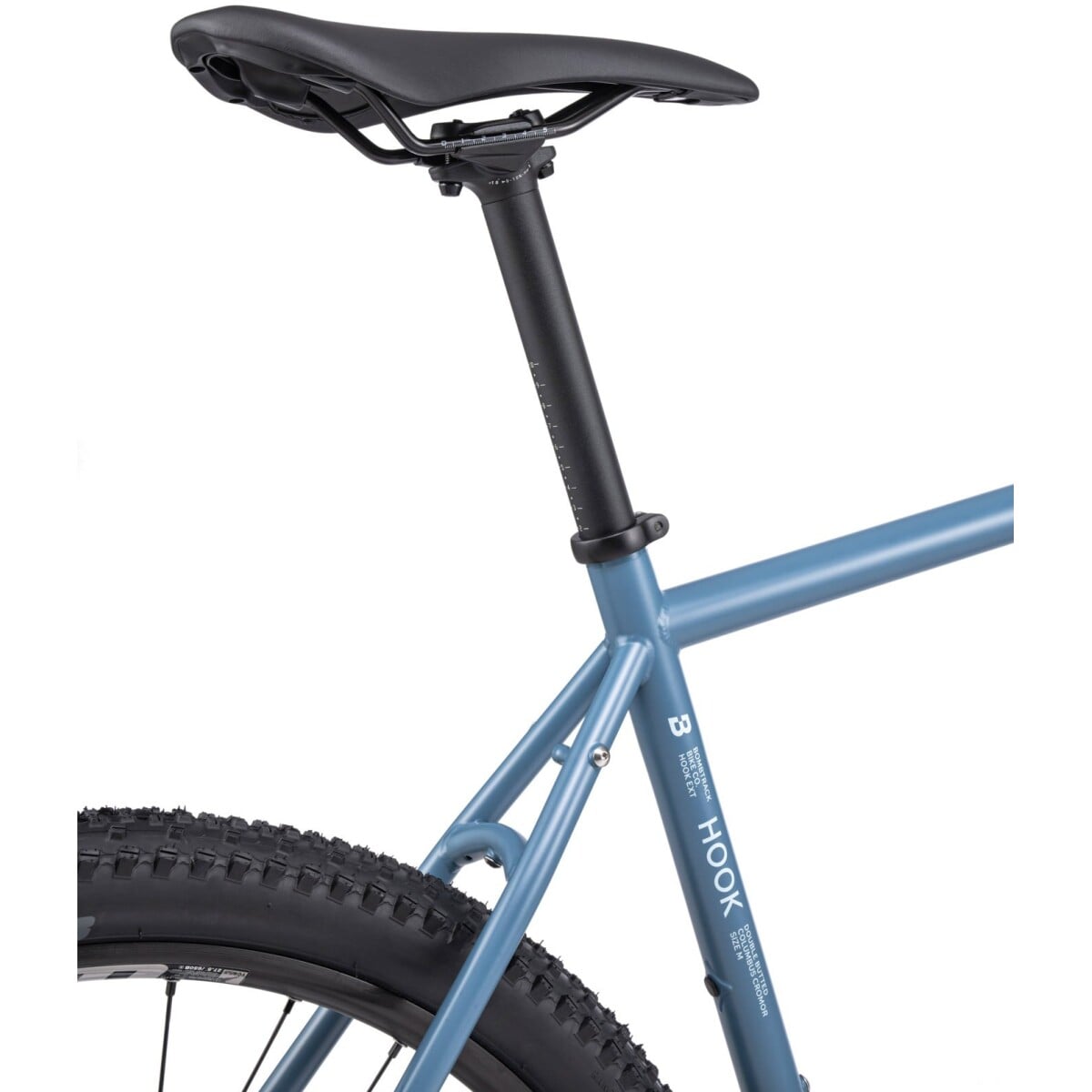

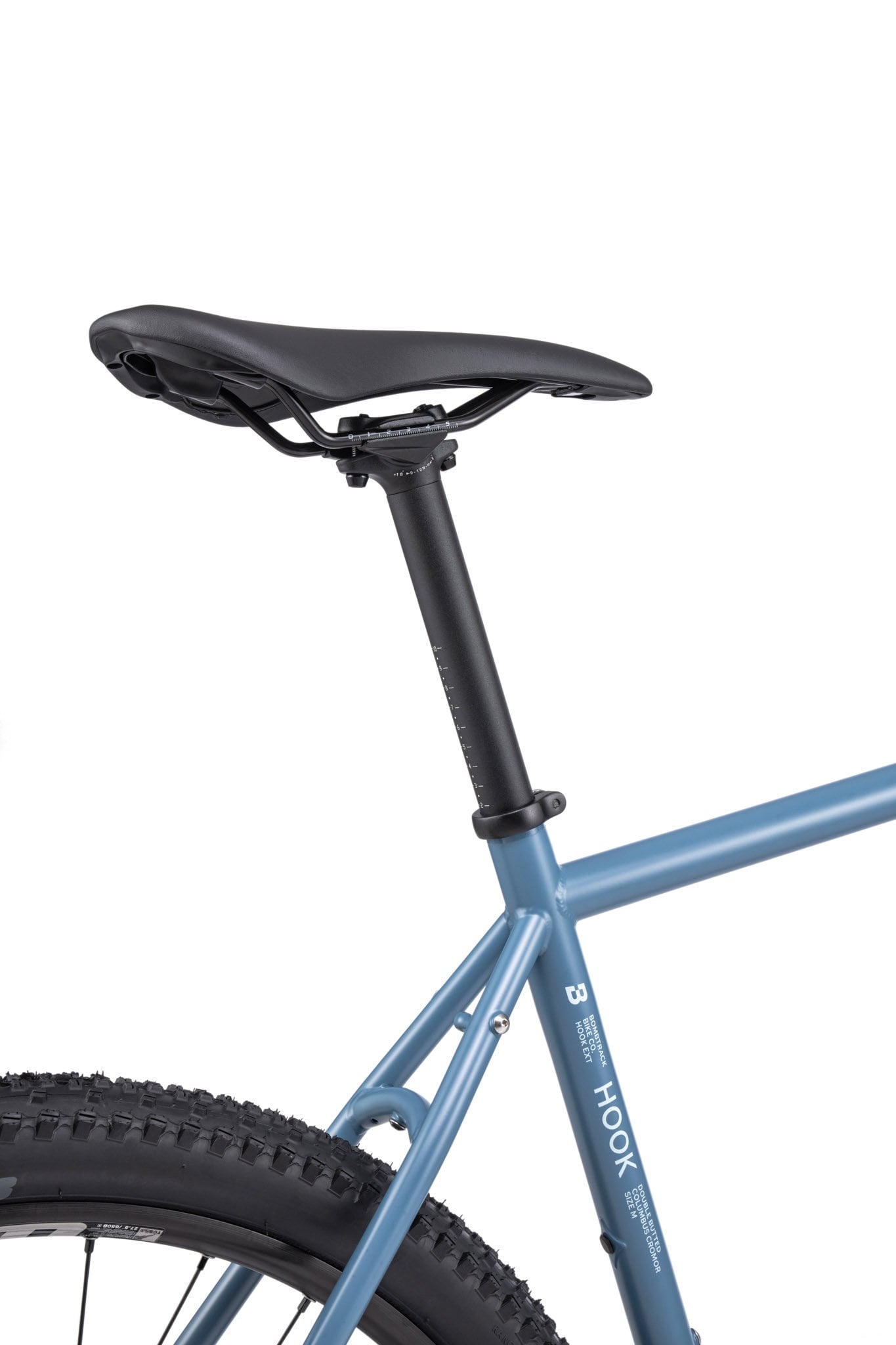

Saddle    Seido Comp saddle
Seat post    Seido Yew aluminium seatpost, 27.2 mm x 350 mm
Seat clamp    Bombtrack Prime 29.8 mm
Front tire    WTB Ranger TCS Light or WTB Sendero 47 (depends on the stock we get)
Rear tire    WTB Ranger TCS Lightor WTB Sendero 47 (depends on the stock we get)
Fender    –
Rack    –
Kickstand    –
Light    –
Weight    TBA
Weight frameset    2710 g frame (size L, incl. TA, hanger) / 550 g fork (300 mm steerer, incl. TA)
Maximum rider weight    130 kg incl. Luggage
ASTM riding condition    2

Build info

BB standard    T47 – 85.5 mm shell width
Headset standard (S.H.I.S.)    EC34 / 28.6 | EC44 / 40
Headset crown race angle    45°
Fork steerer inner diameter    23.6 mm
Fork max tire clearance w/o fender    650B x 57C / 700C x 57C
Frame max tire clearance w/o fender    650B x 52C / 700C x 40C
Maximum chainring clearance 1x    44 T with 45 mm chainline
Maximum chainring clearance 2x    50 / 36 T with 45 mm chainline
Seat post diameter    27.2 mm
Seat clamp diameter    29.8 mm
Front derailleur clamp diameter    28.6 mm
Frame front derailleur compatible    yes
Brake mount front    FM 160 / 180
Brake mount rear    FM 140 / 160
Frame thickness rear brake mount    10 mm
Maximum rotor clearance front    180 mm
Maximum rotor clearance rear    160 mm
Front through axle    12 mm x 100 mm, 1.5 thread pitch
Rear through axle    12 mm x 142 mm, 1.5 thread pitch
ISO testing standard    Road
Crankarm    XS 165 mm / S – M 170 mm / L – XL 175 mm
Q Factor    152 mm
BCD crank    Direct mount (Sram compatible)
Chainring offset    6 mm
Chainline    47.5 mm
Spoke length front wheel    tba
Spoke length rear wheel    tba
Spoke count (front / rear)    32 / 32
ERD    551 mm
Front hub PCD    58 mm
Rear hub PCD    58 mm
Front hub flange distance / offset    56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset    51 mm center to center / 8.8 mm
Stem length    XS – S 80 mm / M – 90 mm / L – XL 100 mm
Stem angle    -6°
Headset spacers    1 x 10 mm, 2 x 5 mm
Seat post offset    0 mm
Seat post length    350 mm
Bike trailer    approved
Seat tube mounted child seat    approved
Derailleur hanger    BT-DH-008
Frame small parts    BT-CR-007 / BT-CR-006
Hub end caps front    BT-HC-014
Hub end caps rear    BT-HC-017
Cassette body    BT-CB-006
Crankarm bolt    BT-CRP-002
Through axle front    BT-TA-F-601
Through axle rear    BT-TA-R-602
