Hellbender 70 Precision – Quality – Value
Machined from 6061 T-6 aluminum with a bright-dip black anodized finish, and features a low-friction upper bearing seal and a double-lip lower bearing seal that combine to completely seal cups from external contaminants – delivering exceptional durability and reliability previously limited to our premium 110 series.
The Hellbender 70 also includes our premium stainless steel Hellbender bearing – specifically designed and tested to withstand heavy-duty use and extreme environmental conditions.

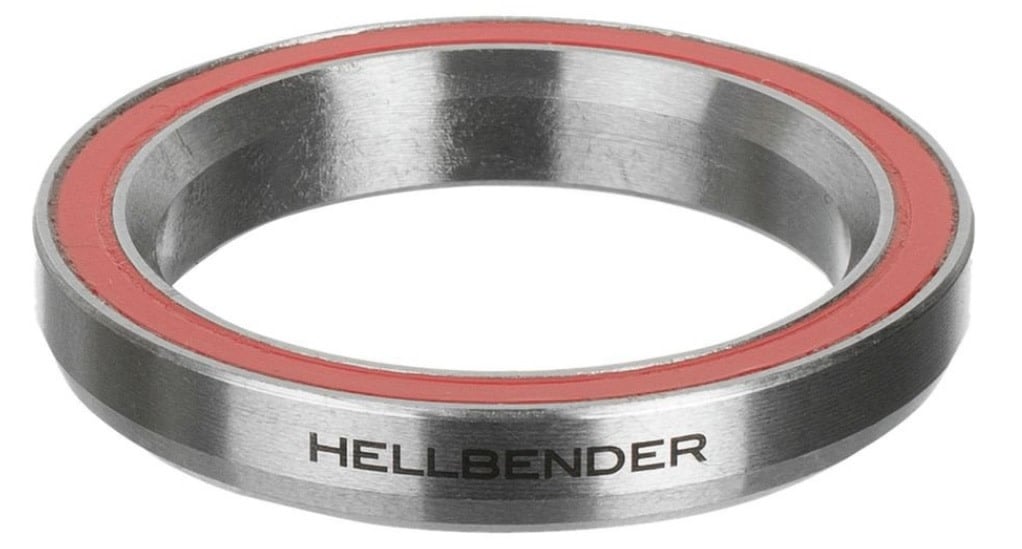

Hellbender Bearings
The Hellbender bearings are built to live in the most extreme conditions, keeping you riding smoothly through rain, mud, grit or whatever the road and trail throws at you. Using Stainless Steel bearings and advanced sealing elements.
Interlok® Spacer Compatible
Our patented Interlok spacer design provides solid interface between the top cover and spacer stack, meaning they “nest” together and into the top of the bearing cover, which helps minimize shifting under load while riding; and shave 25% in weight off a standard alloy spacer stack.
Cups and Covers
6061 T-6 Aluminum, Internally contoured and relieved to minimize weight and maximize strength
Covers
Low-friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts
Crown Race
Alloy Dual-Seal crown race provides excellent seal efficiency with low friction
Bearings
Premium, sealed stainless-steel HELLBENDER bearings
ZS44 will take a 41mm bearing
EC44 will take a 52mm bearing
ZS56 will take a 52mm bearing
IS41 will take a 41mm bearing
IS42 will take a 42mm bearing
IS52 will take a 52mm bearing
All complete Cane Creek Hellbender 70 headset assemblies (top or bottom) will use a 36×45 degree contact angle bearing.
Interlok®
Interlok® spacer compatible
Color and Finish
Bright – Dip anodized Black finish
Warranty
2 years
Stack Heights
External Cup (EC) — 12mm bottom, ZeroStack (ZS) — 8mm top, 4mm bottom, Integrated (IS) — 9mm top, 1mm bottom
