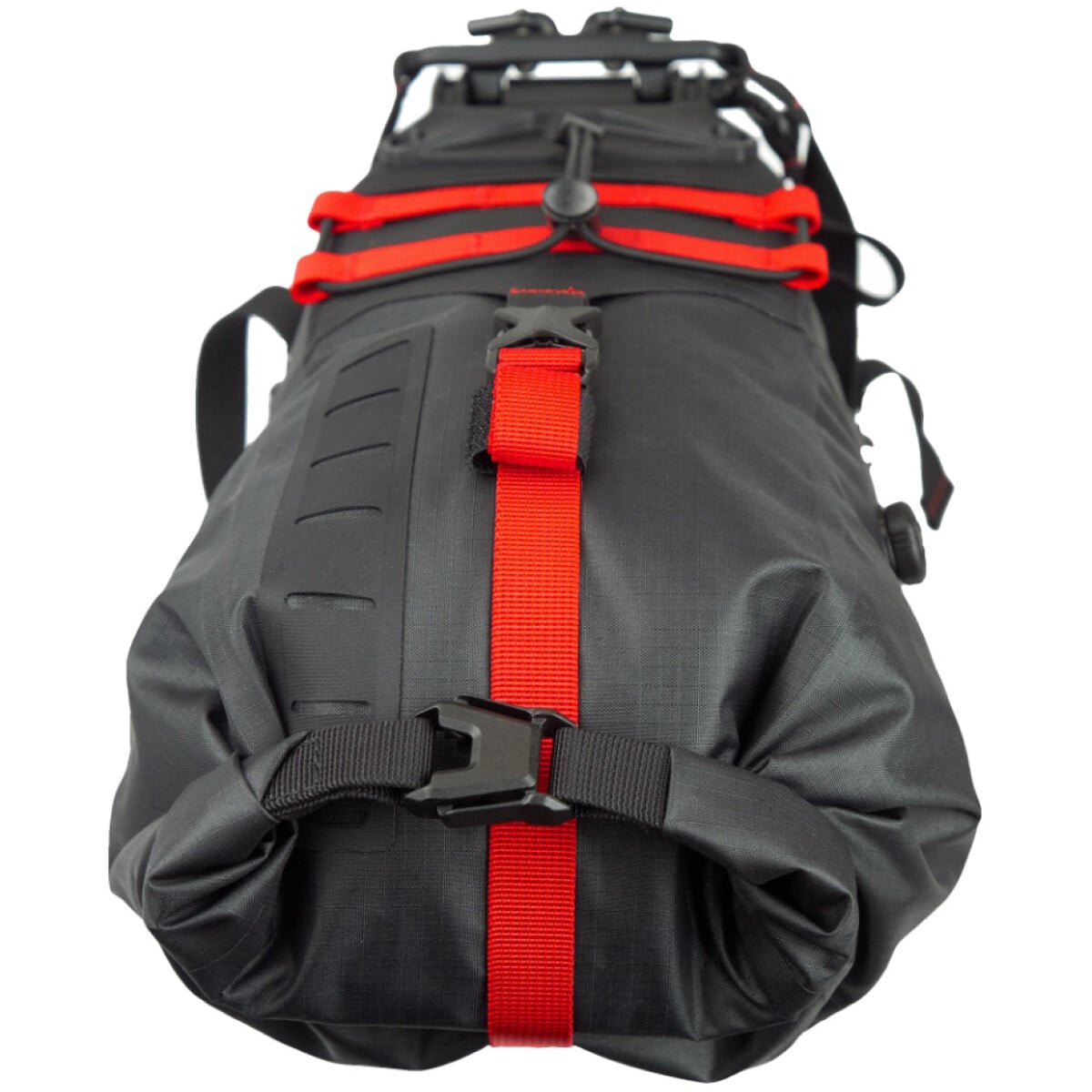

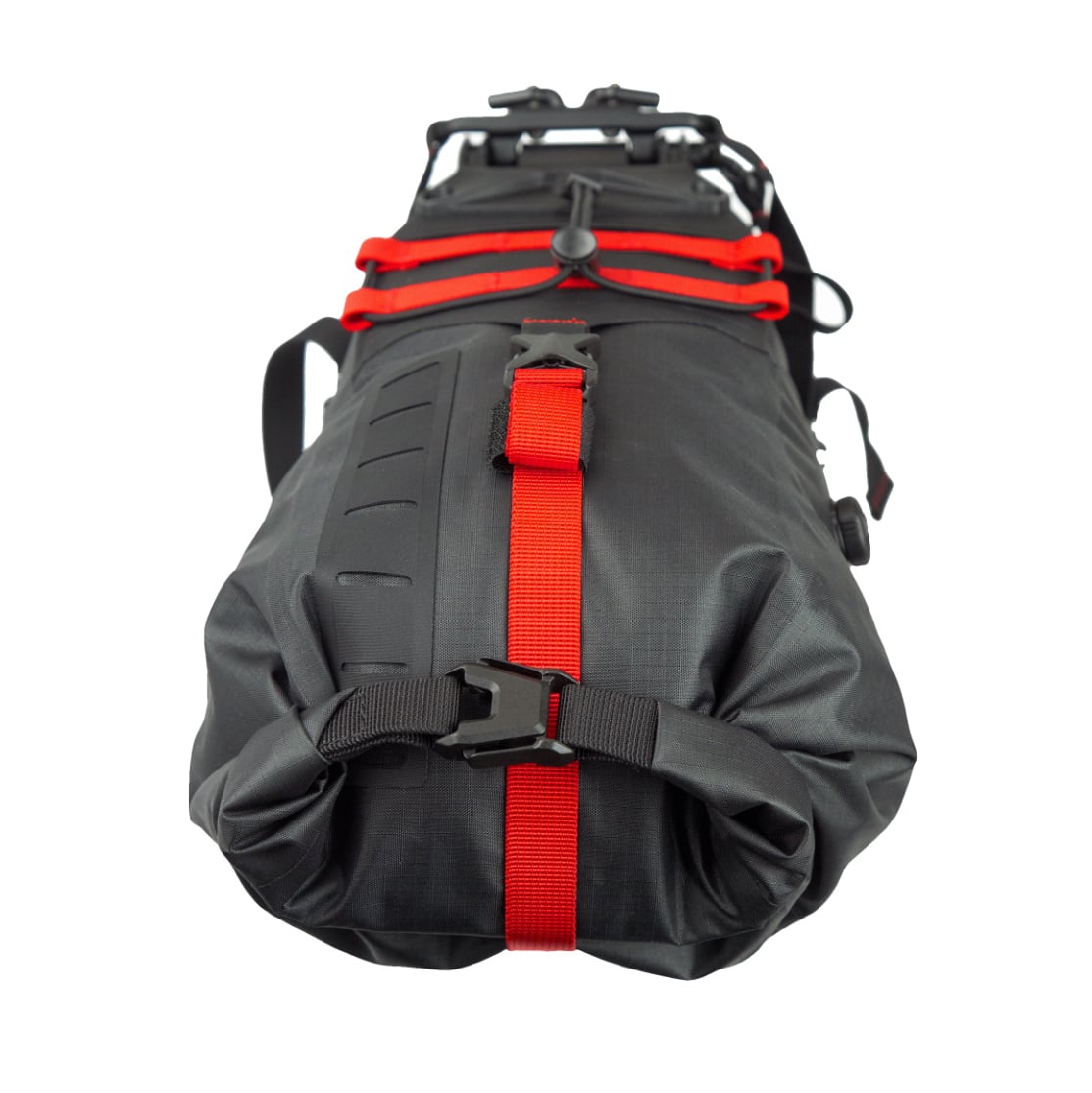

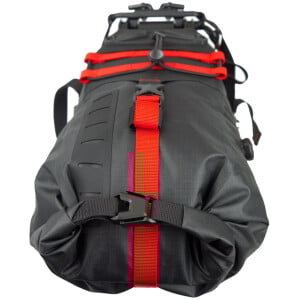

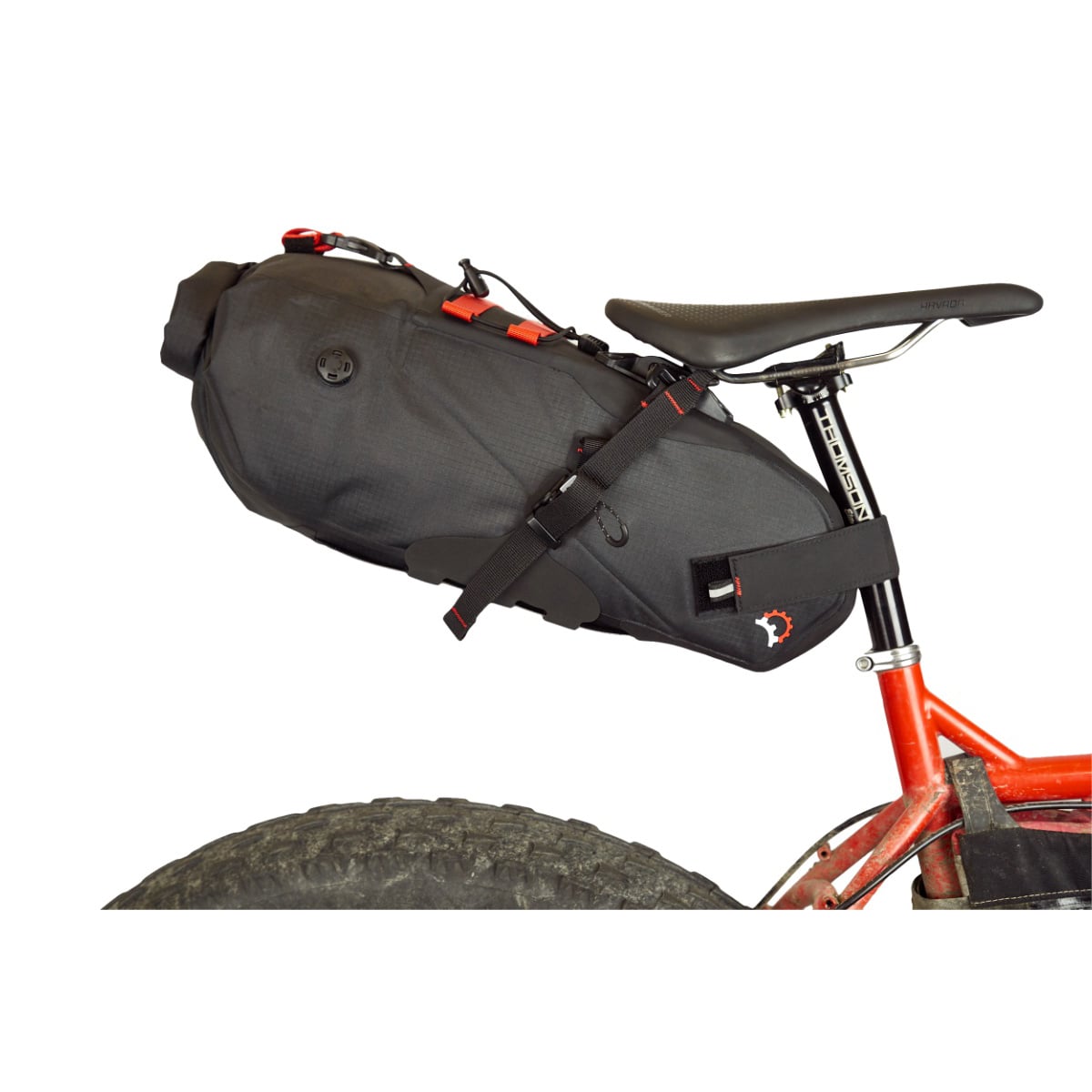

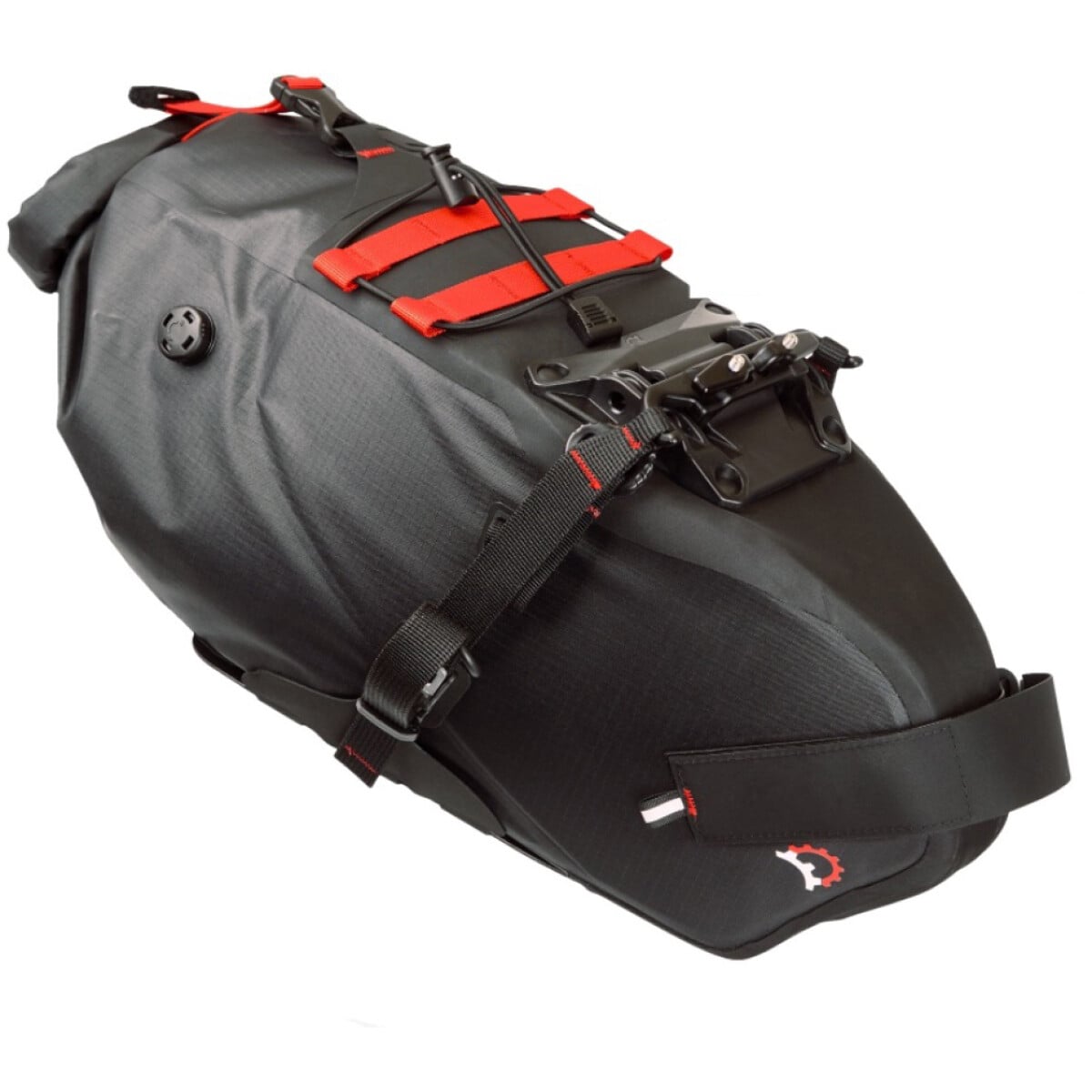

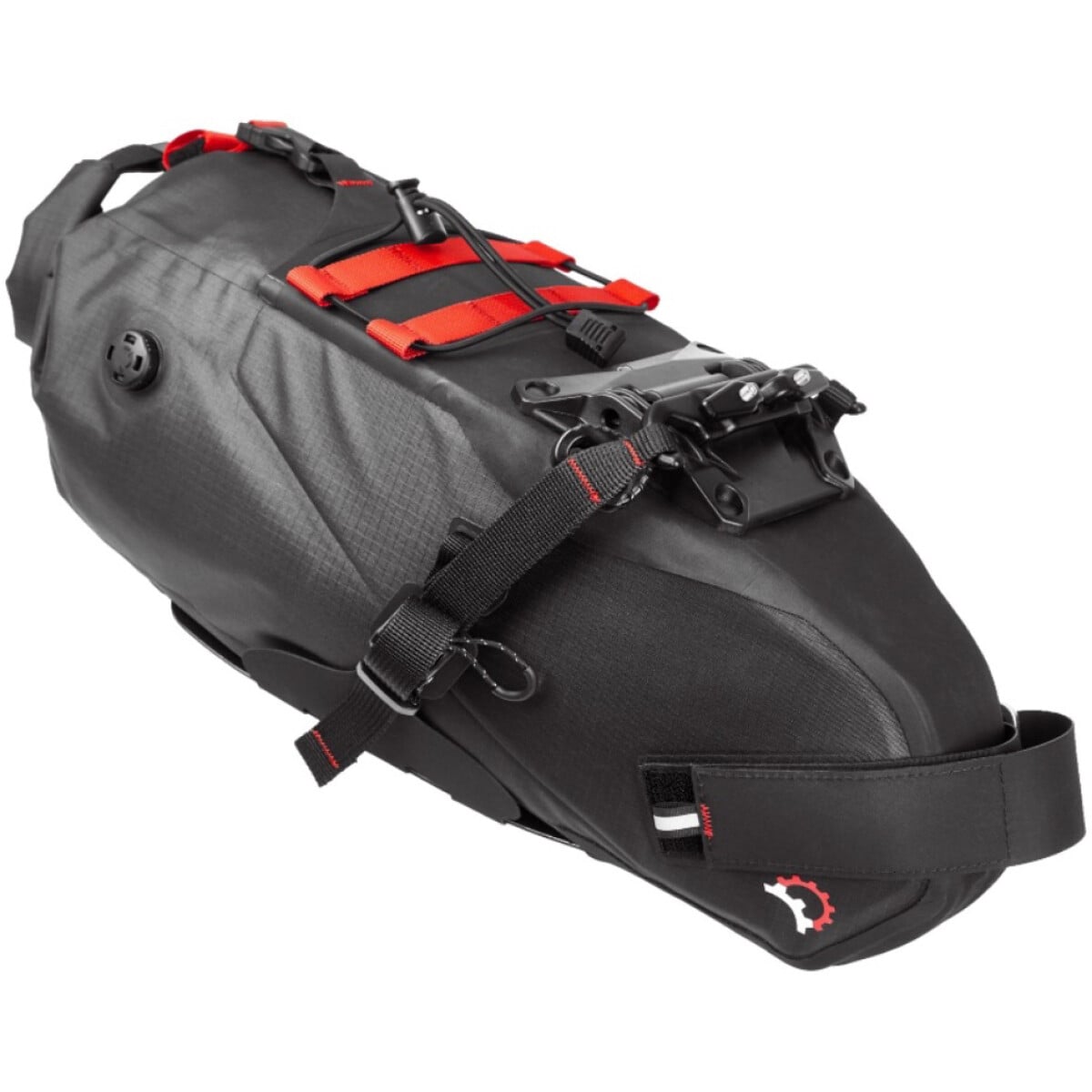

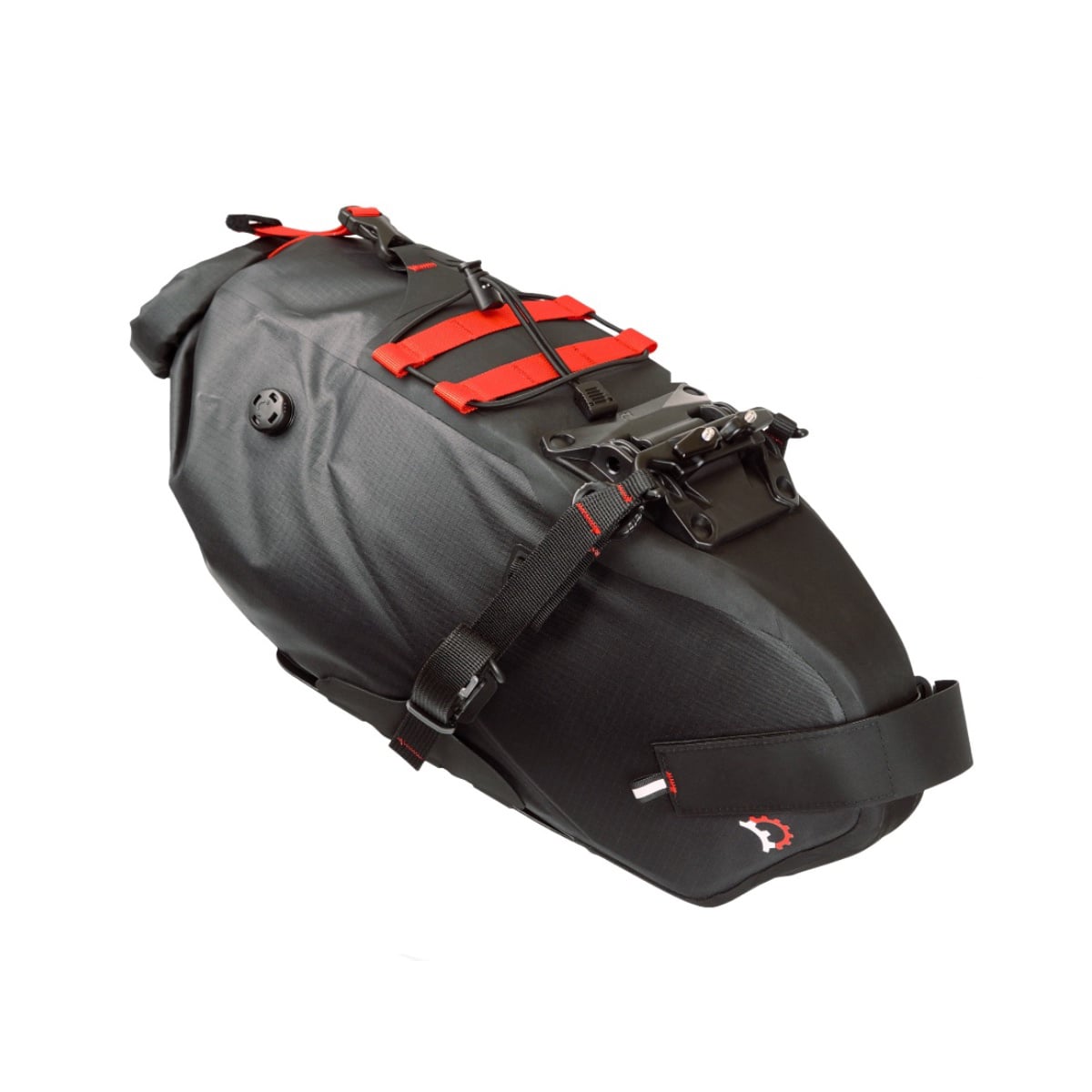

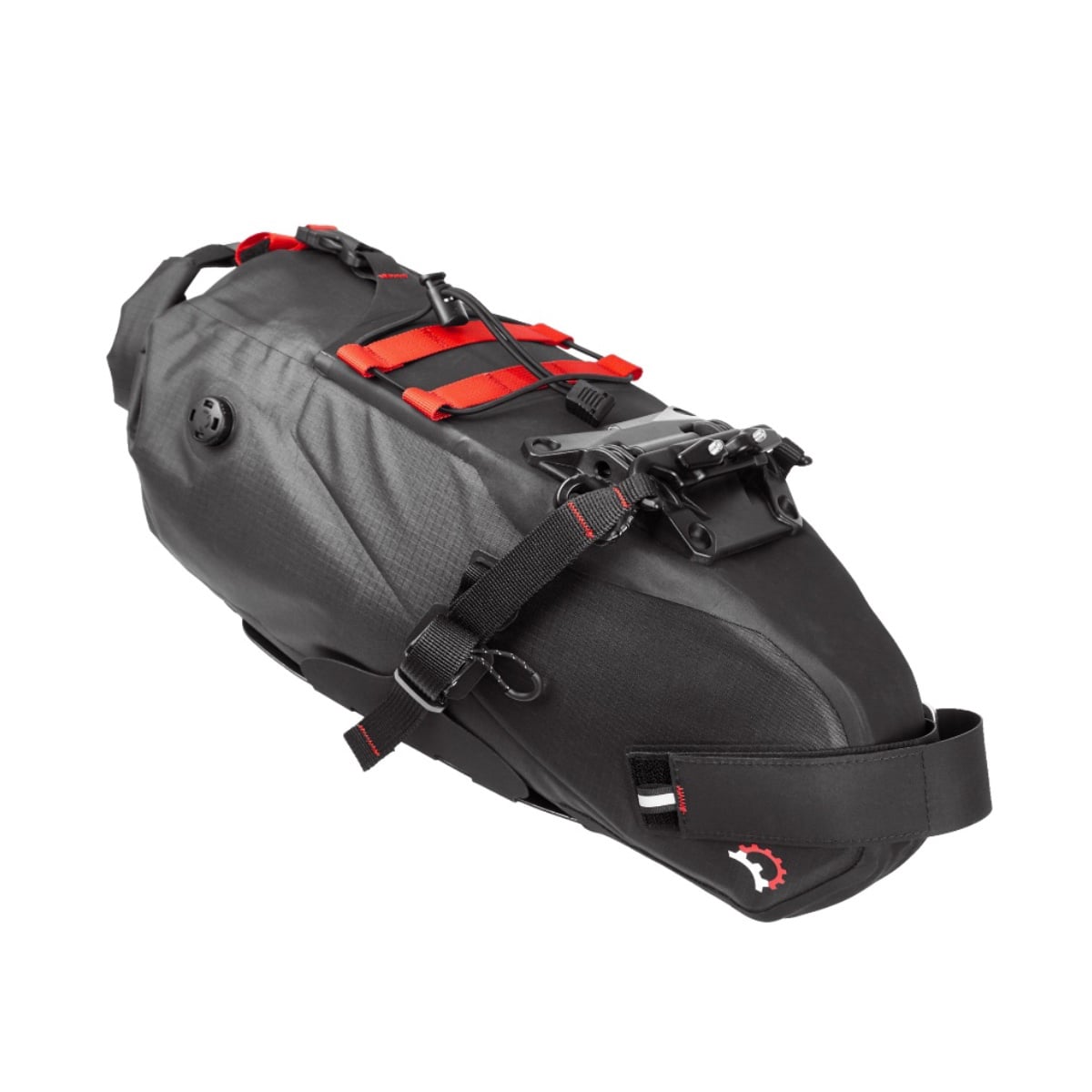

Revelate Designs Spinelock Saddlebag

$330.00

Revelate Designs set out to create the most stable, low profile mounted, feature loaded, waterproof seat bag available.

The Spinelock integrates user tested and approved features like a one-way air purge valve, rear light slots, loop and bungee deck, and an external plastic bottom with a new patented attachment system. Stability was the driving element in the design process. If you want something you can pack and forget, the Spinelock is your seat bag.

Details:

Innovative Spinelock stability system completely eliminates side to side sway
Waterproof construction
Two mounting positions to accommodate seatpost setback and saddle adjustments.
A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form a quick-release pin interface making bag removal a cinch.
Quick release bag from bike
Internal HDPE plastic structure

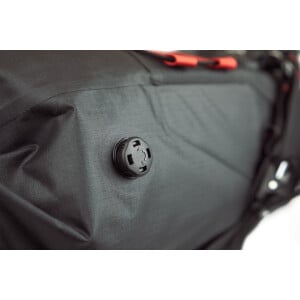

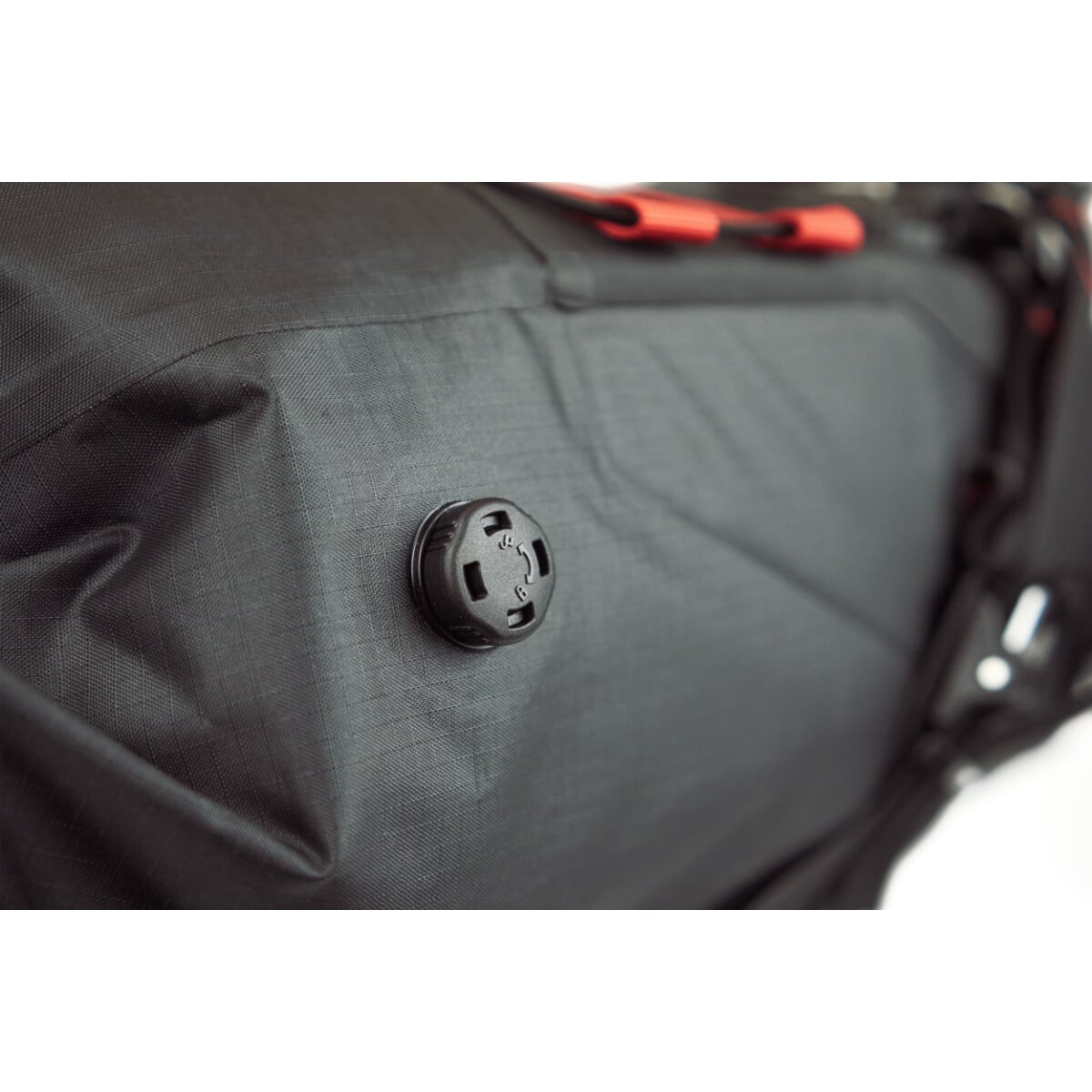

One way, low profile, air purge valve
Carbon seatpost friendly
Hypalon slots for a rear light
Top mounted external webbing and bungee for additional storage

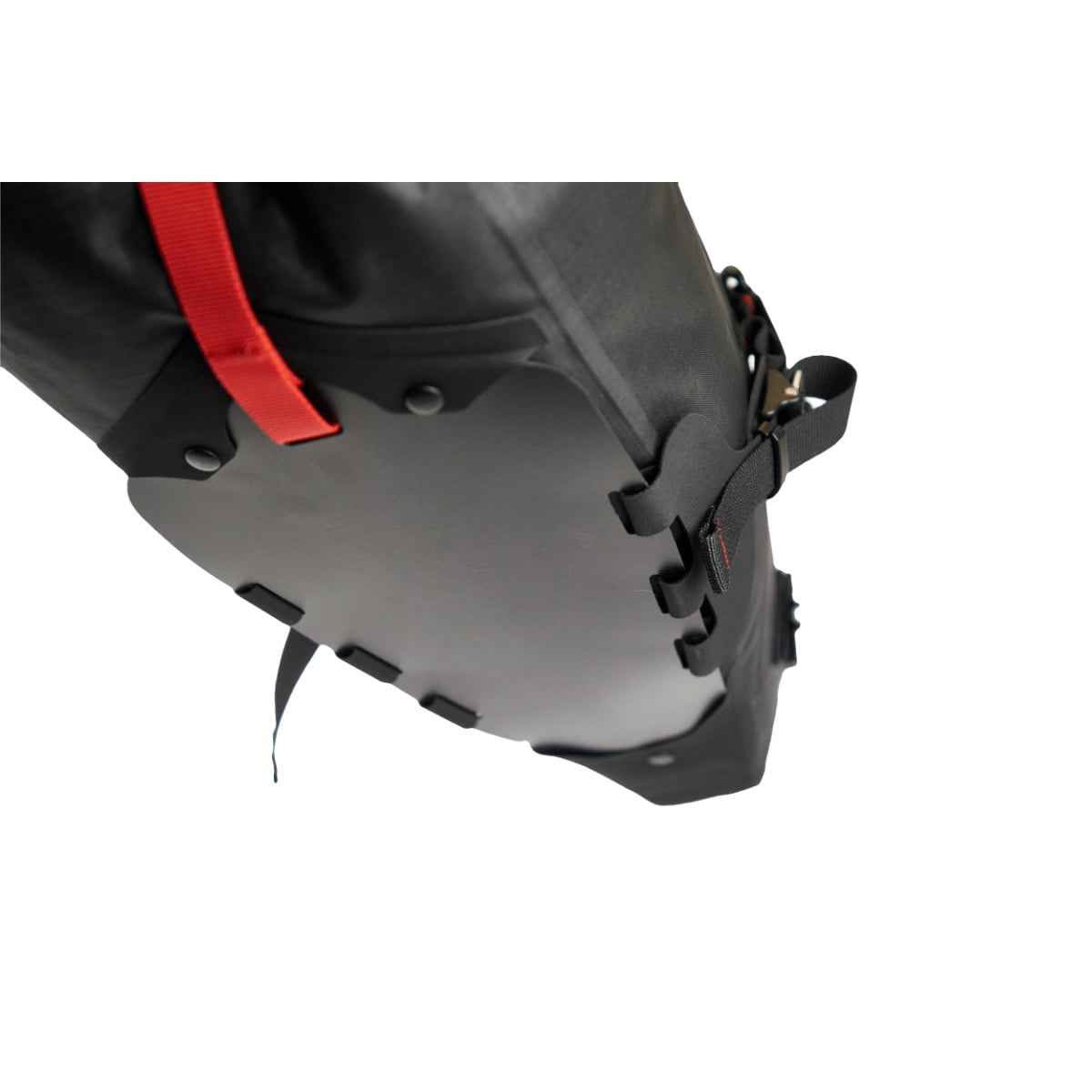

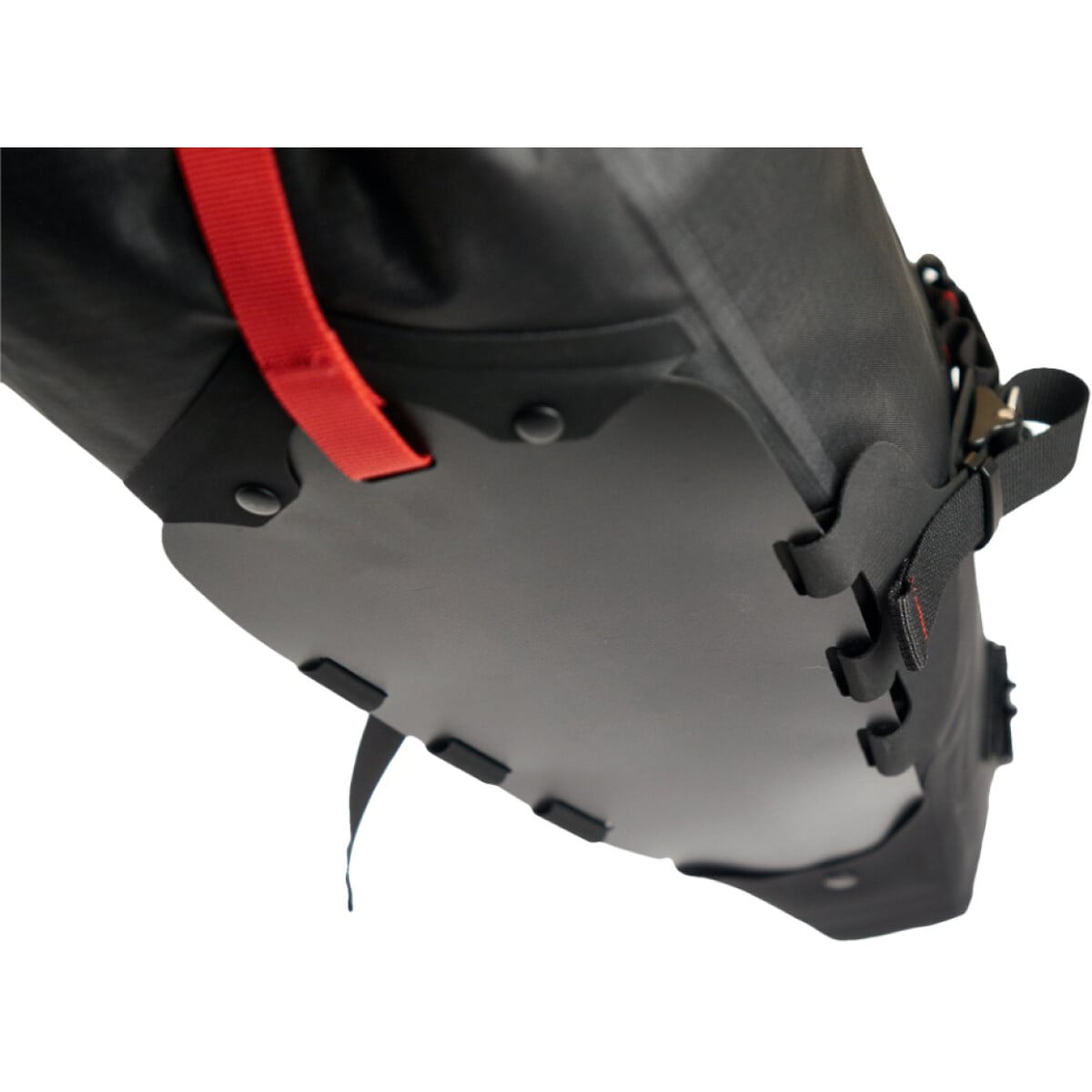

Protective external plastic bottom frame sheet
Active cam buckles prevent side straps from slipping on rough terrain.

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Please make a selection below:

Size: No selection

More options

Clear selection

Hi, You’ve found a product that isn’t currently stocked, but we can endeavour to Special Order it for you. Availability and lead times vary depending on the Manufacturer and/or Distributor.

Please note that once confirmed, Special Orders require a 50% deposit and are not eligible for change of mind returns or exchanges.

If you would like to Special Order this item, please fill in the form below. If the item is available within your timeframe, we will send you a Work Order directly from our Point of Sale System. The Work Order will include the ETA and bank account details for paying a 50% deposit if you would like to proceed with the Special Order.

Your name(Required)

Your email(Required)

Phone number(Required)

Do you need the item shipped to you?(Required)

No, I can pick it up

Yes, I need it shipped

Shipping Address(Required)

Street Address Address Line 2 Suburb State Post Code Country

Item Description(Required)

Please include all spec details. e.g. size, colour, hole count, etc as appropriate.

Timeframe(Required)

How quickly do you require the item (after paying a deposit)

Within 2 weeks

2 to 4 weeks

1 to 2 months

Anything else we should know?

(for instance, would you like us to install the item)

Are you of robotic origin?

Add to wishlist

This is a bulky item. It is not eligible for free shipping.

Same day dispatch if ordered before 1pm AEST.

We ship Australia & New Zealand wide.

Show Shipping Info & Calculator Hide Shipping Info & Calculator

Click & Collect

Click and collect orders with available in-store stock are normally ready within a few business hours.

Pickup at: 14 Prentice St, Brunswick Victoria.
We're open: M-F 9am-5pm, SAT 10am-4pm

Shipping & Delivery

This product fits in a Large Satchel (1-3kg vol. weight)

View our shipping info page.

Payment Methods

We accept Debit and Credit Cards

Apple and Google Pay

Paypal and Paypal Pay in 4

Specifications:

Weight (g): 10L: 638 | 16L: 680
Volume (L): 10L: 10 | 16L: 16
Materials: 210 Denier Ripstop Nylon with dual coated TPU, urethane based Hypalon reinforcement fabric, UV-stabilized, impact resistant nylon resin, forged aluminum.

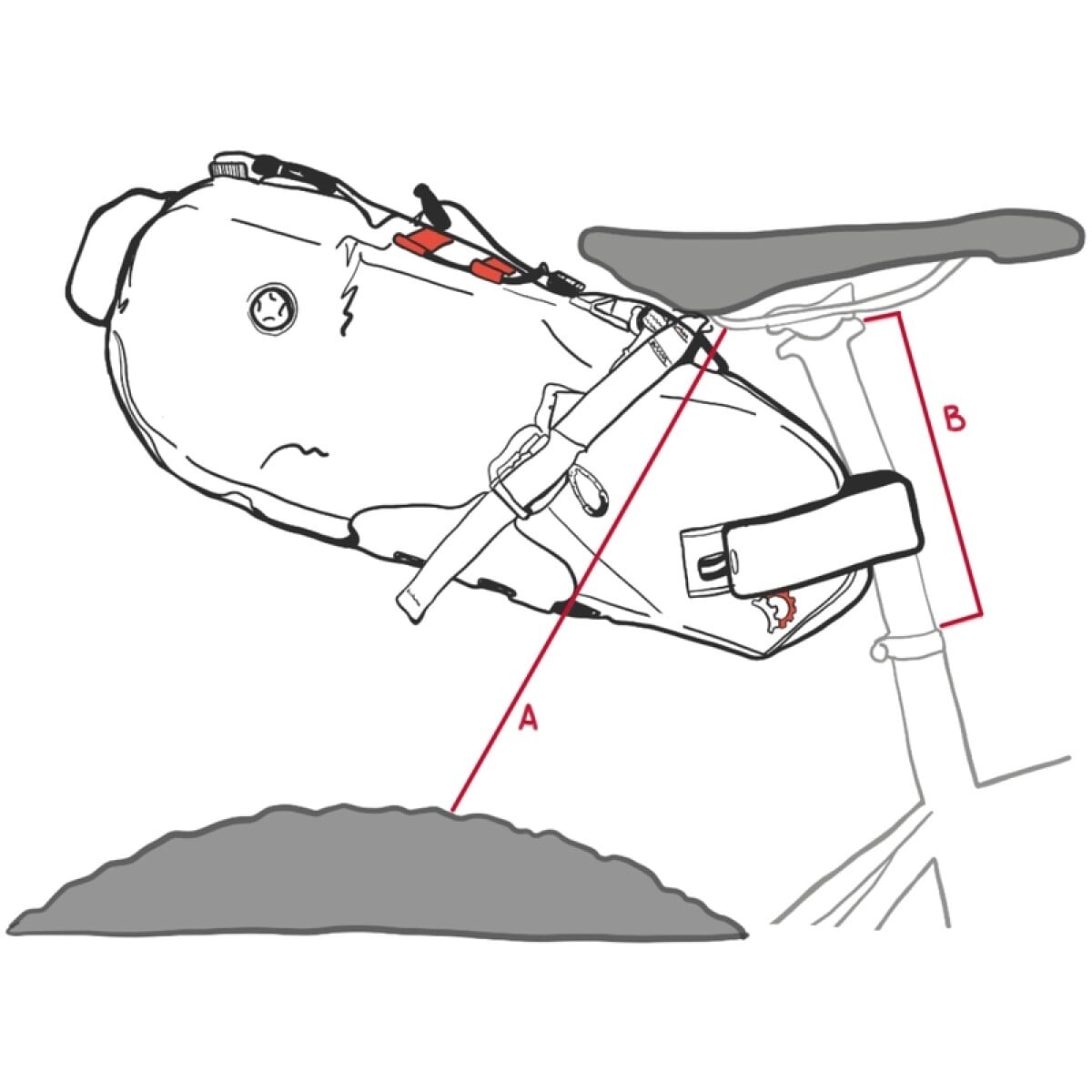

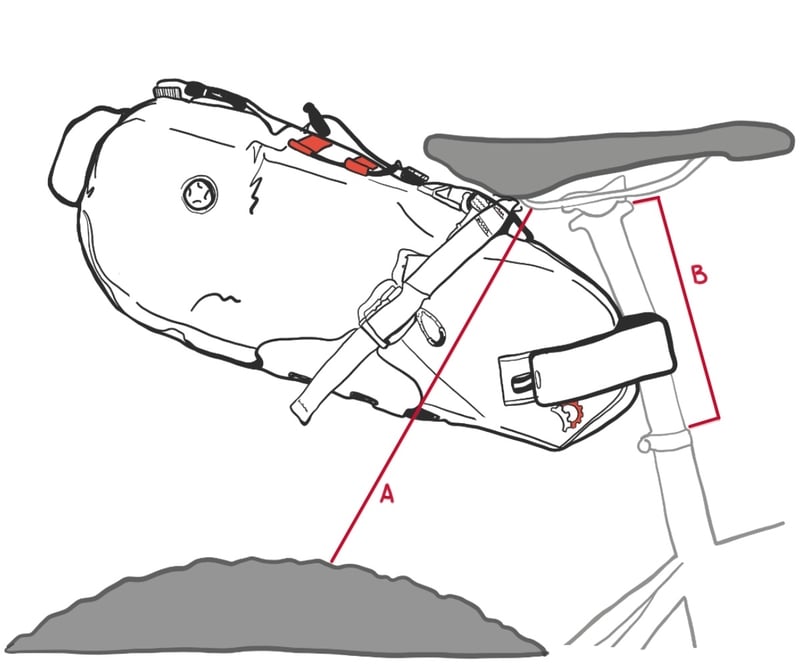

Minimum 9.5 in / 24 cm tire clearance (Shown as A)
Minimum exposed seat post 6.5 in / 16.4 cm (Shown as B)
Traditional saddle style rails are required.
Does not work with most Brooks saddles.

Important information on use and fit:

Not compatible with carbon fiber saddle rails
Only compatible with traditional style saddle rails and is not compatible with most models of Brooks saddles including (B17, B66, B67, Flyer, and similar).
This product is not designed for use with dropper seatposts.
This bag is for carrying soft, pliable objects. Sufficiently pad any hard edge objects like cookware to prevent premature wear.
It is mandatory to check tire clearance prior to use, especially with full suspension bikes. Bag contact with a tire can cause a bad wreck and ruin your day. Tire damage to the bag is not covered by warranty.
A Torx-25 wrench is needed for installation. You likely already have one on your multi-tool!
