Tech Specs
Frame
Materialheat-treated, triple-butted Ritchey Logic steel tubing – TIG welded

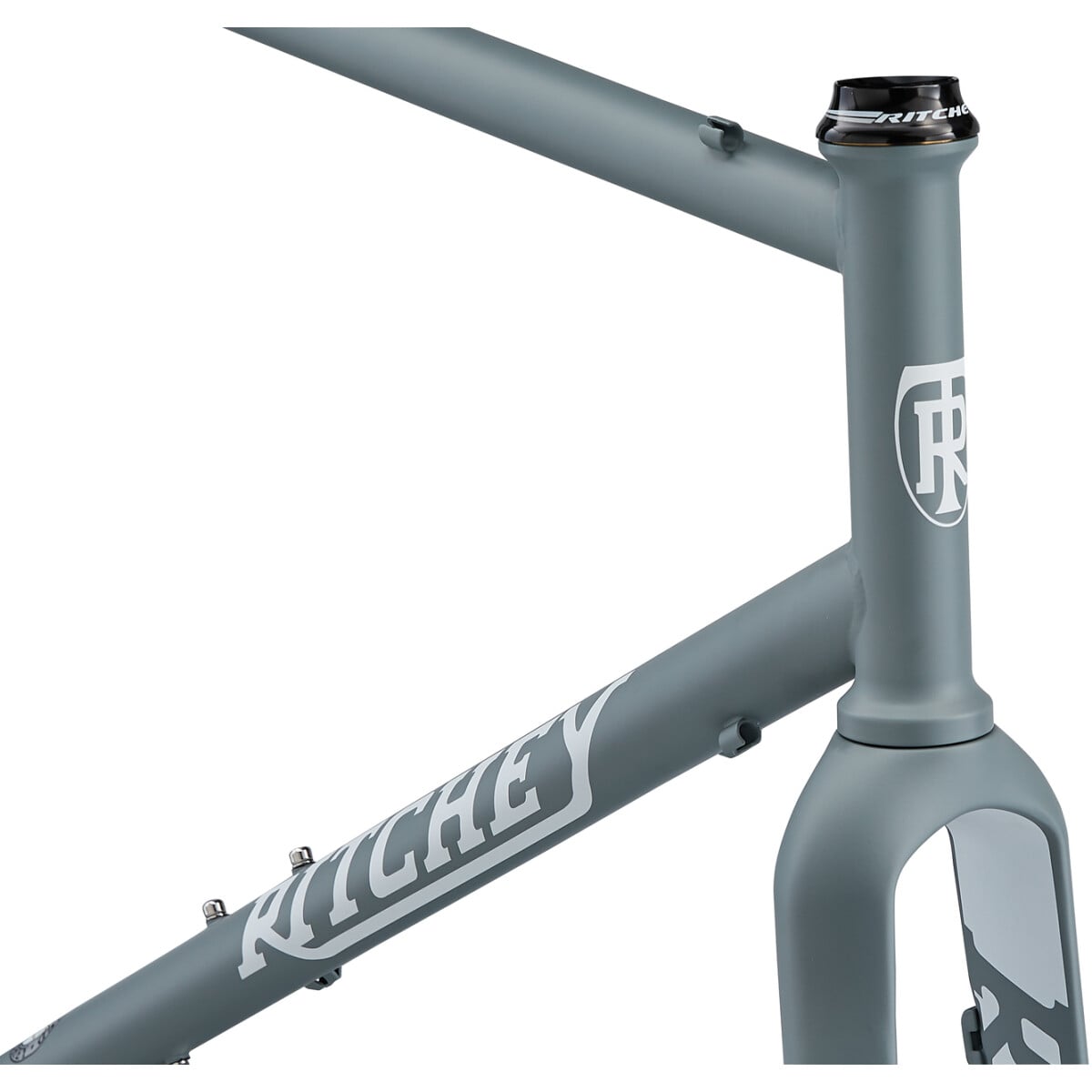

Ultra-light forged and machined straight 1-1/8″ headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size 28.6mm (2.5Nm max for derailleur clamps and chain guides)
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)

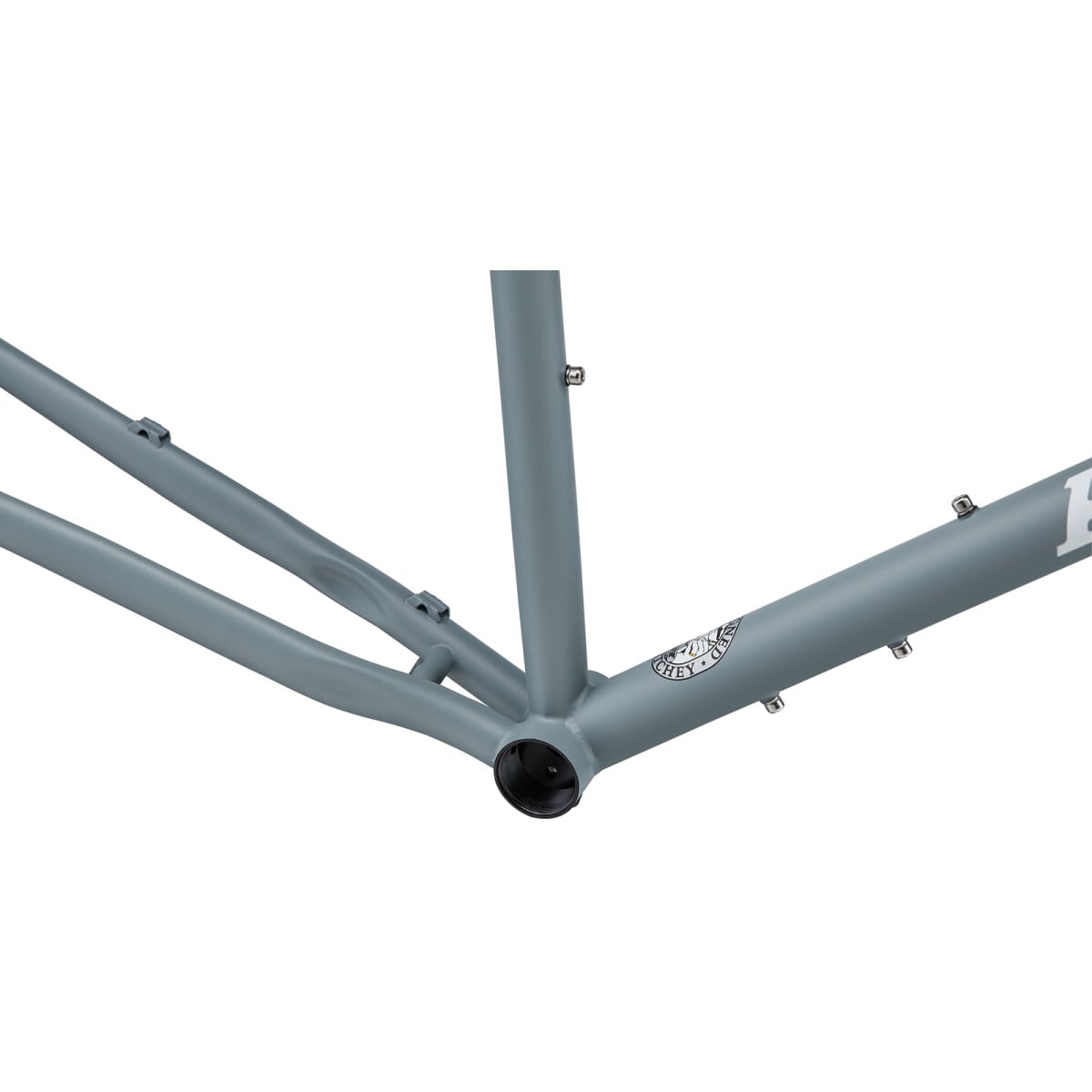

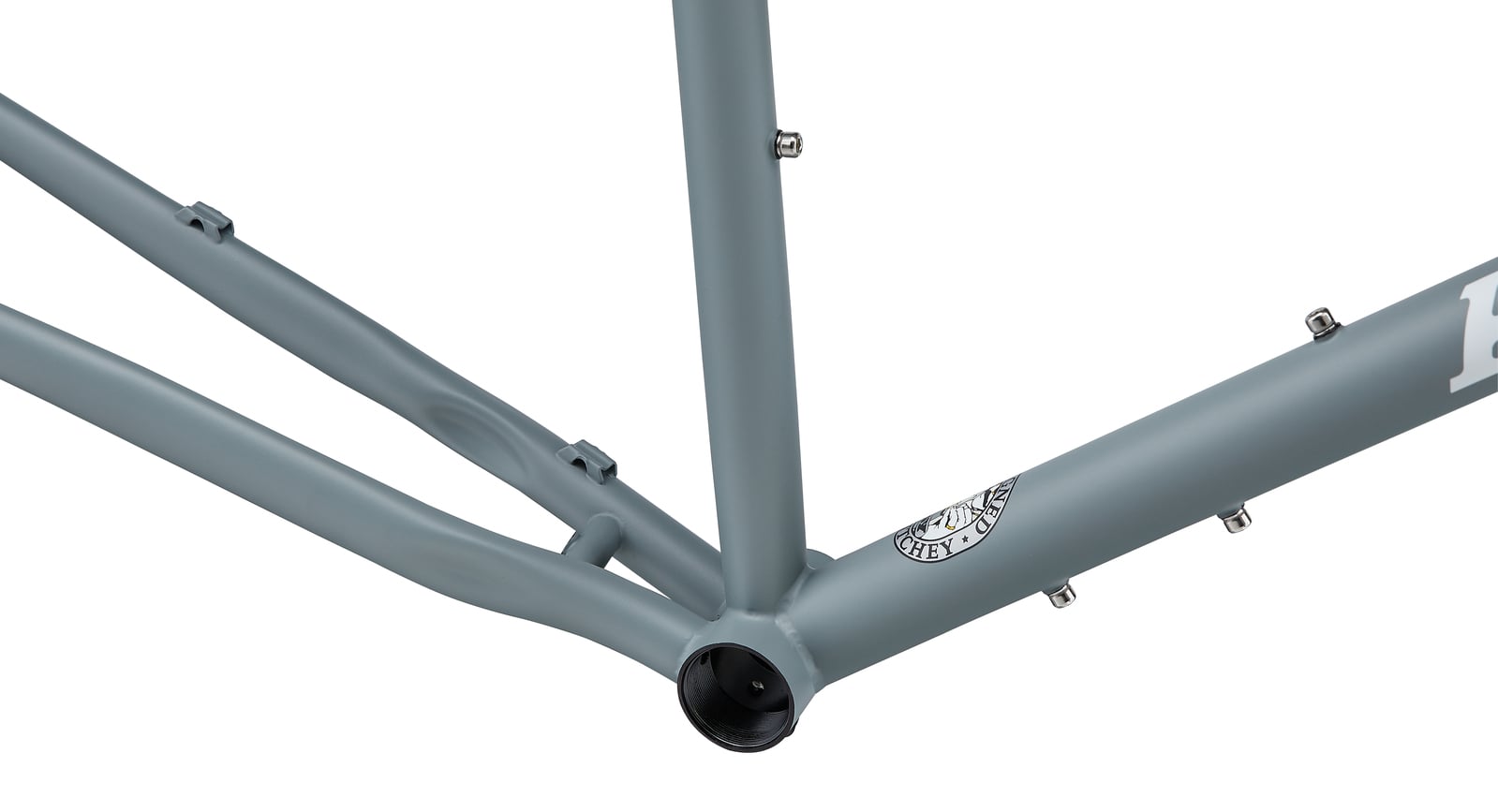

Bottom bracket 68mm – English threaded

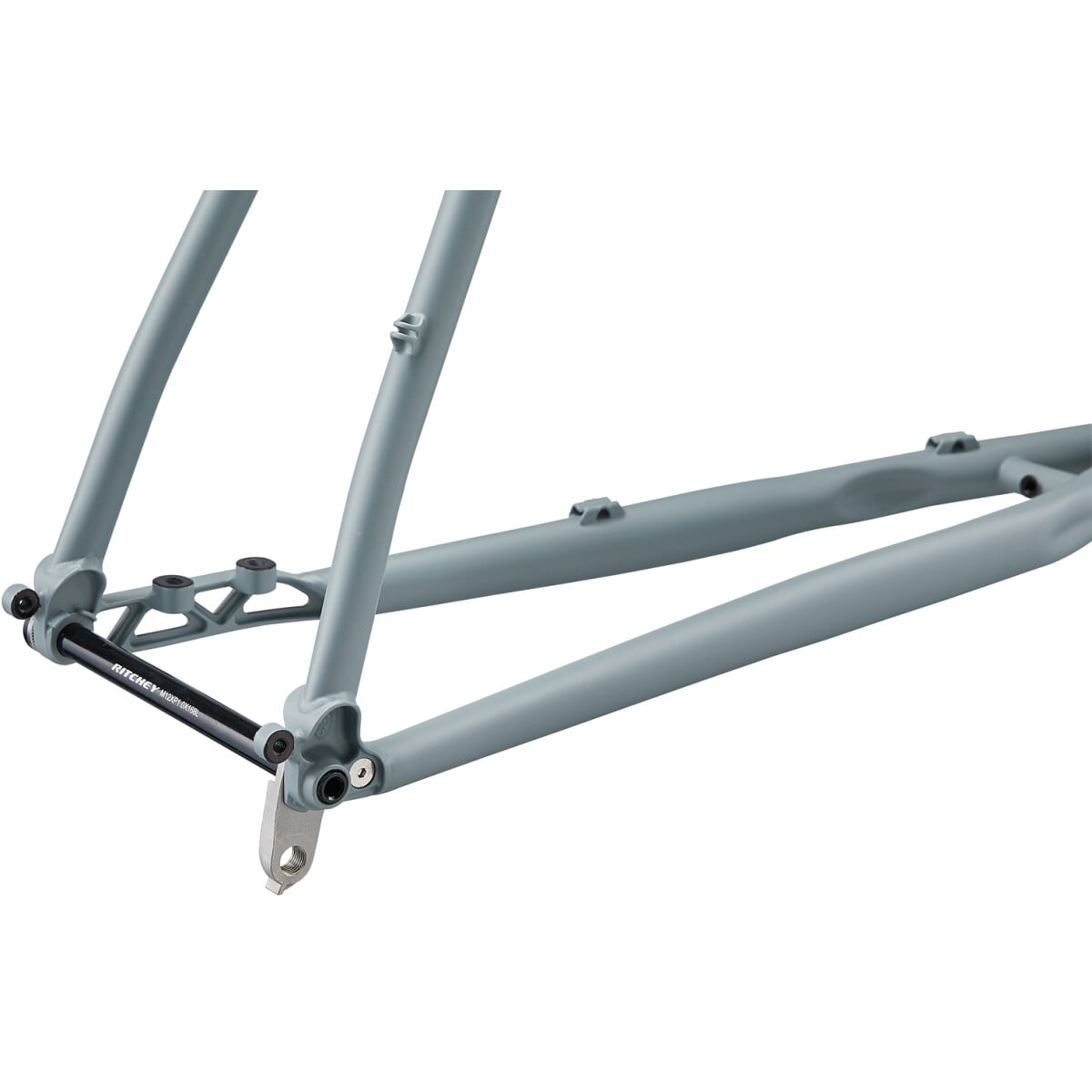

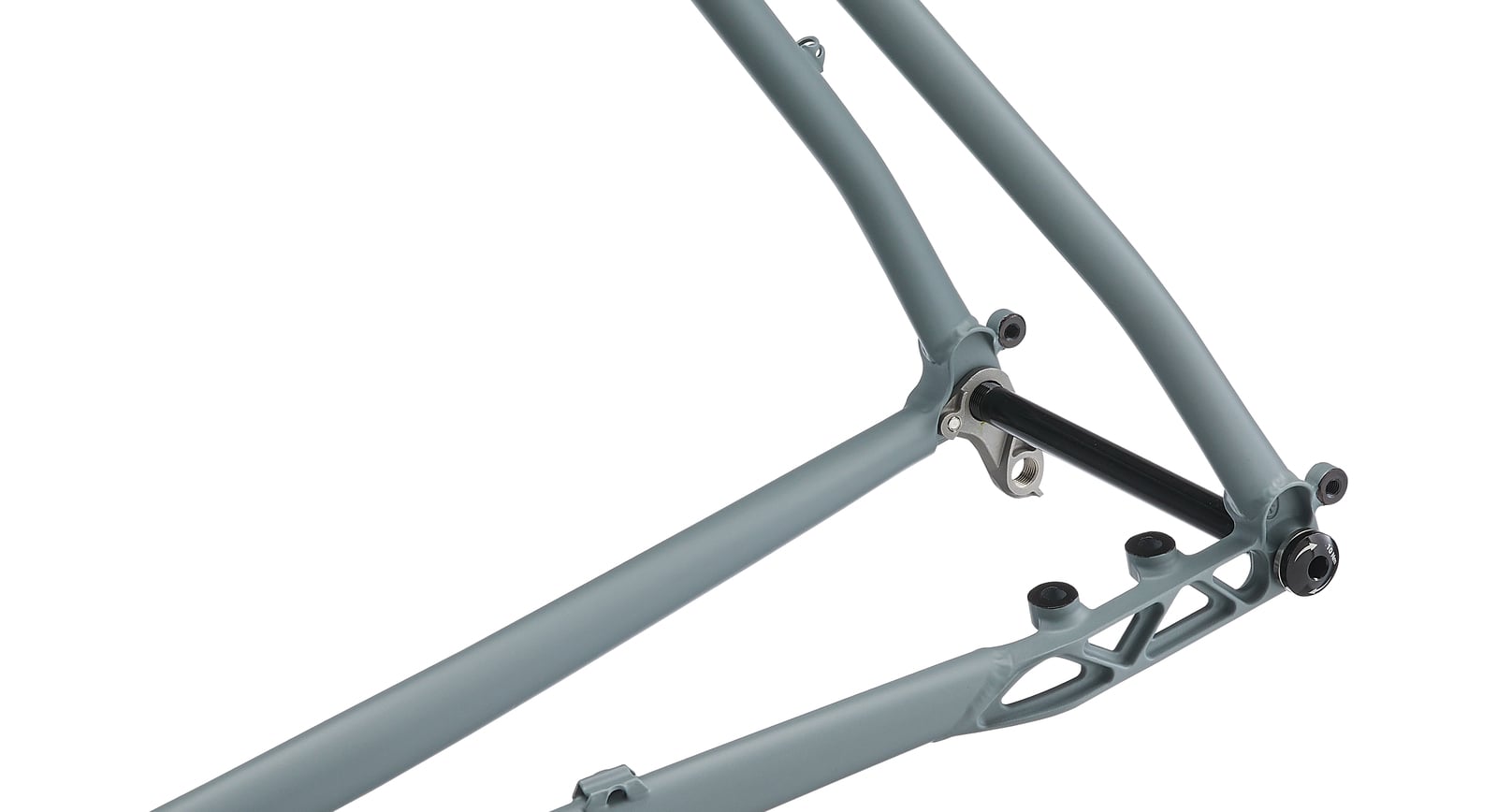

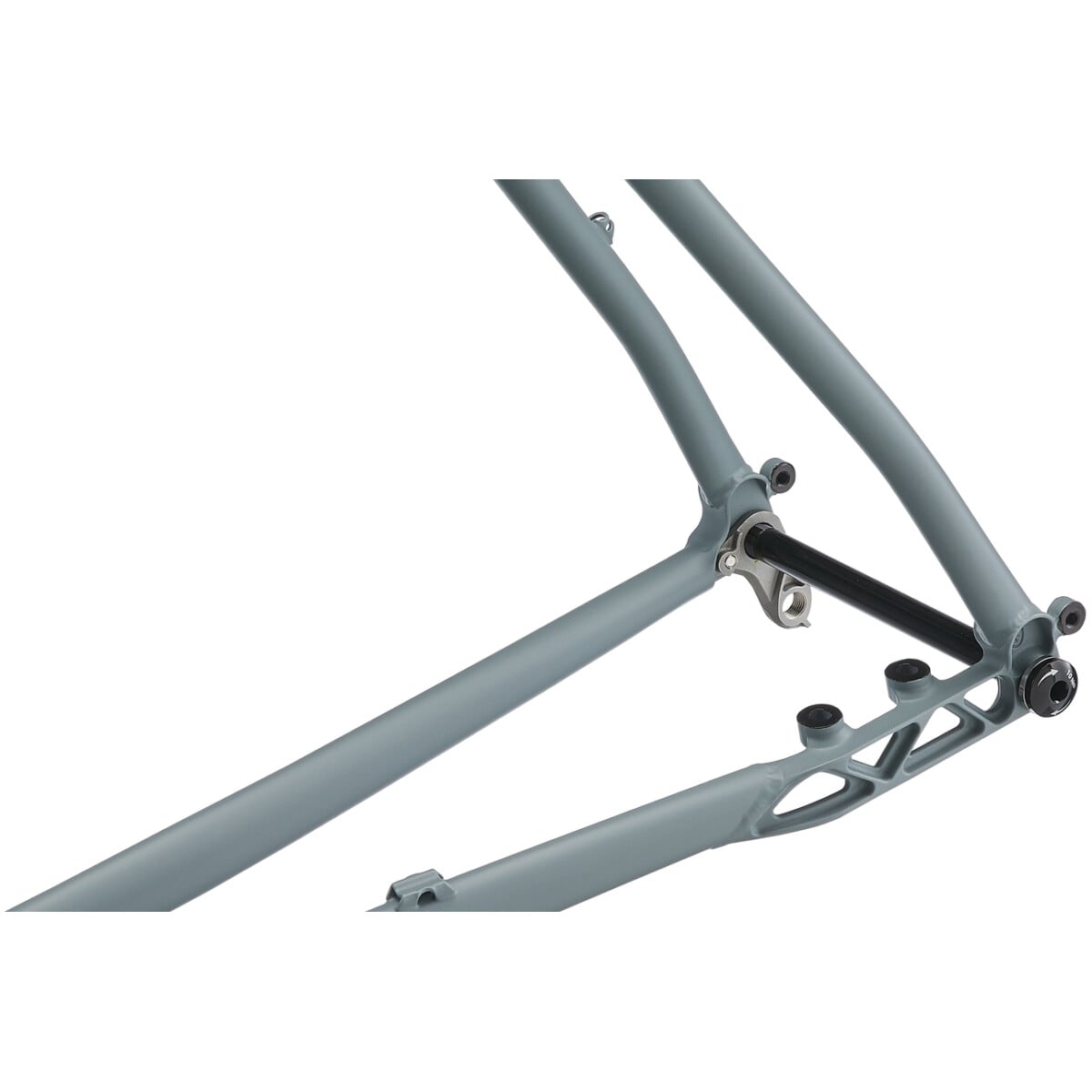

142mm spacing (12mm alloy thru-axle included)
Crankset min/max ring size – single 36 to 46t / double: 46/30t to 50/34t
Can accommodate 1X or 2X chainrings
Chainline 49mm
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts 3
Rack and fender mounts
Stealth wire routing for semi-wireless Di2 groupsets
External cable routing
WCS headset included (upper IS42/28.6 – 16mm stack height | lower IS42/30)
Replaceable stainless-steel derailleur hanger
