Frame
Material heat-treated, triple-butted Ritchey Logic steel tubing – TIG welded
Ultra-light forged and machined straight 1-1/8″ headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size 28.6mm (2.5Nm max for derailleur clamps and chain guides)
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Bottom bracket 68mm – English threaded
142mm spacing (12mm alloy thru-axle included)
Crankset min/max ring size – single36 to 46t / double: 46/30t to 50/34t
Can accommodate 1X or 2X chainrings
Chainline 49mm
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts 3
Rack and fender mounts
Stealth wire routing for semi-wireless Di2 groupsets
Only compatible with Shimano Di2 EW-SD300 wire for 12-speed.
DSP internal (seat tube only) routing available
External cable routing
WCS headset included (upper IS42/28.6 – 16mm stack height | lower IS42/30)
Replaceable stainless-steel derailleur hanger
Fork
New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
1-1/8″ straight steerer with integrated 45-degree crown race
Steerer length 300mm
Fork length 390mm
Axle-crown 393mm
Rake/Offset 50mm
100mm spacing (12mm alloy thru-axle included)
Dynamo light mount
Dynamo cable internal routing
Fork max payload 3kg per side
30mm maximum spacers below stem
Tire Compatibility
Wheel and tire compatibility 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
Frame spacing 58mm
Fork spacing 60mm
Brake Compatibility
Flat-mount brakes front and rear 140mm (160mm max – adaptors available separately)
Frame flat-mount bracket height 10mm
Details
Sizes XS / S / M / L / XL / XXL
Frame weight 2,175g (size L – w/o thru-axle)
Fork weight 445g (with uncut steerer / not including axle)

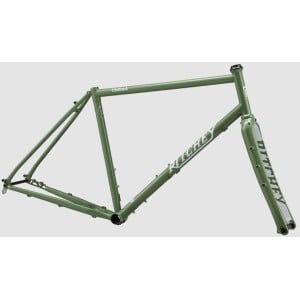

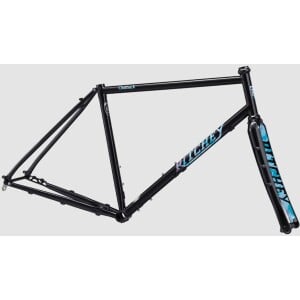

ColorAurora & Winter Sage
