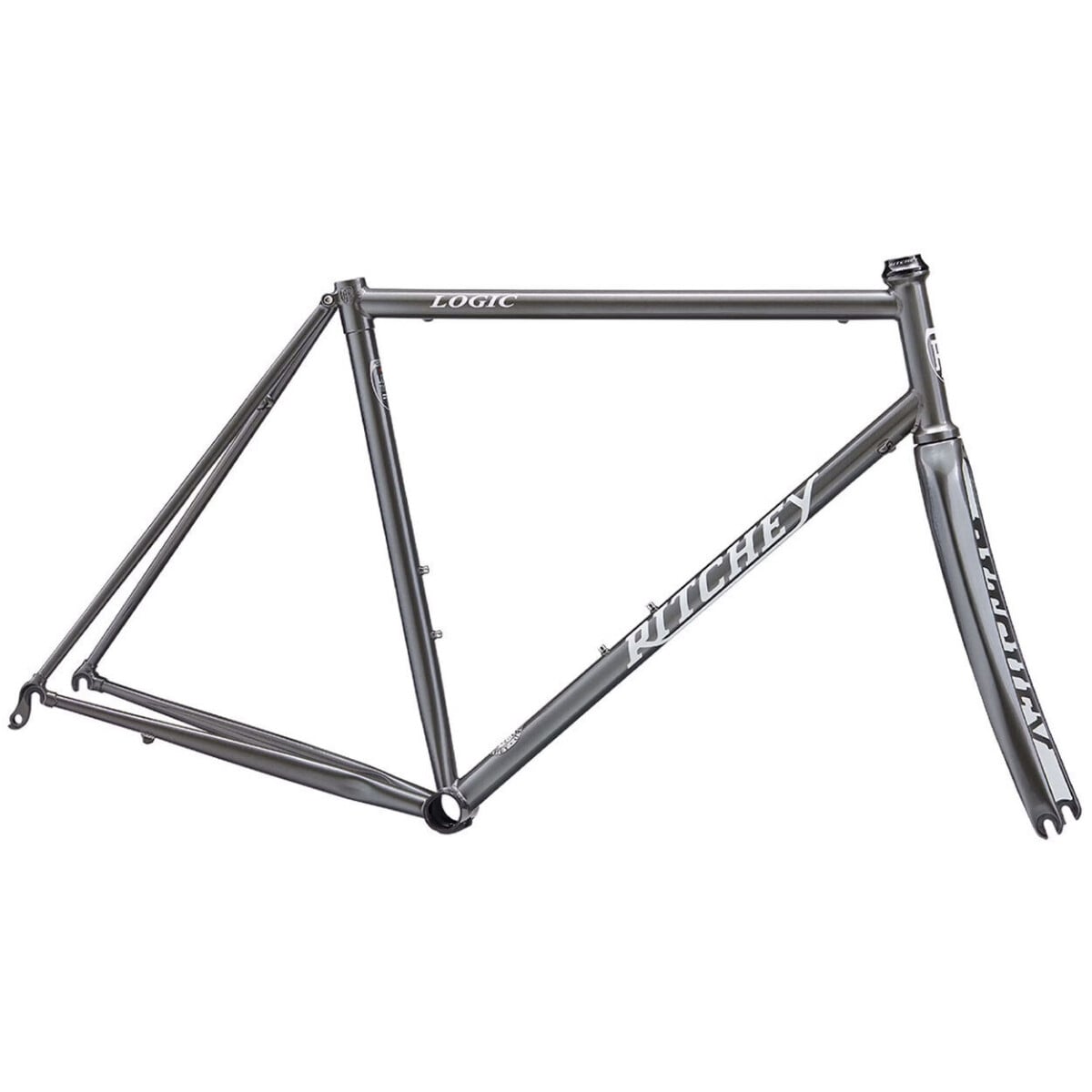

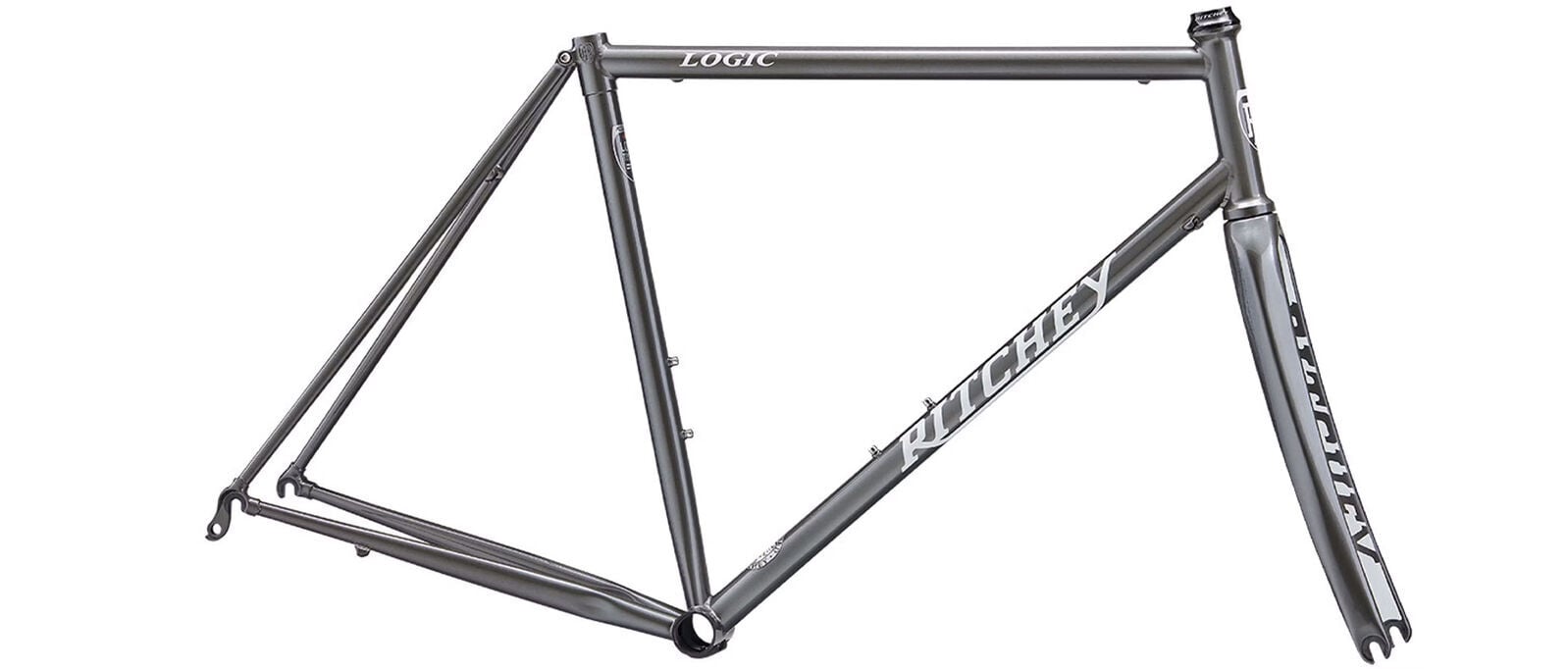

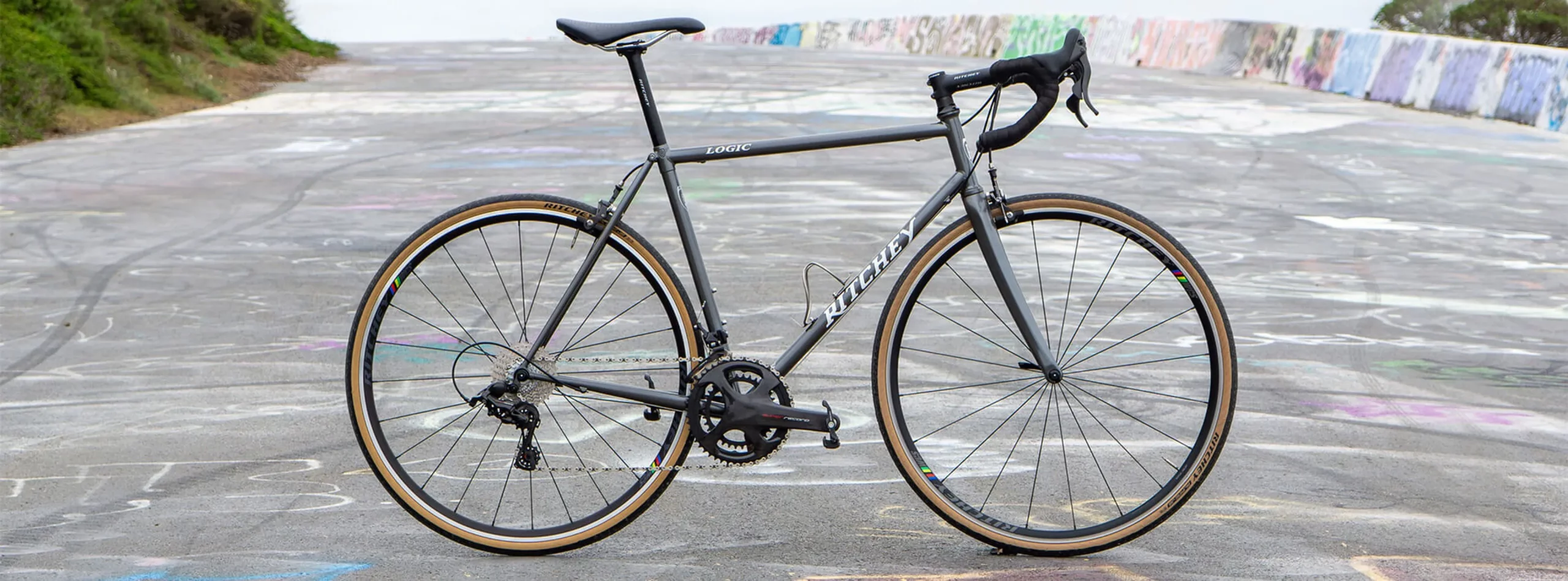

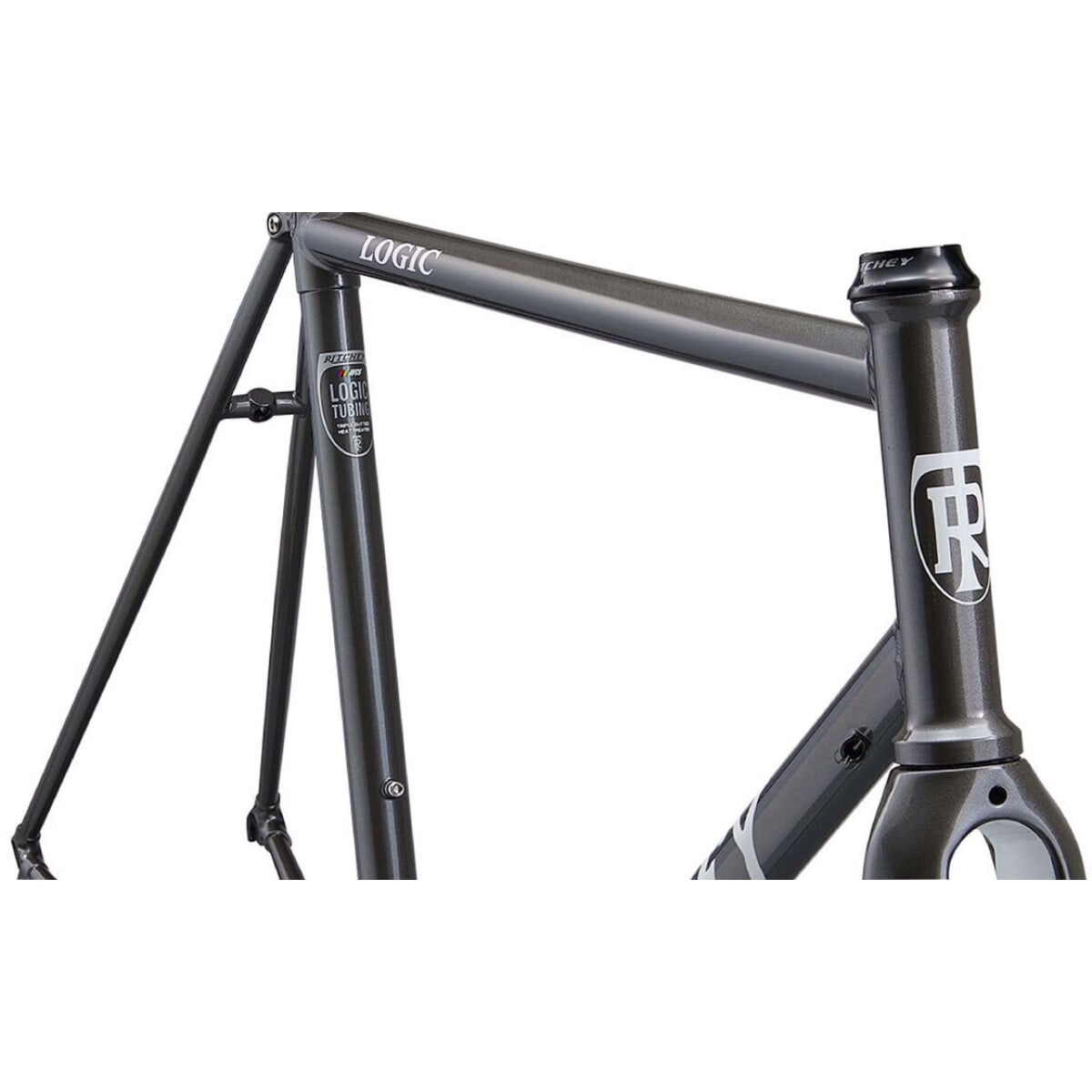

Frame
Material heat-treated, triple-butted Ritchey Logic steel tubing – TIG welded

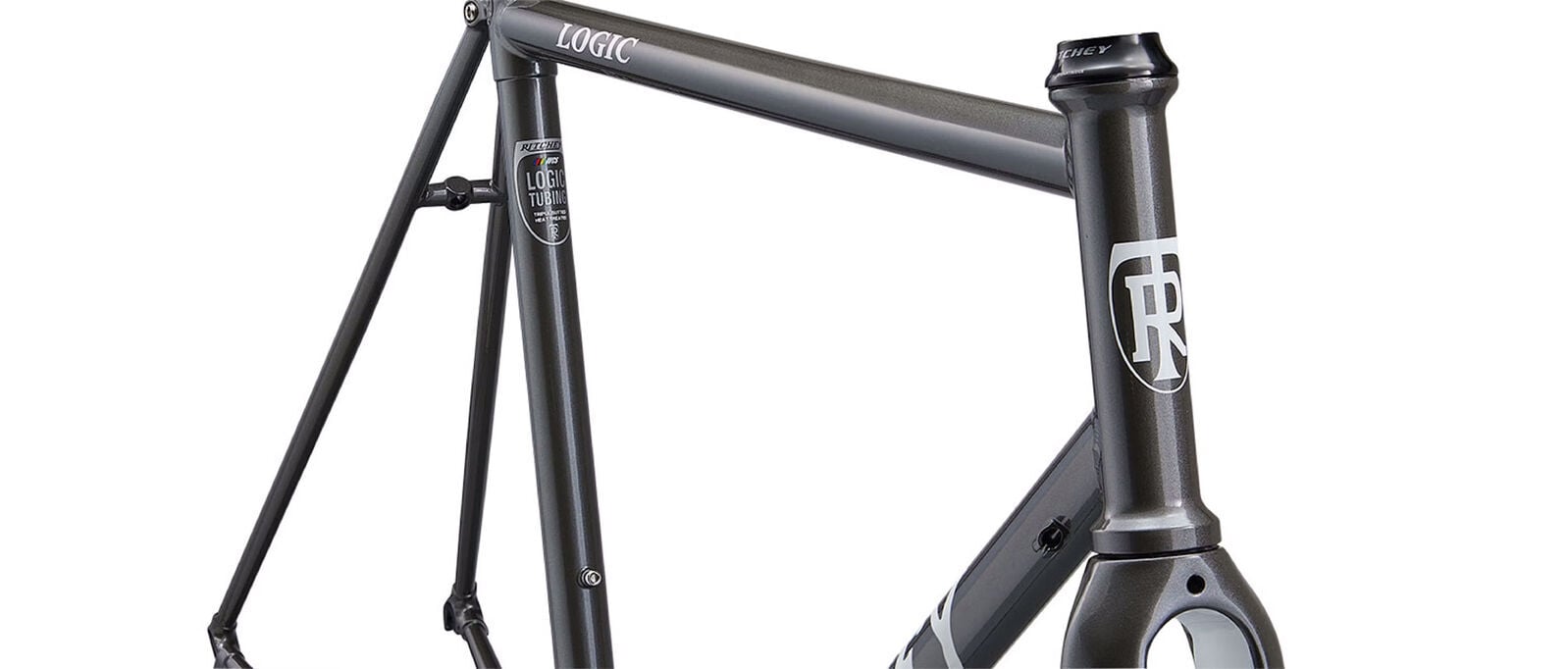

Ultra-light forged and machined straight 1-1/8″ headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size 28.6mm (2.5Nm max for derailleur clamps and chain guides)

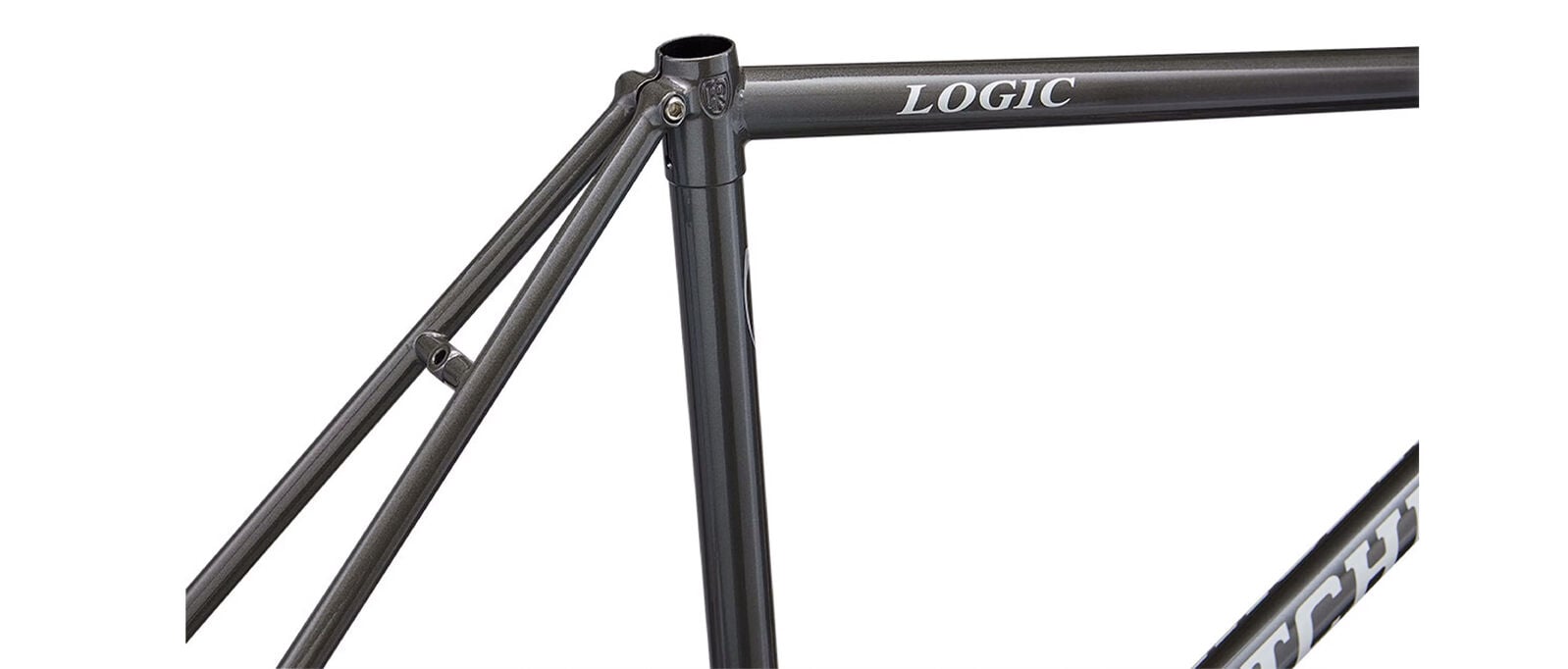

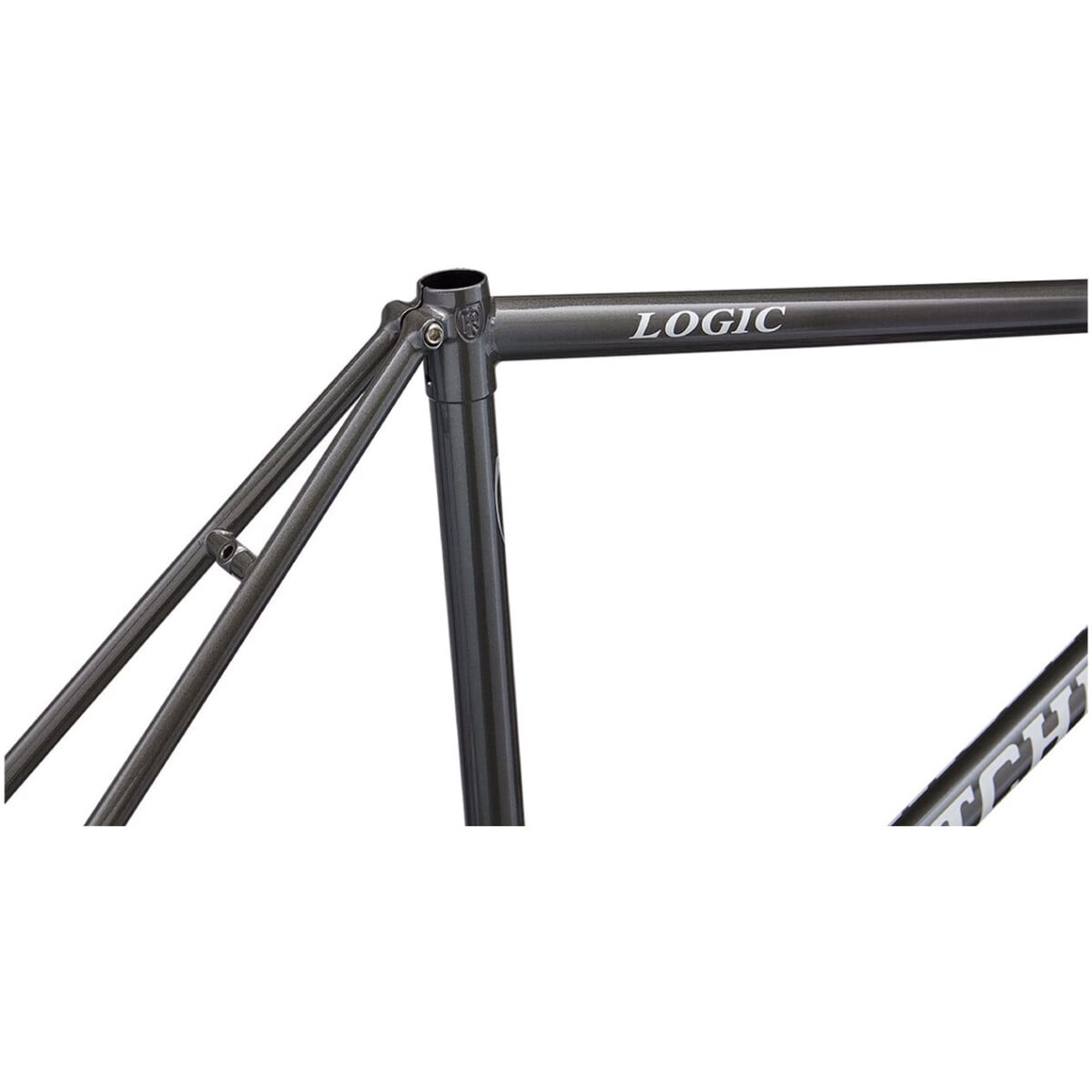

27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Bottom bracket 68mm – English threaded
Crankset min/max ring size 46/30t to 53/39t
Chainline 44mm
Bottle cage mounts 2
Standard Quick Release front and rear
External cable routing
WCS headset included (upper IS42/28.6 – 16mm stack height | lower IS42/30)
Fork
Ritchey WCS Carbon Road Fork included
1-1/8″ straight steerer with integrated 45-degree crown race
Steerer length300mm
Axle-crown371mm
Rake/Offset46mm (sizes 49/51/53cm) – 43mm (sizes 55/57/59cm)
30mm maximum spacers below stem
Tire Compatibility
Wheel and tire compatibility700 x 30c tire clearance (depending on tire/rim manufacturer)
Frame spacing 38mm
Fork spacing 40mm
Details
Sizes 49 / 51 / 53 / 55 / 57 / 59cm
Frame weight 1,750g (size 55)
Fork weight 350g (uncut steerer)
Color Anthracite
