Ritchey Ultra Frame

AUD$1,740.00

If there’s one thing Tom knows, it’s dirt. When he first designed the Ultra he knew it would appeal to riders who demand specific ride characteristics and dirt slaying only he could deliver- and that was in the 1980s! Good design withstands the test of time, and the latest iteration of the Ultra is a prime example. Like its predecessor from 30 years prior, the new Ultra occupies a unique ride space from cross-country riders looking to get rowdy and go big to enduro riders lusting for some all-mountain shredding.

Designed around a 120mm travel fork and super stable Boost 148 spacing, most of the fun is in the wheels. Designed to accommodate 29″ or 27.5″ wheels, the Ultra is highly versatile. Throw on some 29s for some trail-smashing XC riding, or saddle up some 27.5+ for some serious no-holds-barred shredding. The Ultra is a rough and rugged trail master that doesn’t know when to quit.

Compatible with 27.5 x 2.8 and 29 x 2.4 tires
Internal routing for a dropper post
Boost 148×12 rear spacing

Please make a selection below:

Color: No selection

More options

Size: No selection

More options

Clear selection

This is a frameset. It is not eligible for free shipping.

We ship frames Australia wide.

Show Shipping Info & Calculator Hide Shipping Info & Calculator

Click & Collect

Click and collect orders with available in-store stock are normally ready within a few business hours.

Pickup at: 14 Prentice St, Brunswick Victoria.
We're open: M-F 9am-5pm, SAT 10am-4pm

Shipping & Delivery

In-store stock: We can dispatch these items within 1 business day.

Warehouse stock: These items will be dispatched in 3-4 business days.

Orders containing warehouse stock will be dispatched from our Brunswick store once all items are received in-store.

This product is a Frameset

View our shipping info page.

Payment Methods

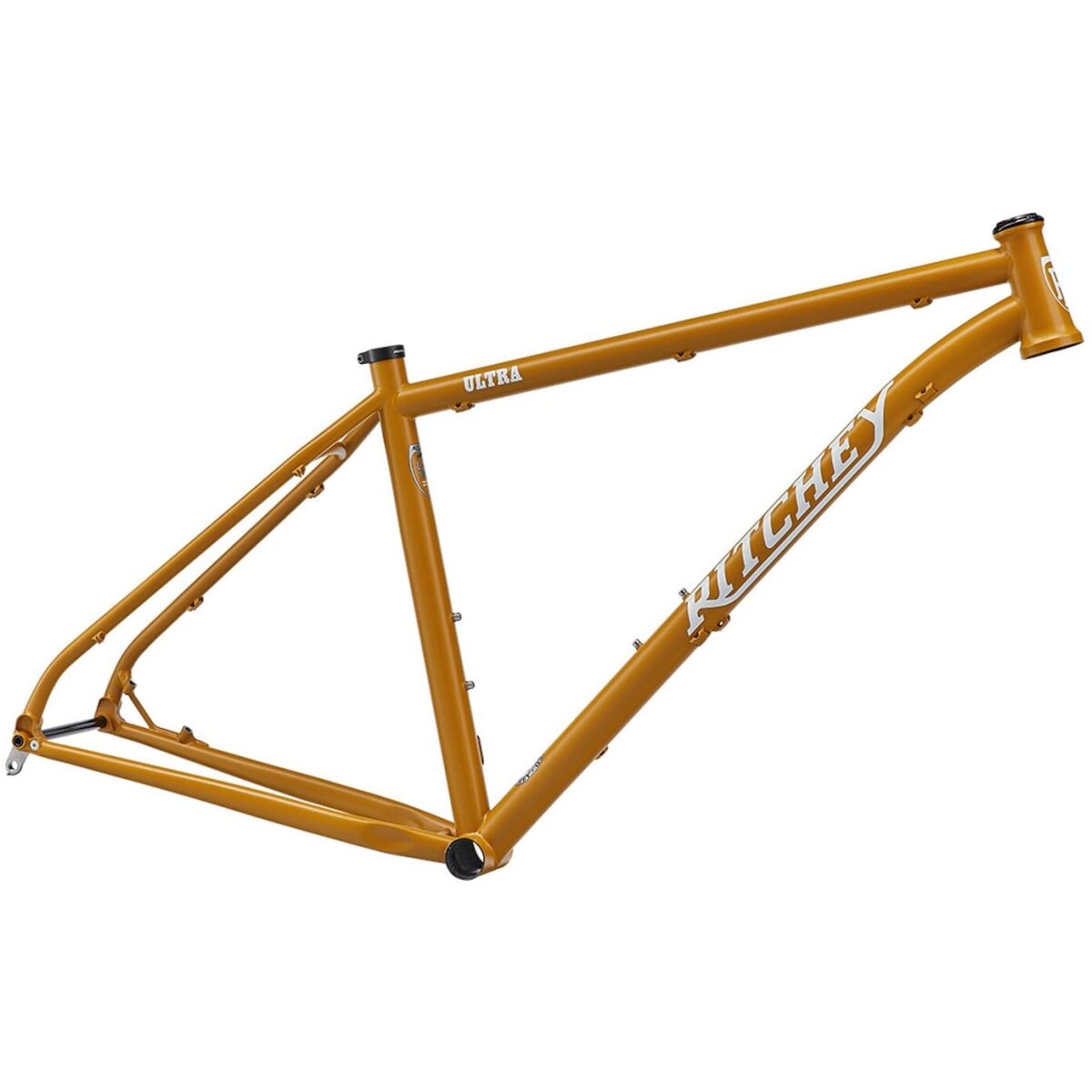

Frame

Material heat-treated, triple-butted Ritchey Logic steel tubing – TIG welded

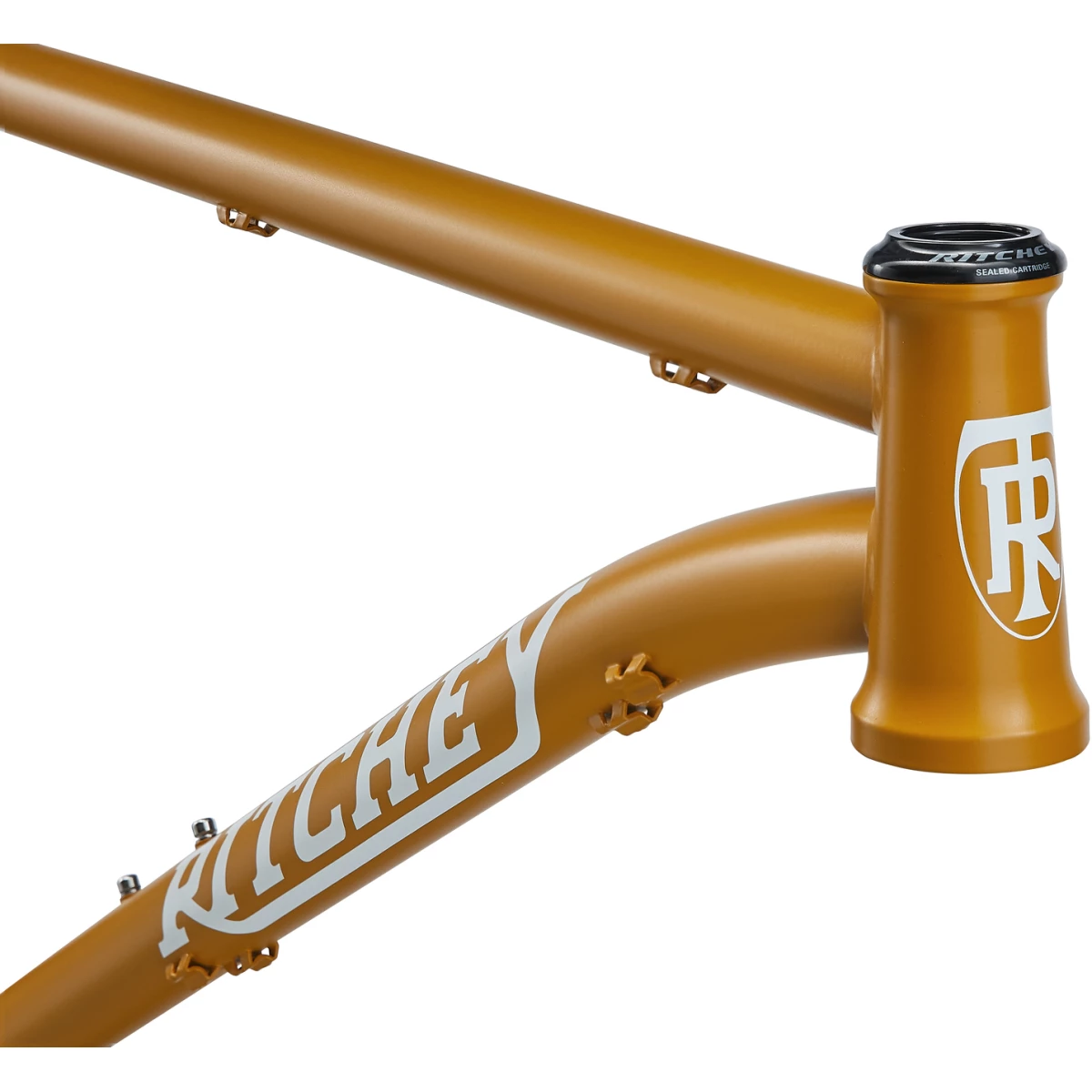

Ultra-light forged and machined tapered head tube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Headset WCS headset included (upper IS42/28.6 | lower IS52/40)
Headset upper bearing 41.8mm OD / IS42/28.6 (S.H.I.S.)
Headset lower bearing 51.9mm OD / IS52/40 (S.H.I.S.)
Seat tube clamp size 33.1mm (2.5Nm max for derailleur clamps and chain guides)
30.9mm seat tube with stealth dropper routing and replaceable seat collar
Bottom bracket 73mm – English threaded
Crankset maximum ring size 38T single – 26/36T double
Designed for 1X or 2X chainrings (Shimano Side Swing front derailleur required for double – 11s drivetrain compatible only)
Chainline 52mm
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Recommended tire size 27.5×2.4 (2.8 max) or 29×2.25 (2.4 max) – tire size varies by rim and tire manufacturer
Post-mount rear brake 160mm (180mm max – adaptors available separately)
Bottle cage mounts Two (one on downtube and one on seat tube) *Note: size small frames include only a downtube bottle cage mount
Sizes S (15″) / M (17″) / L (19″) / XL (20.5″)
Weight 2,380g (M/17″)
Color Honey Mustard

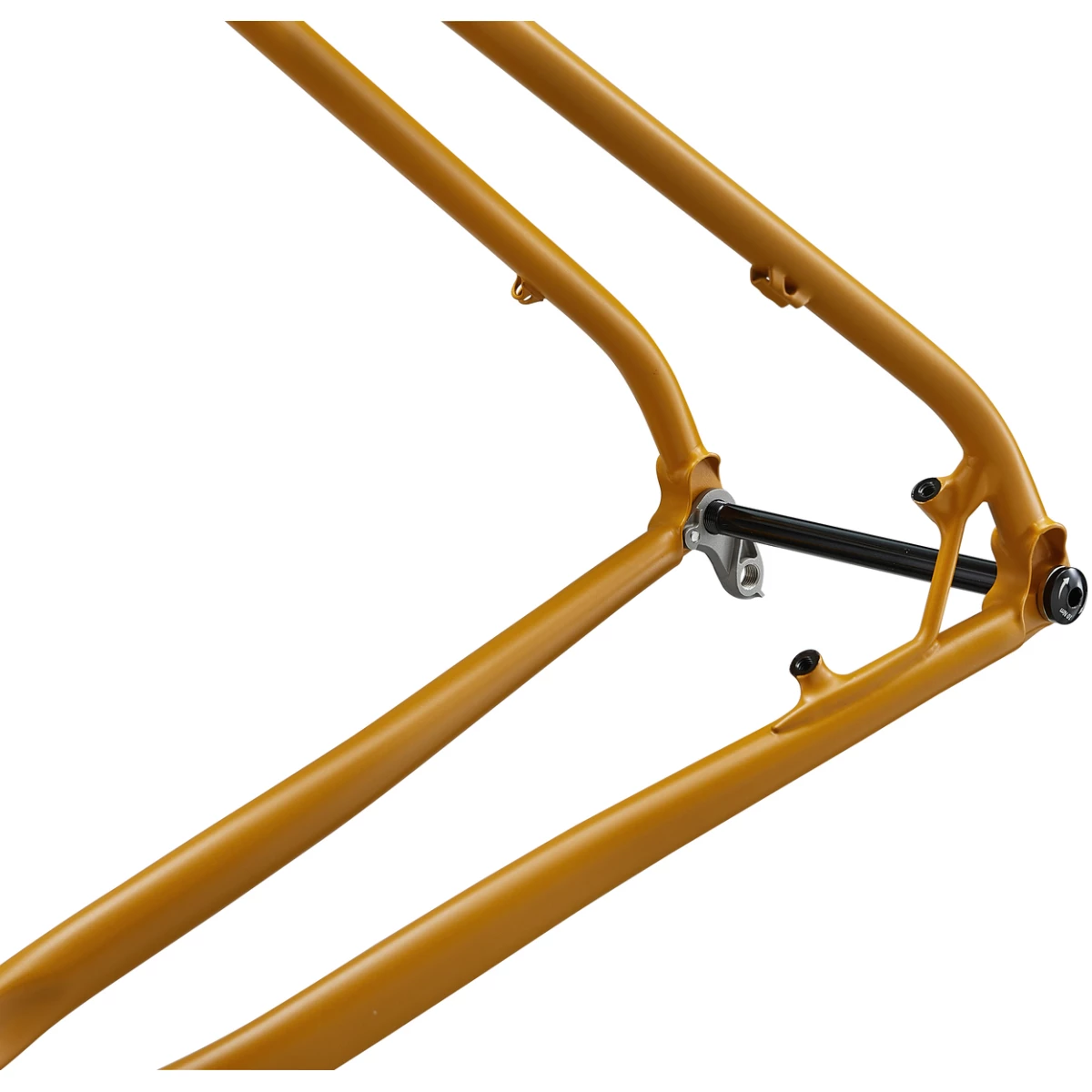

BOOST 148mm spacing (12mm alloy thru-axle included)
Optimized for 120mm (BOOST) suspension travel fork or 500mm axle-crown rigid fork
External cable routing
Replaceable stainless-steel derailleur hanger
