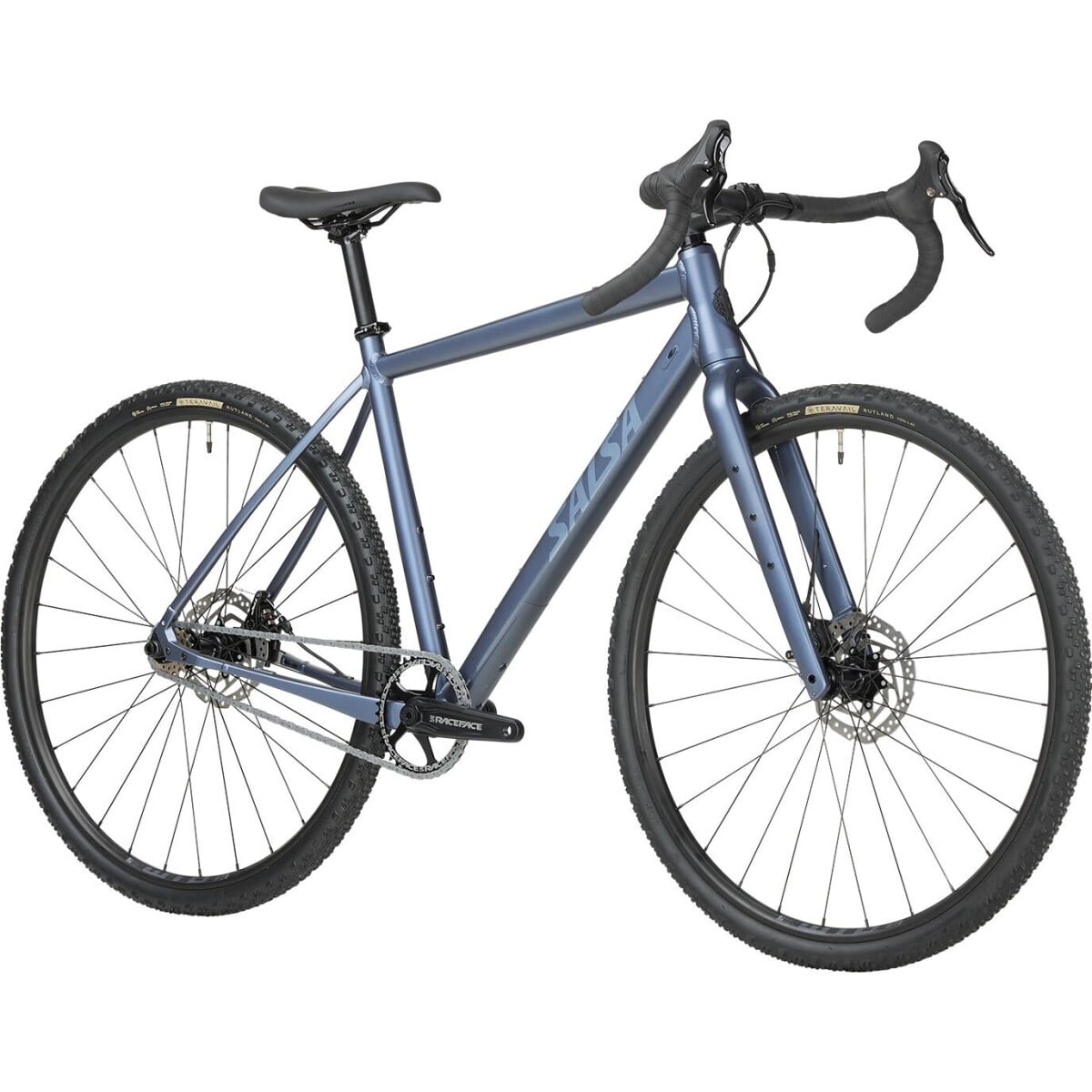

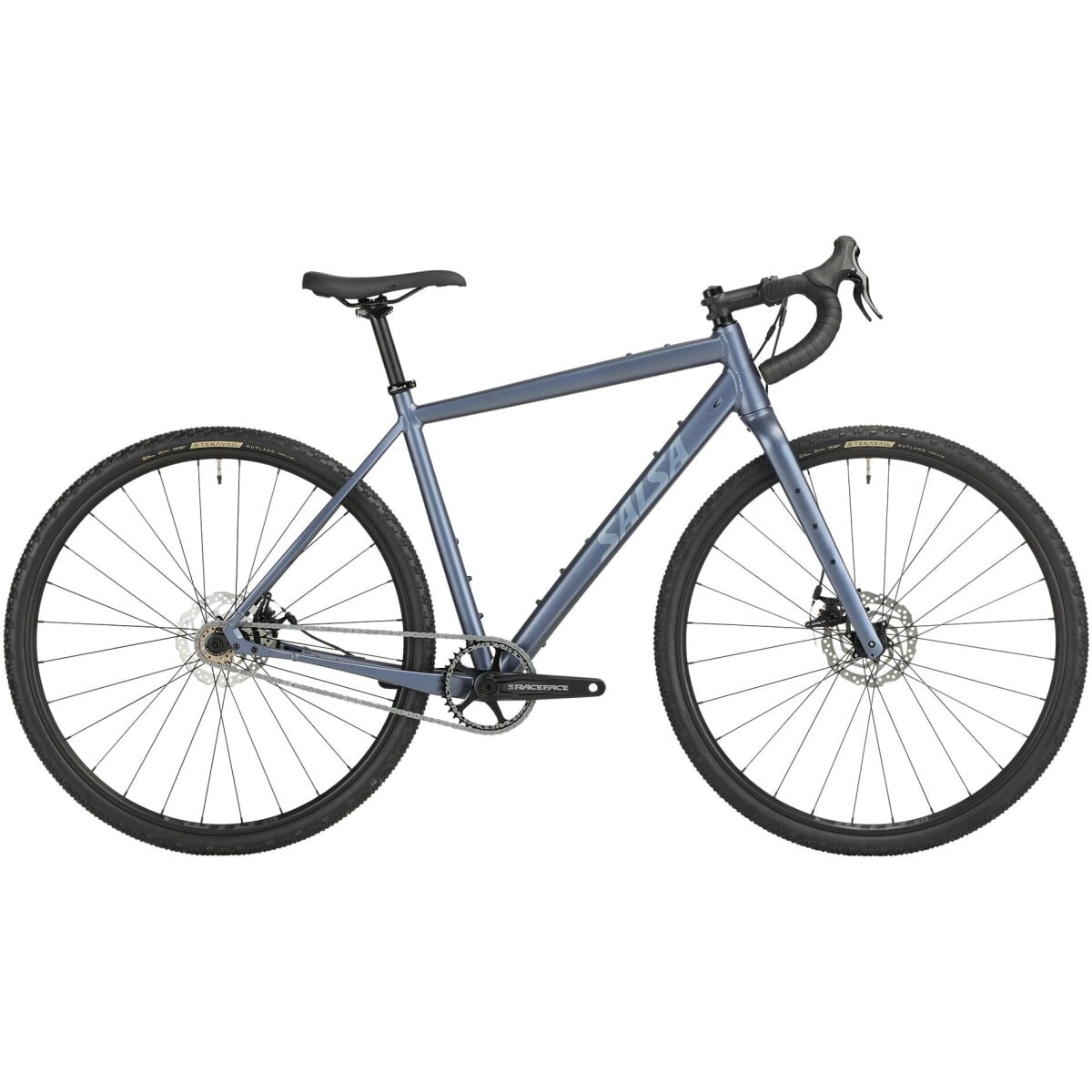

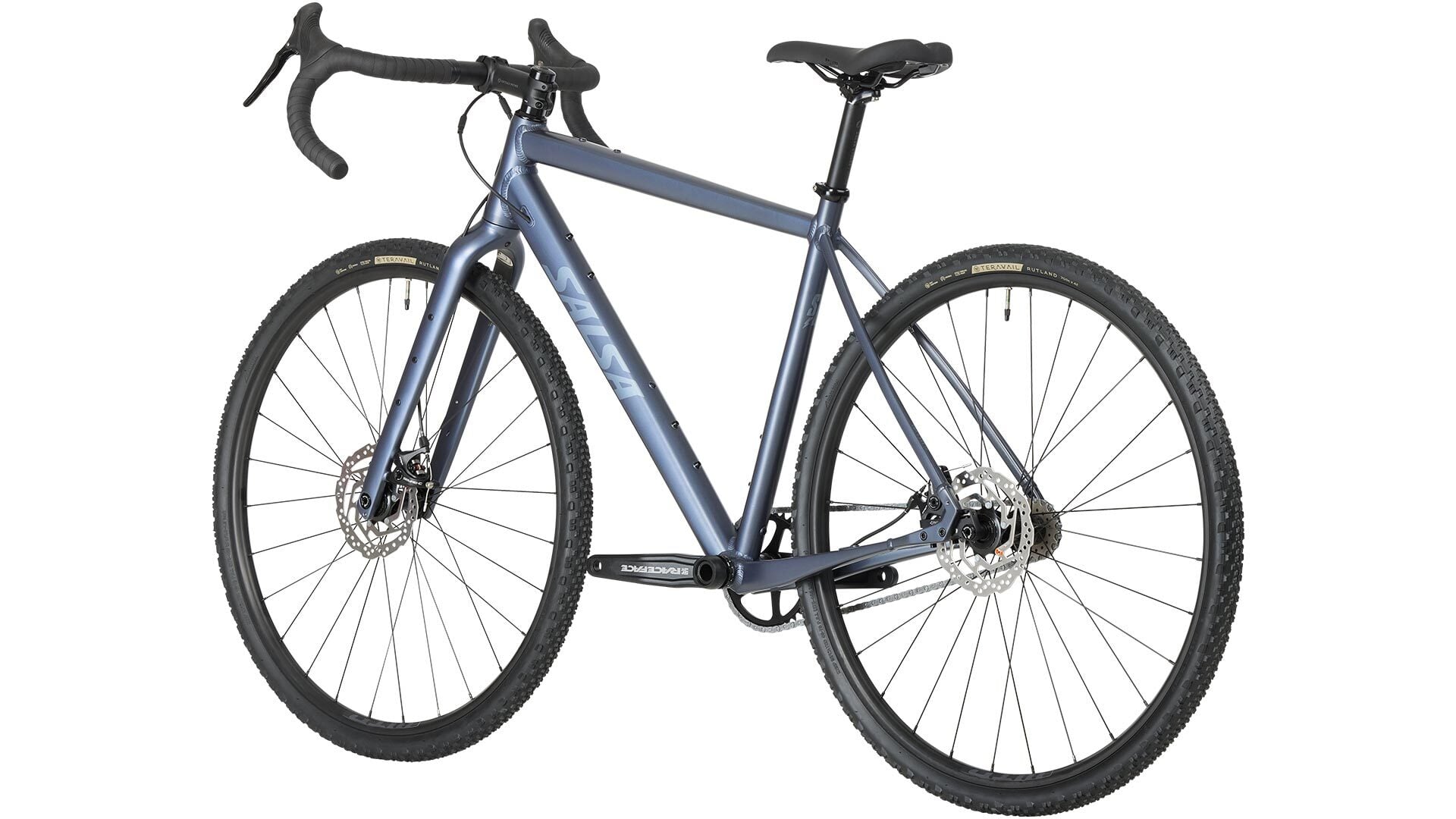

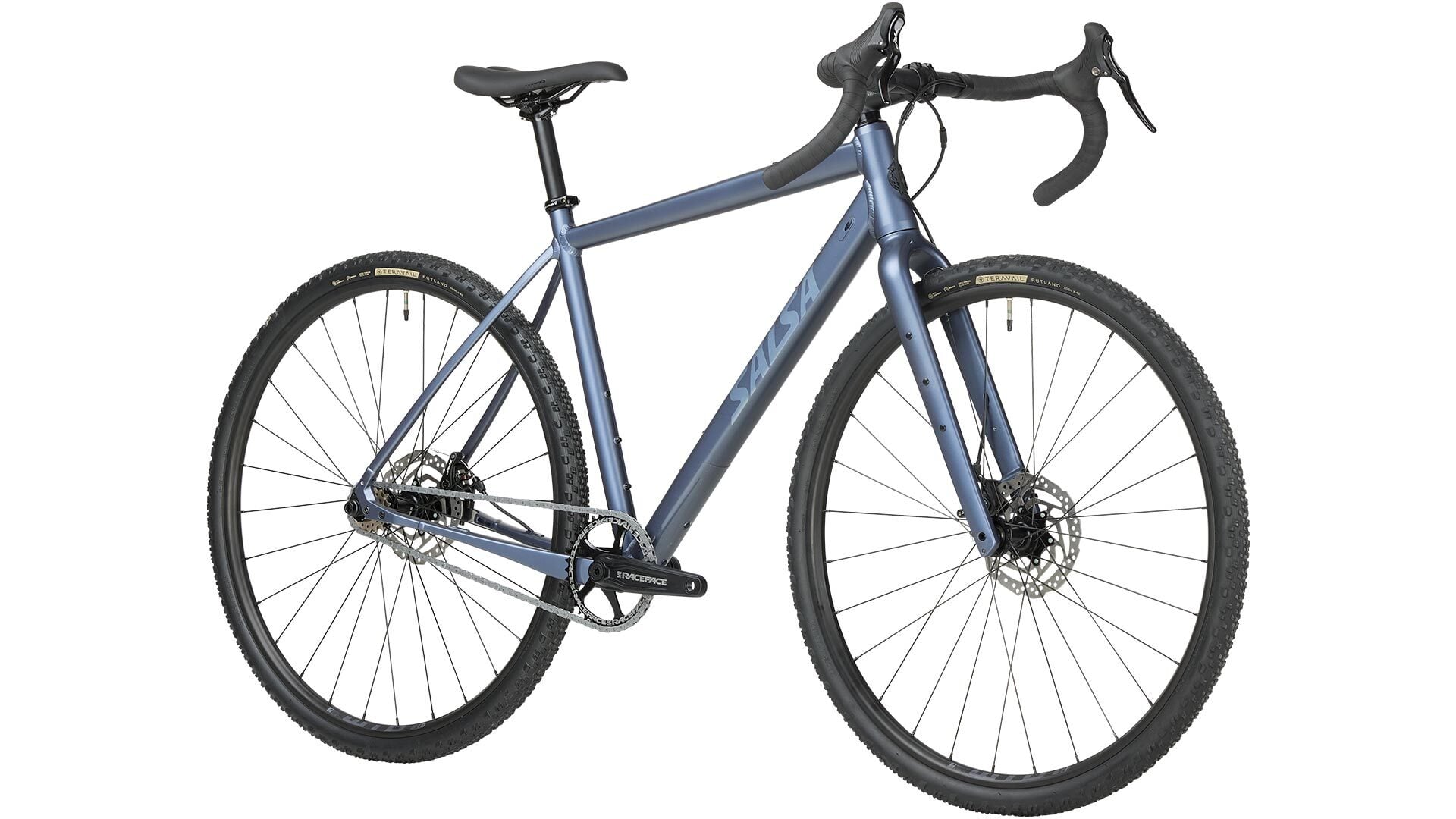

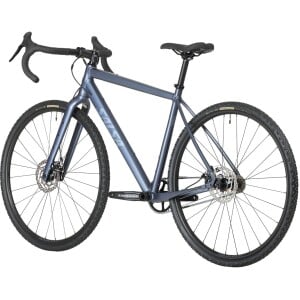

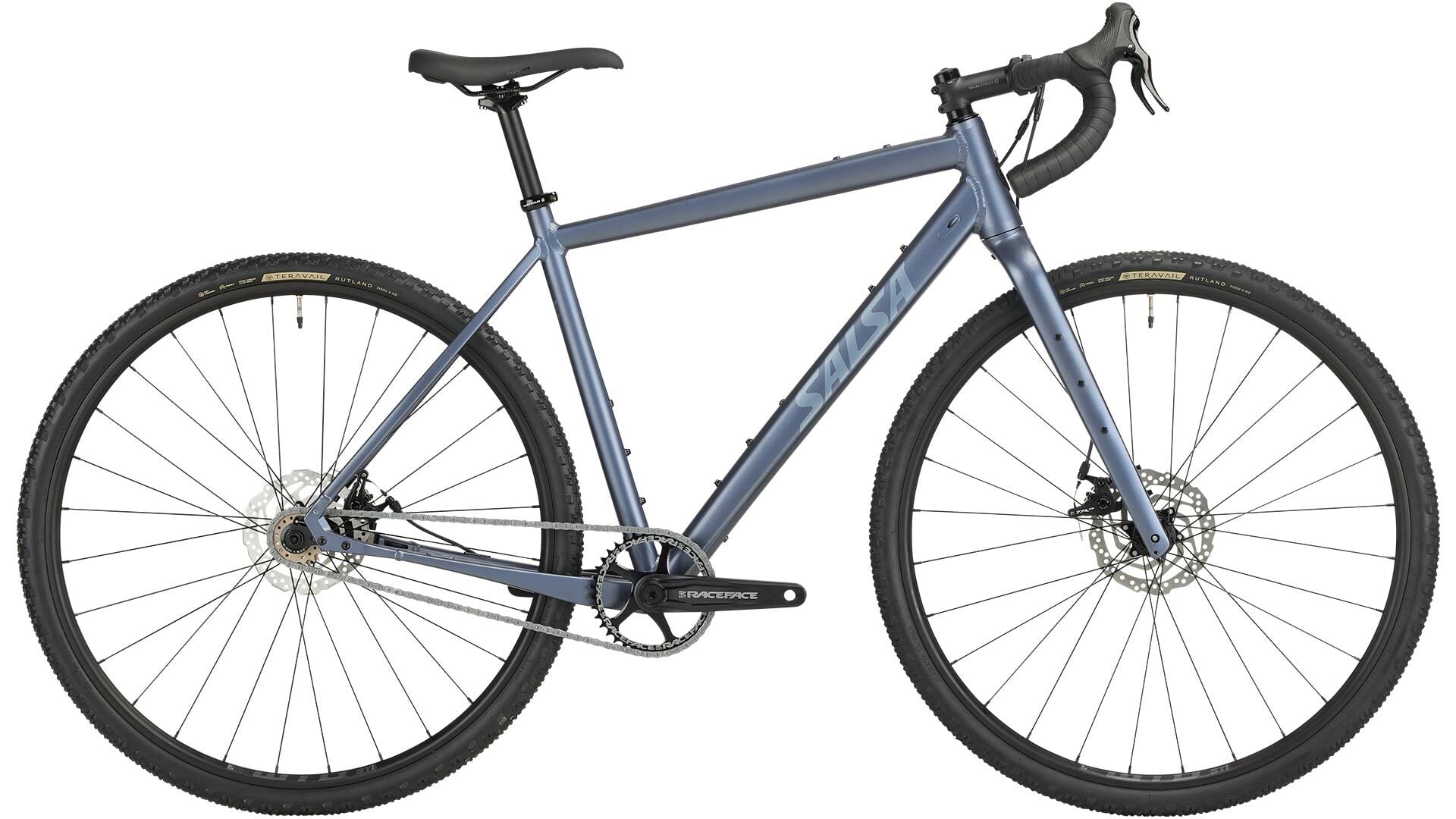

Salsa Stormchaser Singlespeed 2024

FEATURES

Design Wheel/Tire Sizes 700c x 42 mm
Alternate Wheel/Tire Sizes 700c x 32–50 mm; 650b x 47–50 mm
Rigid Fork Length 420 mm
Fork Offset 51 mm
Headset, Upper IS41
Headset, Lower IS52
Seatpost 27.2 mm
Seatpost Collar 32.0 mm
Dropper Compatible (Routing) Yes (internal)
Bottom Bracket 73 mm BSA, threaded
Crankset (Max Ring – Single Speed) 1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only
Crankset (Max Ring – Geared) 1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min.
Front Brake (Rotor) Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
Rear Brake (Rotor) Flat mount frame standard, 20 mm thickness, 27 mm bolt length (140–160 mm rotor)
Rear Spacing 12 x 142 mm TA
Rear Axle Size M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
Derailleur Hanger Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
Rear Rack Mounts Yes, universal rack rear compatible. Salsa Post-Lock seat collar required. Salsa Wanderlust Rack recommended.
Fender Mounts Yes, required fender hardware included.
Max Tire Size with Fenders 700c x 47 mm
Water Bottle Mounts Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.
Downtube Accessory Mounts One
Top Tube Mounts Yes, compatible with Salsa EXP Series Top Tube bag.
Stem Clamp 28.6 mm
Crown Race Integrated SHIS 40, 36° Angle
Front Spacing 12 x 100 mm TA
Front Axle M12 x 120L, TP = 1.5, TL = 12 mm
Three-Pack Mounts One mount per fork leg.
Rack Mounts 165 mm Low-rider compatible. Salsa Down Under rack recommended.

SPEC

FRAMESET

Frame Stormchaser Aluminum
Fork Stormchaser C

DRIVETRAIN

Cassette Spacer kit with 17t and 18t cog
Chain KMC Z1eHX EPT Anti-Rust
Crankset Race Face Ride, 38t
Brakes & Rotors TRP Spyre mechanical disc brakes, Shimano RT10 rotors (Center Lock, 160 mm)

COMPONENTS

Headset (Upper/Lower) FSA No.42 ACB
Stem Salsa Guide
Handlebar Salsa Cowchipper
Grips/Bar Tape Velo anti-slip, shock-proof silicone tape
Seatpost Salsa Guide
Saddle WTB Volt Medium Steel

WHEELS

Front Wheel Shimano RS470 12 x 100 mm hub, WTB ST TCS 2.0 i23 29″ rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed
Rear Wheel Shimano RS470 12 x 142 mm hub, WTB ST TCS 2.0 i23 29″ rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed
Tires Teravail Rutland 700 x 42 mm, tubeless ready, Durable casing

*Specification and pricing subject to change without notice.
