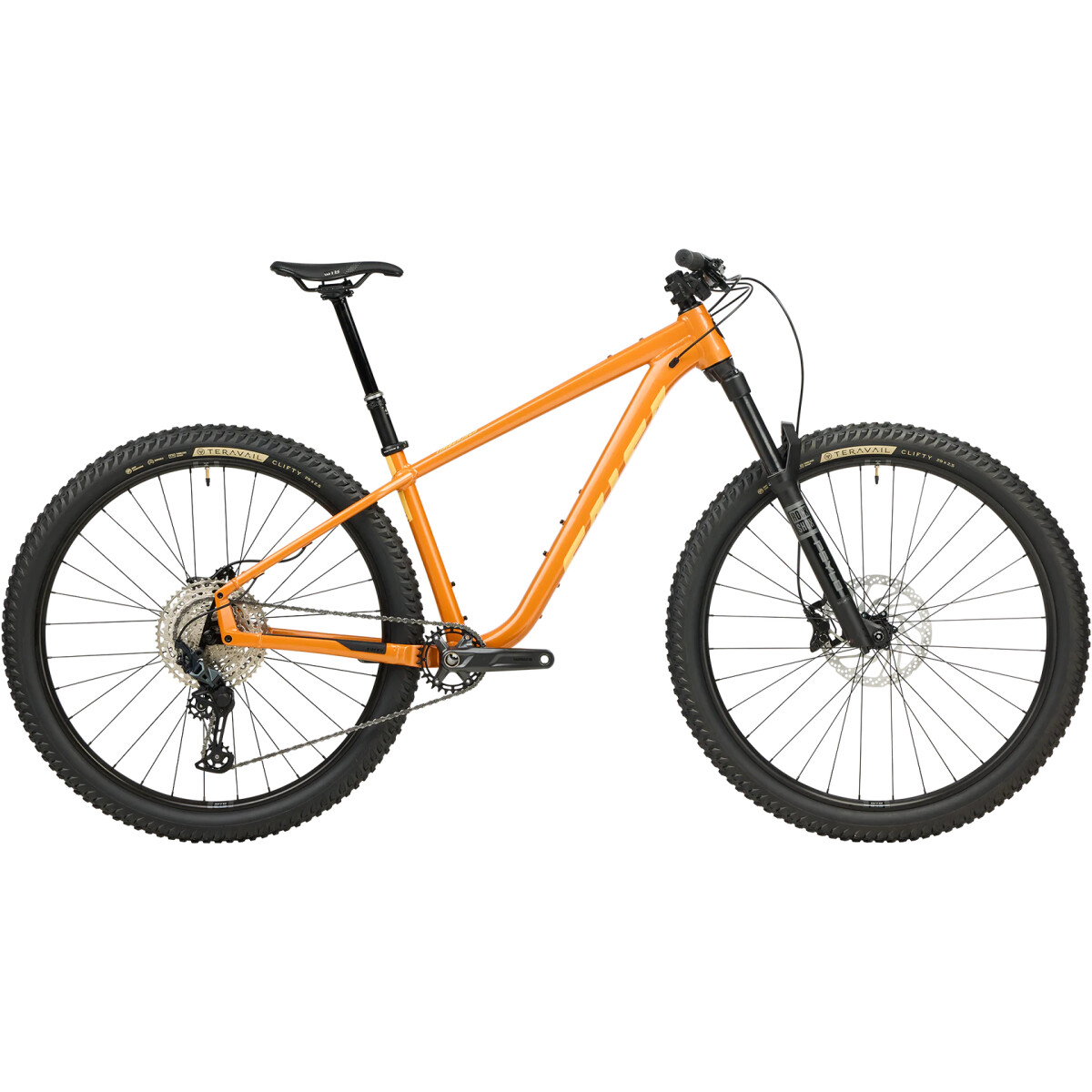

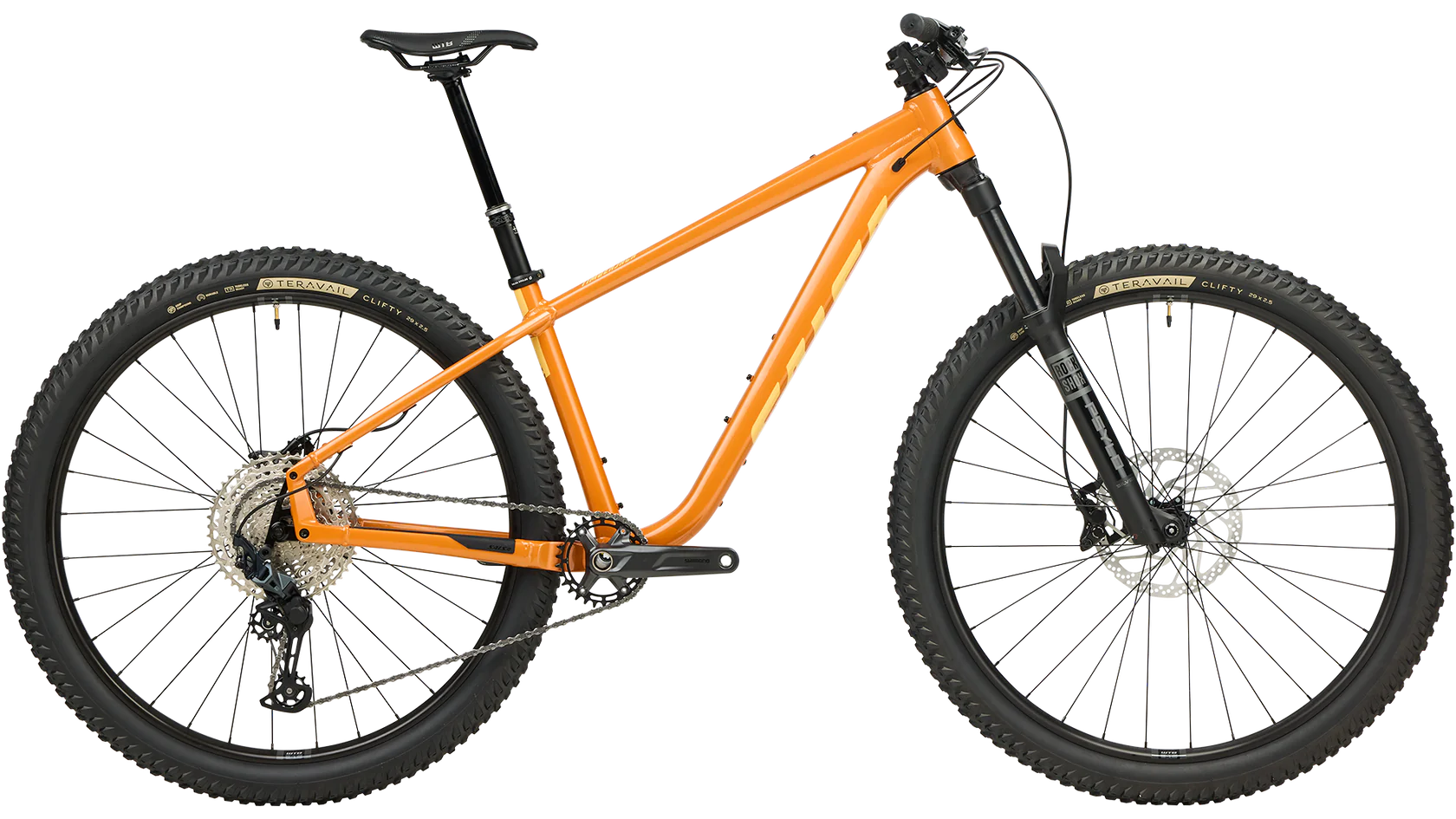

Salsa Timberjack 3.2 SLX 29er Orange

Frameset

• Frame

  Timberjack Alloy V2

• Color

  Terracotta Orange

• Fork

  RockShox Psylo Silver RC, 140mm, 44mm offset

• Rear Shock

  N/A

Components

• Headset

  FSA Orbit 1.5E ACB

• Seatpost

  TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj

• Stem

  Salsa Guide Trail

• Grips/Bar Tape

  Salsa File Tread

• Saddle

  WTB Solano Medium

• Handlebar

  Race Face Chester 35

Drivetrain

• Front Derailleur

  N/A

• Rear Derailleur

  Shimano SLX M7100 SGS

• Cassette

  Shimano Deore M6100-12, 10–51t, 12-speed

• Chain

  Shimano Deore M6100

• Crankset

  Shimano MT510, 30t

• Shifter

  Shimano Deore M6100 I-SPEC EV

• Brake Levers

  Shimano MT420 4-piston brakes

• Rotors

  Shimano RT30 rotors (Center Lock, 203mm front, 180 mm rear)

Wheels

• Front Wheel

  Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29″ rim

• Rear Wheel

  Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i30 32h 29″ rim

• Front Tire

  Teravail Clifty 29 x 2.5″, Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included

• Rear Tire

  Teravail Clifty 29 x 2.5″, Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included

Weight

• Complete Bike

  32 lbs 14 oz (size Medium)

Frame Spec

• Design Wheel/Tire Sizes Tire Size Range for 622/29″ Wheels: 53–66 mm (2.1–2.6″)
• Alternate Wheel/Tire Sizes Tire Size Range for 584/27.5″ Wheels: 71 mm (2.8″)
• Max Tire Outer Diameter 760.5 mm (29.95″)
• Suspension Fork Length (Travel) 511–563 mm (100–150 mm travel)
• Rigid Fork Length 483–501 mm
• Fork Offset 42–51 mm
• Rear Spacing 148 mm
• Rear Axle Size M12 x 180L, TP = 1.5, TL = 20
• Rear Brake (Rotor) IS mount (180 mm max)
• Headset – Upper ZS44
• Headset – Lower ZS56
• Seatpost 30.9 mm
• Dropper Post Compatible Yes (internal)
• Seatpost Clamp 35 mm
• Front Derailleur Clamp NOT COMPATIBLE
• Derailluer HangerAlternator 2.0 Swing Plate
• Bottom Bracket 73 mm BSA
• Crankset (Max Ring)52 mm Boost chainline 1x only (34t)
• Accessory Mounts Accessory Mounts: Yes, one pair; Downtube Accessory Mounts: Yes, one pair; Rack Mounts: Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock; TopTube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
• Bottle Mounts XS = 1, SM–XL = 2
• Front Fender Mounts NOT COMPATIBLE
• Rear Fender Mounts NOT COMPATIBLE
