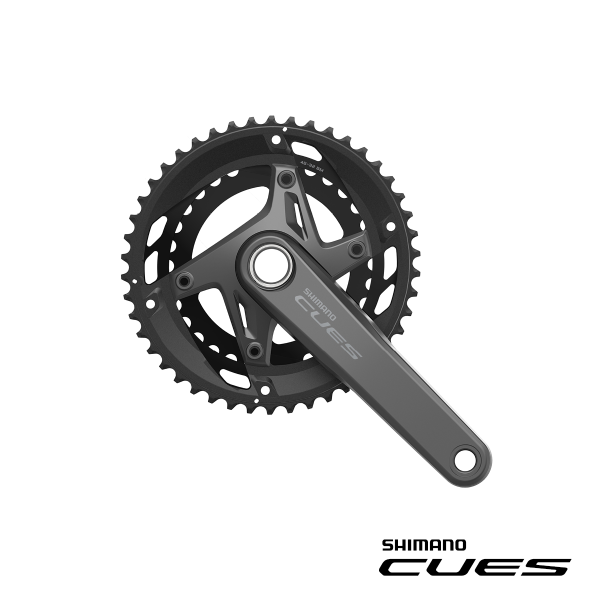

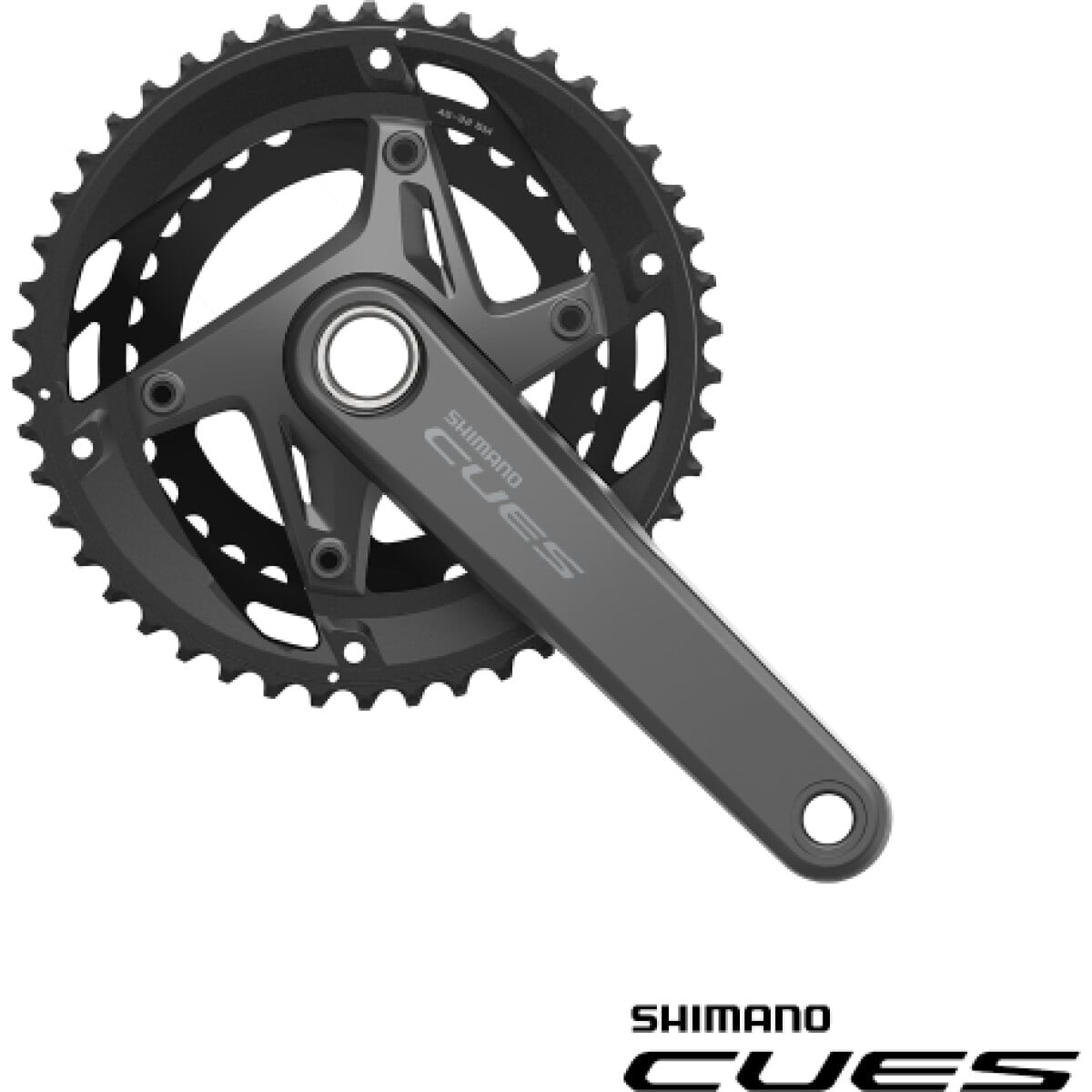

Shimano Cues FC-U6010-2 Crankset 175mm 46-32 11-Speed

FEATURES

• Efficient power transfer
• Hollow-forged crank maximizes power transfer while limiting weight
• HOLLOWTECH II
• Lightweight alloy top gear
• Chain case compatible

MODEL NO    FC-U6010-2
SERIES    CUES U6000 Series 11-speed
Color    Series color | Series color
Rear speeds    11 – 11
Compatible chain    LINKGLIDE
Chain line (mm)    48.8 – 48.8
O.L.D.|Thru (mm)    142
O.L.D.|QR/Nut (mm)    135
P.C.D. (mm)    110 – 110
Spider/gear arms    4
Chainring combination    46-32T | 46-32T
Q-factor (mm)    180
Crank arm length (mm)|170    ✔
Crank arm length (mm)|175    ✔
Optional chain guard|With chain guard    ✔
Optional chain guard|Without chain/bash guard    ✔
HOLLOWTECH II    ✔
Compatible bottom bracket type|Outboard    ✔
Recommended bottom bracket|Threaded (normal)    BB-MT501 | BB-MT501
Recommended bottom bracket|Threaded (chain case)    BB-MT501 | BB-MT501
Recommended bottom bracket|Press-Fit    BB-MT500-PA | BB-MT500-PA
Threaded bottom bracket shell width (mm)|68    ✔
Threaded bottom bracket shell width (mm)|73    ✔
Chain case compatible    ✔
Stainless chain guard fixing screw    ✔
Crank fixing screw included    ✔

Manufacturer SKU

EFCU60102EX62X
