Sinewave Cycles Taillight Rack Mount Adapter

An adapter allowing the Sinewave Taillight to be used with a standard rack mount.

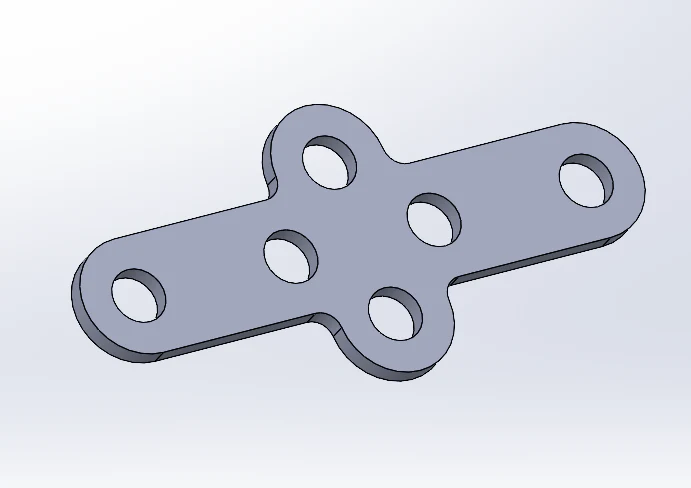

4 M5 holes in the center allow the Taillight to be installed at any 90° alignment for easy wire routing.

2 outer M5 holes match the common 50mm spacing of rear racks.

Included:

• Rack Mount Adapter
• 2x M5x6mm bolts to attach Taillight to adapter
• 2x M5x16mm bolts to attach adapter to rack
• 2x M5 nuts
• 2x M5 spacers

Installation:

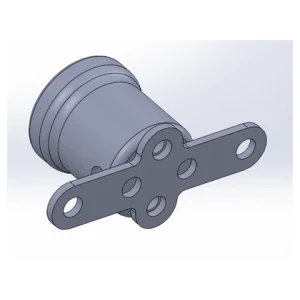

1. Use the M5x6mm bolts to attach the Taillight to the adapter.  Use whichever holes allow for the best wire routing for your setup.  The light output is symmetrical so the visibility of the light is not affected by the orientation.
2. Use the M5x16mm bolts and nuts (if needed) to attach the adapter to the rack.  Use the spacers to allow for clearance of the bolt heads from step 1.
