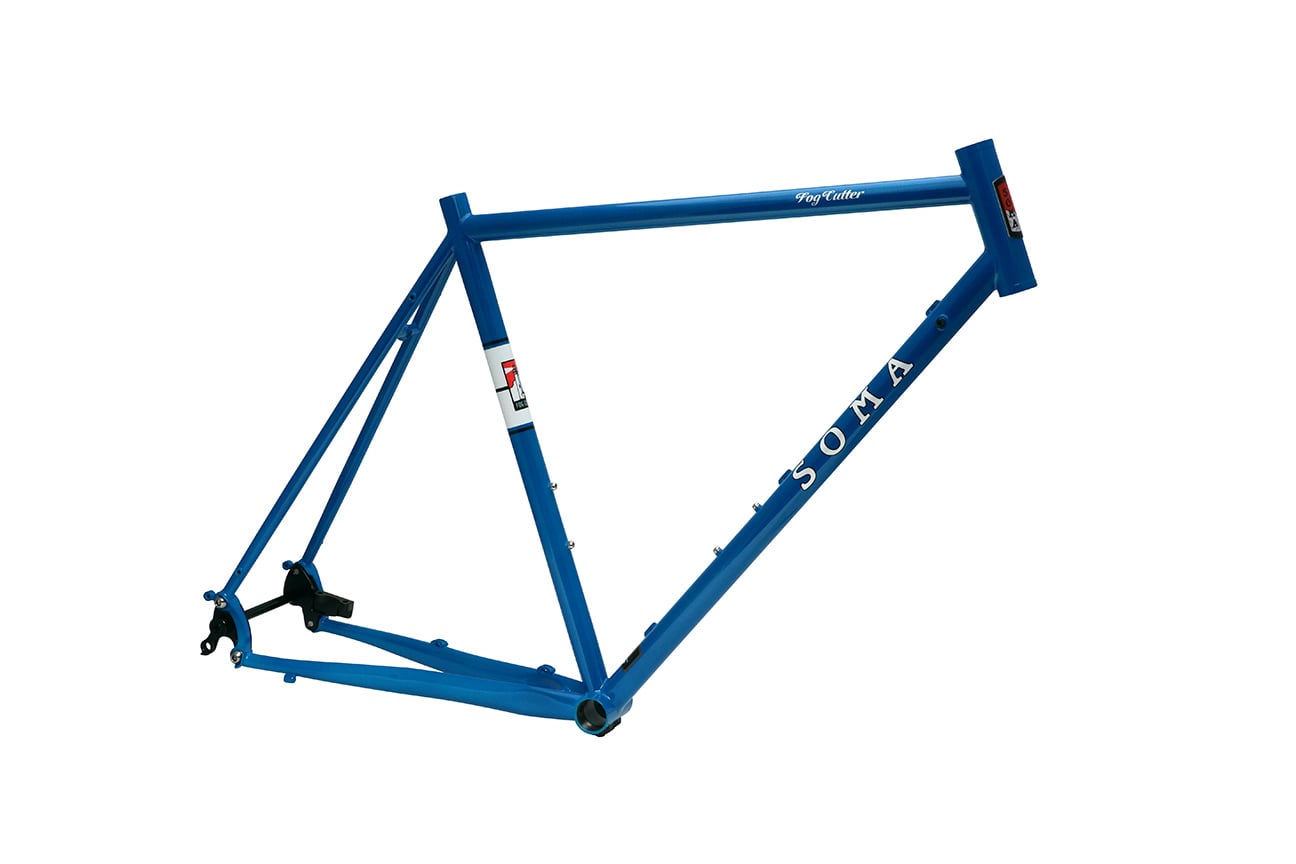

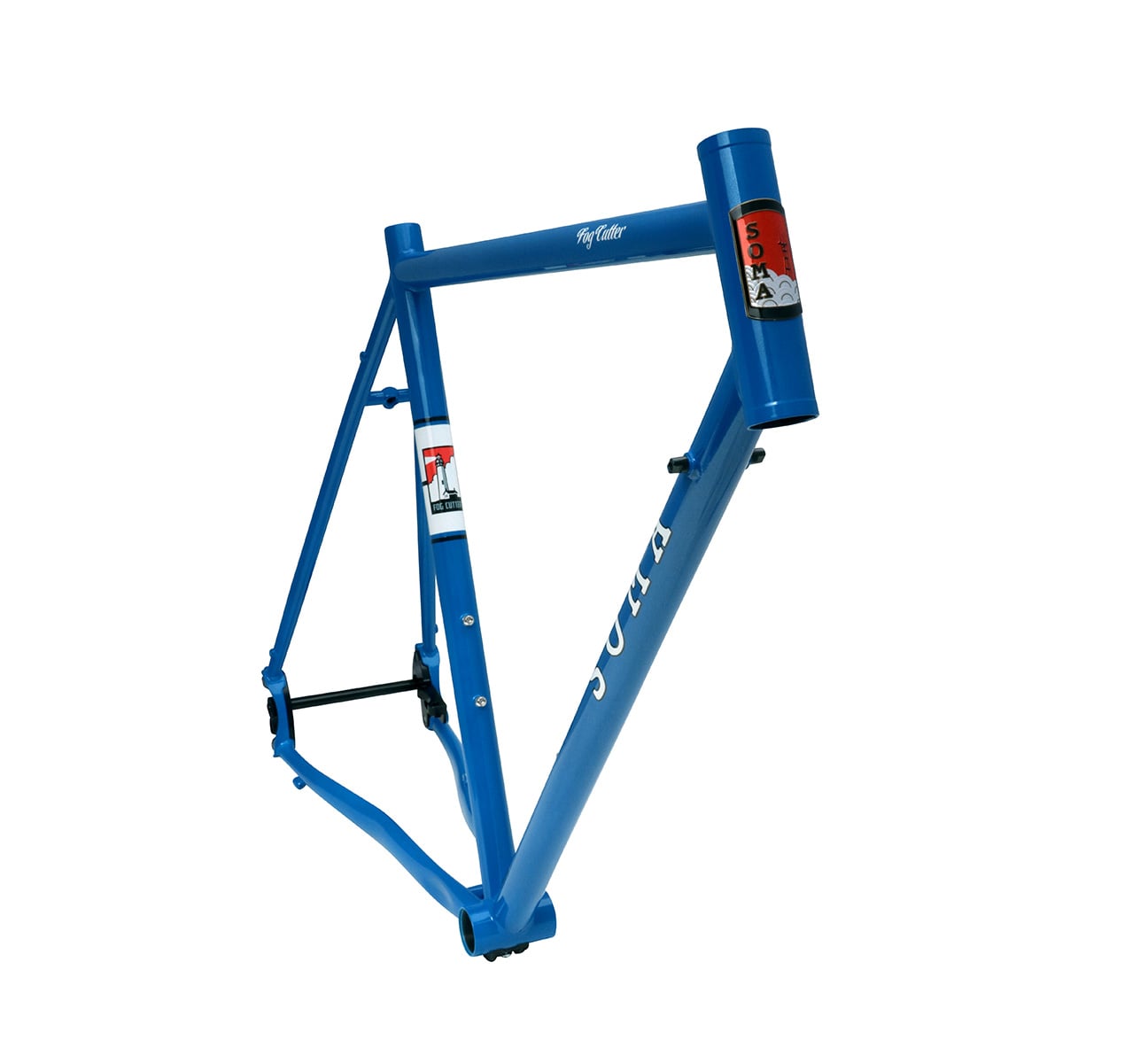

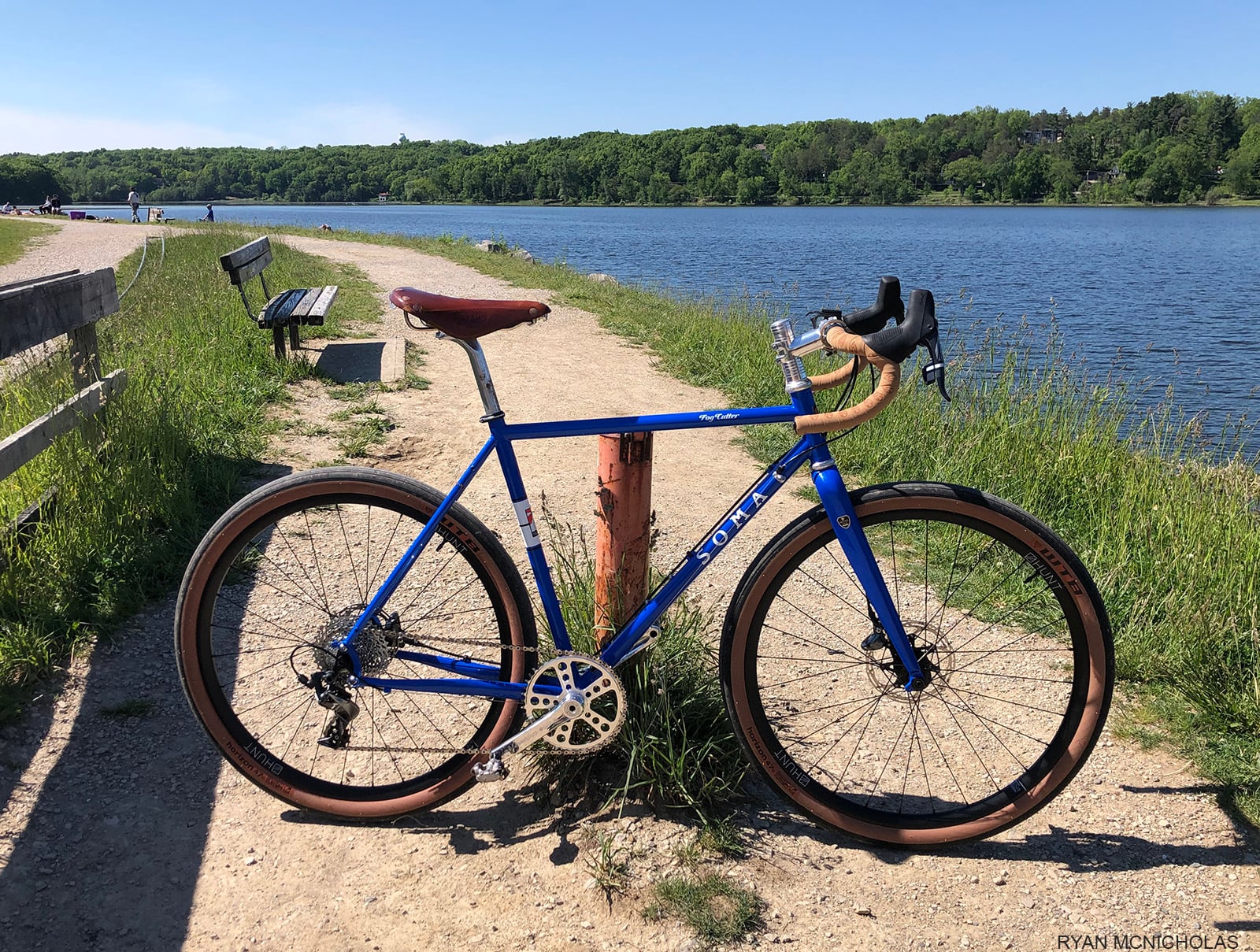

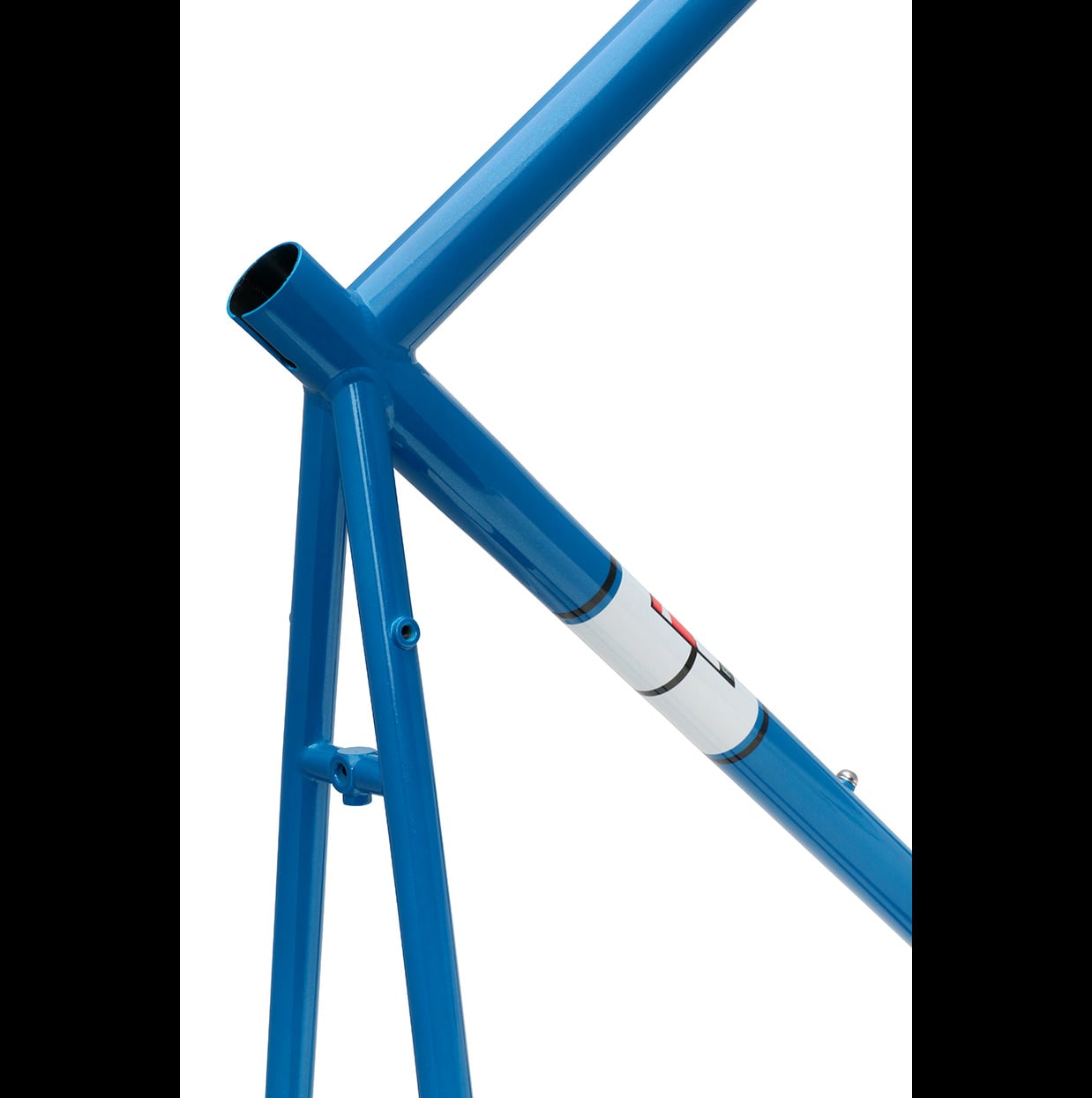

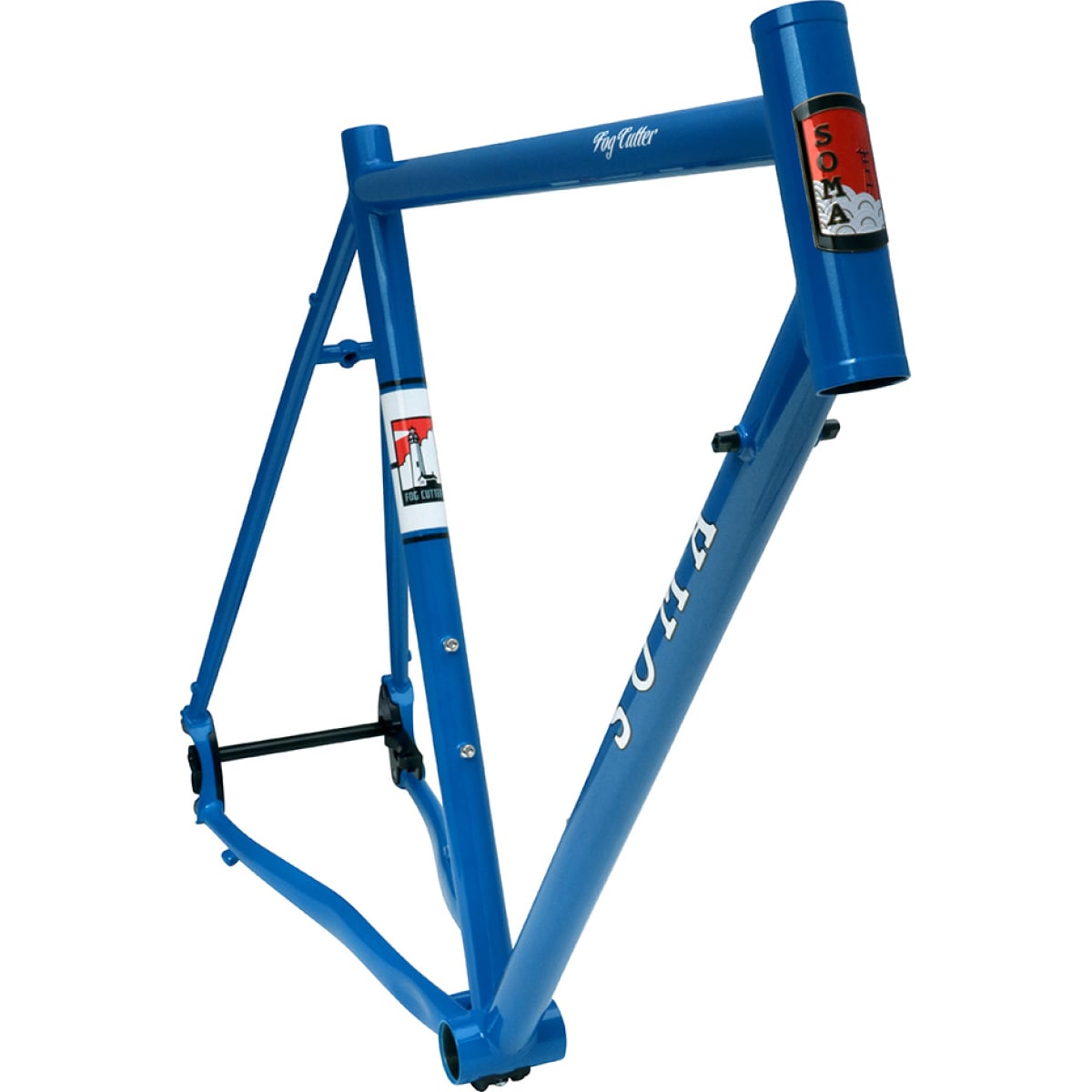

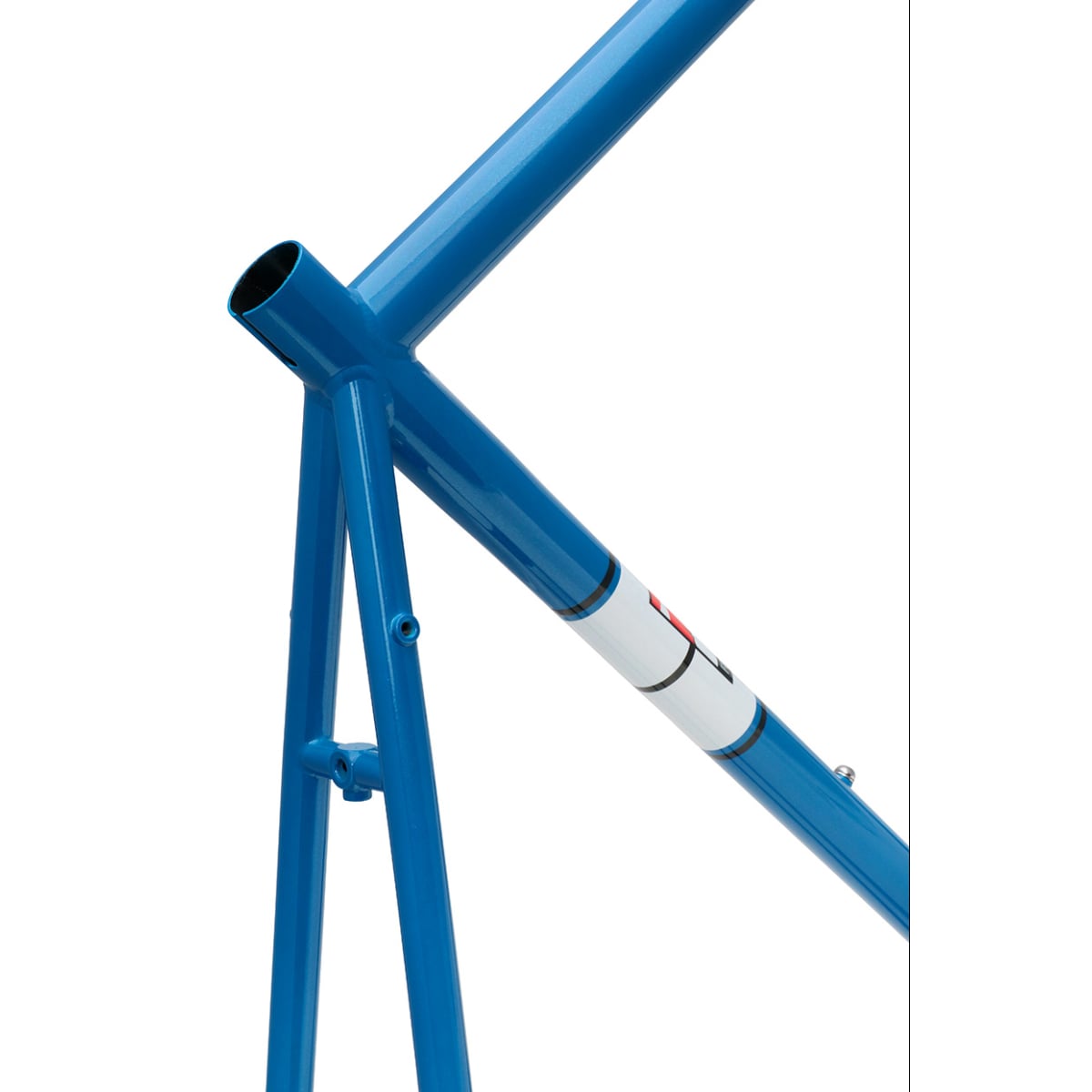

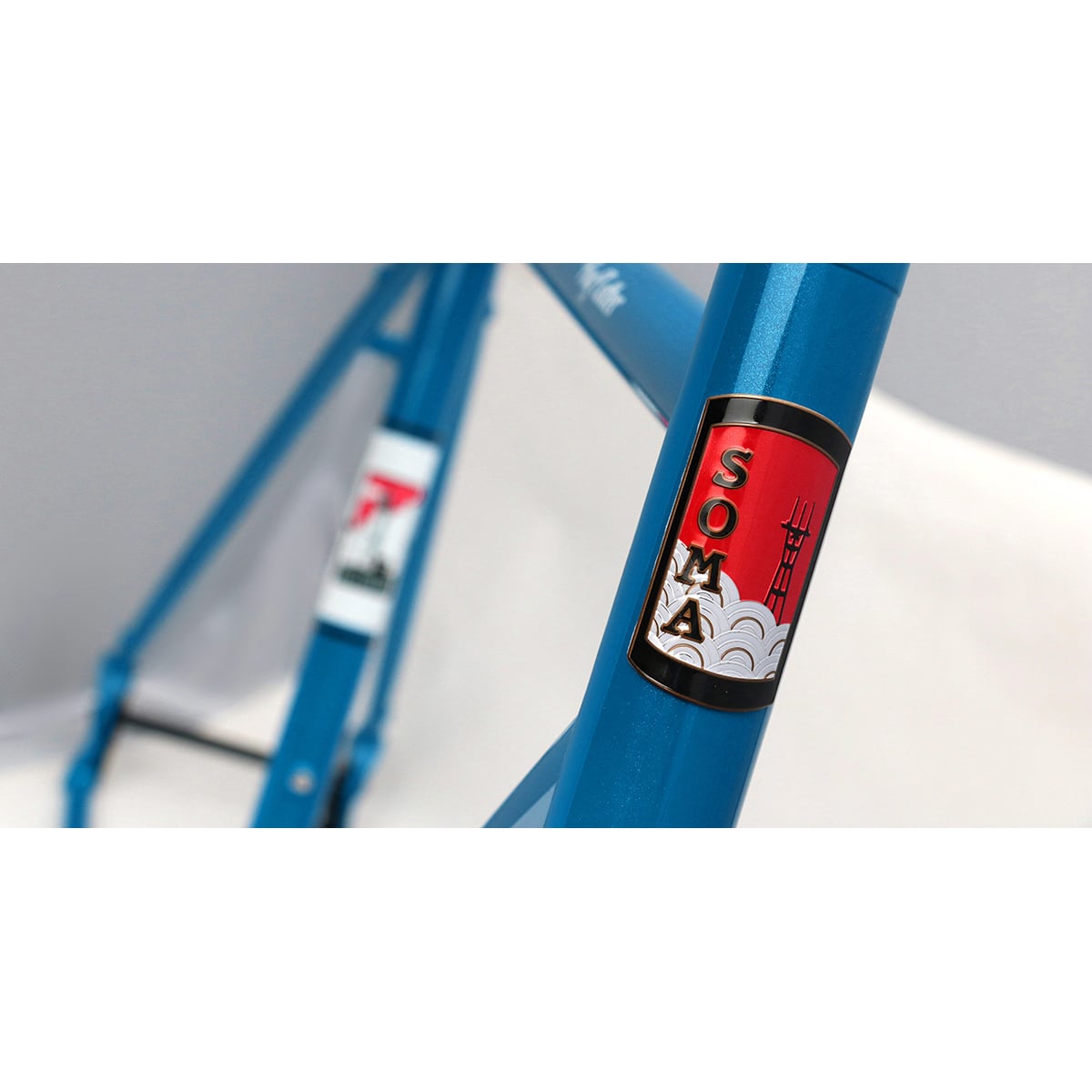

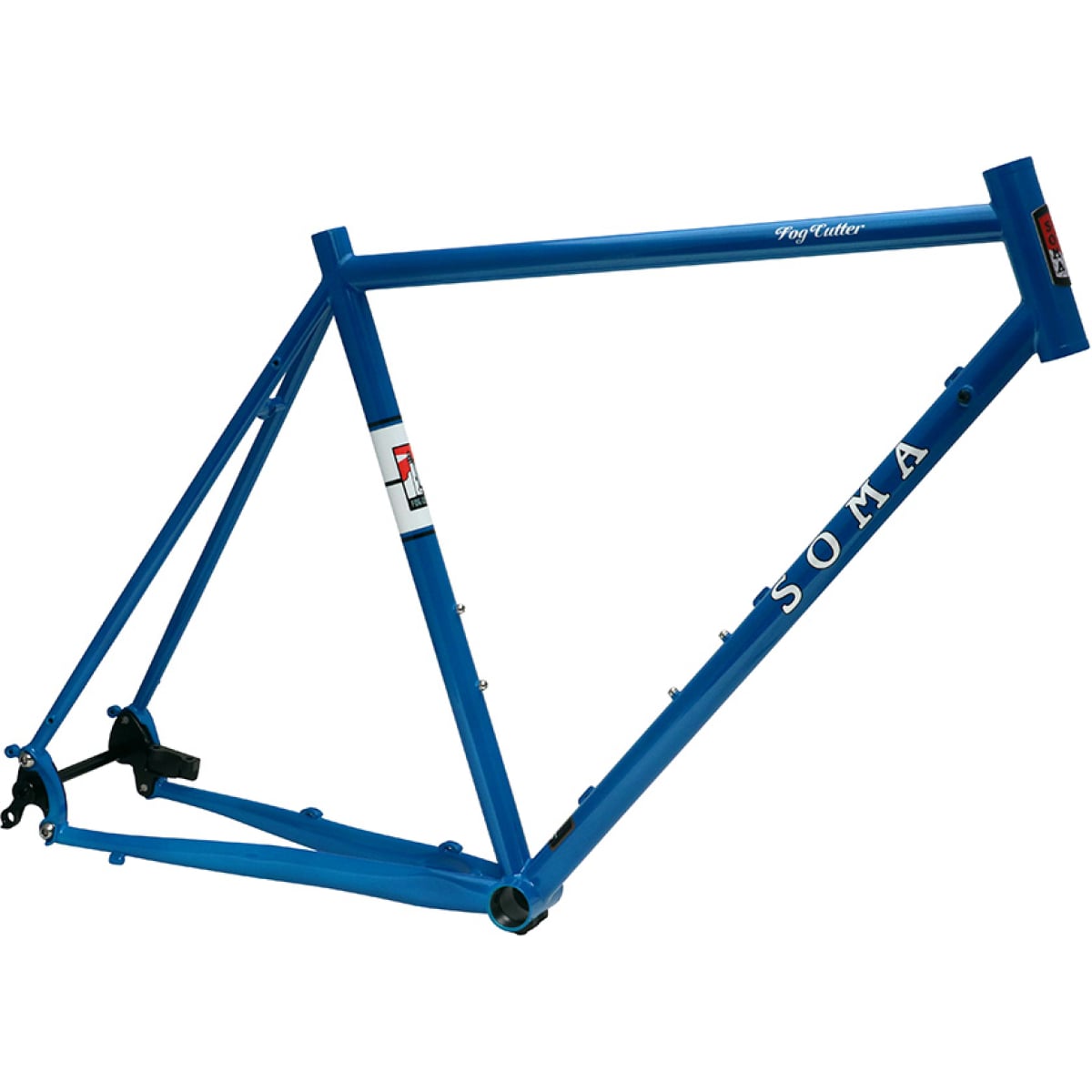

Blue V2
• Tange Prestige double butted CrMo steel tubing; heat treated throughout
• Road sport geometry
• Rear rack & fender mounts

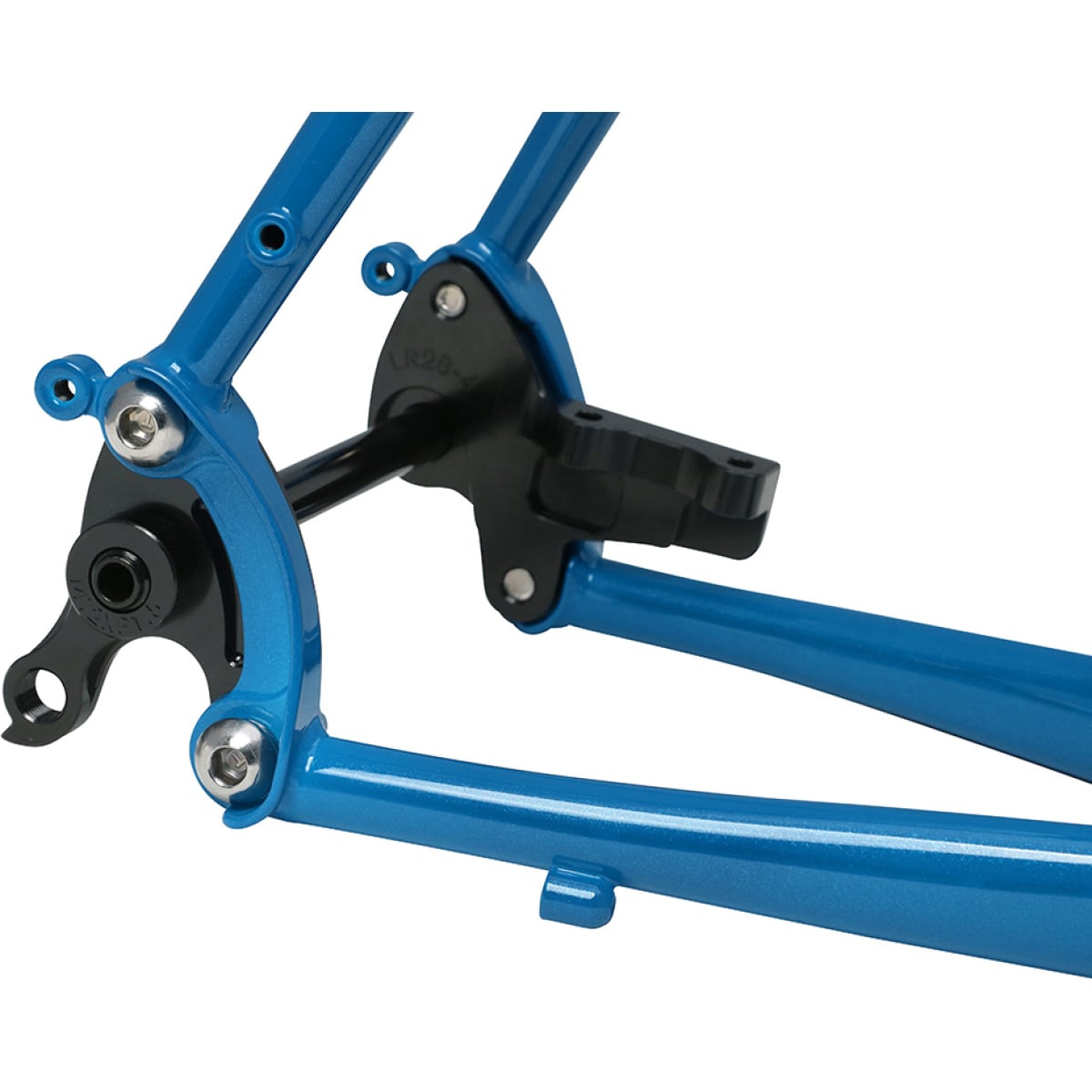

• Tange Modular dropouts. Stock setup is for 142mm thru-axle hubs and flat mount disc brakes. Alternative styles available thru Tange/Long Shen.

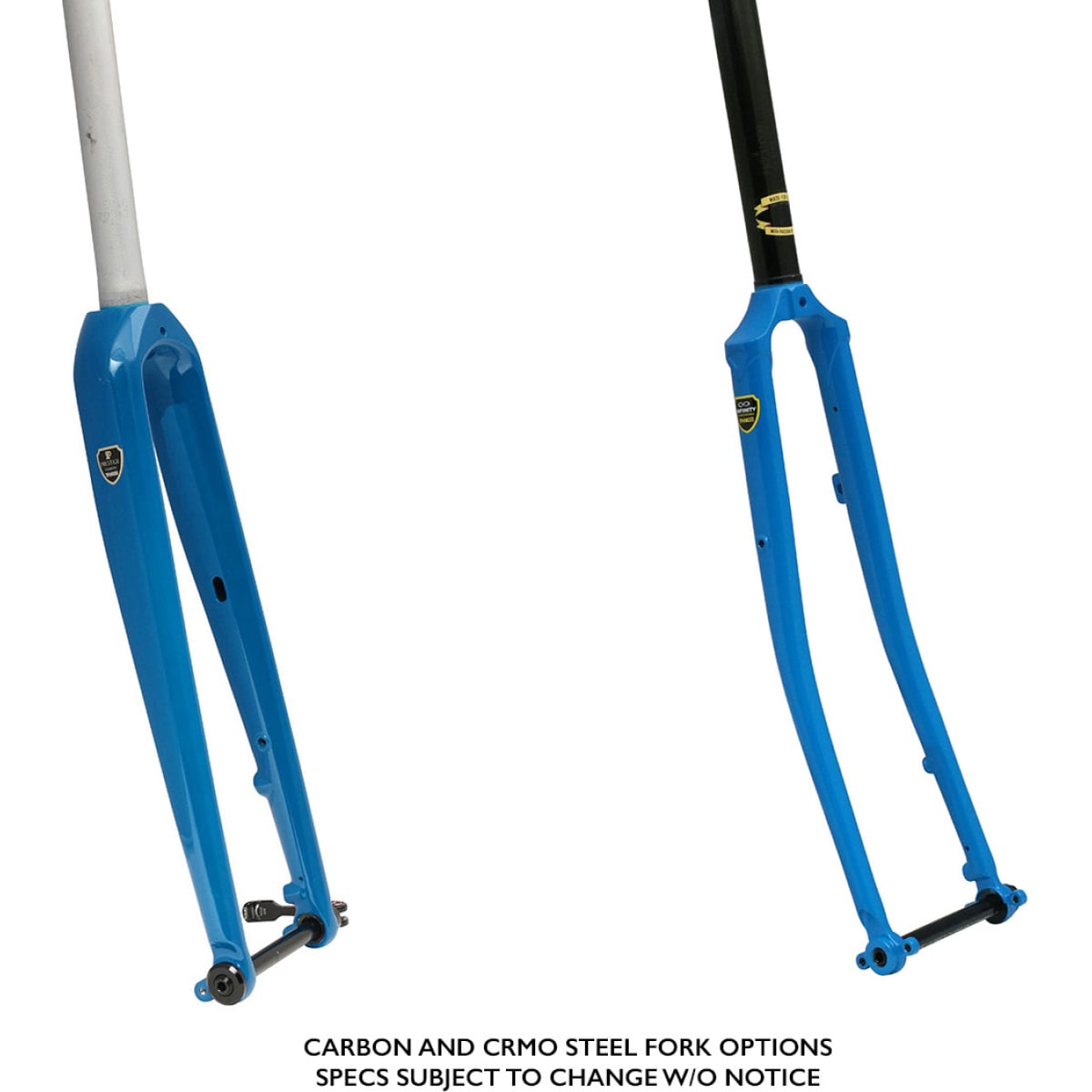

• Fork options: Matching straight blade carbon fork (flat mount disc, fits 12 x 100 thru-axle hub, fender eyelets, alloy steerer) or lugged CrMo steel fork (flat disc mount, fits 12 x 100 thru axle hub, mini-rack bosses, fender eyelets, CrMo steerer)
• Tire clearance for 700c x38mm with fenders (some front derailleurs will limit tire clearance) and 650b x 42mm
• Fits 1-1/8″ headset (EC34/28.6|EC34/30 headsets)
– 27.2mm post size
– 7 sizes: 48, 51, 54, 56, 58, 61 and 66cm
– Weight: 4.45 lbs (48cm); 4.75 lbs. (58cm)
– Paint: Cerulean Blue

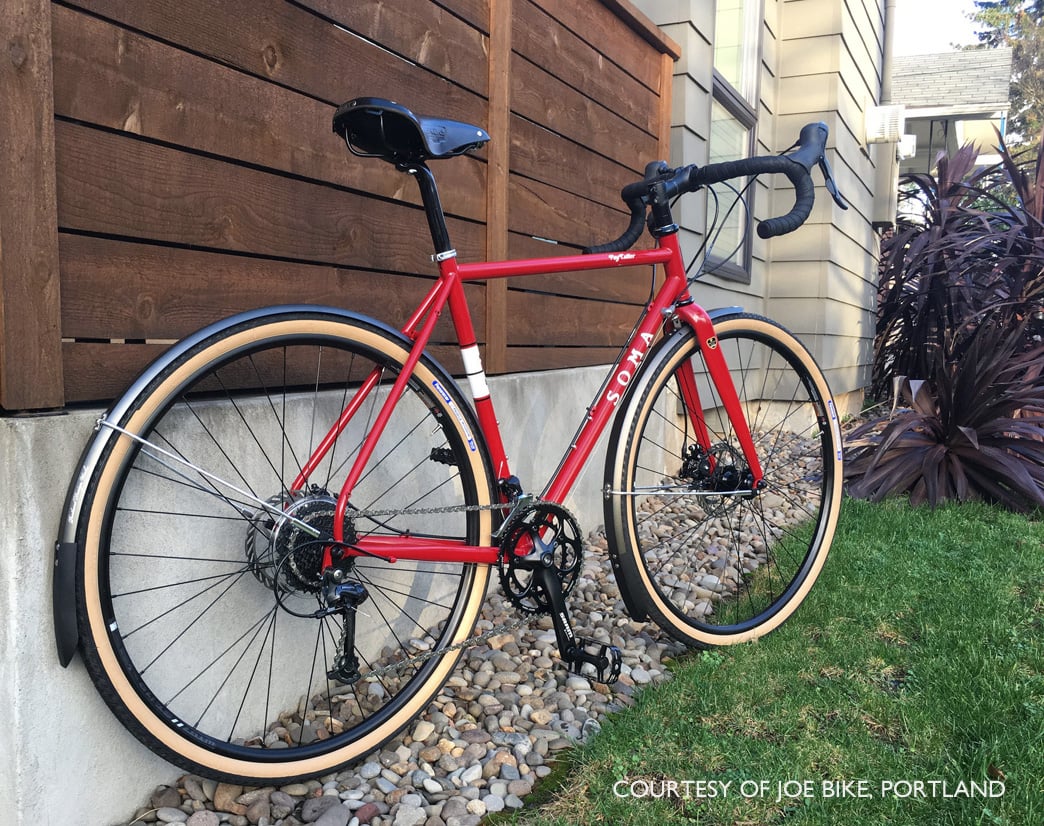

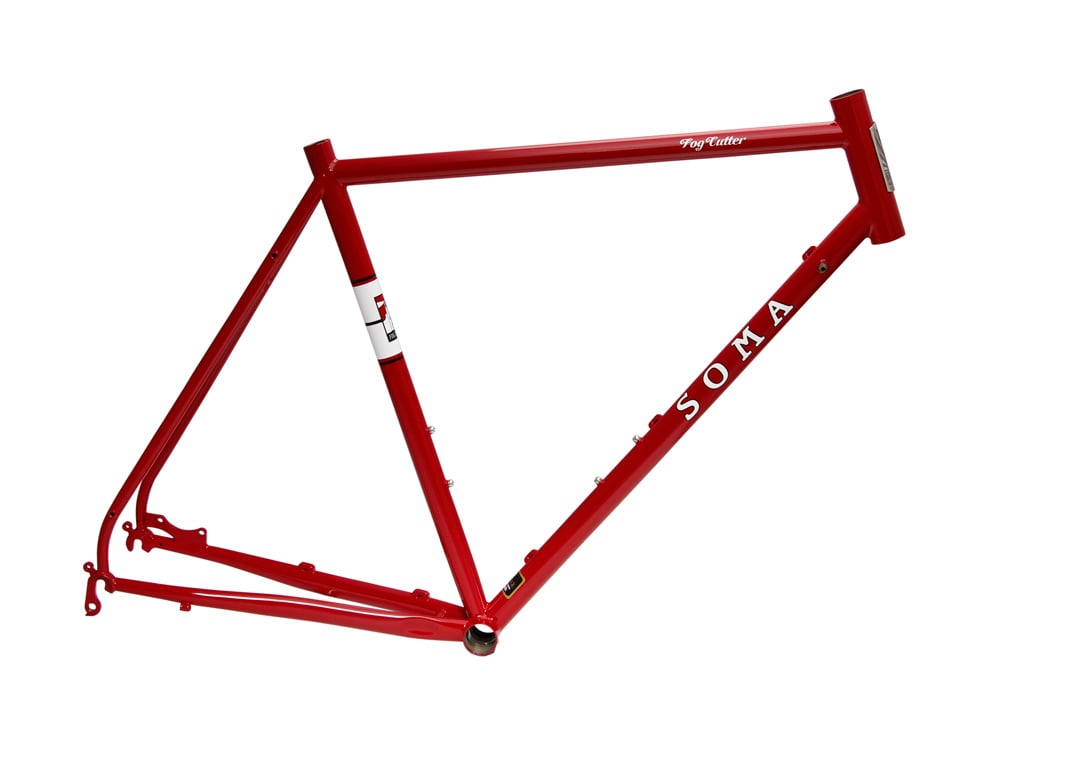

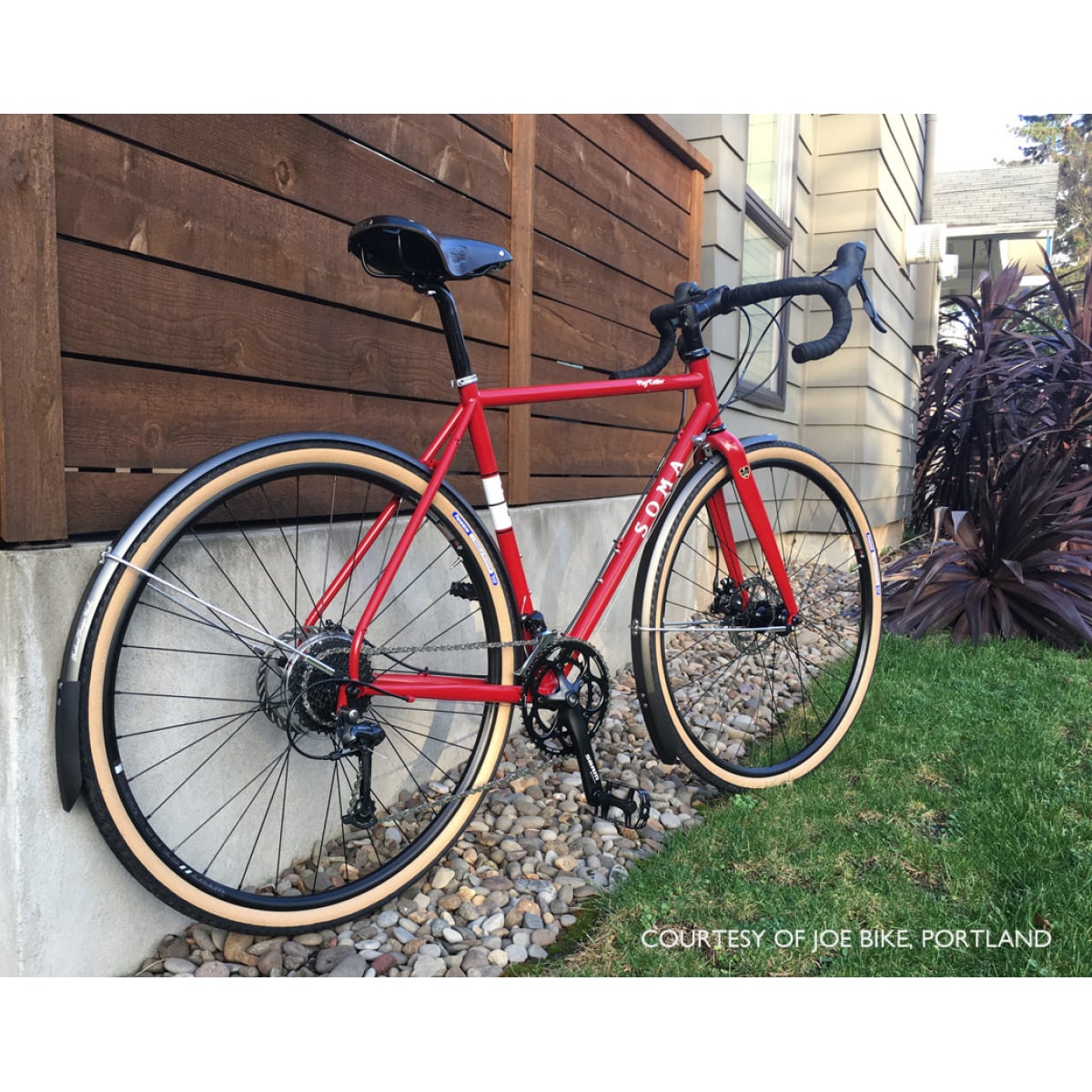

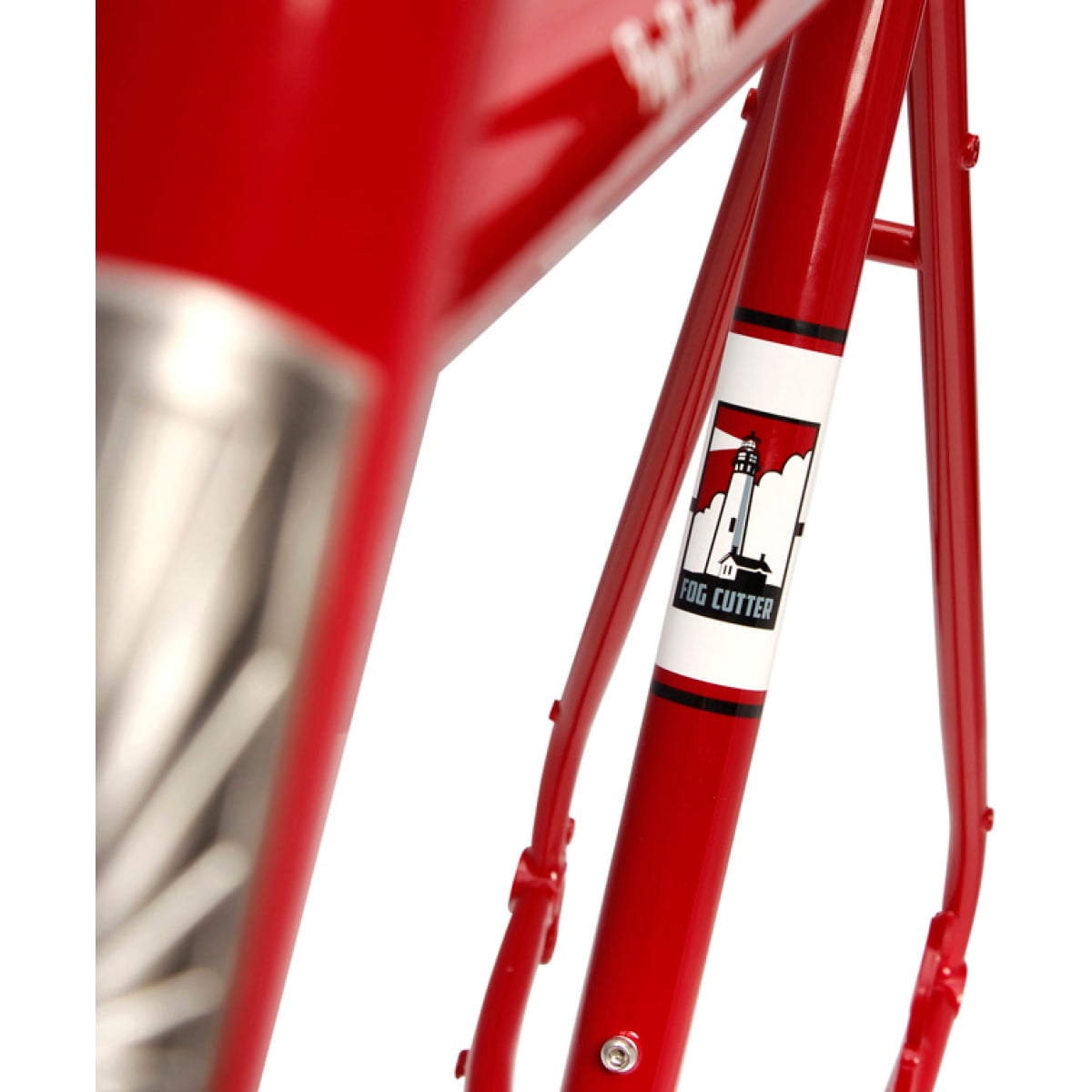

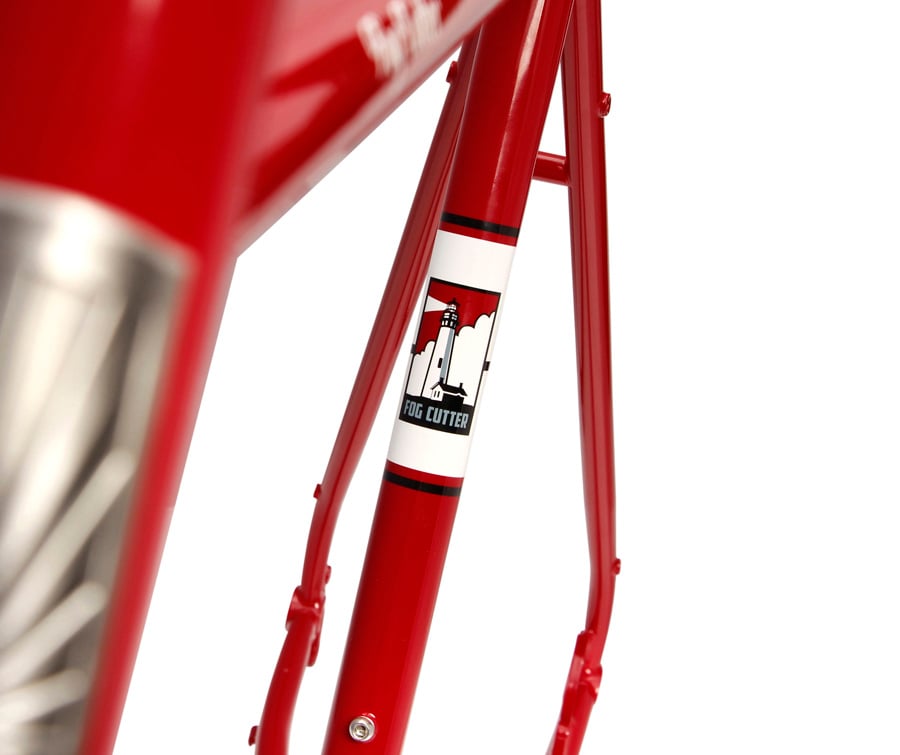

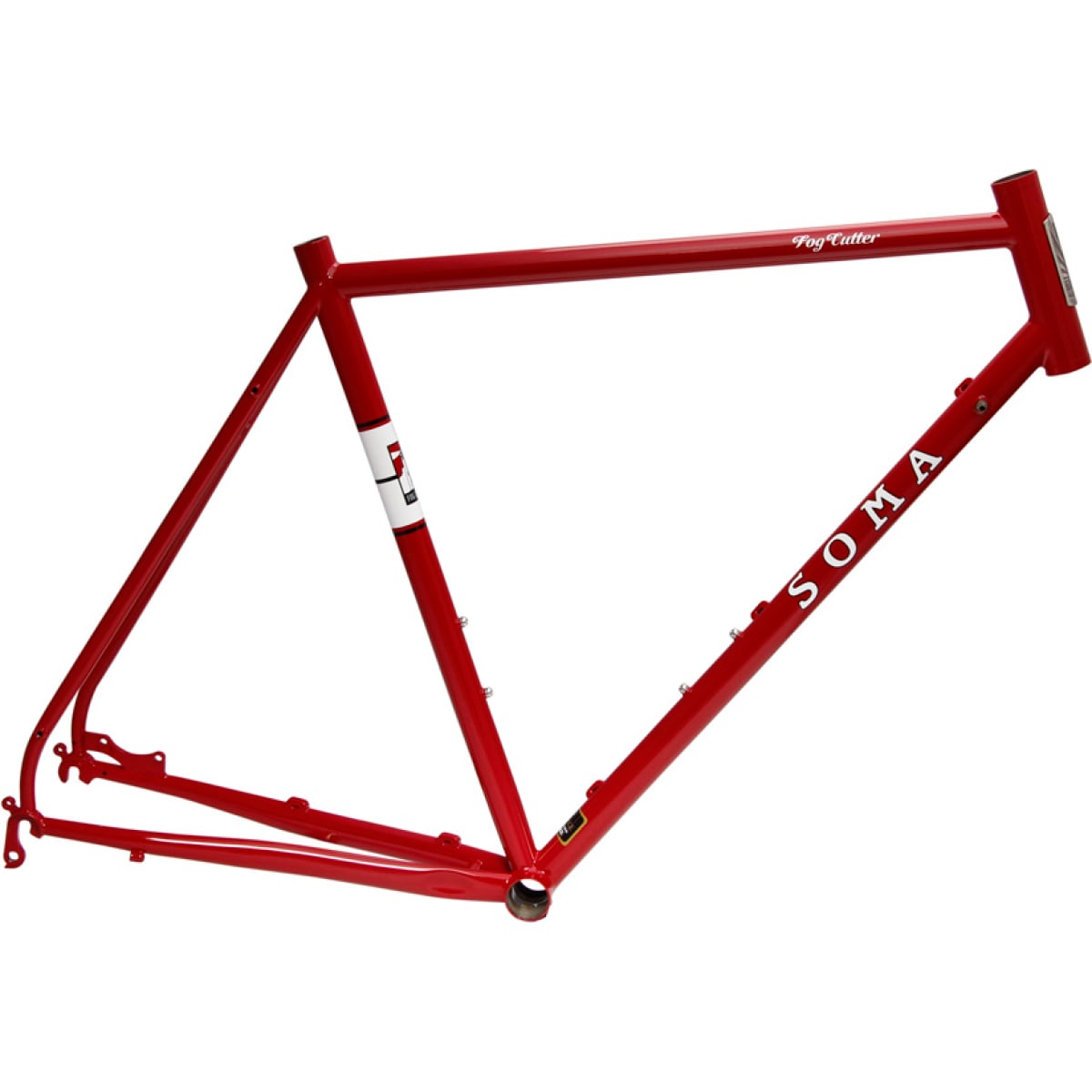

Red V1

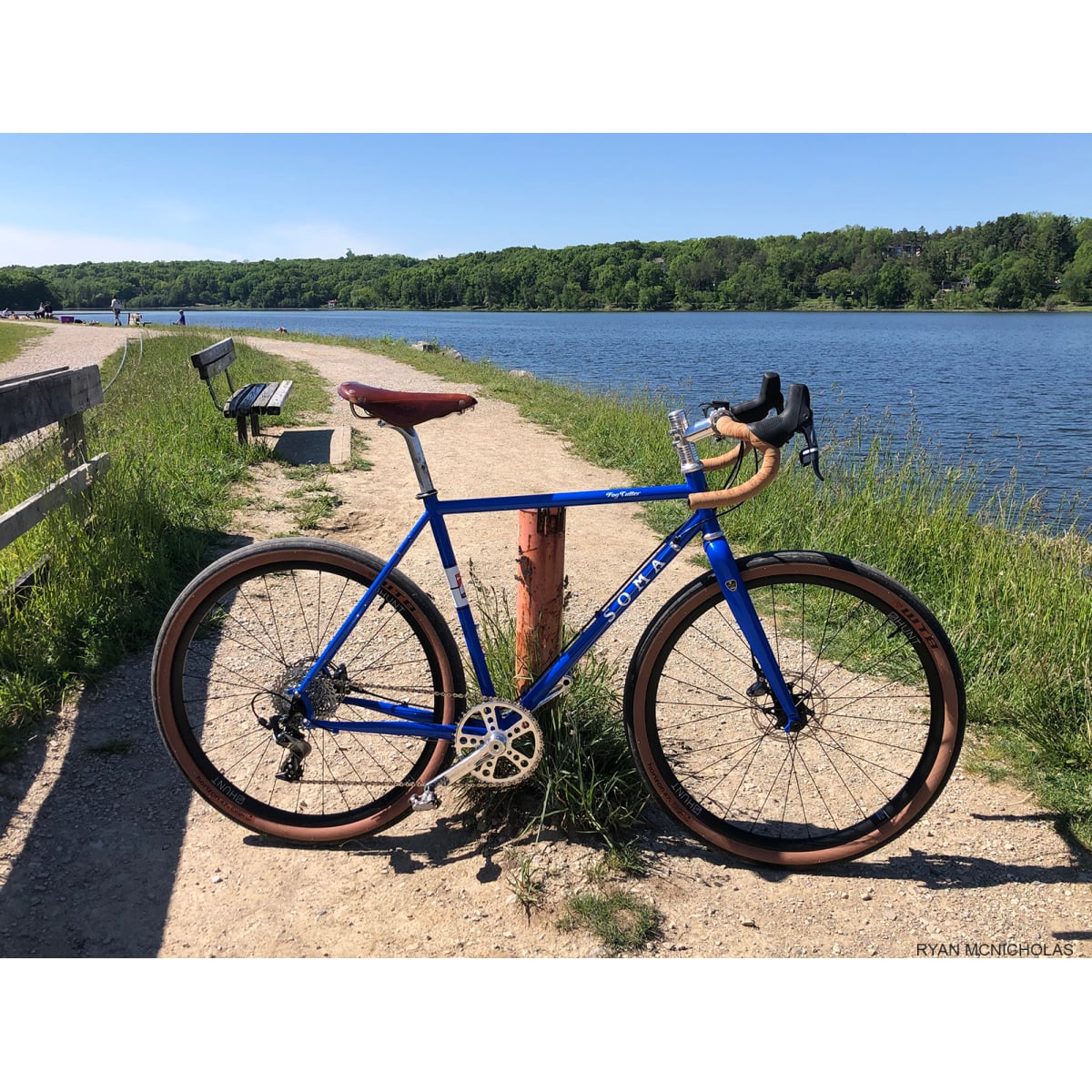

The Fog Cutter is an endurance road/road sport design. We designed it to fit fatter tires, but its geometry makes it handle like a road bike rather than CX or gravel bike. It can float you over chewed up asphalt better than most bikes in this category. This is the frame you want for long days in the saddle and the most demanding commutes.

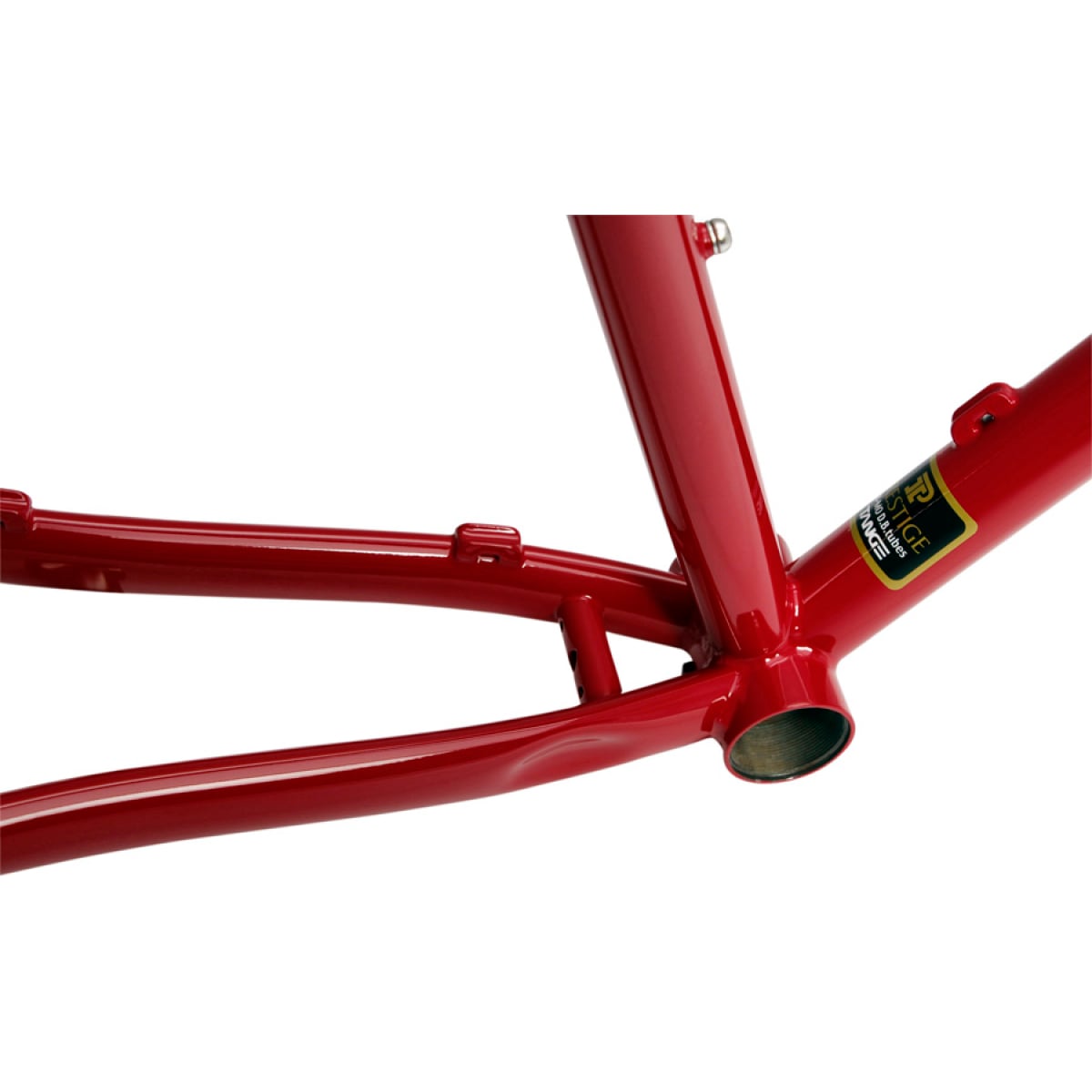

– Tange Prestige double butted CrMo steel front triangle; butted CrMo on rear triangle; heat treated throughout
– Road sport geometry
– Rear rack & fender mounts

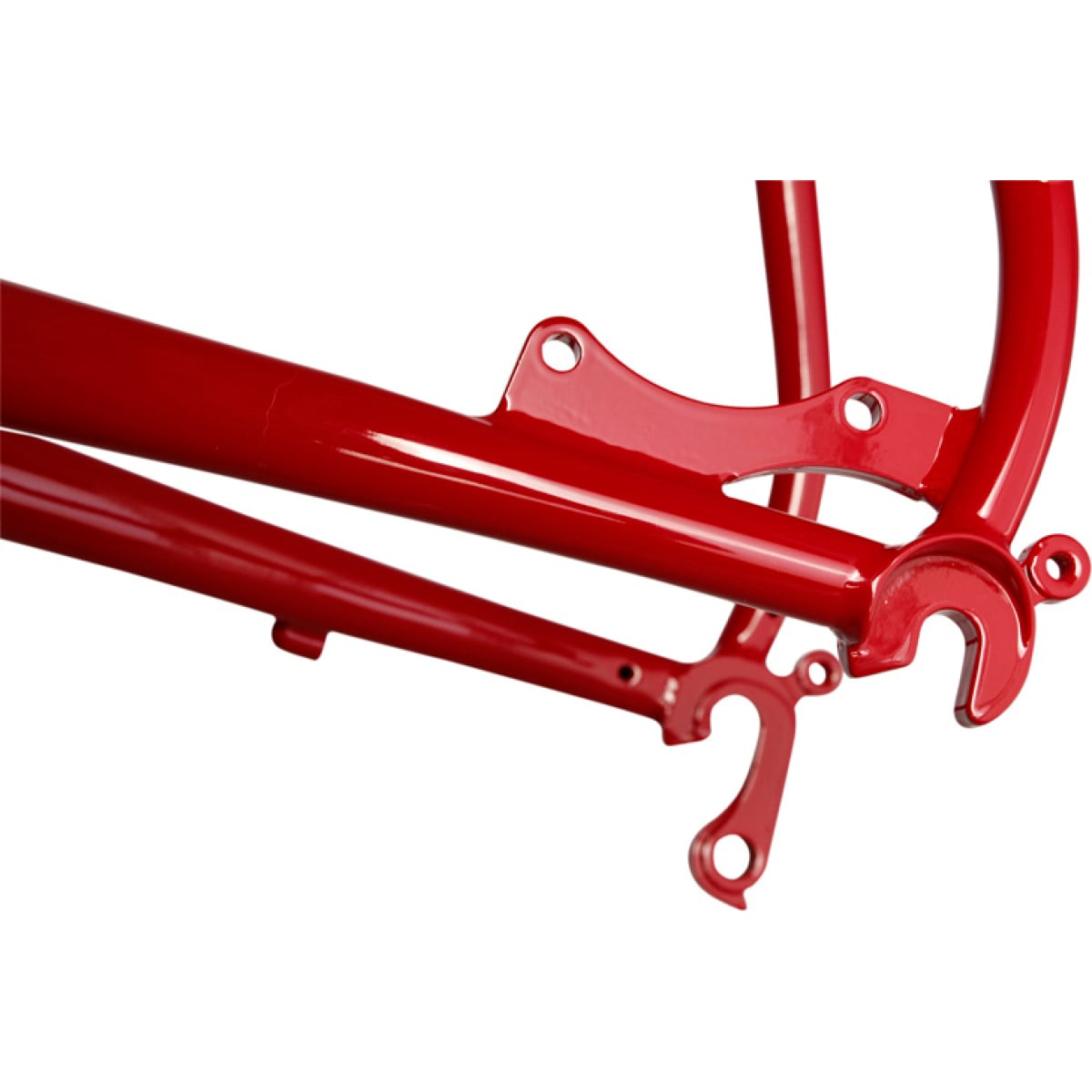

– International disc mounts (rear mount is located on the chainstay for stiffer performance and also keeps the caliper out of the way of rear racks)
– Fork options: Matching straight blade carbon fork w/ aluminum steerer or lugged CrMo steel fork w/CrMo steerer
– Tire clearance for 700c x38mm with fenders (some front derailleurs will limit tire clearance) and 650b x 42mm – 1-1/8″ headtube (fits EC34/28.6|EC34/30 headsets)
– 27.2mm post size
– 7 sizes: 48, 51, 54, 56, 58, 61 and 66cm
– Weight: 4.25 lbs (48cm); 4.5 lbs. (58cm)
– Paint: Rosso Red
(Matching aluminum fenders available as an option)
