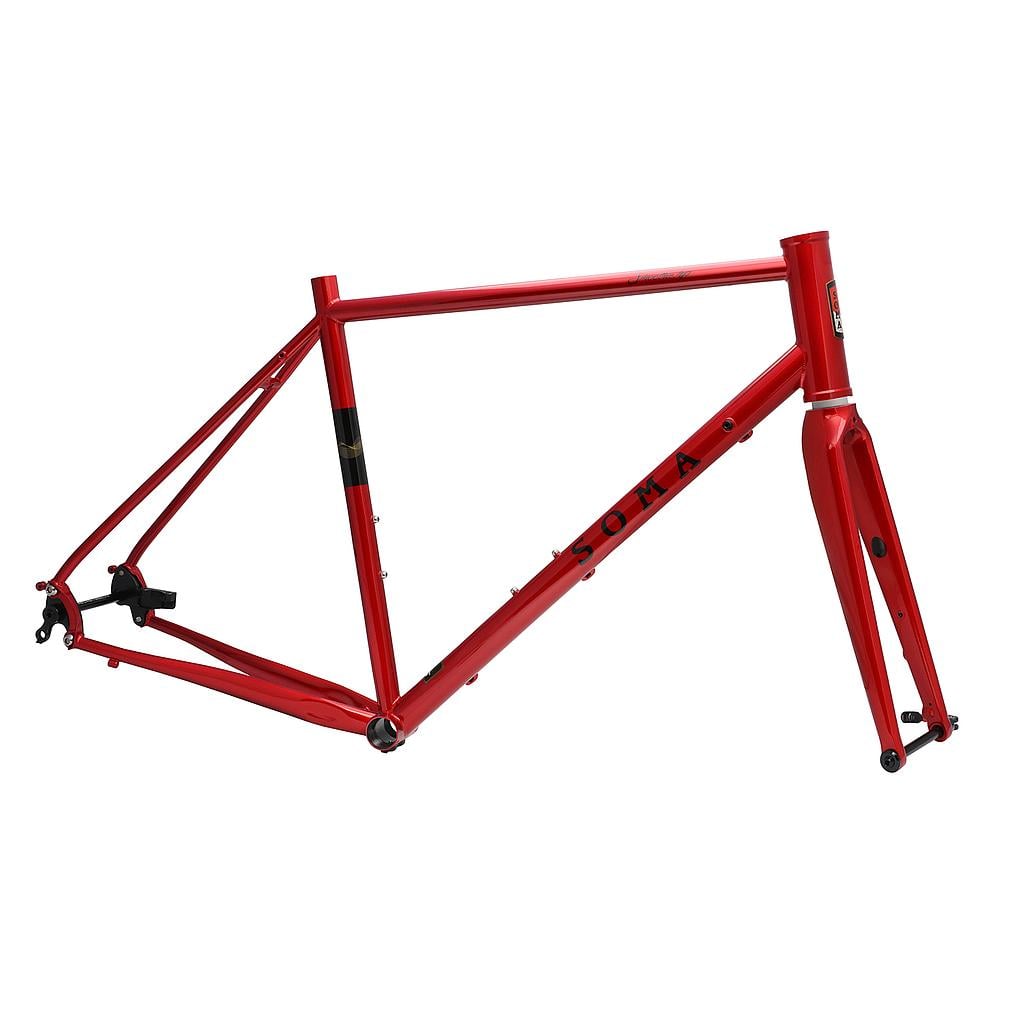

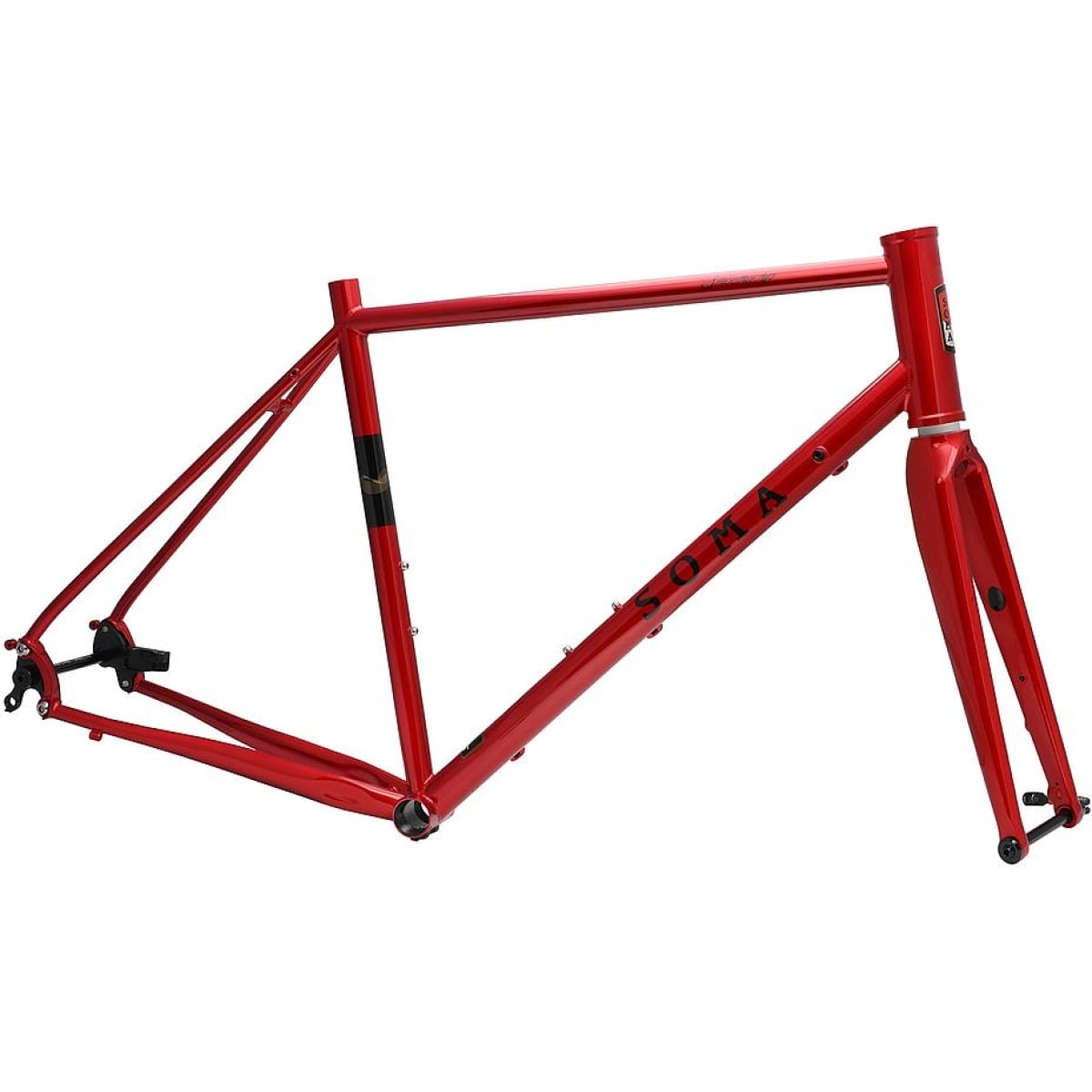

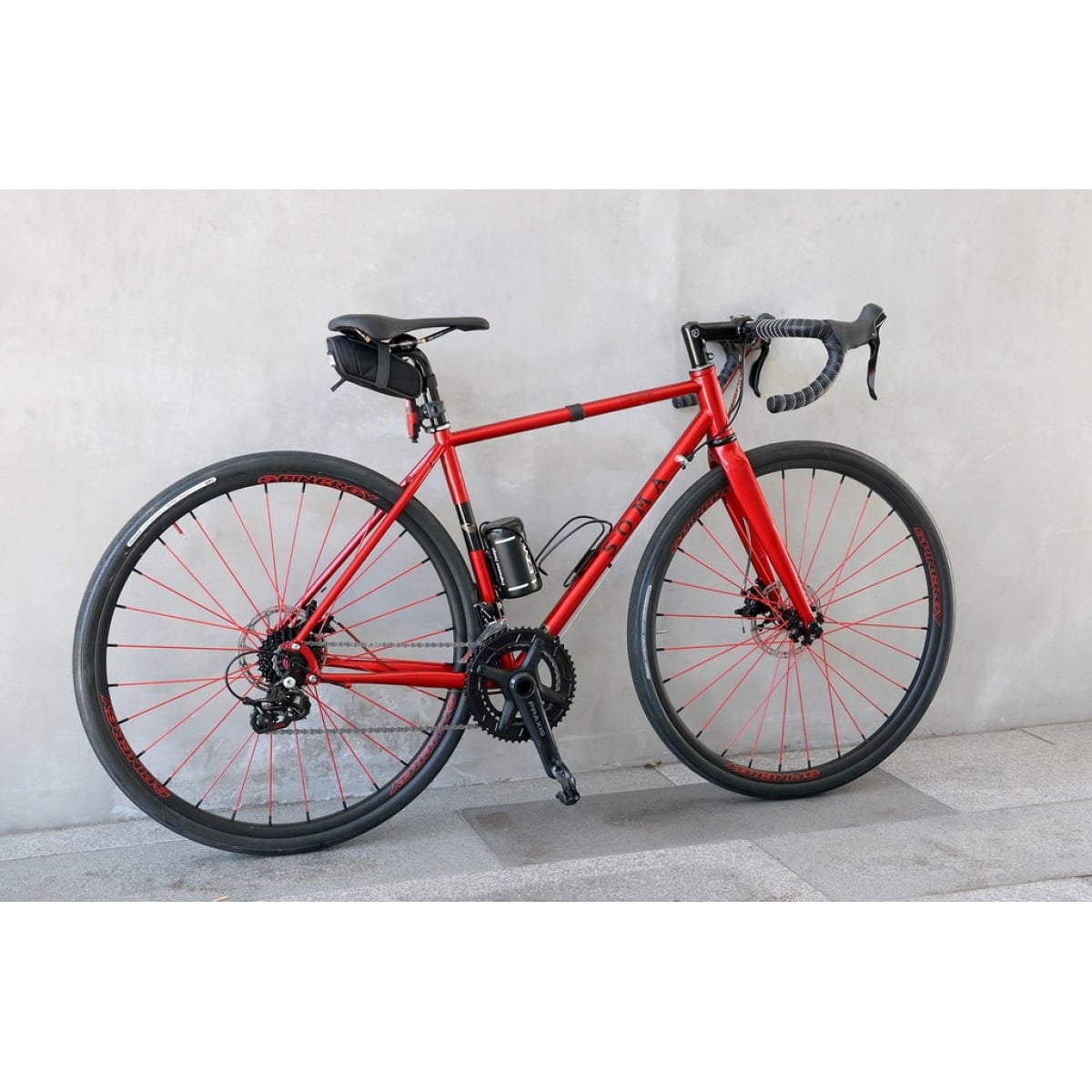

Soma Frameset Smoothie HP Red 48cm

Frame Features:

– Tange Prestige heat-treated double butted CrMo steel

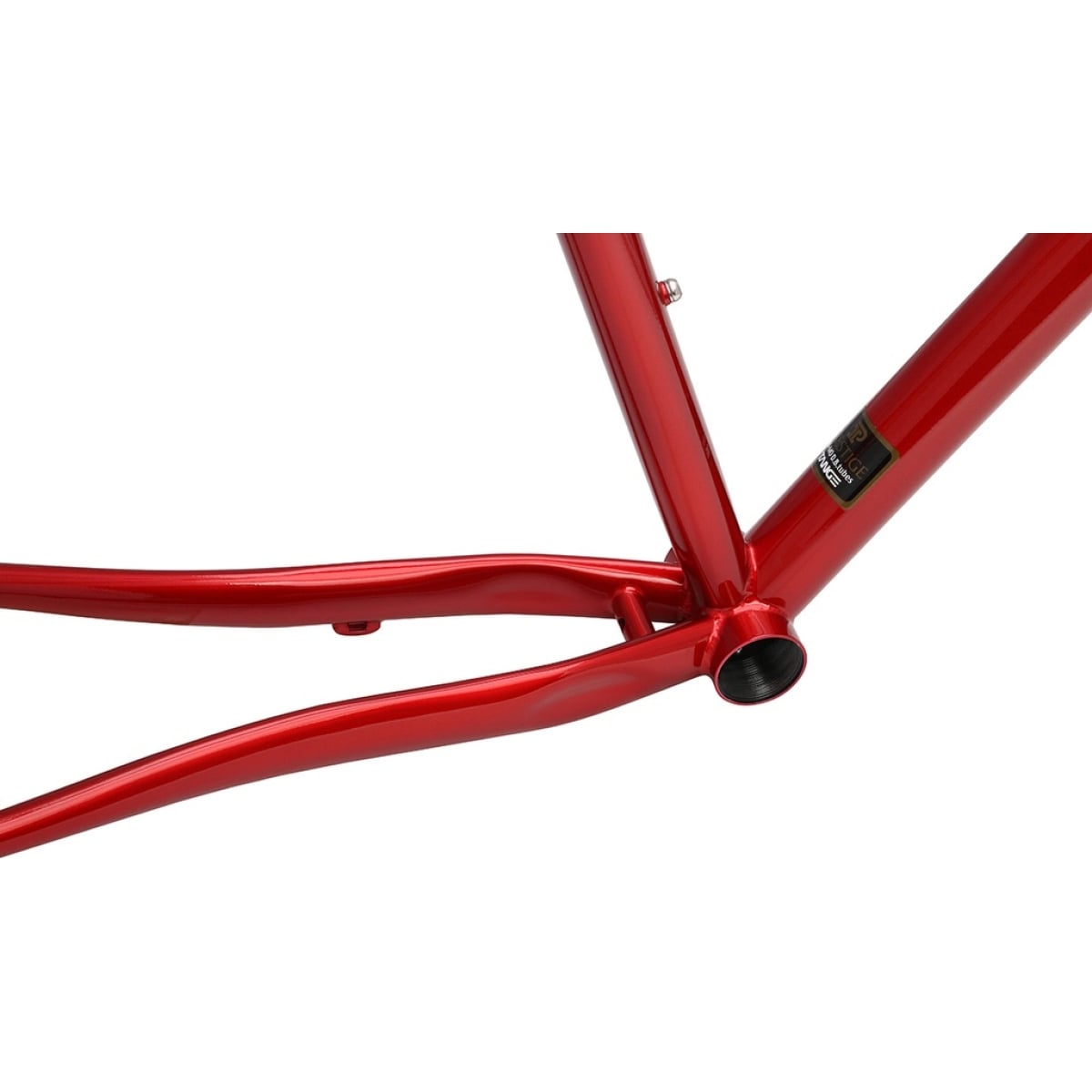

– Extra oversized down tube and chainstays for greater pedaling stiffness

– Ovalized top tube for increased lateral stiffness and vertical compliance

– Size specific tubing (Larger diameter down tubes on the larger sizes)

– Comfortable high stack matched with a tighter wheelbase than the typical big brand endurance road frame

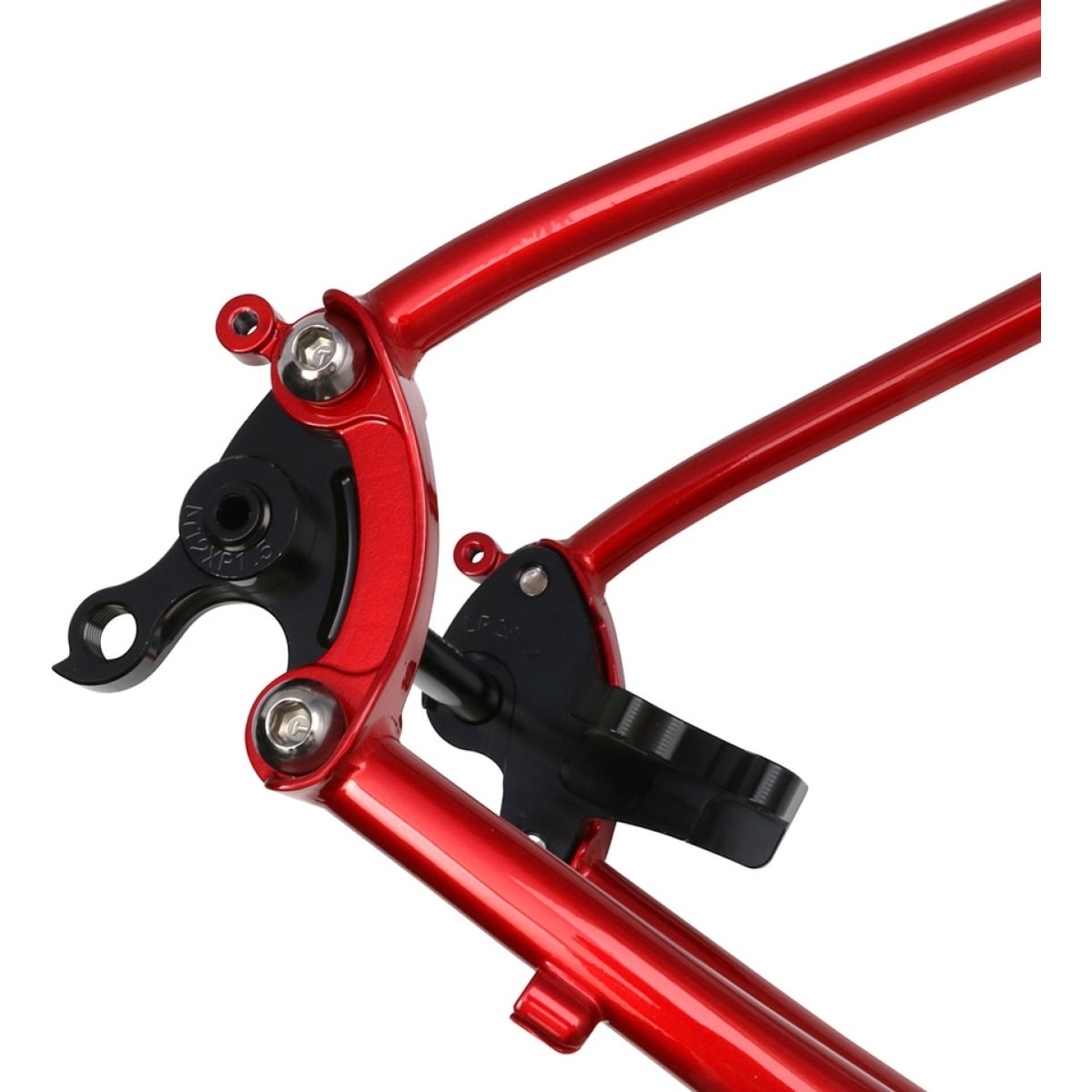

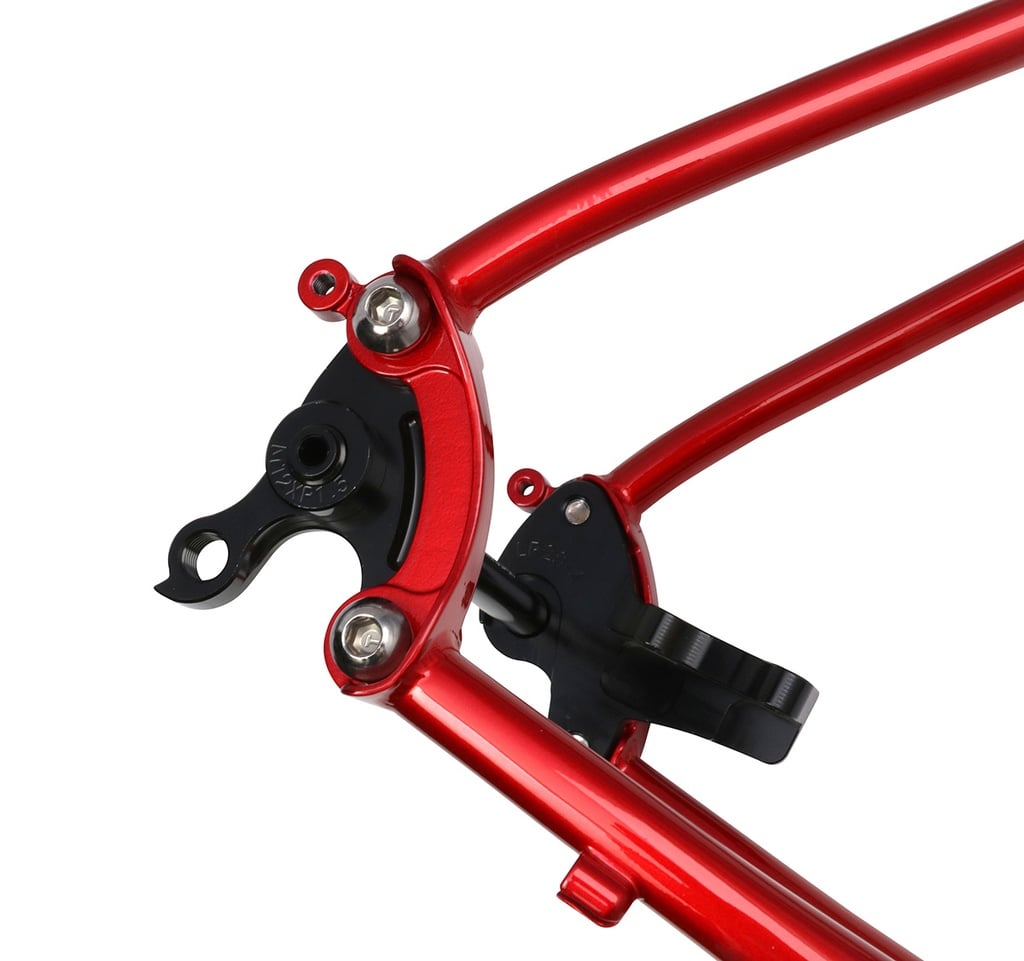

– Replaceable modular dropouts (12 x 142mm bolt-on thru-axle, fits flat mount disc brake)

– BSA Threaded bottom bracket shell

– Rear rack/fender mounts

– Max tire size: 700x32c with fenders

– Two water bottle boss sets

Fork Features:

– Carbon Fiber

– 43mm rake (48mm on size 48 and 52cm)

– Fits 700×32 tires with fenders

– 12 x 100mm QR thru-axle, flat mount brake compatible

– Tapered alloy steerer

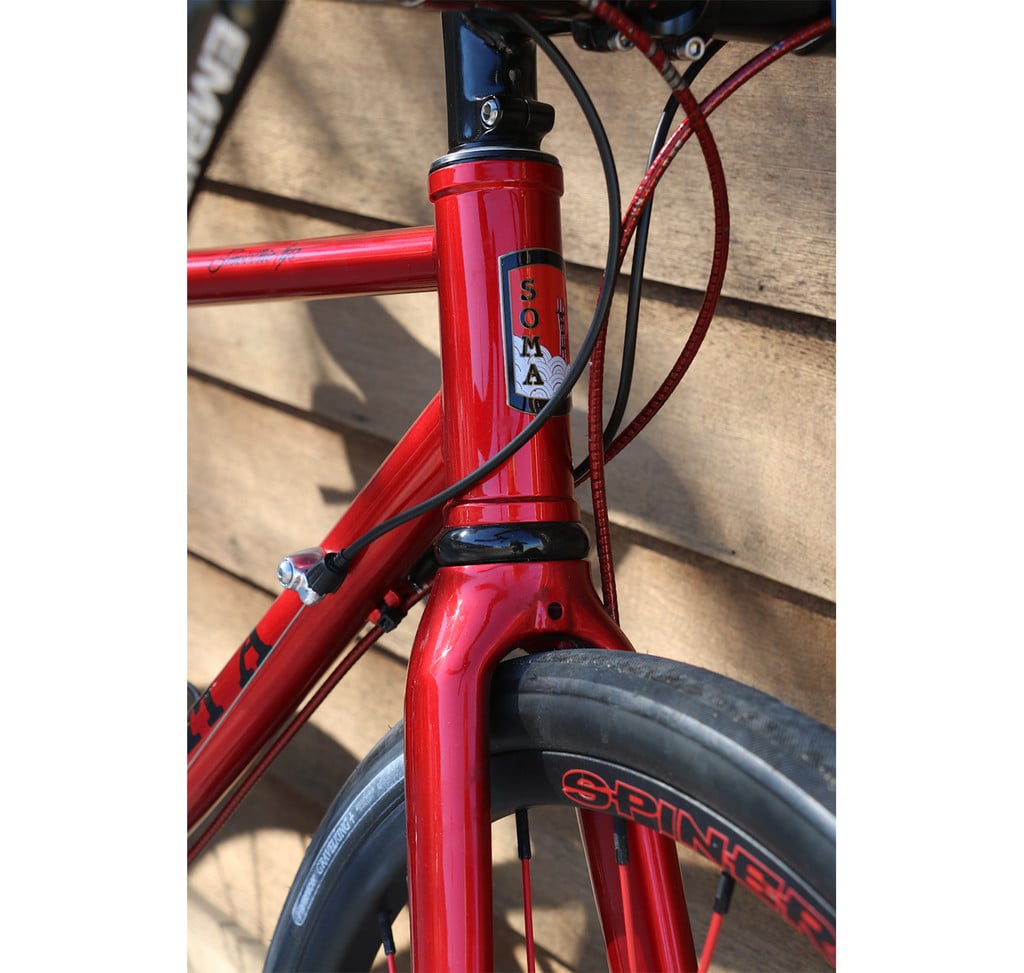

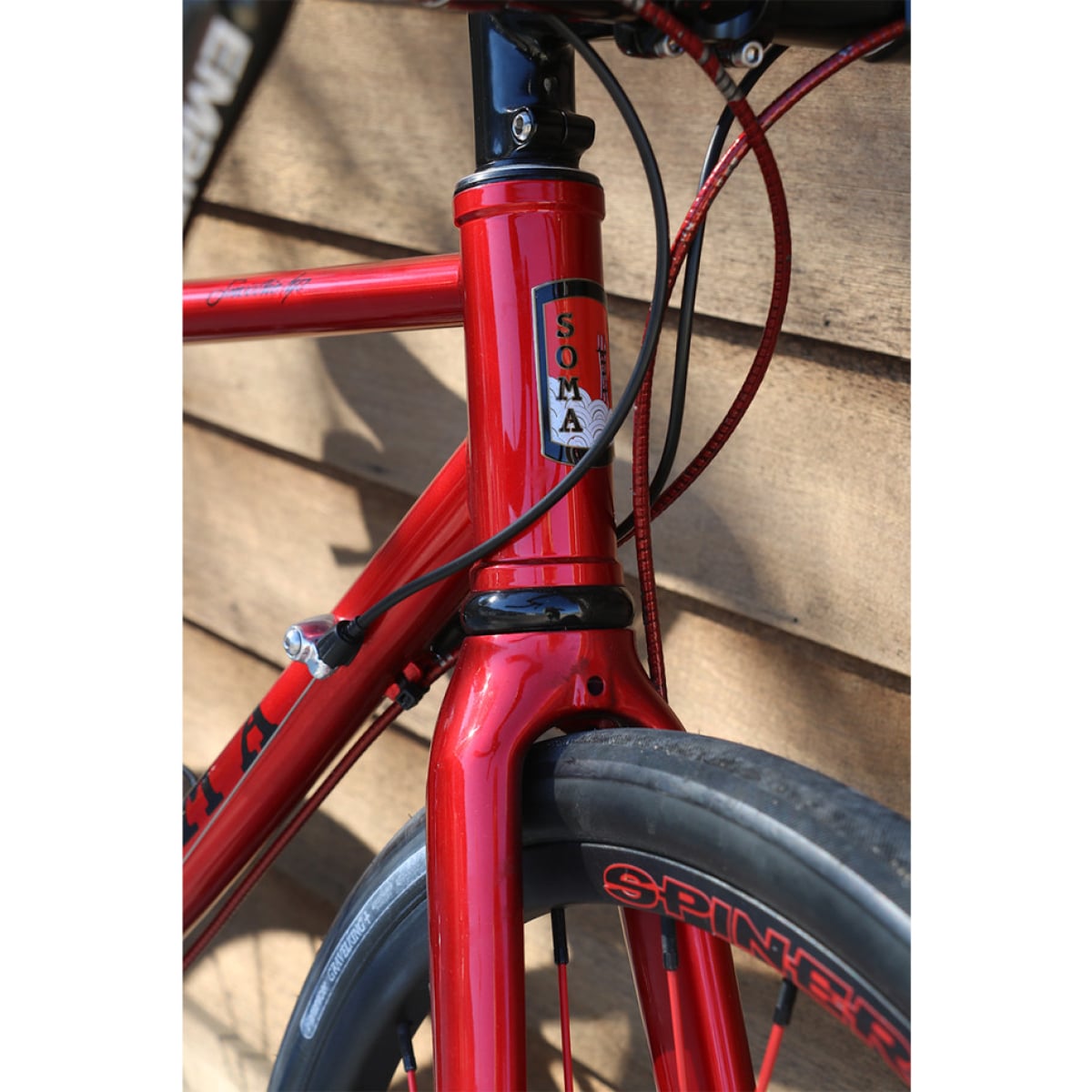

– fork has internal cable routing

• Specifications and Recommendations:
  Frame:
  – Seatpost: 27.2mm, Seat collar: 29.8 or 30.0mm
  – Front derailleur: 28.6mm, bottom pull
  – Rear hub thru-axle: 142mm x 12mm
  – Headset SHIS: ZS44/28.6 | EC44/40)
  – Max.Tire Fit: 700c x 35mm (certain front derailleurs may reduce tire clearance)
  – Min. Tire Recommendation: 700c x 23mm – Max chainring fit: 52-39-30t, 53-39t,

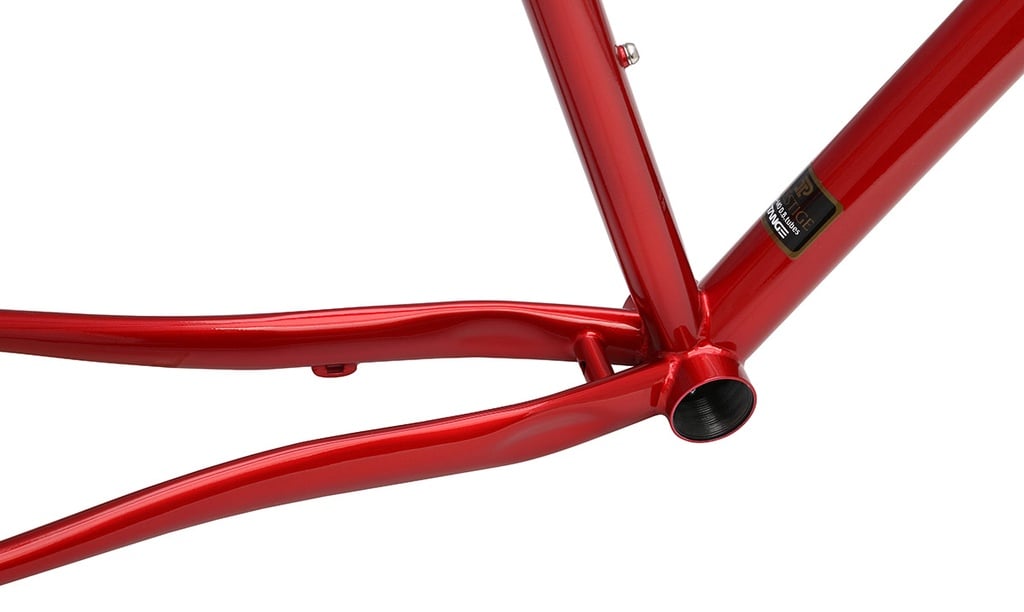

  – Bottom bracket shell: 68mm wide, English threads
  – Compatible with downtube shifters
  – Rear disc brakes: 140mm rotors (160mm max), Flat mount
  – Also compatible with 57mm reach road rim brake
  – Rear rack fitting: We recommend a rear rack designed for short chainstay bikes like our Rakku to reduce heel strike with large bags.
  – Recommended fender fit: 37-45mm wide; ideally 10mm wider than tire width

  Fork:
  – Rake: 43mm (48mm for size 48cm and 52cm)
  – Axle to crown: 380mm
  – Disc brake mount type: Flat mount, 160mm max rotors
  – Also compatible with 57mm reach road rim brake
  – Hub thru-axle: 100 x 12
  – Fender mounts on inside of legs
  – Max.Tire Fit: 700c x 35mm
  – Steerer: Aluminum, so you can use either star washers or a compression (expansion) plug with your headset. 350mm long

What is the cable routing like on the Smoothie HP

The Smoothie HP runs shifter cables and the rear brake externally along the downtube. We believe that bicycles with with internally routed create maintenance headaches that outweigh their benefits for this type of bike. The frame is compatible with old school downtube friction shifters. A nylon plastic cable guide is screwed into the bottom bracket shell. The matching carbon fork has internal routing. Cable guide braze-ons need C-clips(included) or zip-ties to hold the cable housing to the frame.

1) If you are not using downtube friction shifters, you need to purchase downtube cable stops to cover the bosses and to create an guide point for running cables.

2) We recommend sheathing exposed shifter cables on the downtube and bottom bracket with Teflon cable liner. These are inexpensive and helps keep the cables from a build up of dirt and grease on the plastic cable guide. Also reduces corrosion if you are not using stainless steel cables.

3) It is common on bikes that cable housing can rub on the paint of the bikes when you turn the bars. We recommend getting stickers (cable dots, frame protection tape) applied in areas you see rub.

Do you have build recommendations for this frame?

For most of our frames we usually don’t recommend much beyond stay practical and reliable. For the Smoothie HP– since it is a little more purpose-built for a certain type of performance– we would recommend faster, lighter wheels and tires with fast rolling casings. They will help you spin up to speed faster and the frame will help you maintain momentum. Not wiggly light wheels; you do want some stiffness for cornering. We think this is more important than deep aero wheels, but build it however you want.

Manufacturer SKU

SMFR900134
