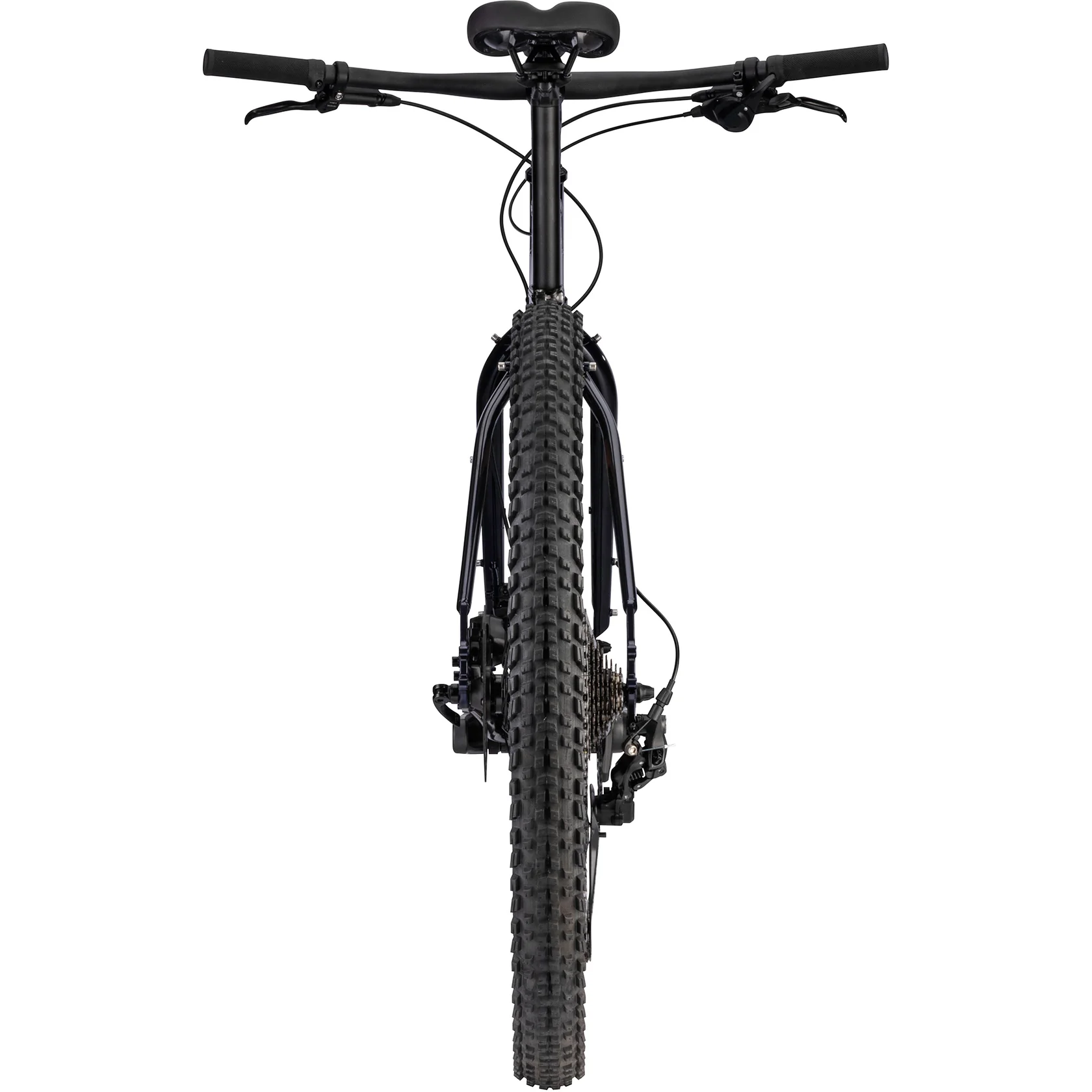

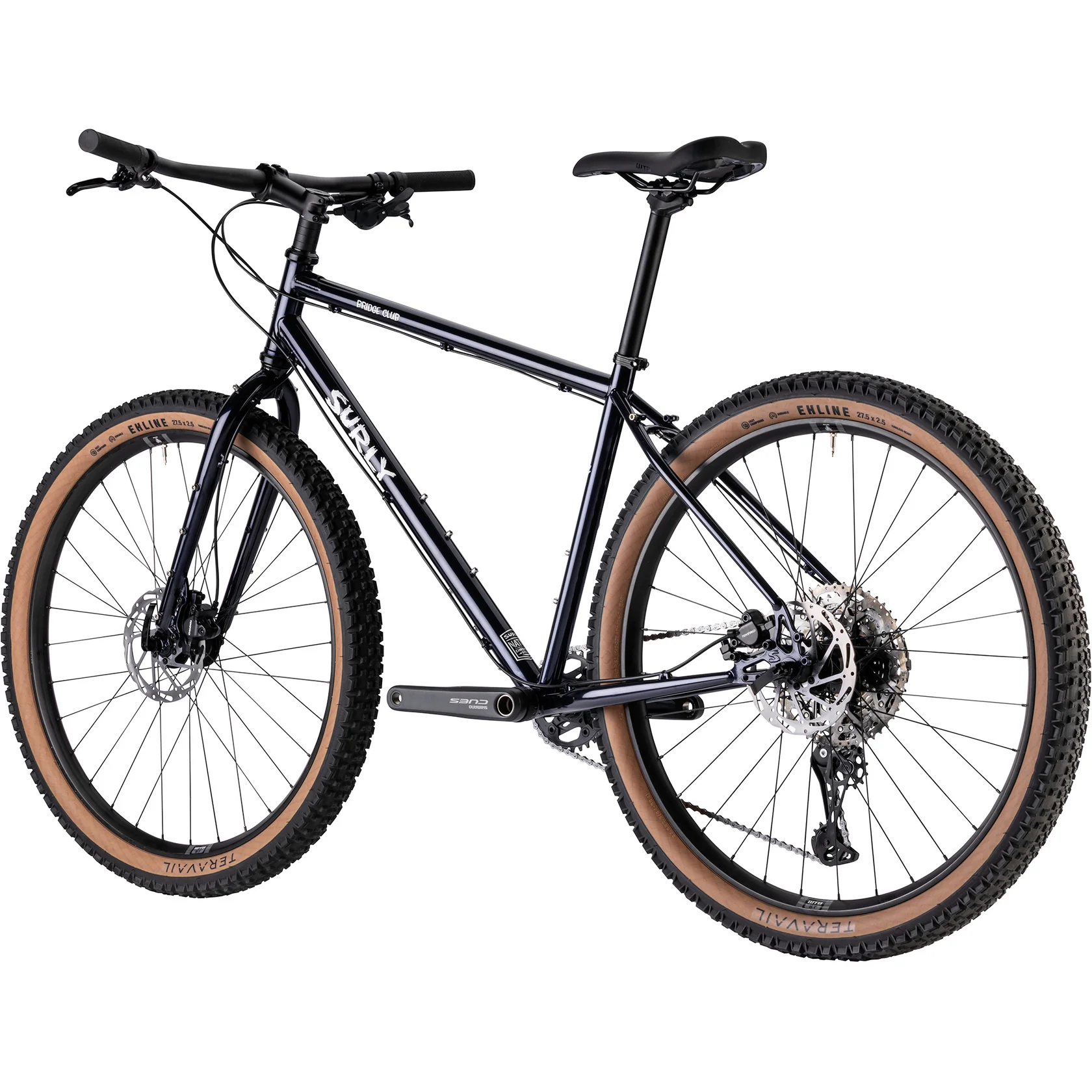

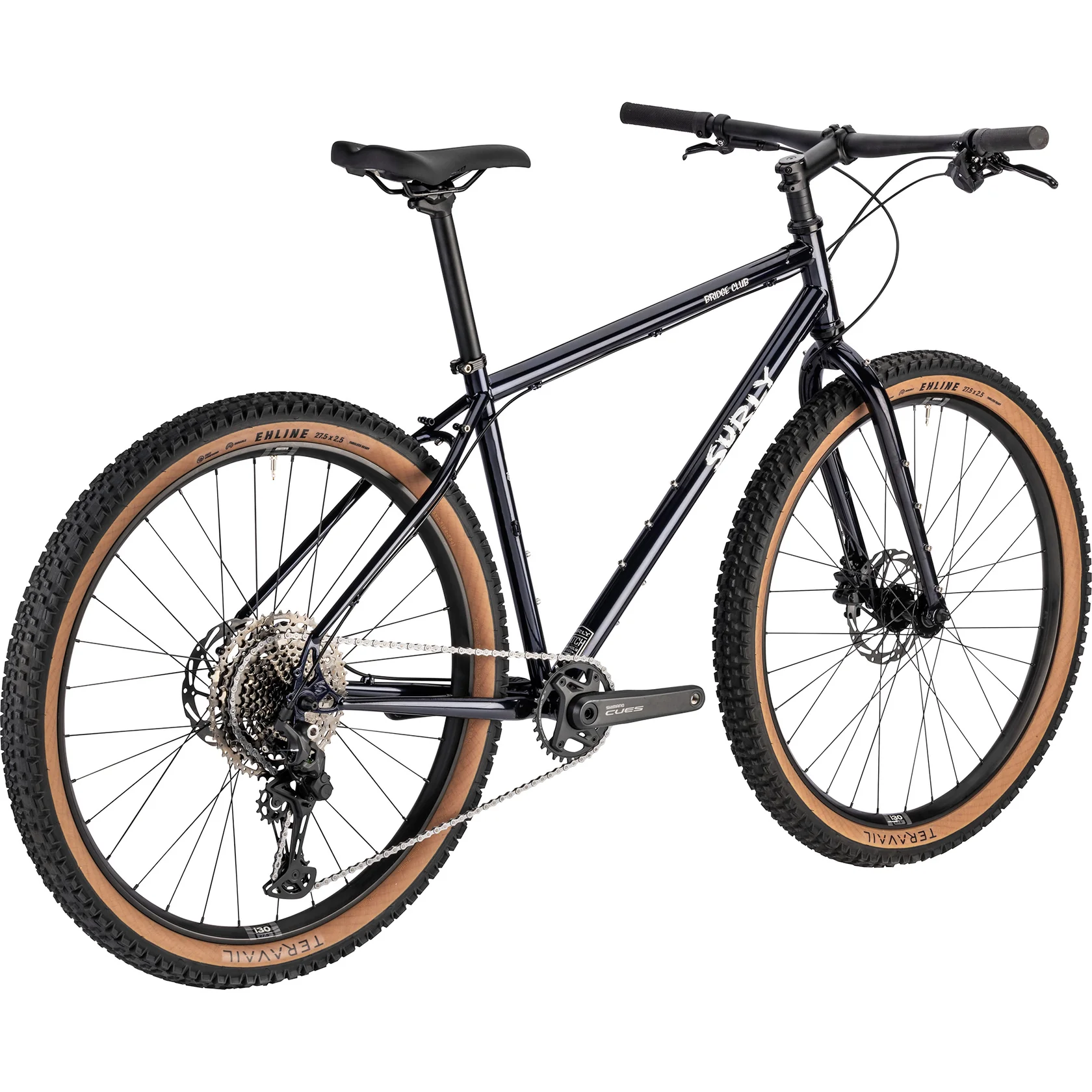

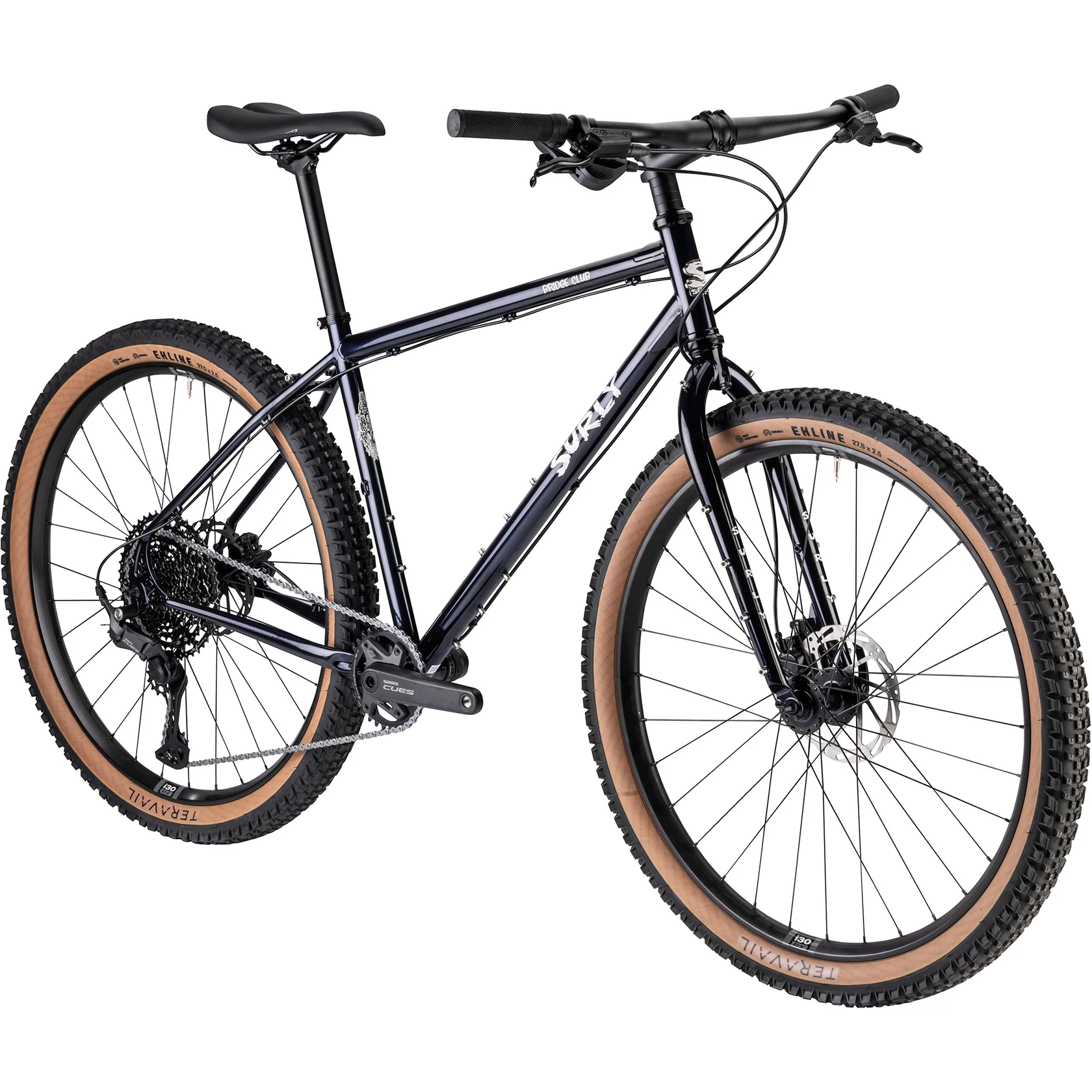

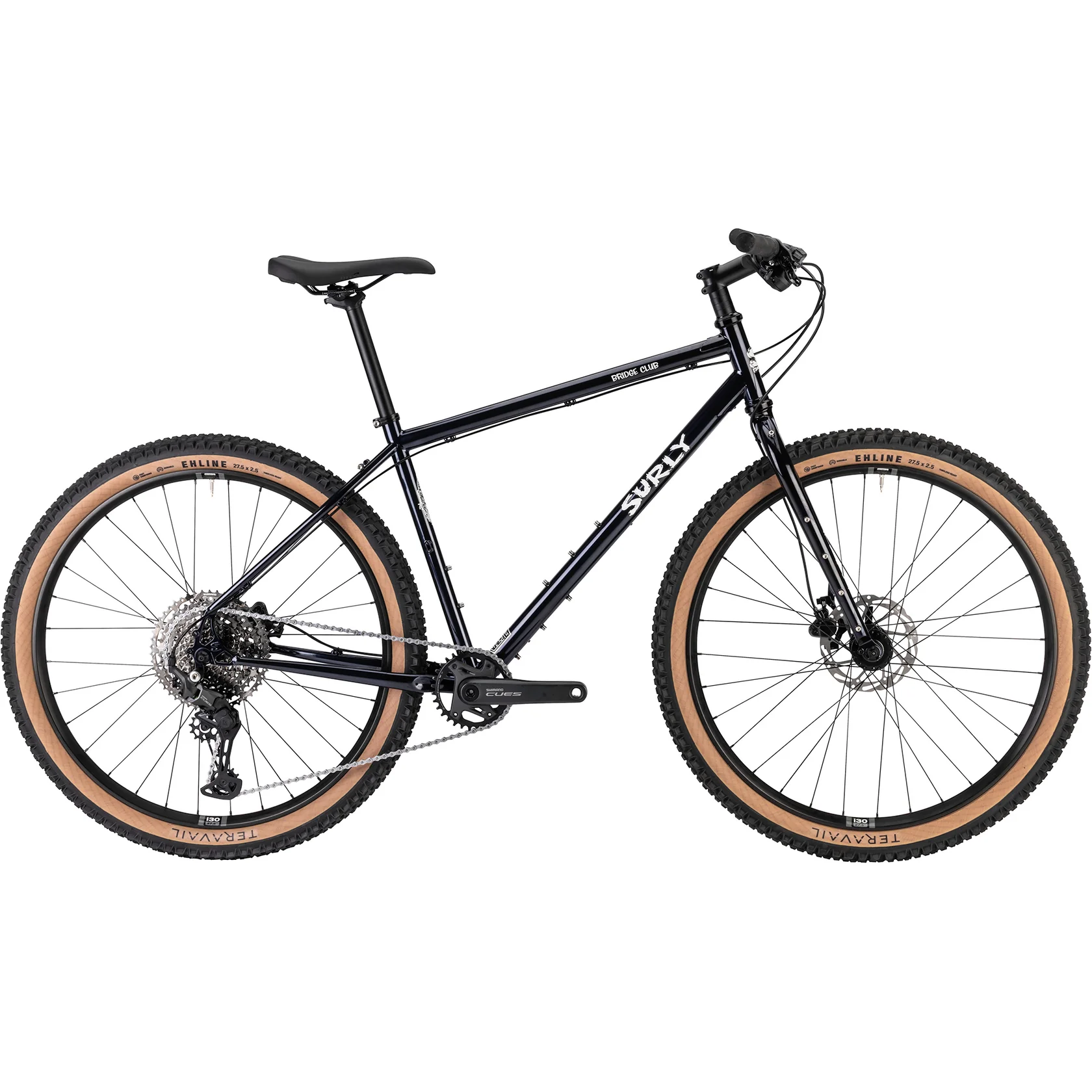

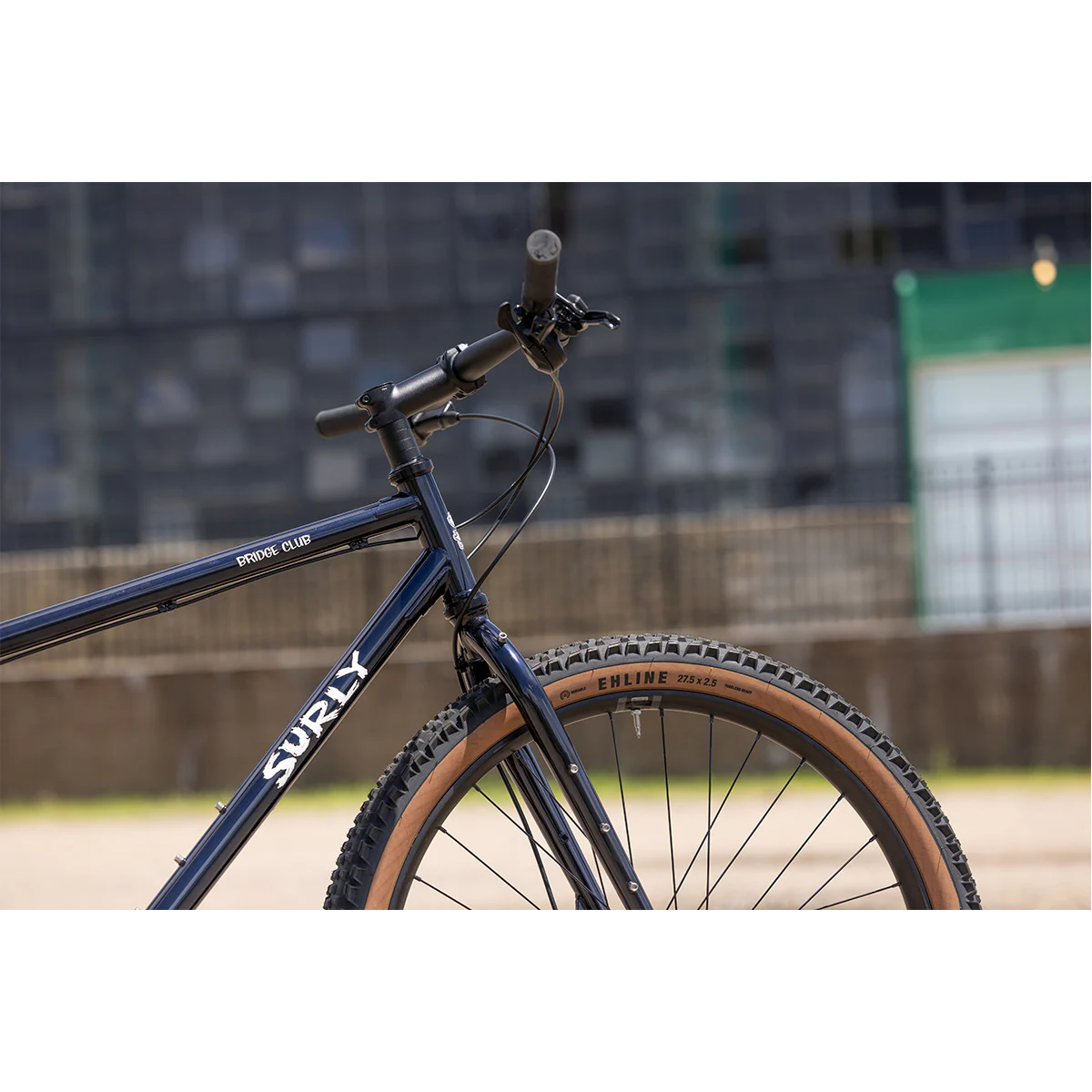

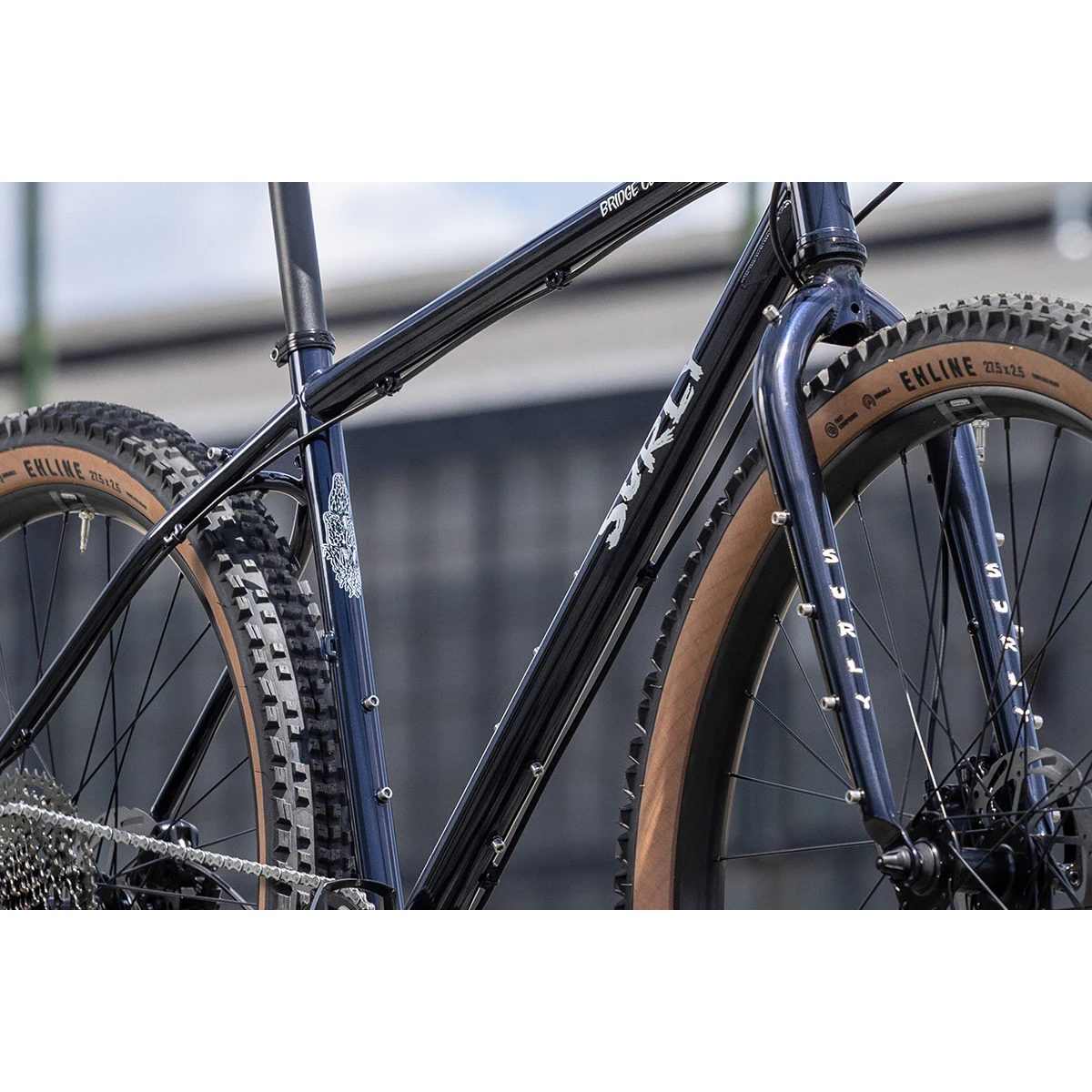

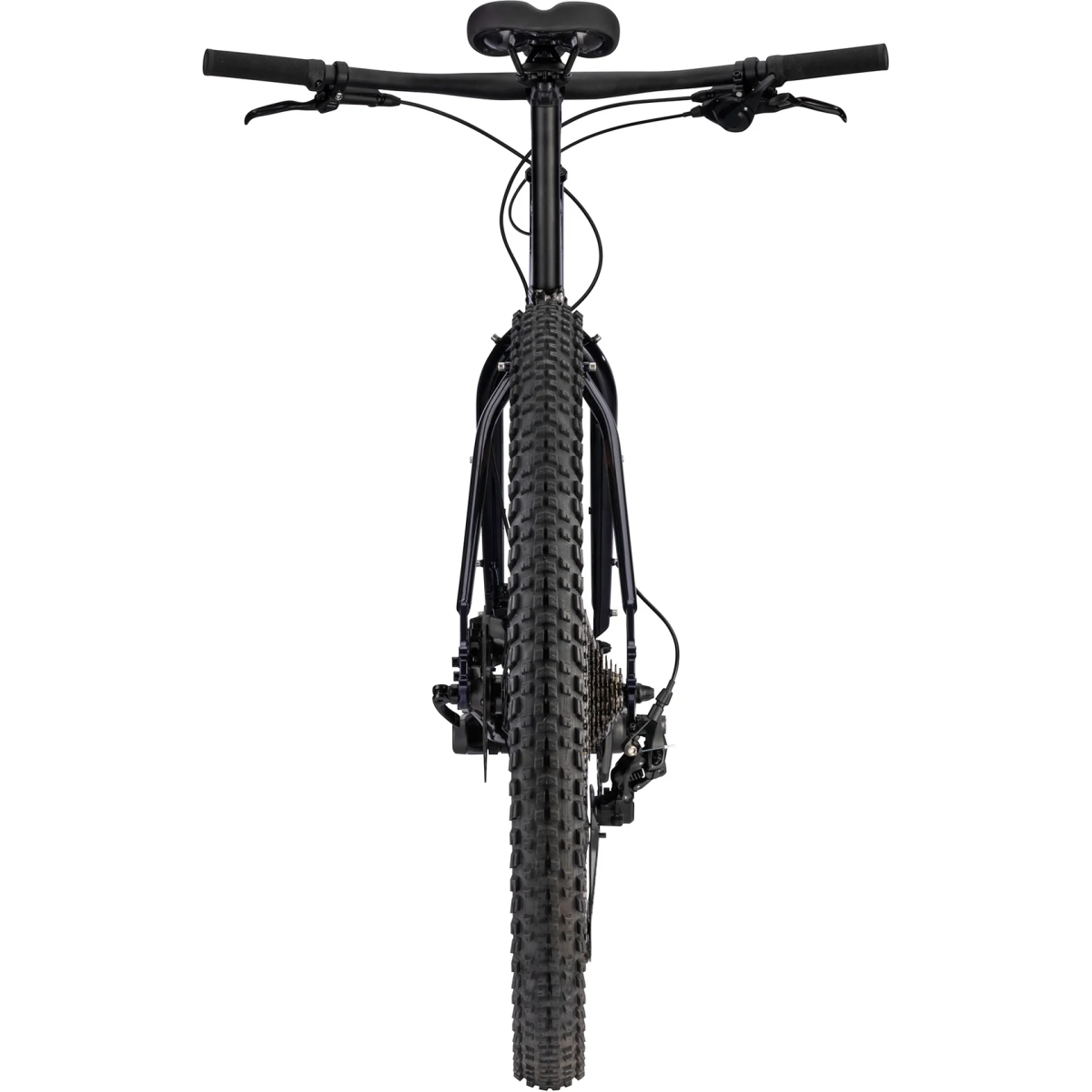

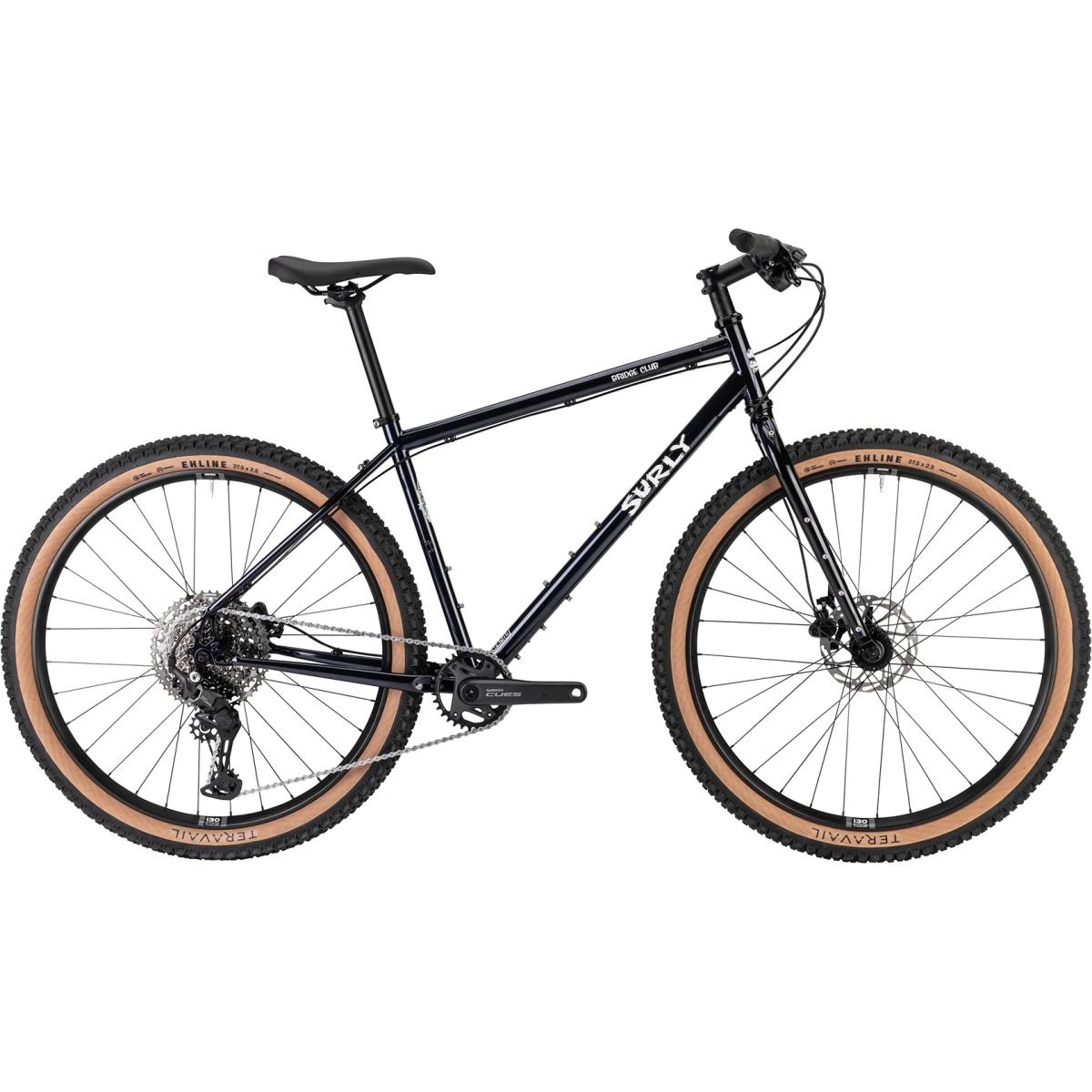

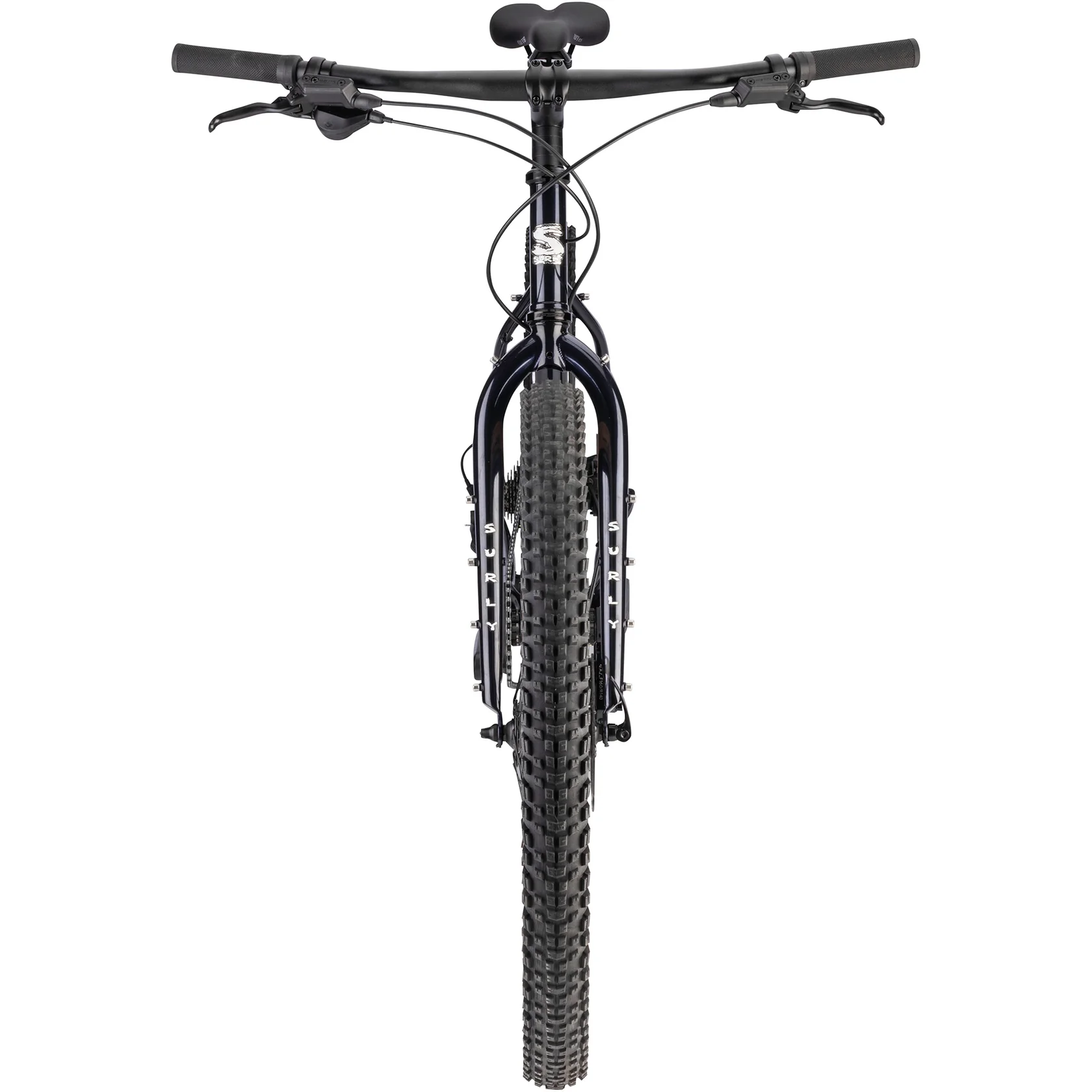

Surly Bridge Club CUES 27.5″ Bike Squid Ink

Build Kit
Frameset

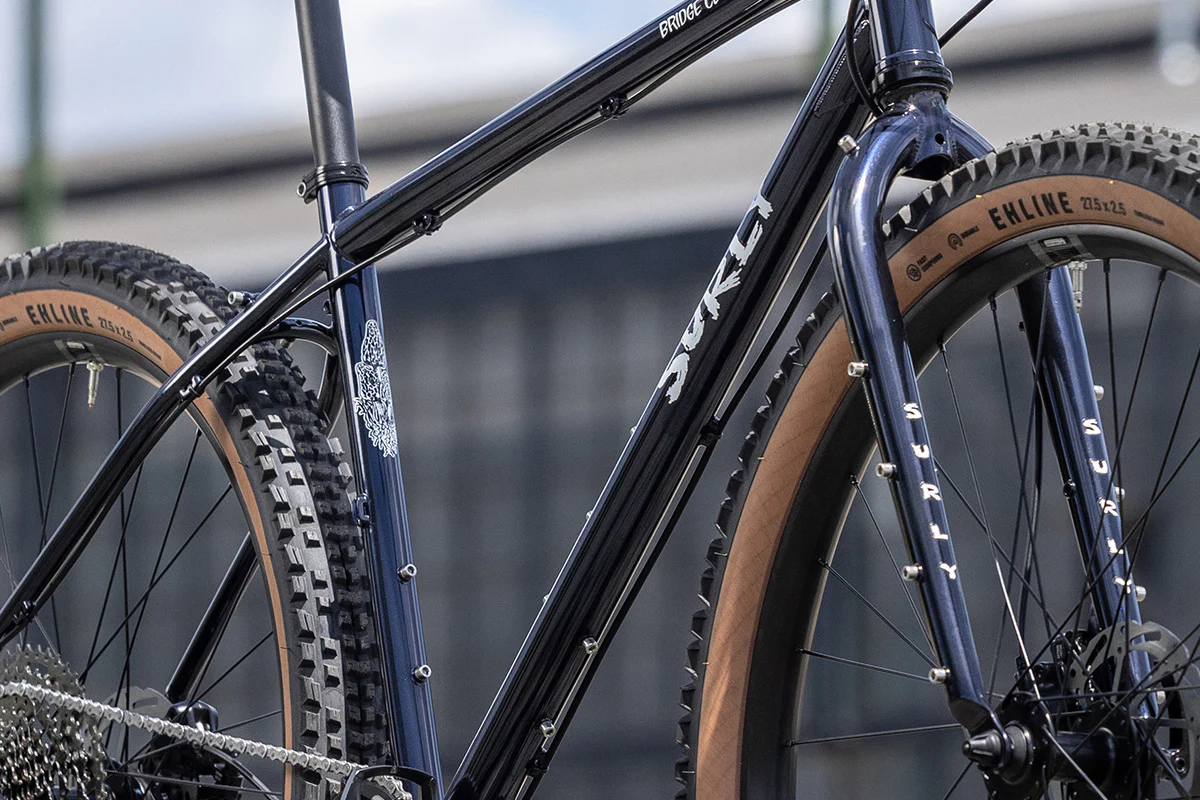

Frame

Surly Bridge Club – 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color

Squid Ink

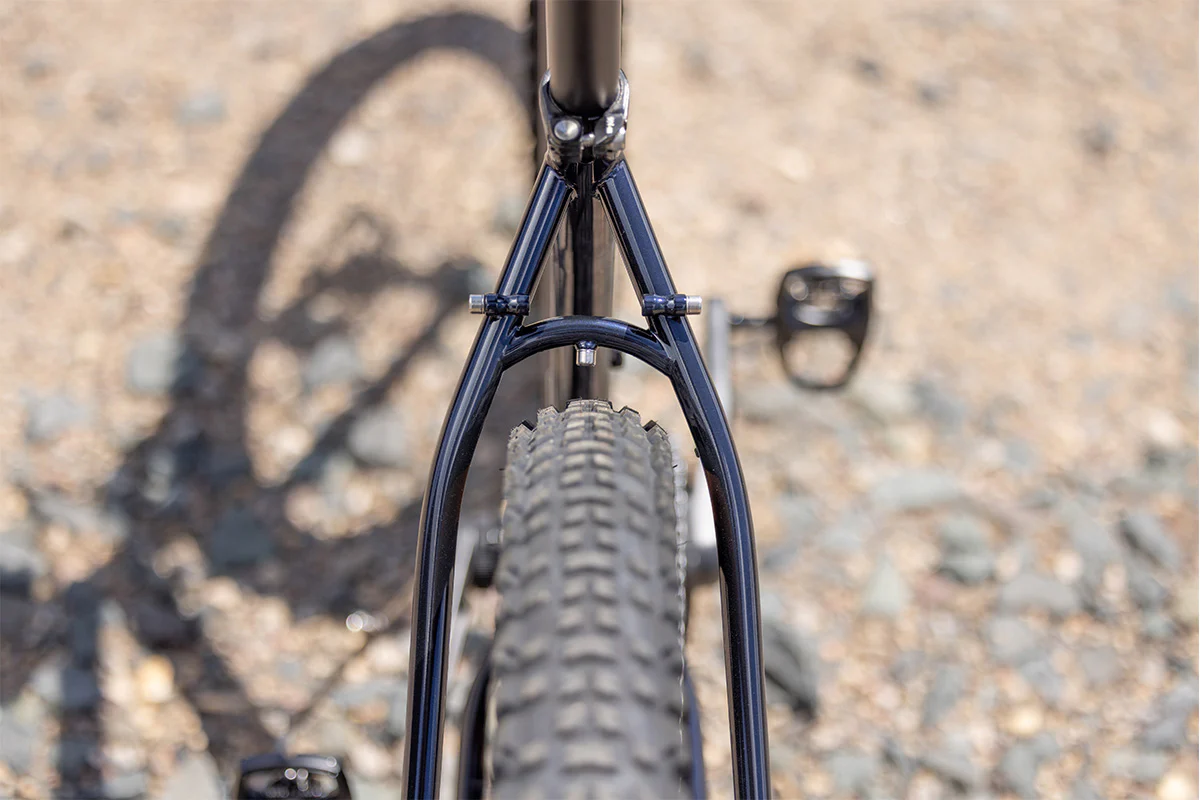

Fork

Surly Cocktail Fork – 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components
Headset

FSA Orbit MX

Seatpost Clamp

Surly Stainless 30.0

Seatpost

Promax SP-2016, 350mm, 12mm offset

Stem

Promax DA-296

Grips/Bar Tape

Velo Black

Saddle

WTB Volt Medium

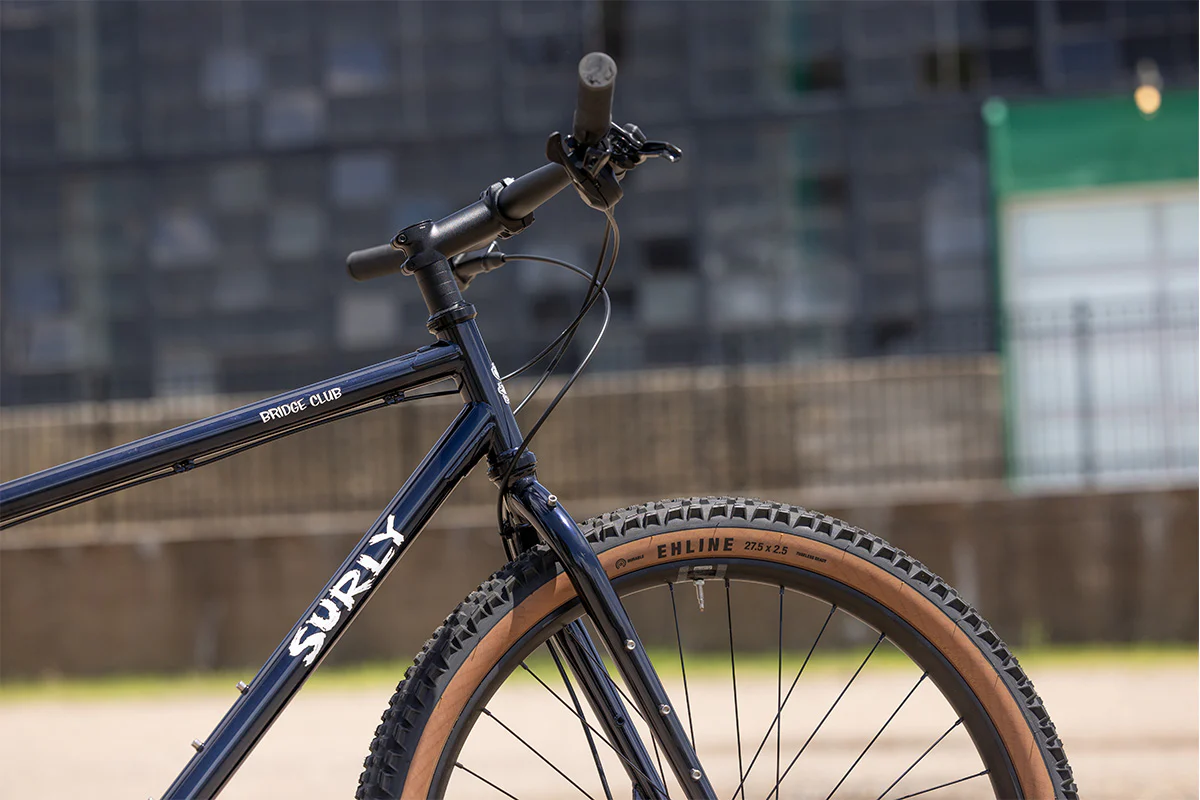

Handlebar

Salsa Bend

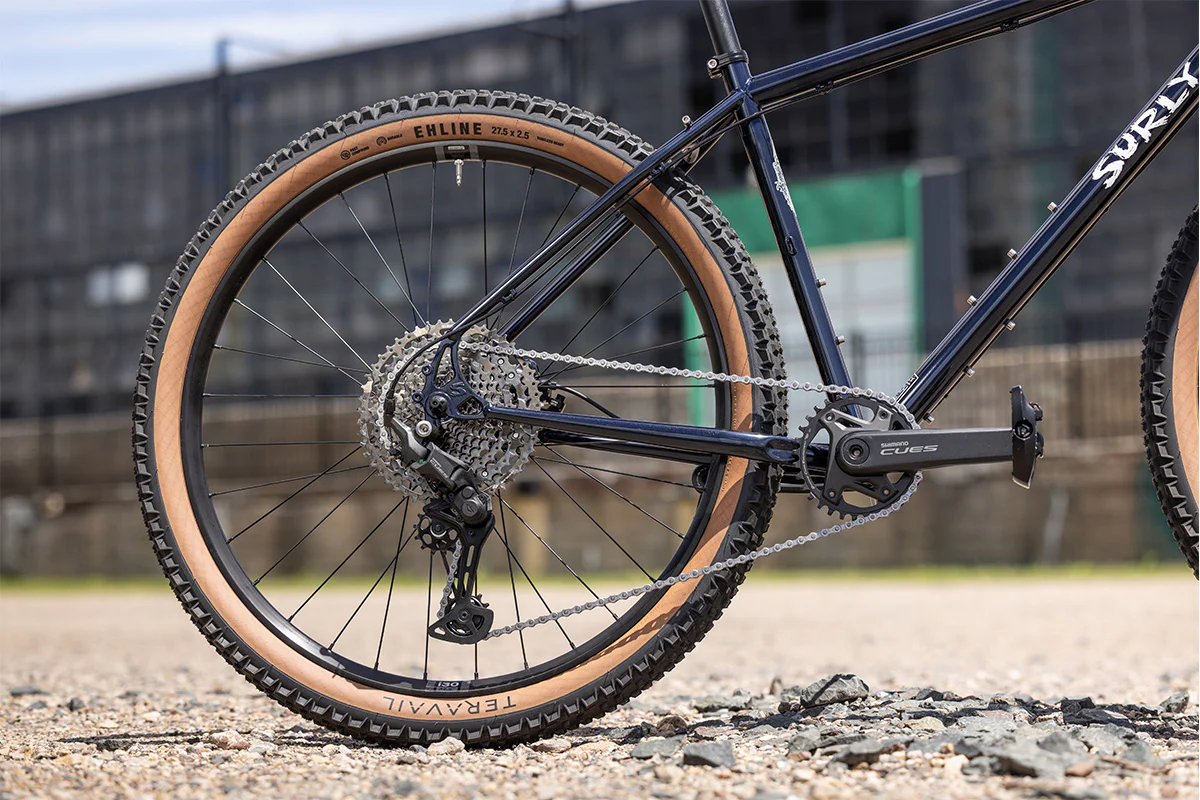

Drivetrain
Front Derailleur

N/A

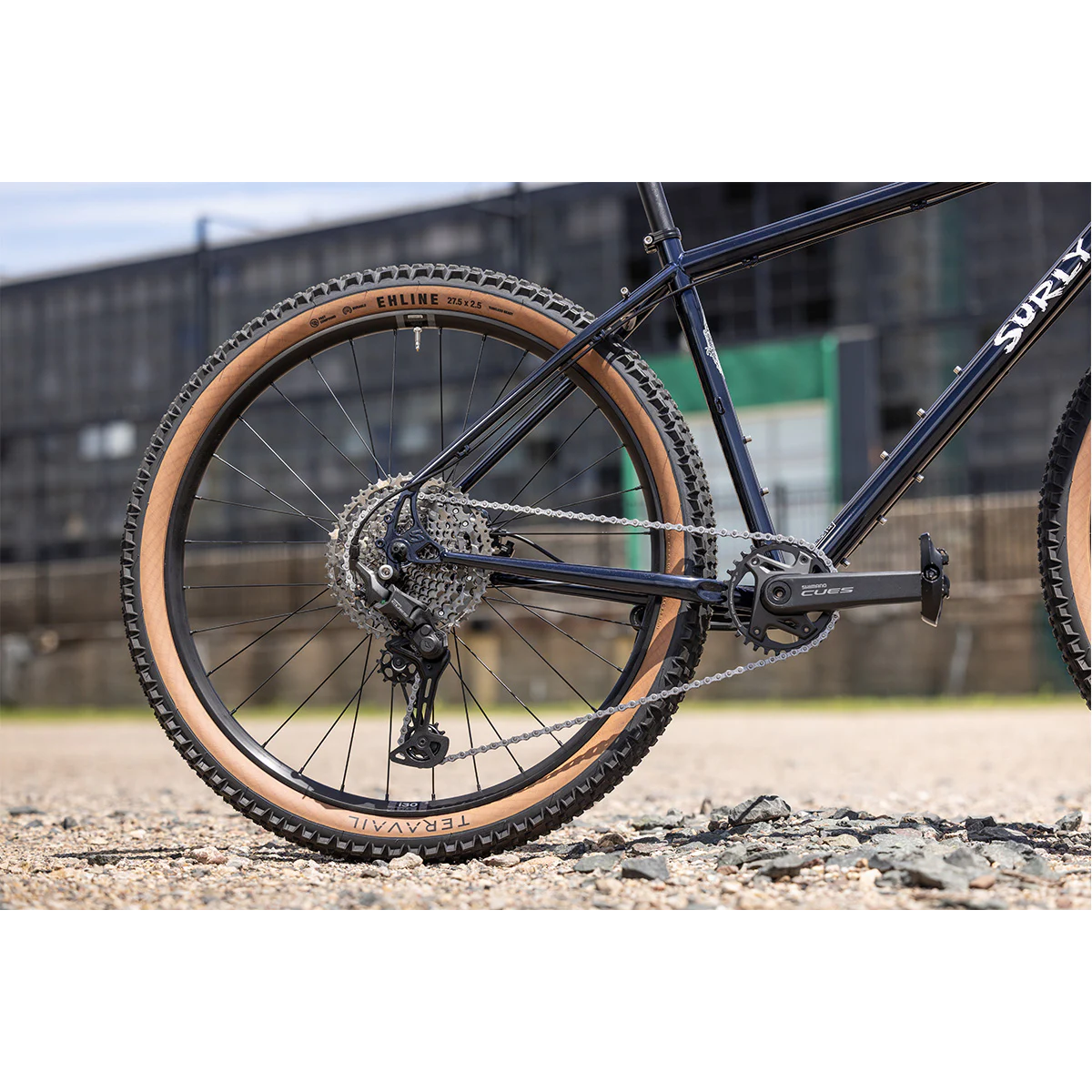

Rear Derailleur

Shimano CUES U6000 GS

Cassette

Shimano CUES LG400, 11-50t, 11-speed

Chain

KMC eGlide EPT

Crankset

Shimano CUES U6000, 32t

Shifter

Shimano CUES U6000

Brake Levers

Tektro HD-M3120

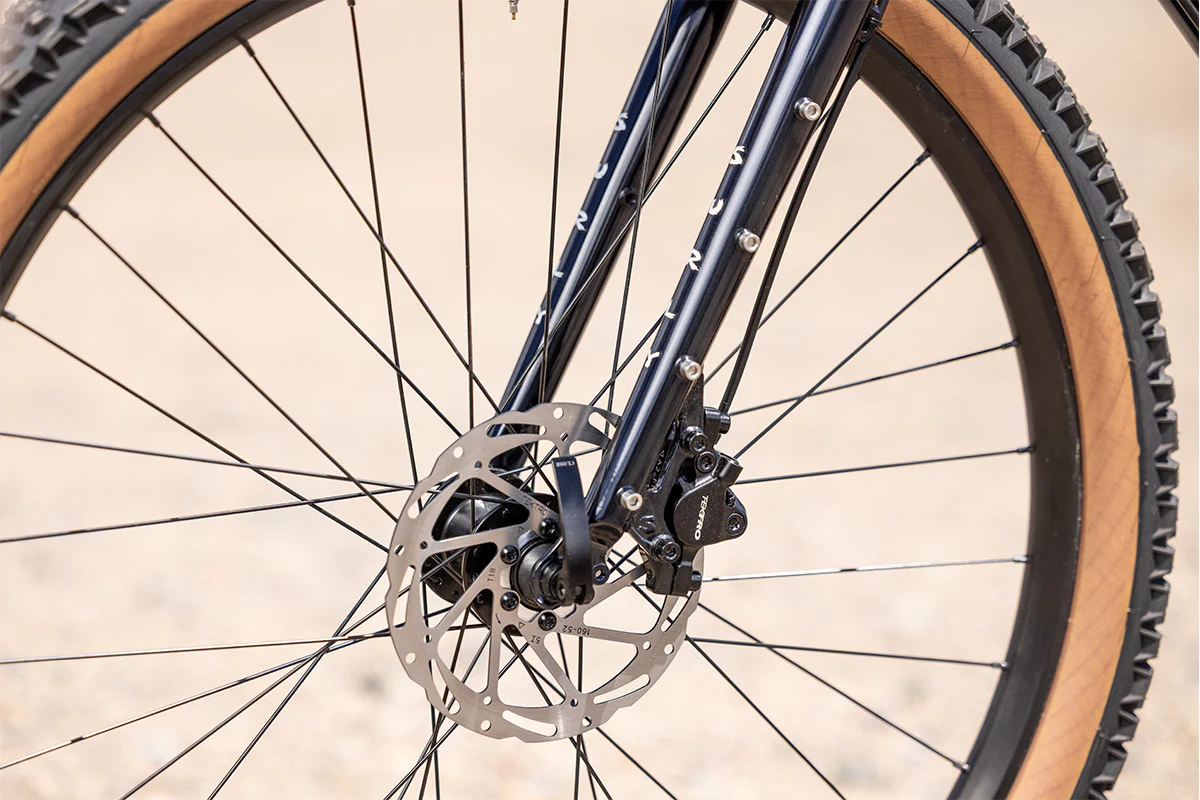

Brake Calipers

Tektro HD-M3120, 2-piston

Bottom Bracket

Shimano MT501, BSA

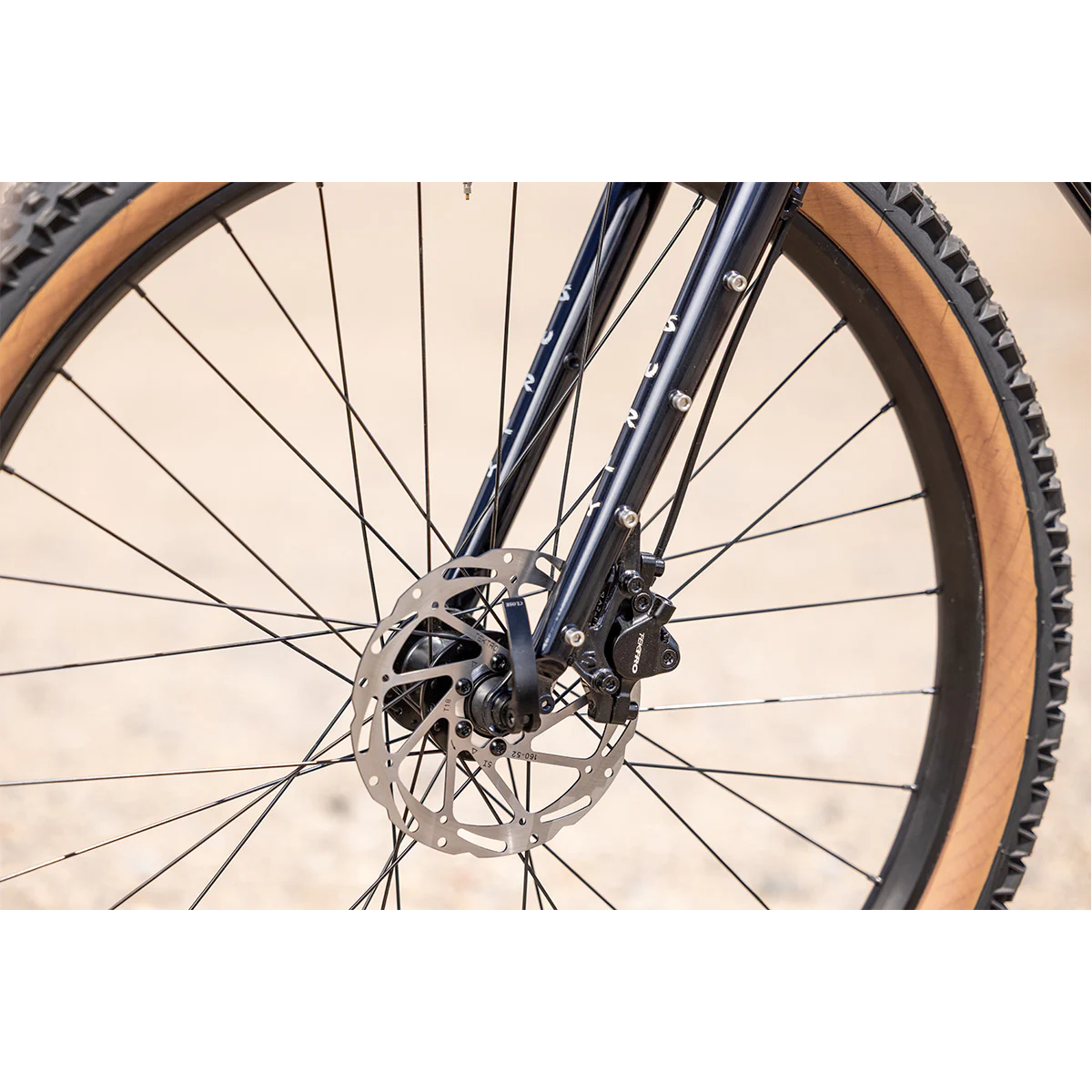

Rotors

Tektro (6-bolt, 160mm front and rear)

Wheels
Front Tire

Teravail Ehline 27.5 x 2.5″, Durable casing, 60 TPI, tan wall, tubeless-ready, WTB TCS Sealant Included

Rear Tire

Teravail Ehline 27.5 x 2.5″, Durable casing, 60 TPI, tan wall, tubeless-ready, WTB TCS Sealant Included

Front Hub

Novatec QR x 100mm, 6-bolt

Rear Hub

Novatec QR x 141mm, 6-bolt

Spoke

14G Black

Rim

WTB ST i30 27.5″, TCS 2.0, 32h

Weight
Complete Bike

29 lb 14 oz (MD)

Frame Specs
Design Wheel/Tire Sizes
27.5 x 2.4″
Alternate Wheel/Tire Sizes
Frame clearance: 26 x 3.0″ (26 x 2.8″ with fenders) / 27.5 x 2.8″ (27.5 x 2.6″ with fenders) / 700c x 47 with or without fenders – Fork clearance: 26 x 3.0″ (26 x 2.8″ with fenders) / 27.5 x 2.8″ (27.5 x 2.6″ with fenders) / 700c x 47 with or without fenders
Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Suspension Fork Length (Travel)
N/A
Rigid Fork Length
420mm
Fork Offset
45mm
Axle to Crown
420mm
Rear Spacing
“Gnot-Boost” 138mm
Rear Axle Size
10 x 135mm or 10 x 141mm
Rear Brake (Rotor)
Disc – 51mm I.S. (180mm max rotor)
Front Brake (Rotor)
Disc – 51mm I.S. (203mm max rotor)
Headset – Upper
EC34/28.6
Headset – Lower
EC34/30
Front Spacing
10 x 100mm
Steerer Tube
Ø28.6mm (1-1/8″)
Crown Race
Ø30mm (1-1/8″)
Stem Clamp
Ø28.6mm (1-1/8″)
Seatpost
Ø27.2mm
Dropper Post Compatible
No
Seatpost Clamp
Ø30mm
Front Derailleur Clamp
Ø28.6mm
Front Derailleur Type
High direct mount top-pull (Ø28.6mm) 26mm offset adapter (not included) for 135mm rear hub spacing 29mm offset adapter (not included) for 141mm rear hub spacing
Bottom Bracket
73mm threaded (1.37″ x 24TPI)
Crankset (Max Ring)
1x (Mtn): 34T / 2x (Mtn): 26/40T / 3x (Mtn): 22/36/44T / 1x (Boost): 40T / 2x (Boost): 32/42T
Bottle Mounts
2 Three-Pack (XS) / 1 Standard + 2 Three-Pack (S – XL)
Fork Mounts
2 Four-pack mounts
Front Fender Mounts
Yes
Rear Fender Mounts
Yes
