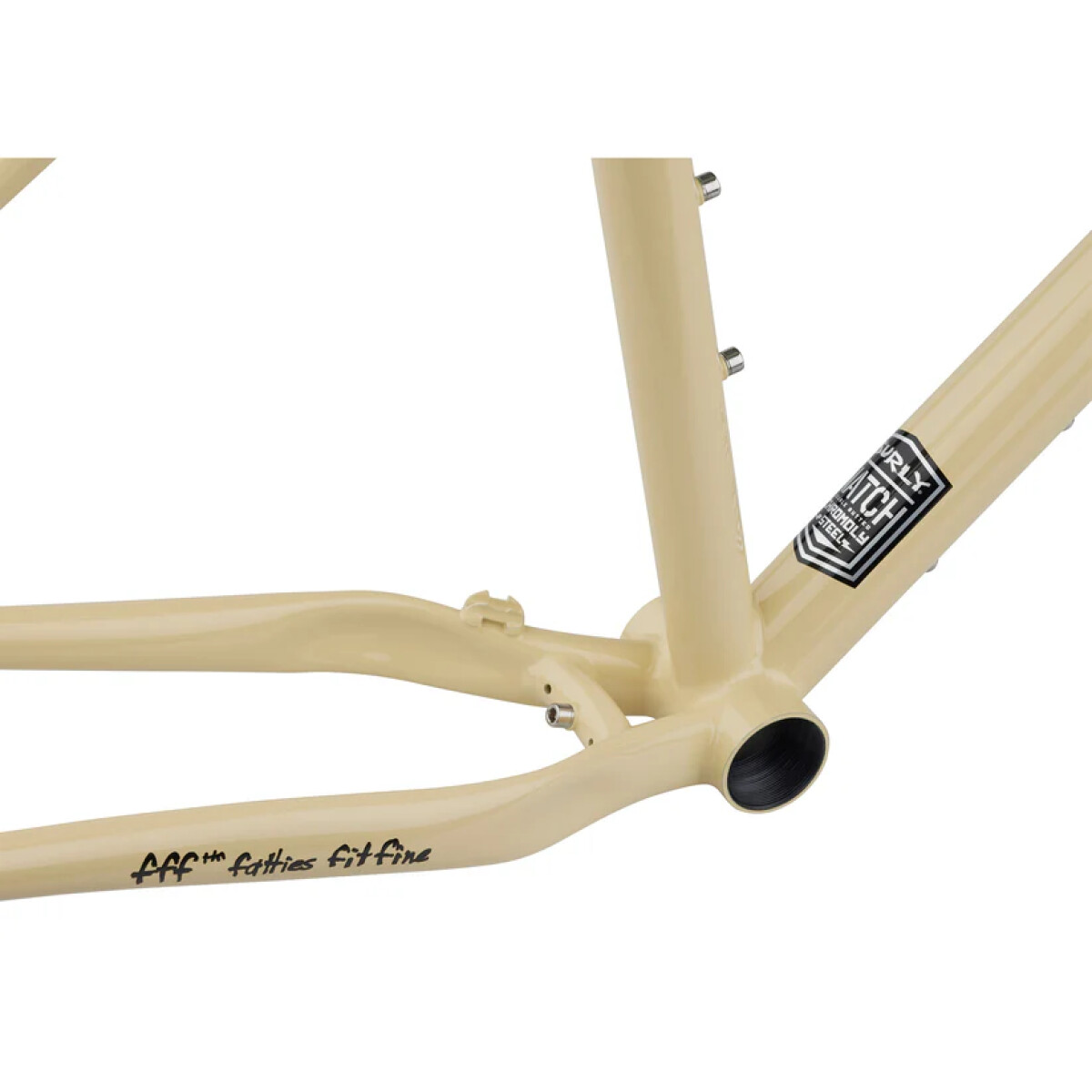

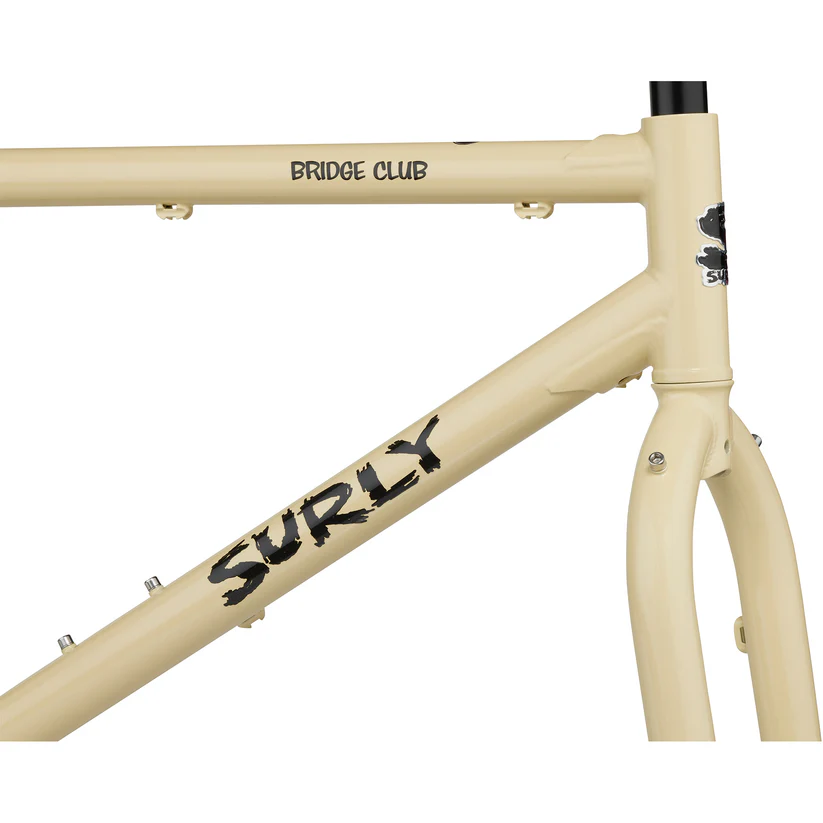

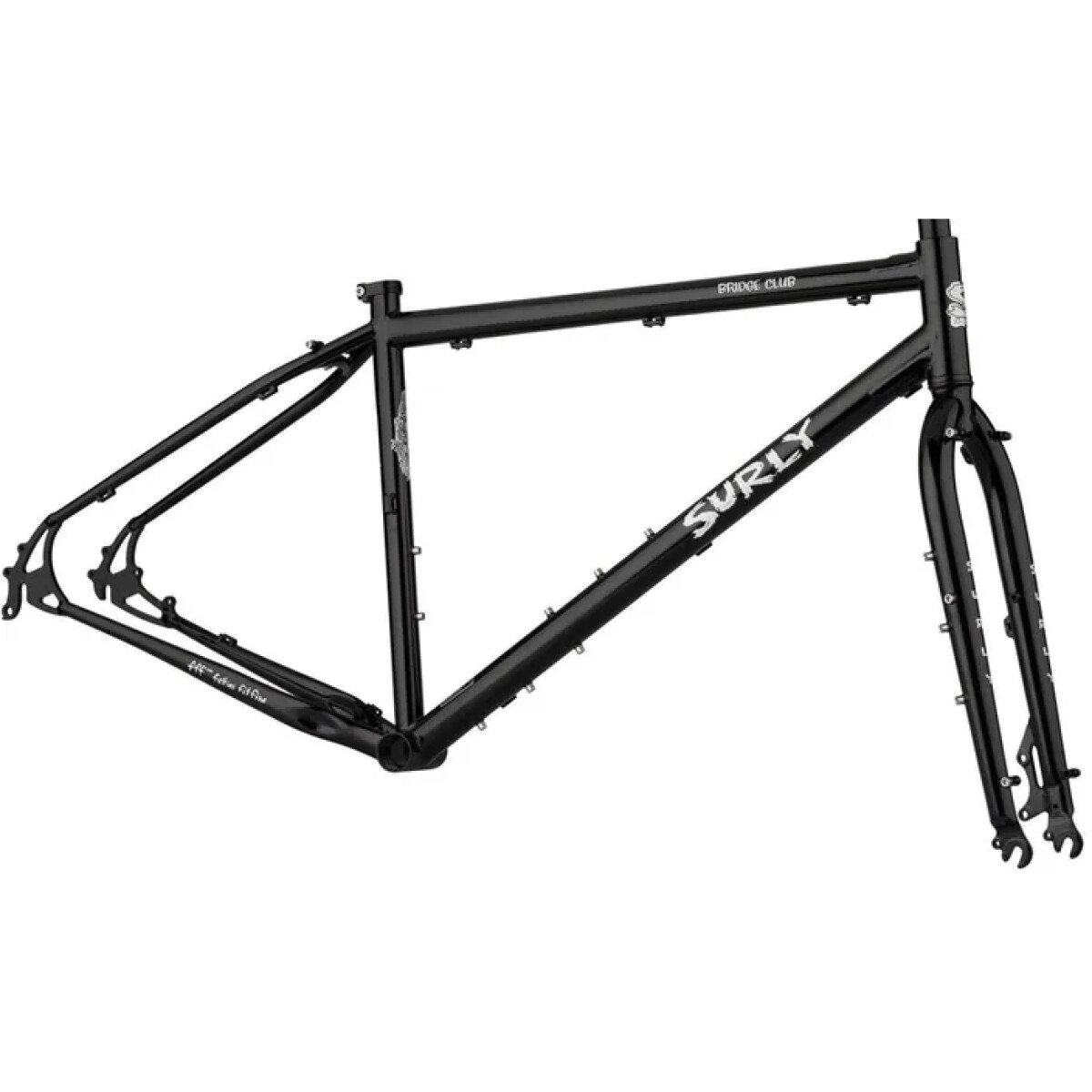

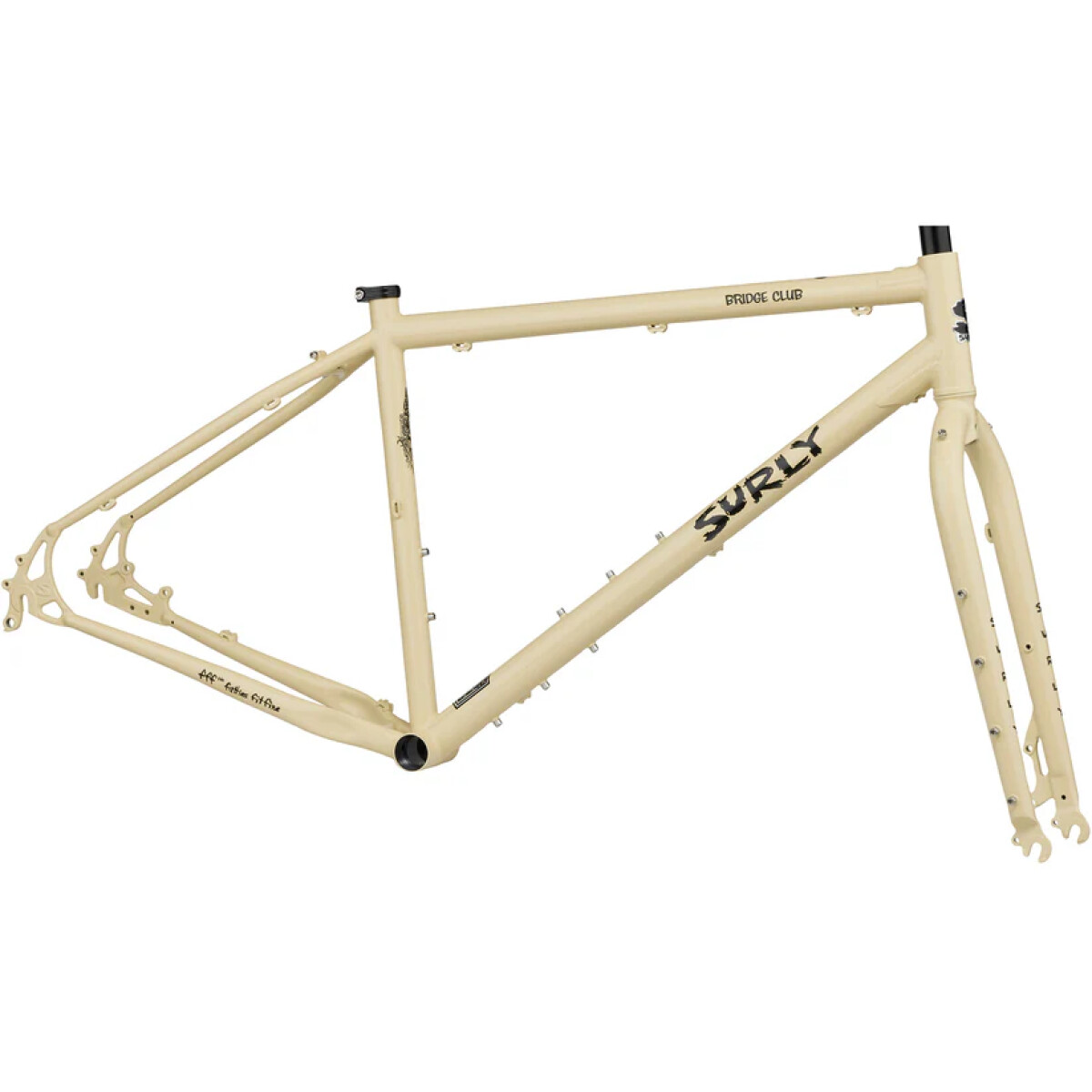

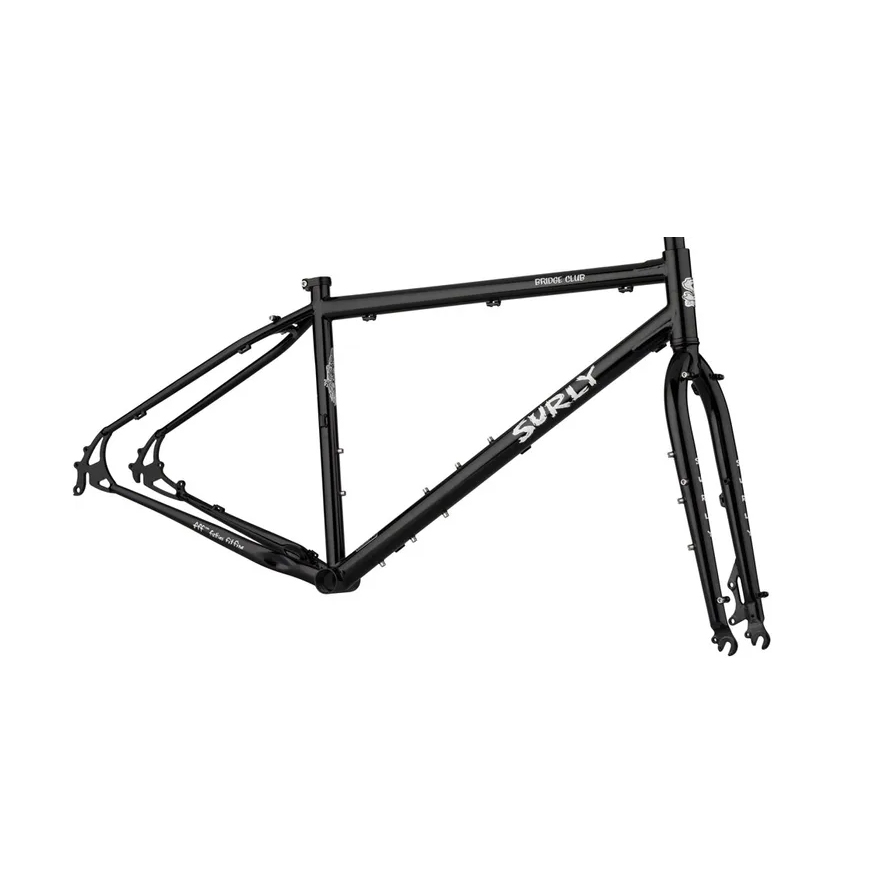

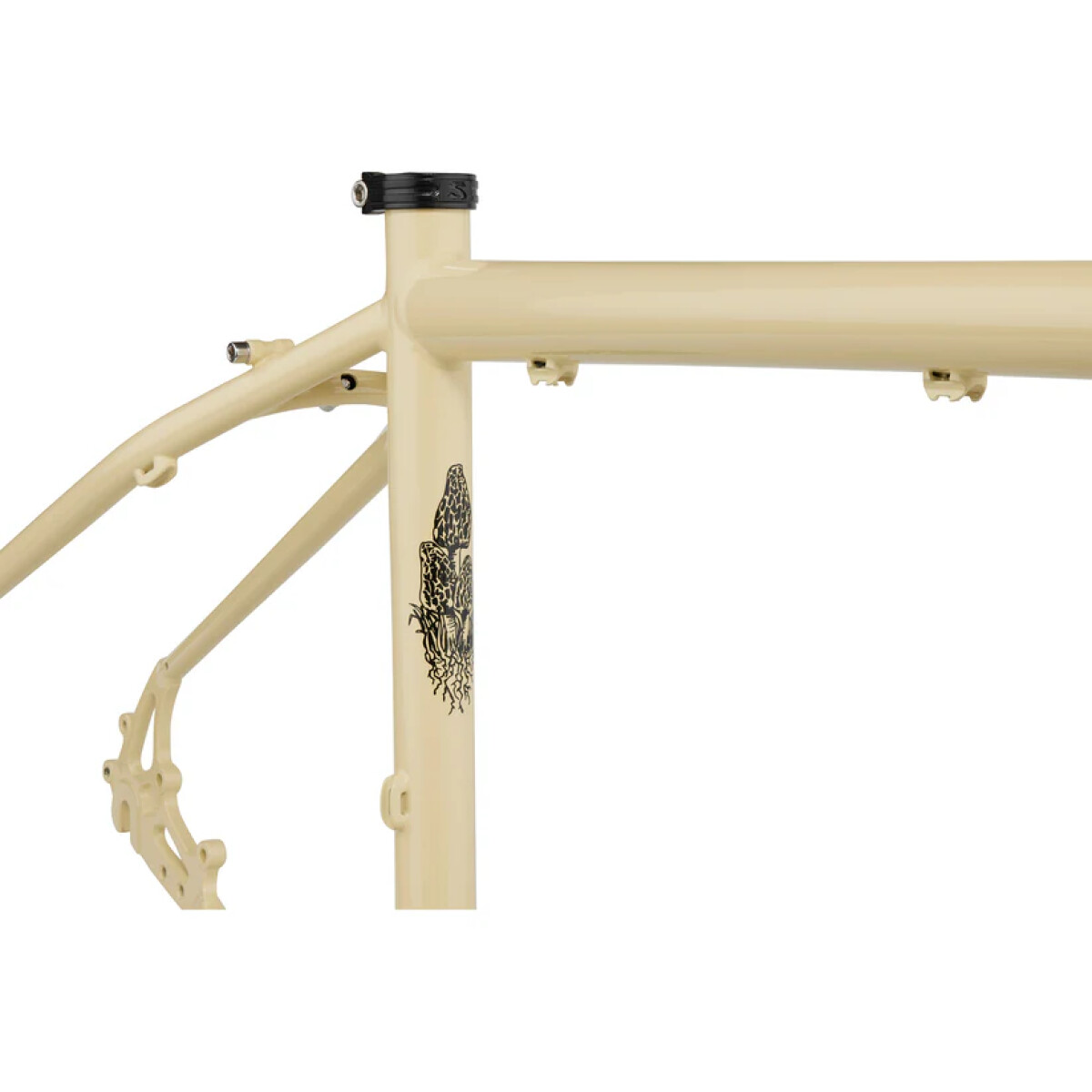

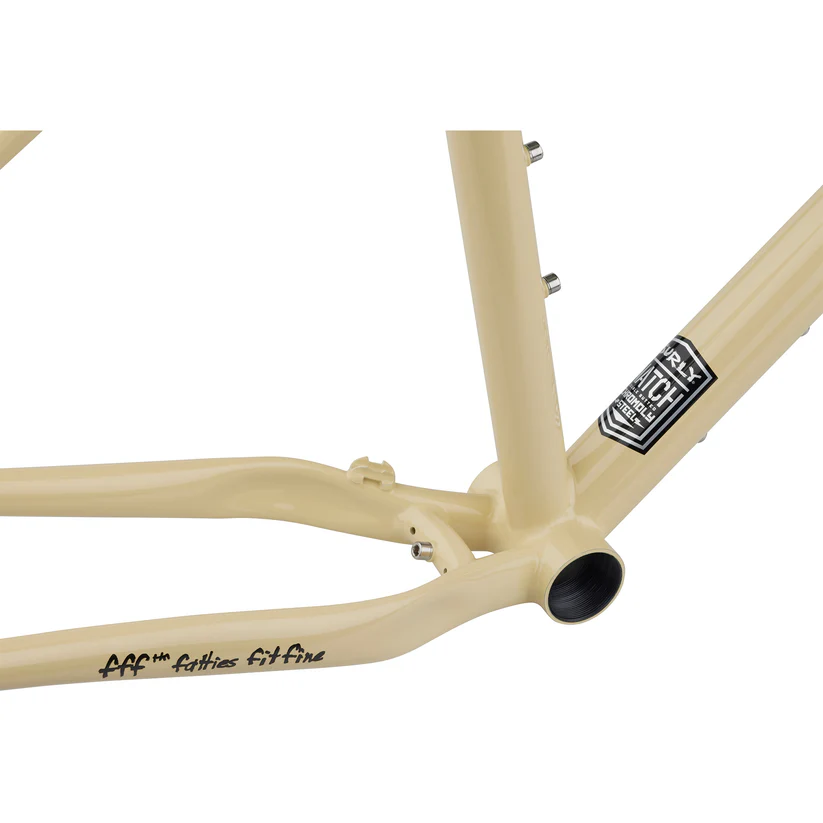

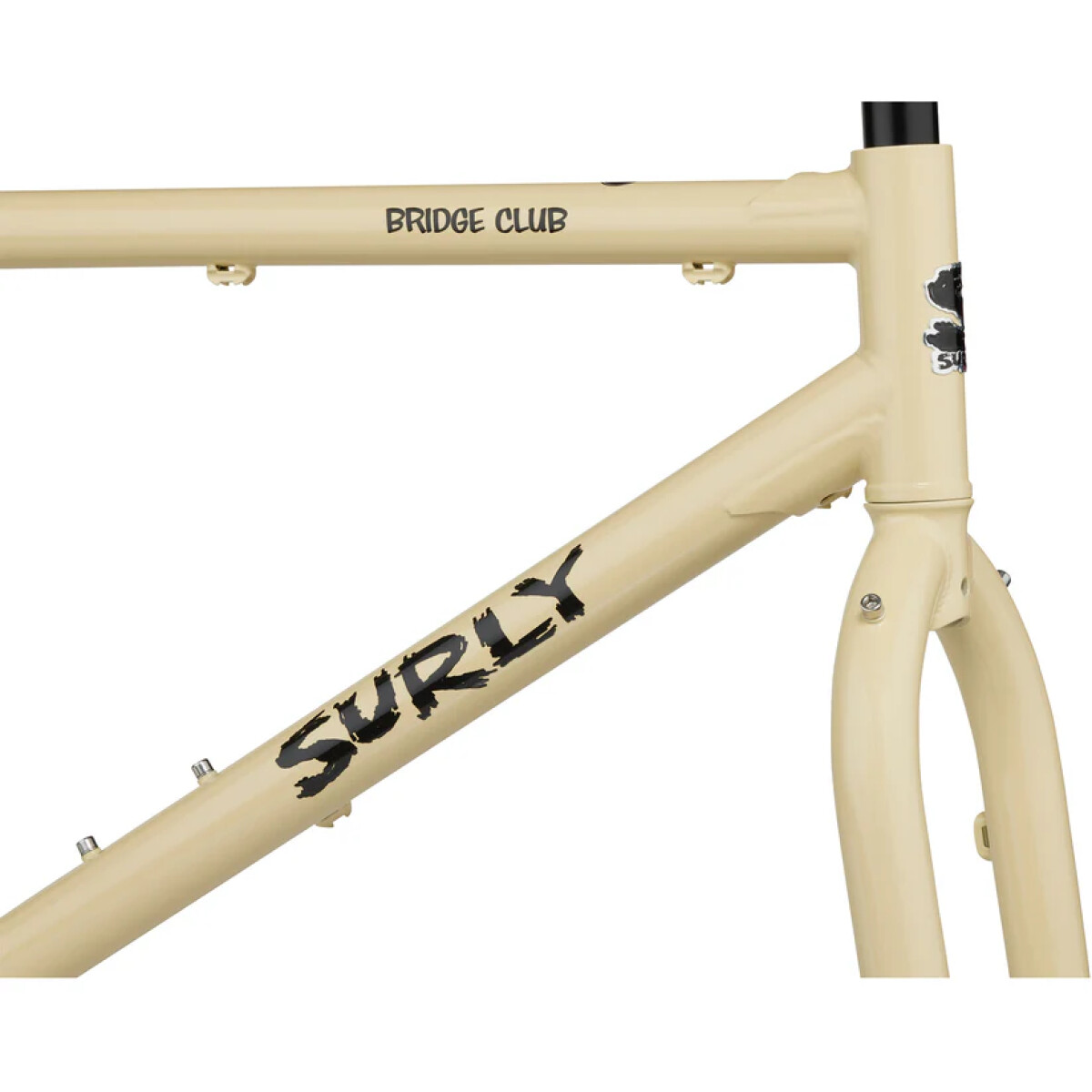

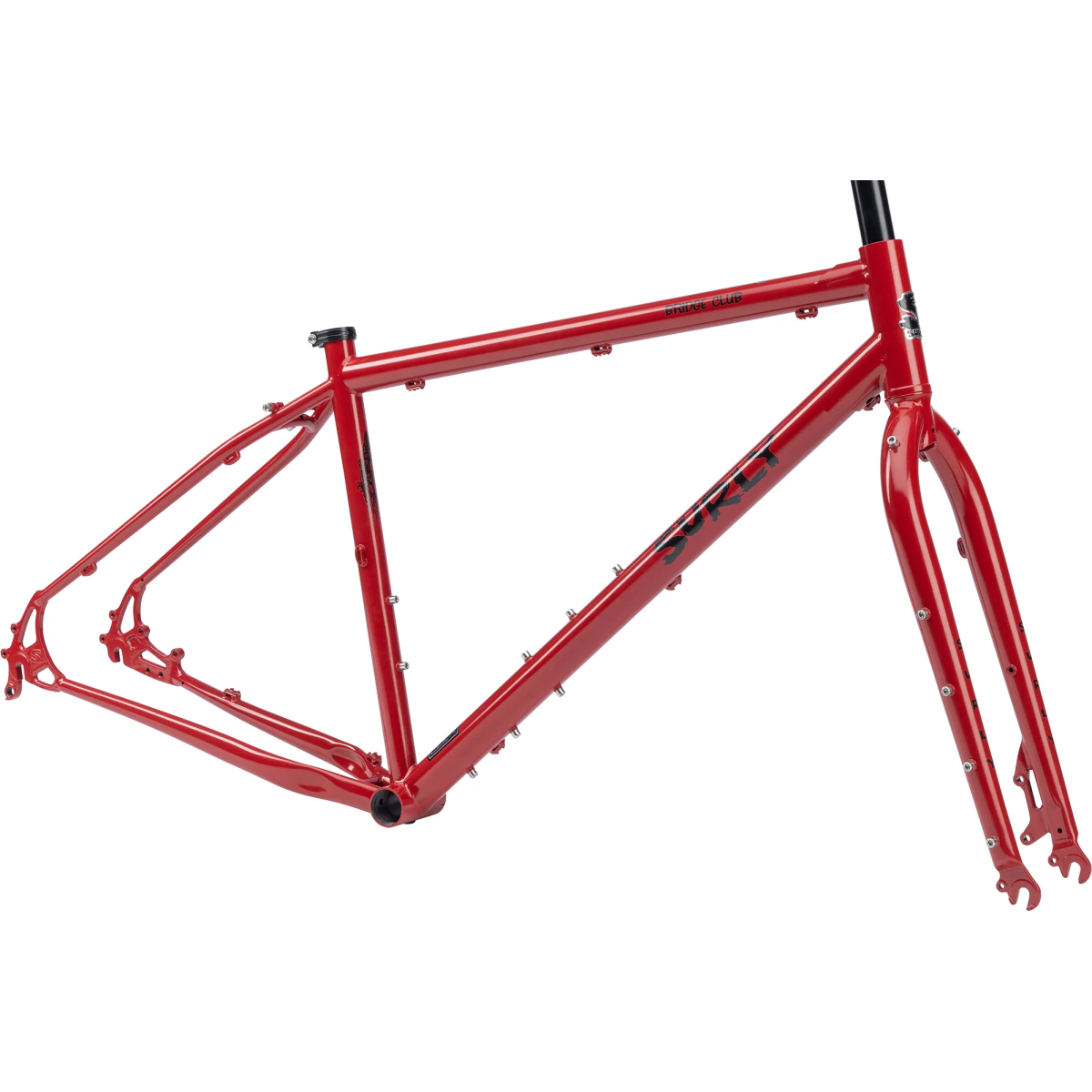

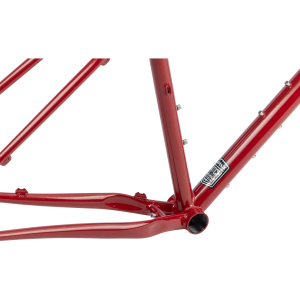

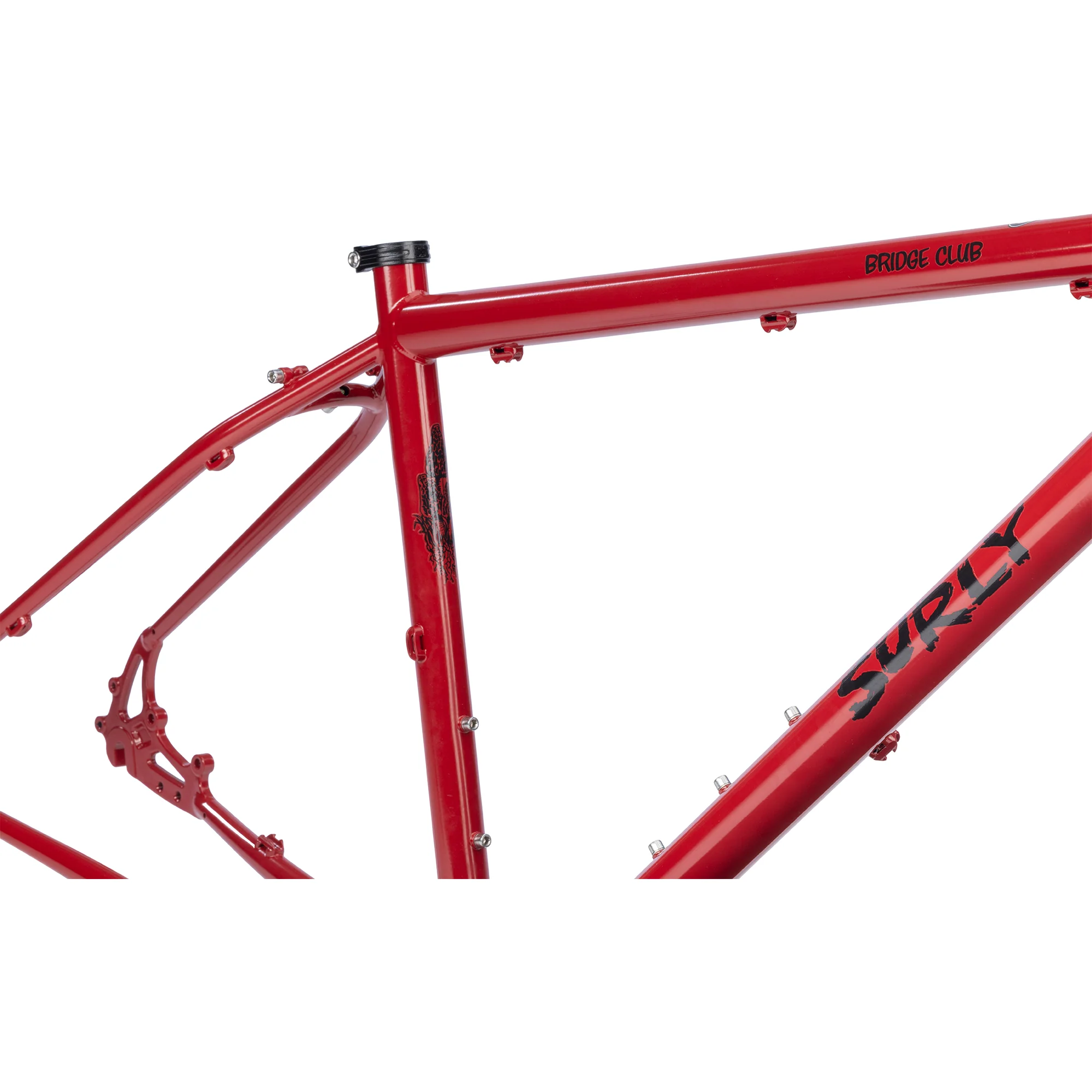

Surly Bridge Club Frameset

From $1,300.00

All Road Touring Bike for Any Destination

Bridge Club is for those multi-surface outings — planned or unplanned. We’ve all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear “bike touring” and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!

  • Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
  • Two build kit options: Pavement (700c) and Off-Road (27.5)
  • Run racks and panniers, framebags, or all of the above

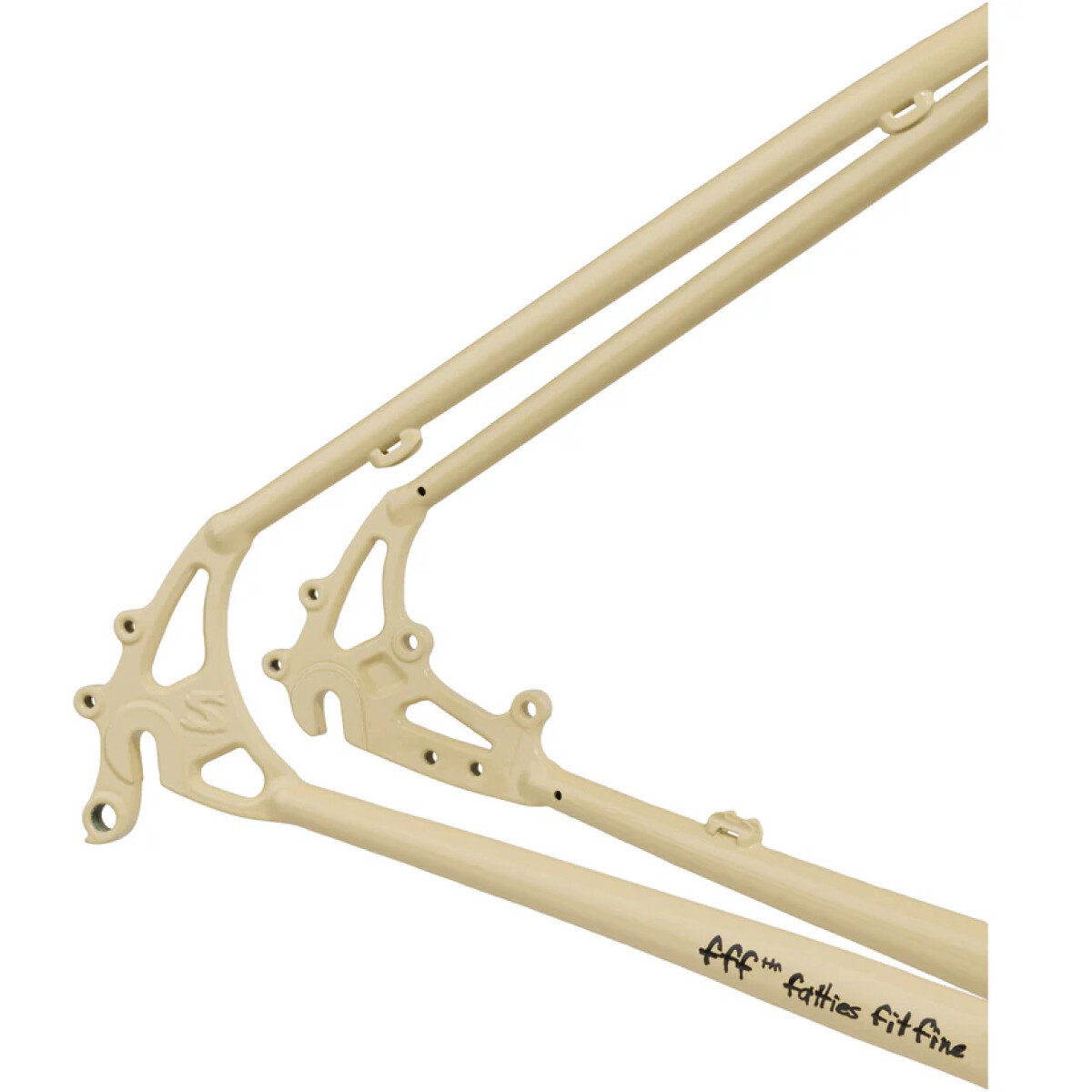

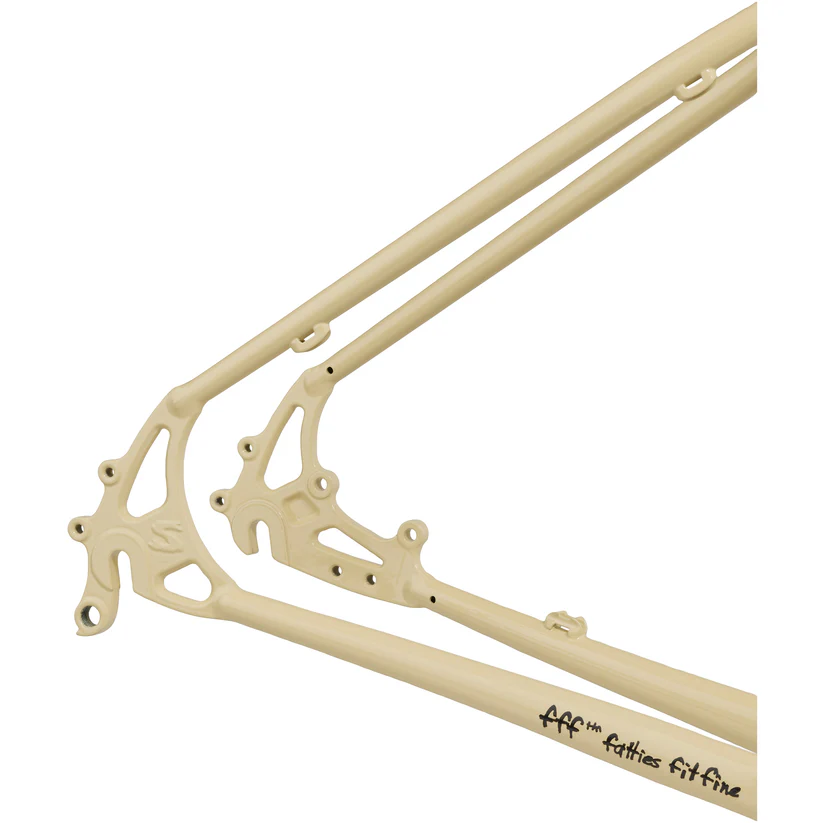

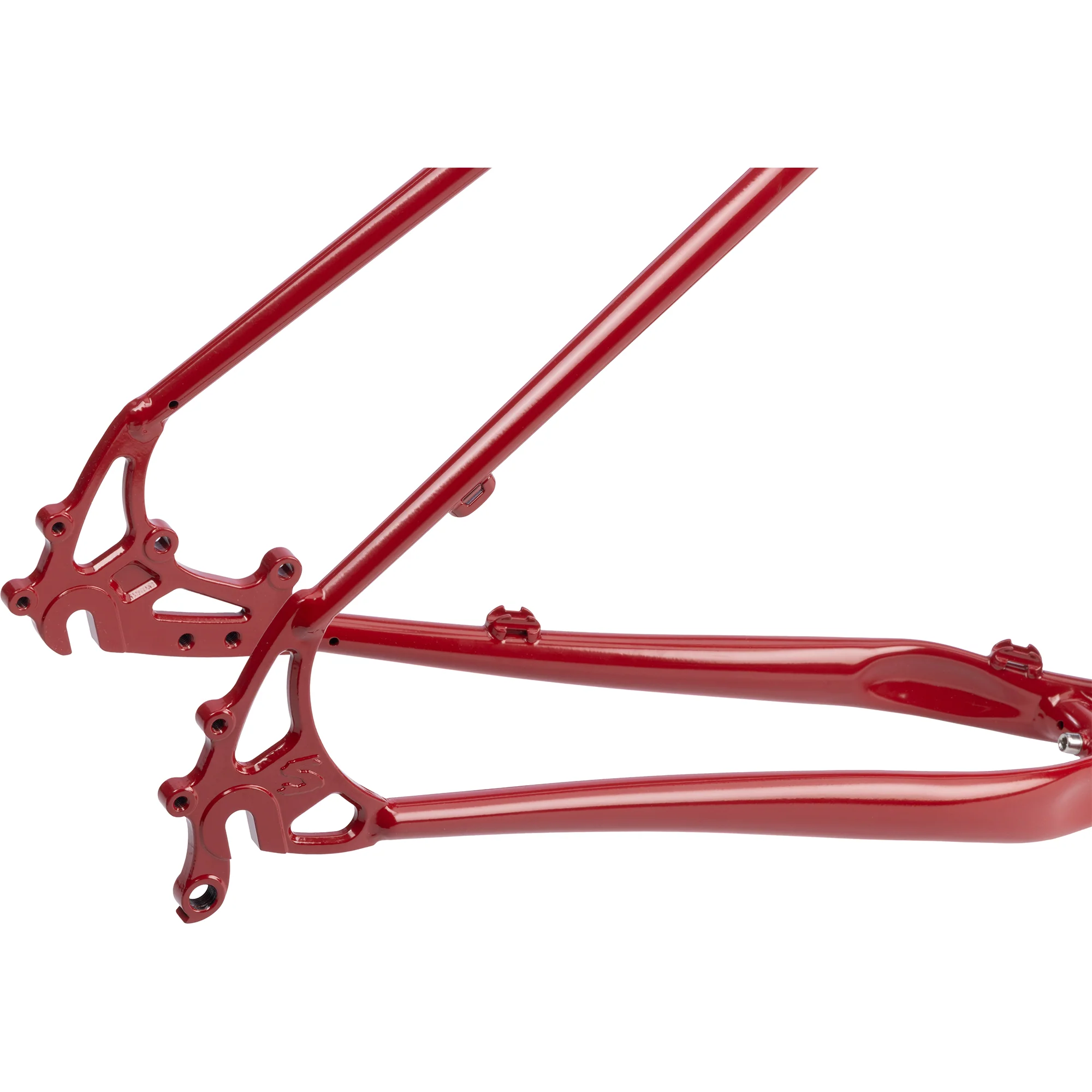

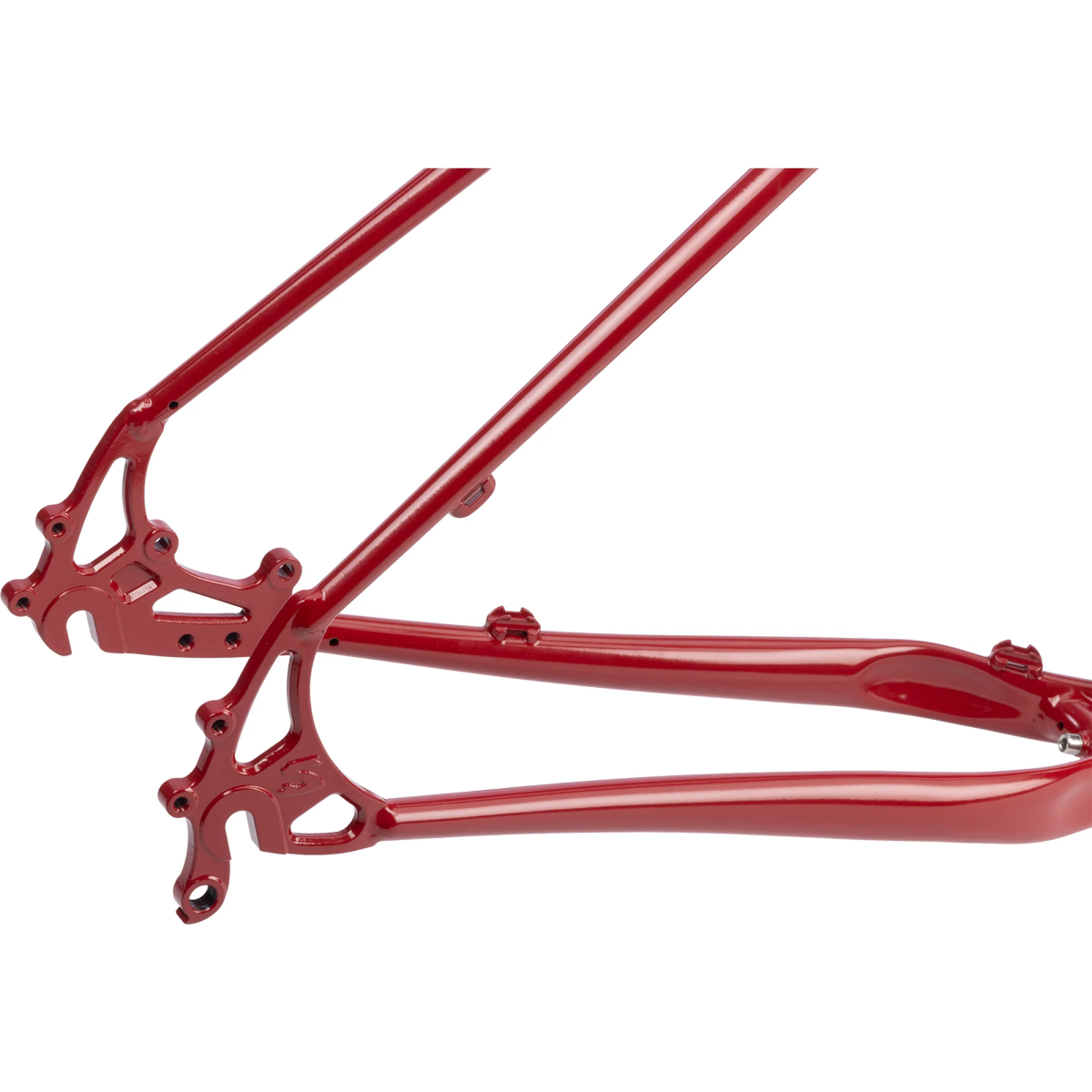

  • Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
  • Clearance for 700 x 47mm tyres (with or without fenders), 27.5 x 2.8” tyres (27.5 x 2.6” with fenders), and 26 x 3” tyres (26 x 2.8” with fenders)

Fits fat 26+ or 27.5 or 700x 45c. Get a frame and build it however you like!

Please make a selection below:

This is a frameset. It is not eligible for free shipping.

We ship frames Australia wide.

Show Shipping Info & Calculator Hide Shipping Info & Calculator

Click & Collect

Click and collect orders with available in-store stock are normally ready within a few business hours.

Pickup at: 14 Prentice St, Brunswick Victoria.
We're open: M-F 9am-5pm, SAT 10am-4pm

Shipping & Delivery

In-store stock: We can dispatch these items within 1 business day.

Warehouse stock: These items will be dispatched in 3-5 business days.

Orders containing warehouse stock will be dispatched from our Brunswick store once all items are received in-store.

This product is a Frameset

View our shipping info page.

Show shipping calculator

Payment Methods
We accept Debit and Credit Cards Apple and Google Pay Paypal and Paypal Pay in 4

Frameset:

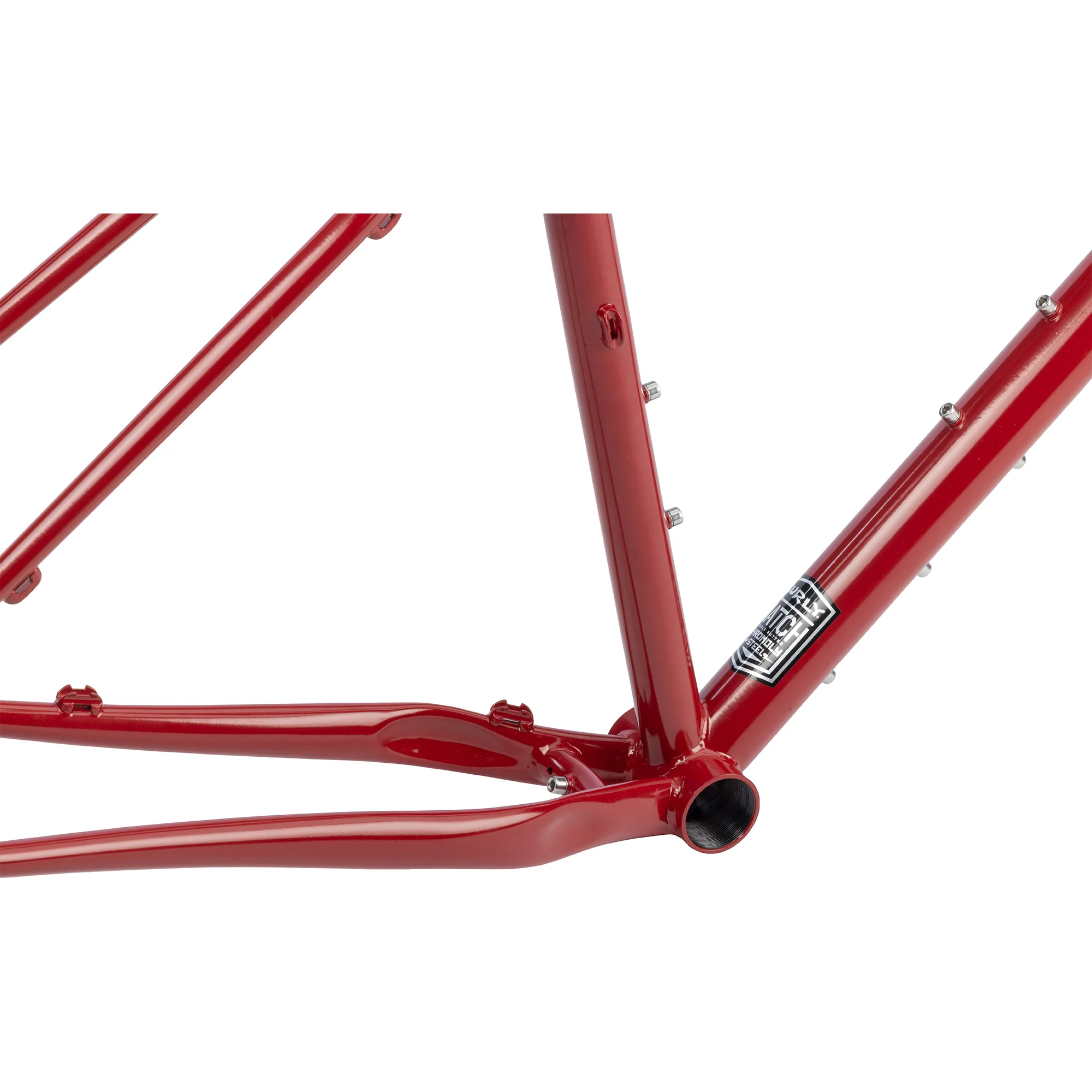

  • Frame: Surly Bridge Club
  • Fork: Surly Bridge Club
  • Seat Post Clamp: Surly Stainless 30.0

Manu Claimed Weight – Medium Size – 3.2kg

Frame Specs
Design Wheel/Tire Sizes
27.5 x 2.4″
Alternate Wheel/Tire Sizes
Frame clearance: 26 x 3.0″ (26 x 2.8″ with fenders) / 27.5 x 2.8″ (27.5 x 2.6″ with fenders) / 700c x 47 with or without fenders – Fork clearance: 26 x 3.0″ (26 x 2.8″ with fenders) / 27.5 x 2.8″ (27.5 x 2.6″ with fenders) / 700c x 47 with or without fenders
Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Suspension Fork Length (Travel)
N/A
Rigid Fork Length
420mm
Fork Offset
43mm
Axle to Crown
420mm
Rear Spacing
“Gnot-Boost” 138mm
Rear Axle Size
10 x 135mm or 10 x 141mm
Rear Brake (Rotor)
Disc – 51mm I.S. (180mm max rotor)
Front Brake (Rotor)
Disc – 51mm I.S. (203mm max rotor)
Headset – Upper
EC34/28.6
Headset – Lower
EC34/30
Front Spacing
10 x 100mm
Steerer Tube
Ø28.6mm (1-1/8″)
Crown Race
Ø30mm (1-1/8″)
Stem Clamp
Ø28.6mm (1-1/8″)
Seatpost
Ø27.2mm
Dropper Post Compatible
No
Seatpost Clamp
Ø30mm
Front Derailleur Clamp
Ø28.6mm
Front Derailleur Type
High direct mount top-pull (Ø28.6mm) 26mm offset adapter (not included) for 135mm rear hub spacing 29mm offset adapter (not included) for 141mm rear hub spacing
Bottom Bracket
73mm threaded (1.37″ x 24TPI)
Crankset (Max Ring)
1x (Mtn): 34T / 2x (Mtn): 26/40T / 3x (Mtn): 22/36/44T / 1x (Boost): 40T / 2x (Boost): 32/42T
Bottle Mounts
2 Three-Pack (XS) / 1 Standard + 2 Three-Pack (S – XL)
Fork Mounts
2 Three-Pack, rack mounts (upper, lower, and mid-blade threaded)
Front Fender Mounts
Yes
Rear Fender Mounts
Yes
