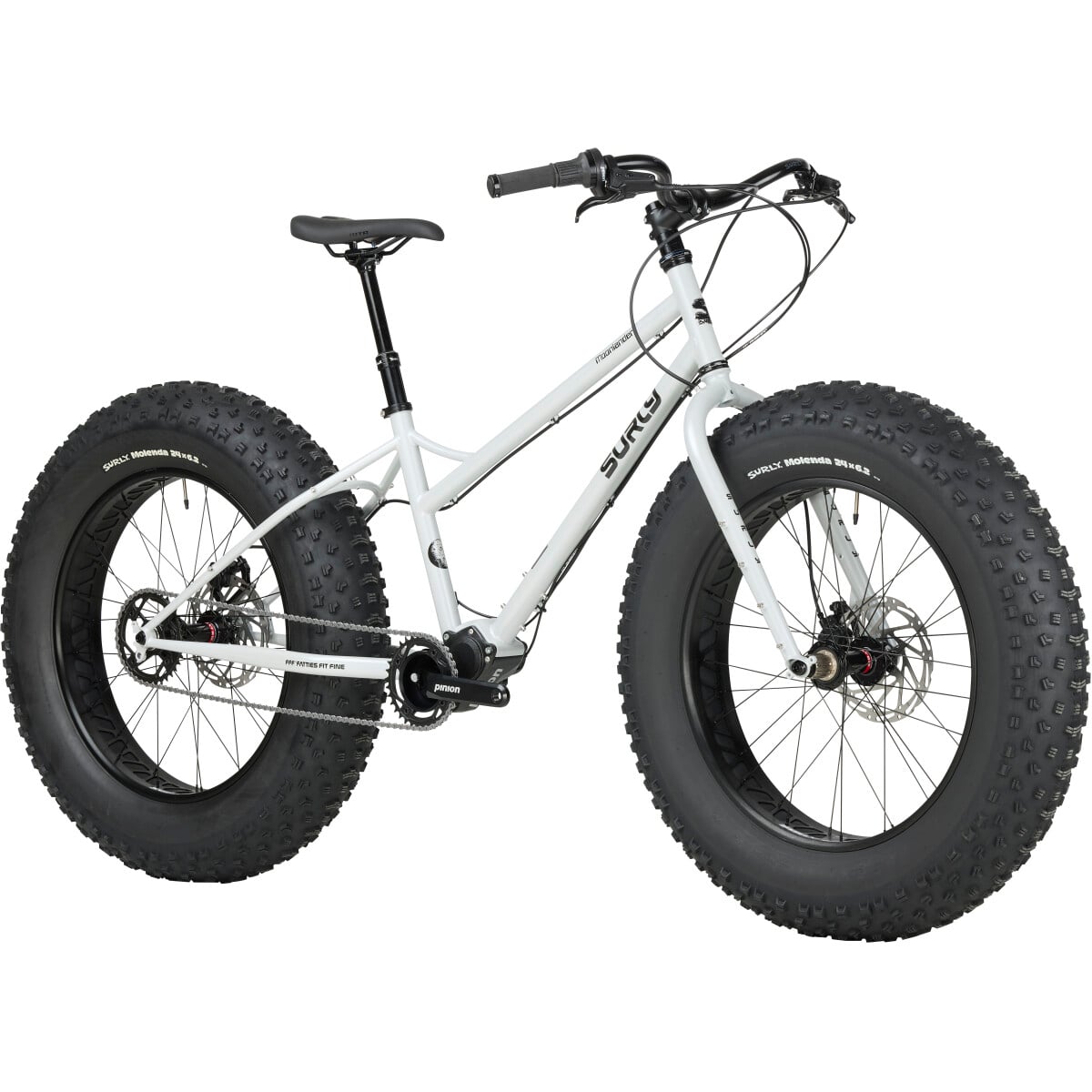

Surly Moonlander V2

• Carefully crafted from our 4130 Chromoly steel, with a bottom bracket height that supplies plenty of clearance for bushwhacking and monster-trucking without losing out on stability

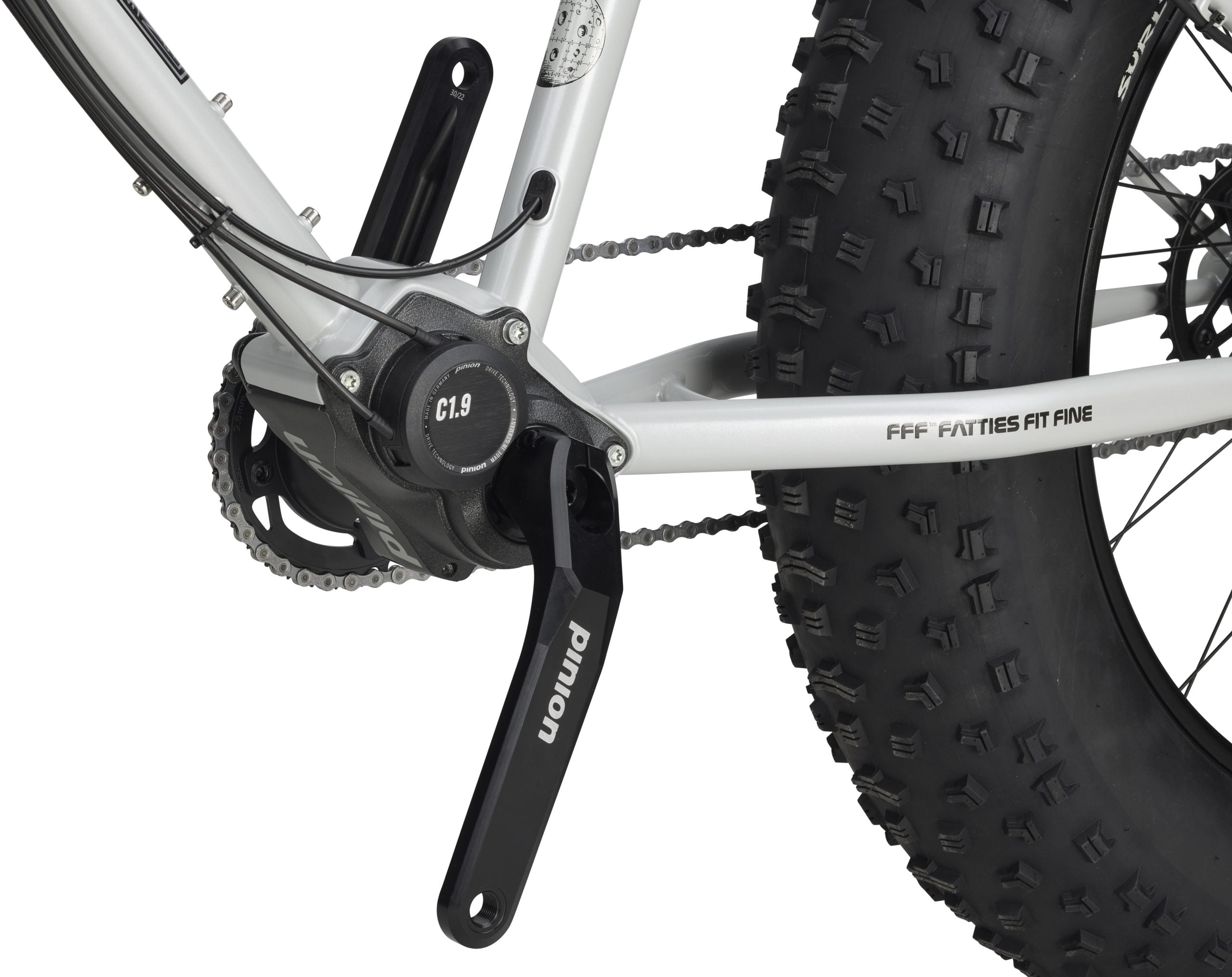

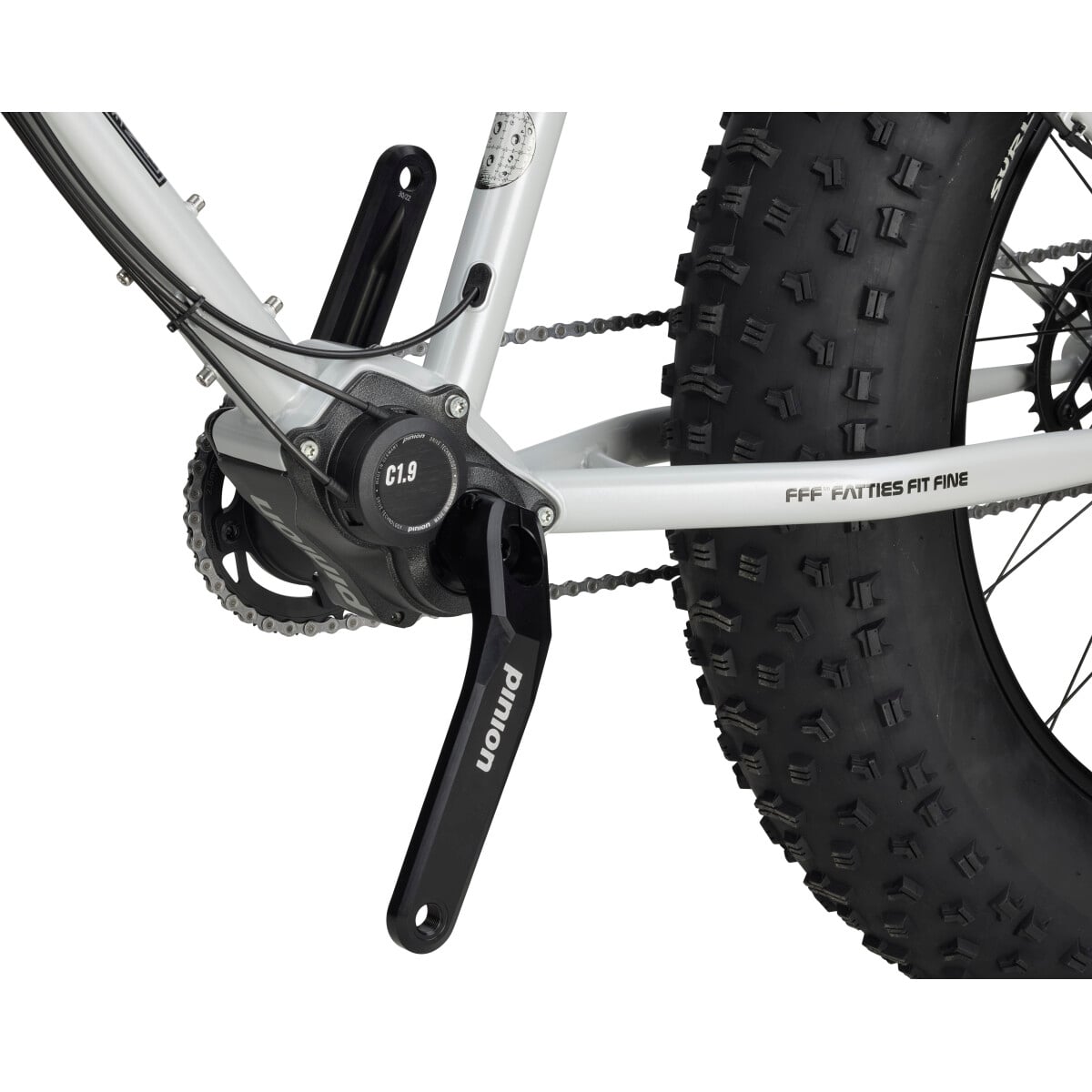

• Surly’s first bike with a 9-speed Pinion gearbox, an innovative approach to spur gearing that improves reliability and go-anywhere performance with less maintenance
• The top tube maximizes standover height and foot dabs into soft substances, while keeping the headtube high so you can set up your rig in a comfortable, all-day-grind riding position

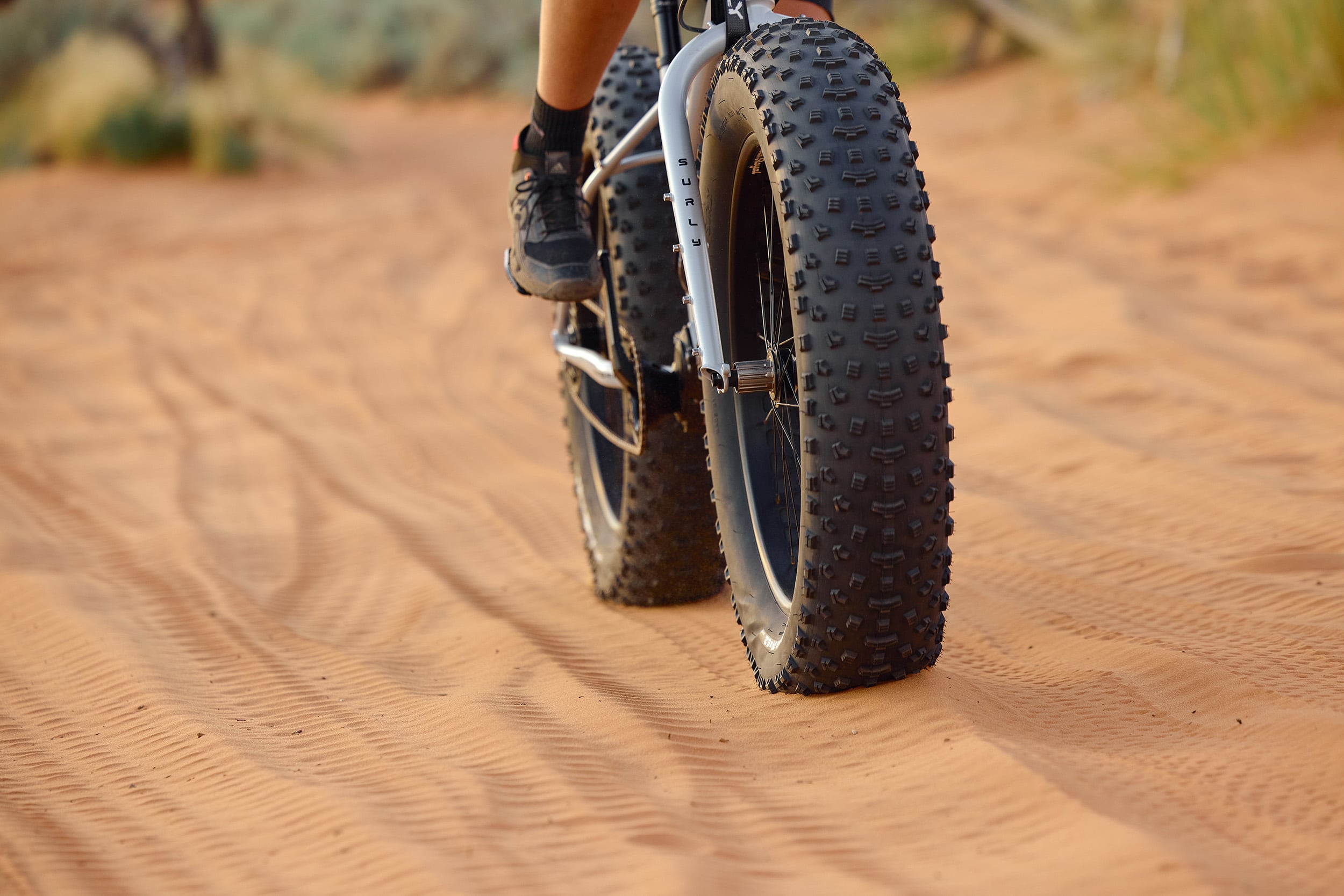

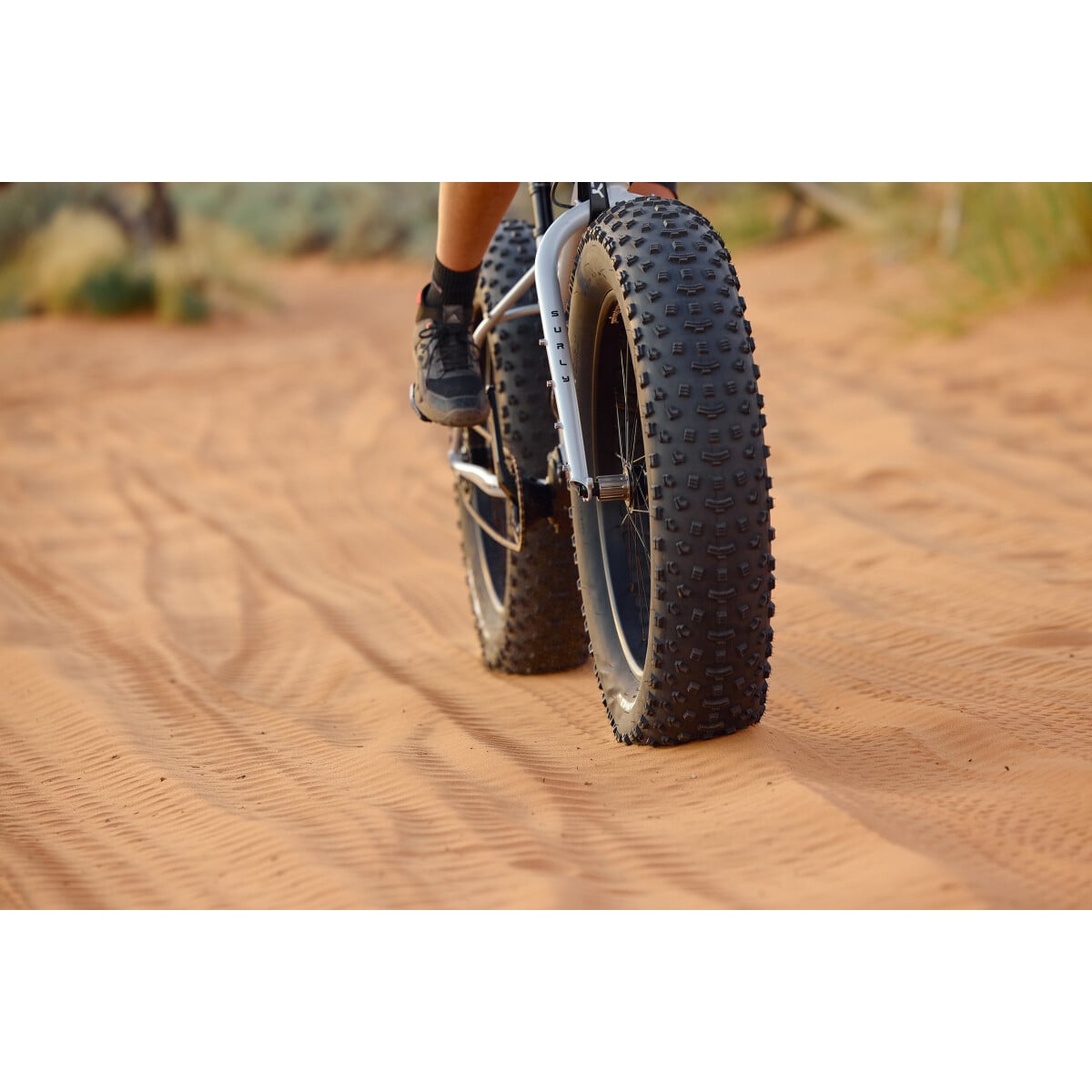

• Large volume Surly Molenda Tires on 24 x 100mm Surly Clown Royal Rims inflated by new TPU tubes creates a footprint large enough to float over unrideable (until now) terrain
• Clearance for 24 x 6.25” tires, as well as 26 x 5.1”, 27.5 x 4.8”, and 29 x 3”
• Comes with rack and fender mounts, as well as accessory mounts on both fork blades to enhance cargo capacity (compatible with our rear disc wide rack)
• Weight distribution across front and rear, with a longer back, allows for greater stability
• Features Tektro HD-M285 Hydraulic Disc Brake System
• Four frame sizes to fit most riders: SM, MD, LG, XL
• Includes a dropper for easier on and off, especially on soft surfaces

Spec

Frameset
Frame 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Seatpost Clamp Surly Stainless 33.1mm

Components
Headset Cane Creek 40
Brakes and rotors Tektro HD-M285, Tektro 180/180, 6-Bolt
Shifter Pinion Rotary Shifter
Stem Promax, 31.8, 4-bolt
Handlebar Surly Terminal
Grip/Tape Velo Lock-on
Saddle WTB Volt Medium
Seatpost TransX YSP15JL Dropper, 125mm travel (100mm travel on SM)

Drivetrain
Crankset Pinion for Surly crankset 34T, with Pinion high-offset spider
Bottom Bracket Pinion Gearbox
Front Derailleur N/A
Rear Derailleur Pinion C1.9 XR 9spd Gearbox
Cog or cogset 34t aluminum ring
Chain KMC X10 EPT Anti-Rust

Wheels
Front hub Novatec 12x197mm, Thru-Axle, 32h
Rear hub Novatec 12x197mm, Thru-Axle, 32h
Rims Surly Clown Royal 24″, 100mm wide
Tires Surly Molenda Tire 24 X 6.2″, 60tpi, Tubeless Ready
