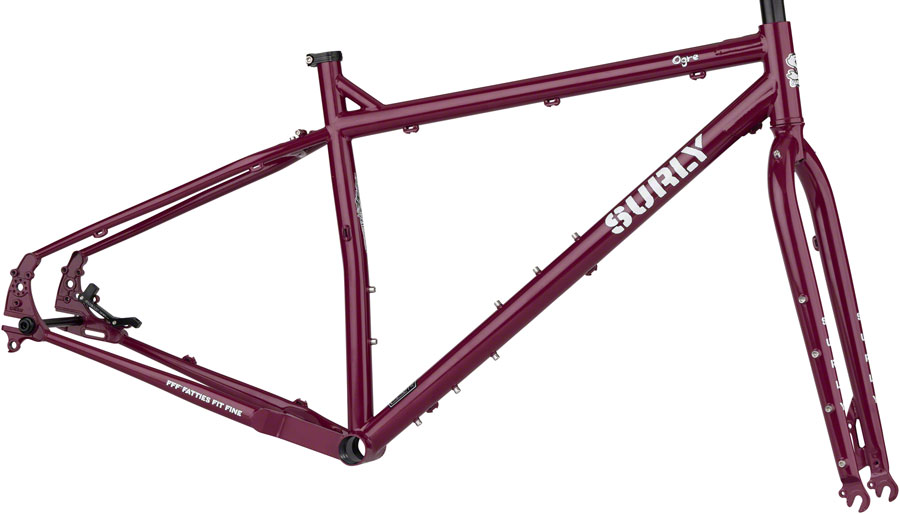

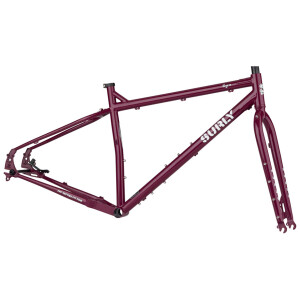

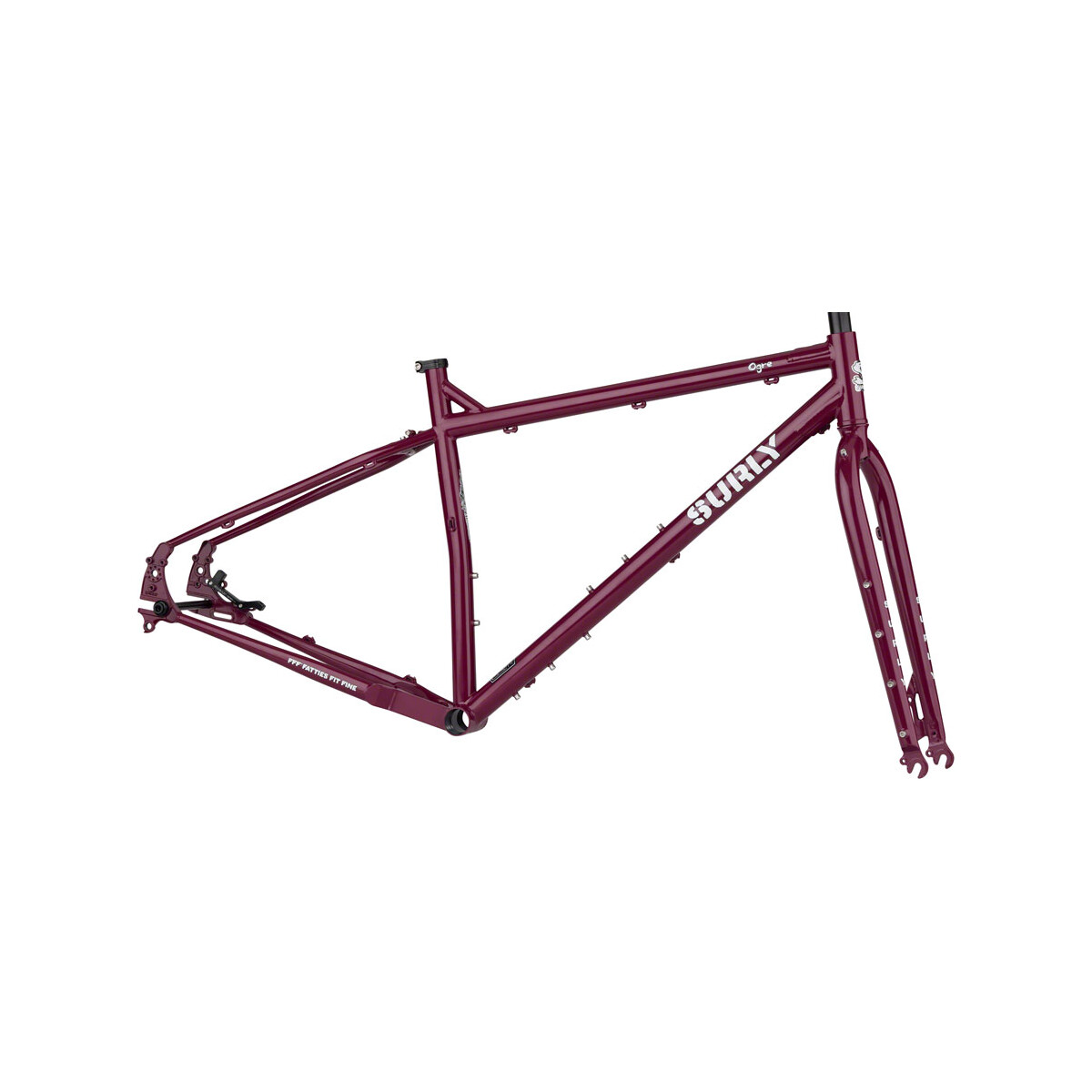

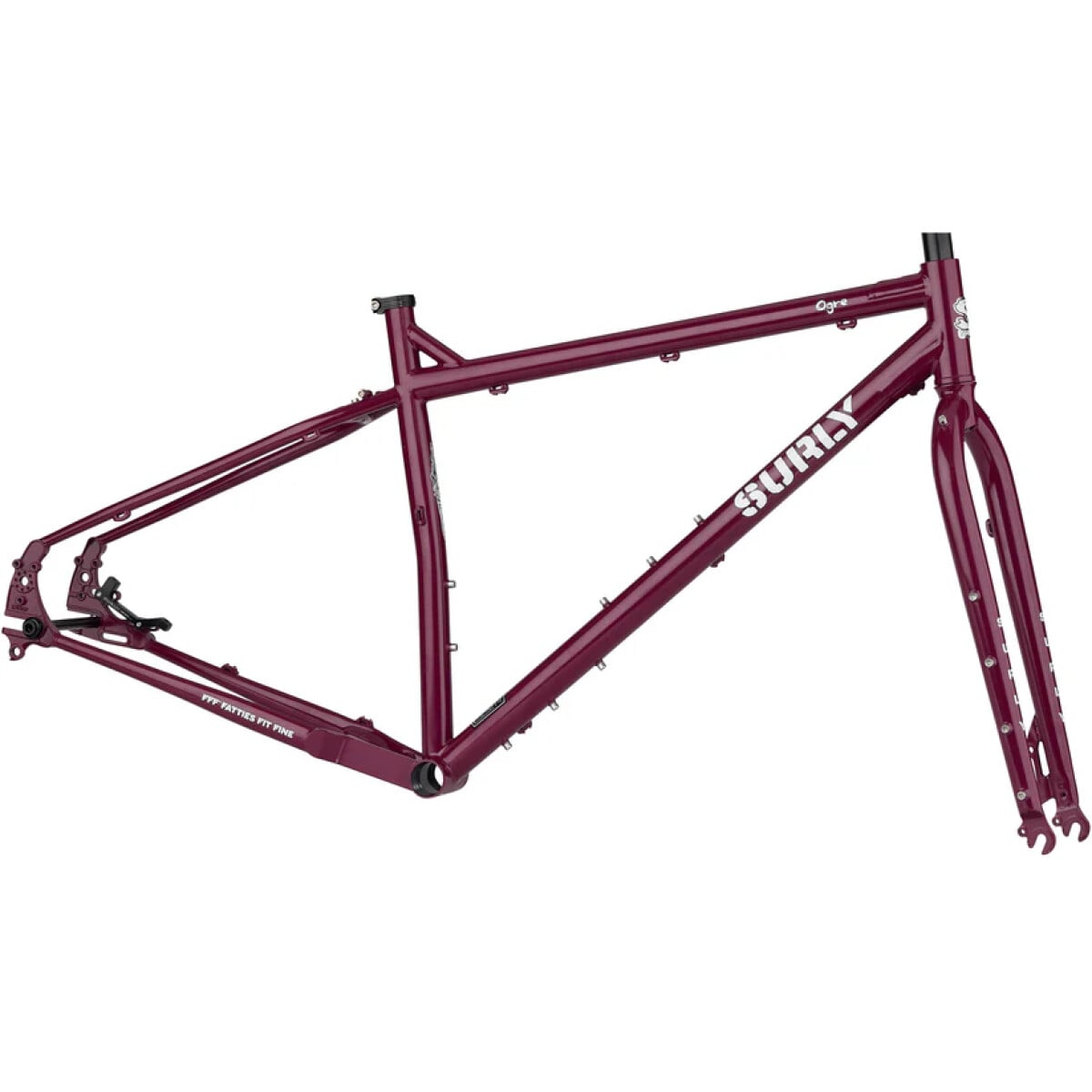

Surly Ogre Frameset

$1,900.00

If you’re like us, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack.

Ogre is designed to be the ultimate steel utility vehicle. It relishes in those “take-the-long-way-home-and-find-some-beverages-along-the-way” sort of commutes. Snow, sleet or sweltering humidity, this is an ideal year-round commuter bike. You can also haul enough crap on it that you don’t even have to go home if you don’t want to.

  • All the barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.

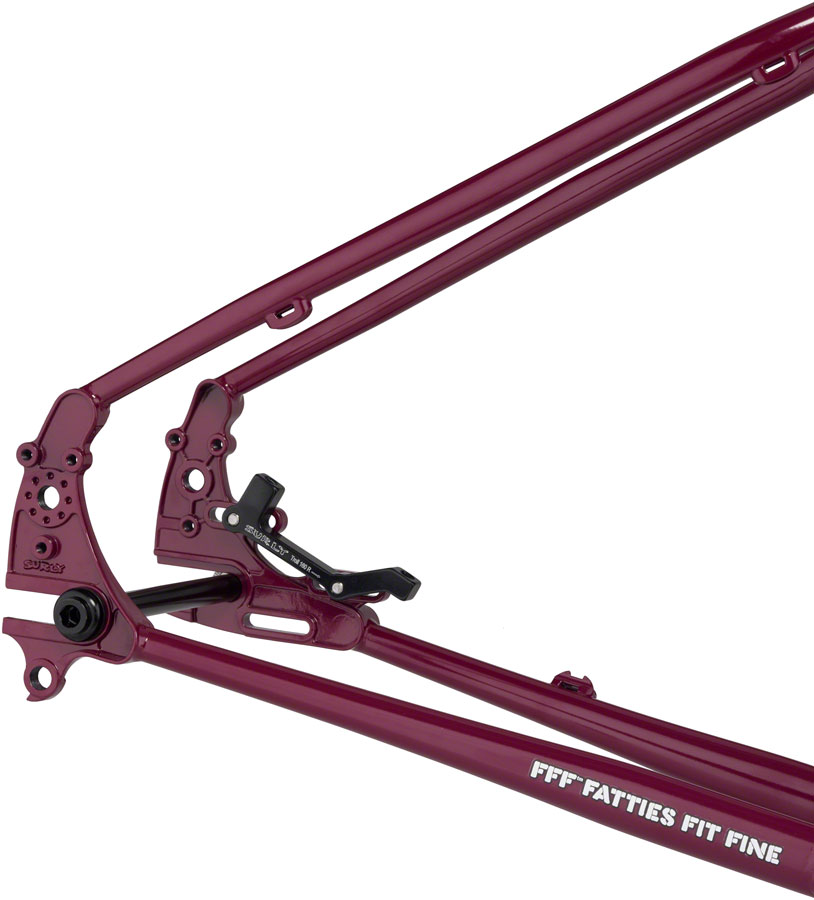

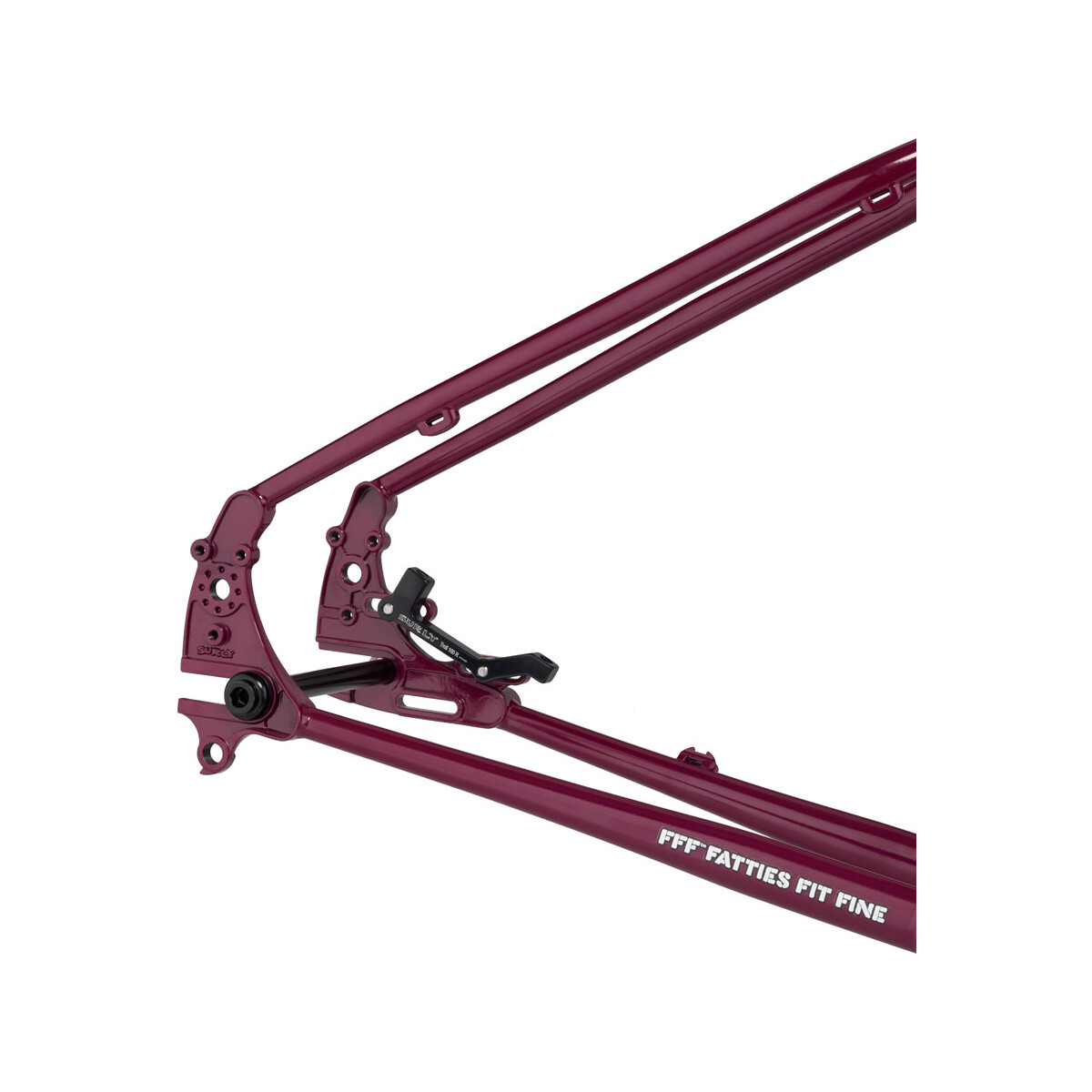

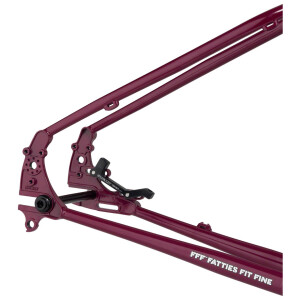

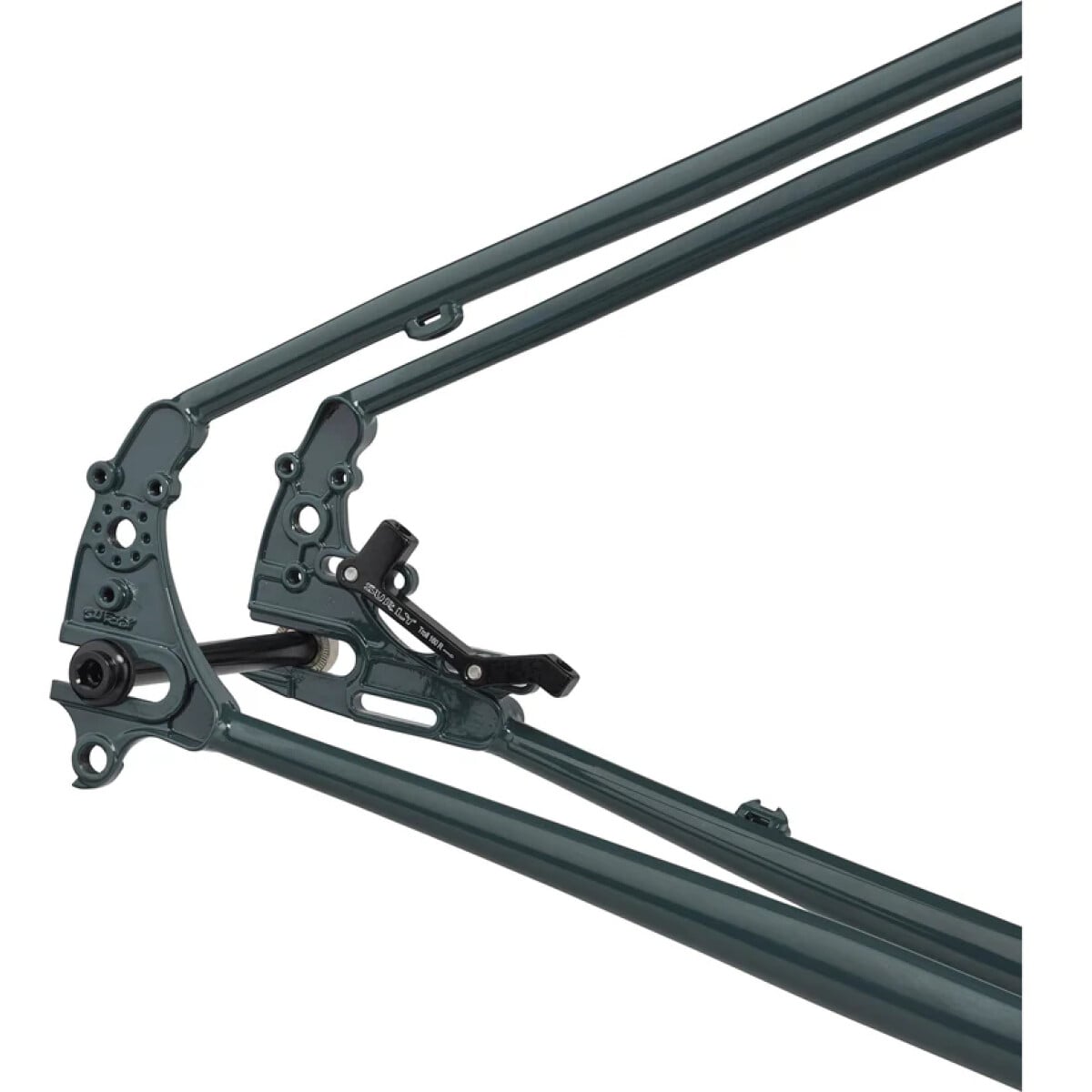

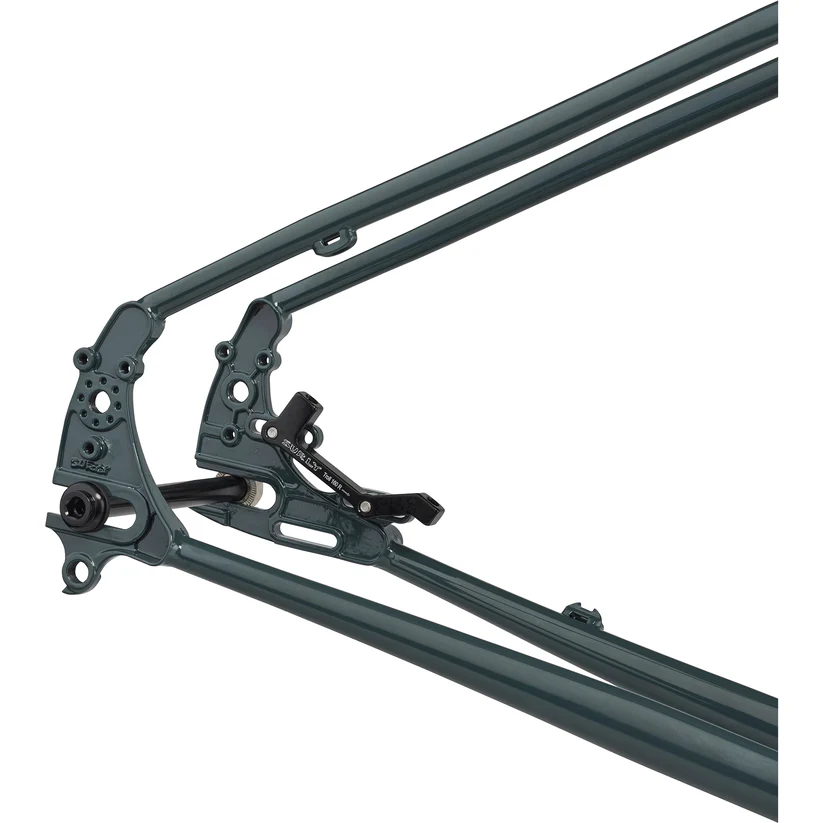

  • Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount

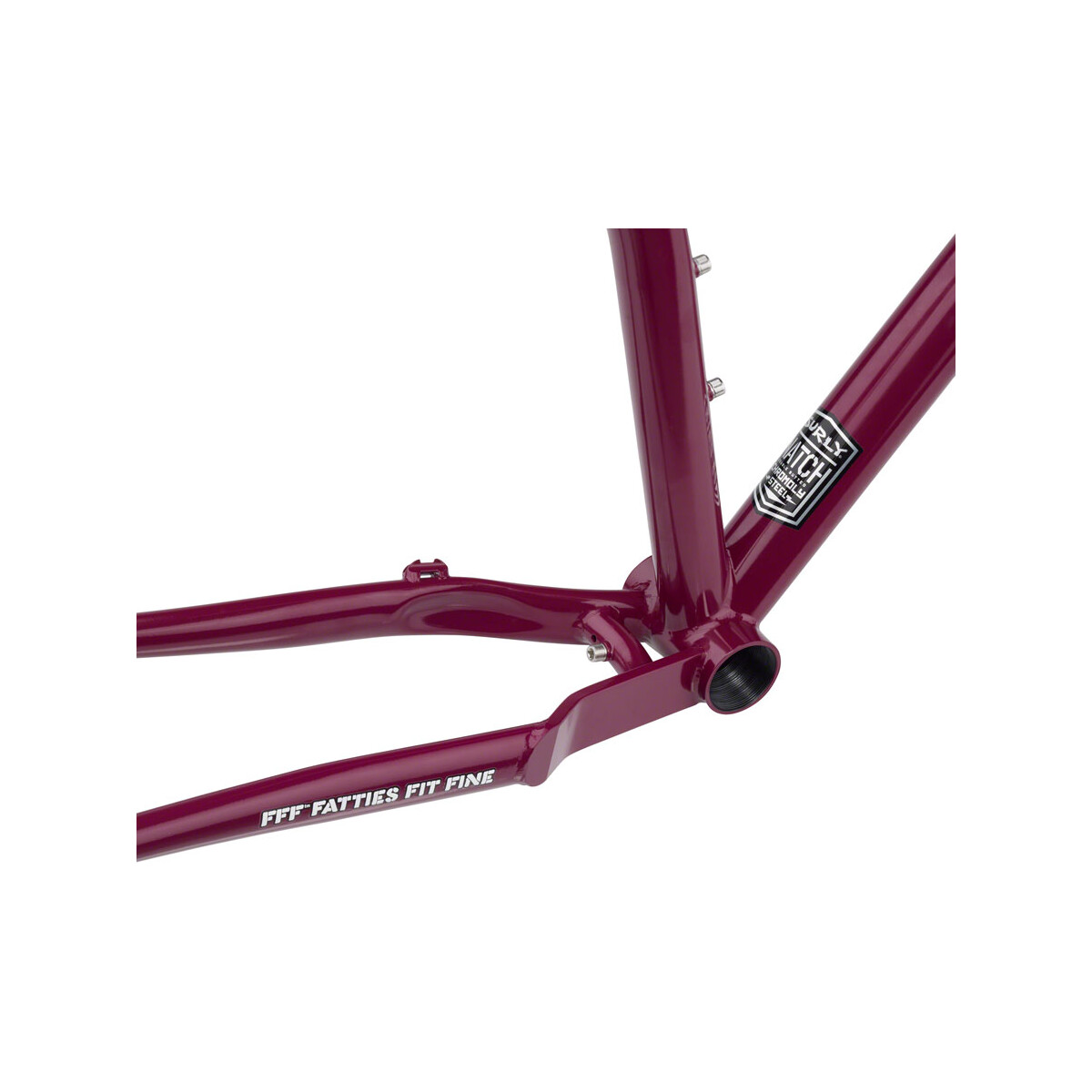

  • Clearance for 29” x 2.5” or 27.5″ x 2.8″ tires with fenders

https://surlybikes.com/products/ogre-frameset-fermented-plum

Please make a selection below:

This is a frameset. It is not eligible for free shipping.

We ship frames Australia wide.

Show Shipping Info & Calculator Hide Shipping Info & Calculator

Click & Collect

Click and collect orders with available in-store stock are normally ready within a few business hours.

Pickup at: 14 Prentice St, Brunswick Victoria.
We're open: M-F 9am-5pm, SAT 10am-4pm

Shipping & Delivery

In-store stock: We can dispatch these items within 1 business day.

Warehouse stock: These items will be dispatched in 3-4 business days.

Orders containing warehouse stock will be dispatched from our Brunswick store once all items are received in-store.

This product is a Frameset

View our shipping info page.

Show shipping calculator

Payment Methods
We accept Debit and Credit Cards Apple and Google Pay Paypal and Paypal Pay in 4

Frame

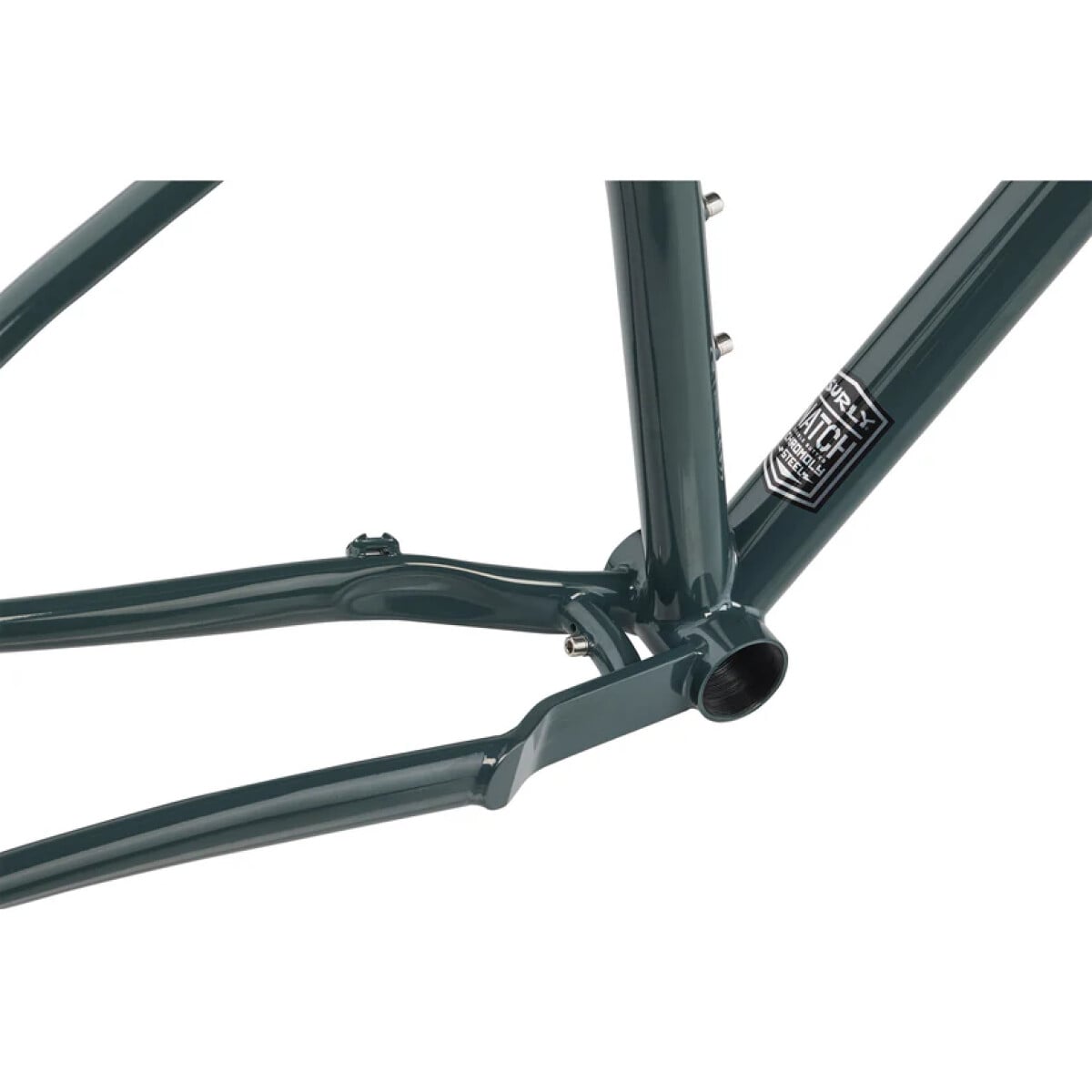

100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork
100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components
Seatpost Clamp

Surly Stainless 30.0

Rear Axle
12 x 148mm (axle included)

Frame Spec

Design Wheel/Tire Sizes
29 x 2.5″
Alternate Wheel/Tire Sizes
27.5 x 3.0″
Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Suspension Fork Length (Travel)
N/A
Rigid Fork Length
445mm
Fork Offset
45mm
Axle to Crown
445mm
Rear Spacing
“Gnot-Boost” 145mm
Rear Axle Size
12 x 142mm or 12 x 148mm (axle included)
Front Brake (Rotor)
Disc – 51mm I.S. (203mm max rotor)
Headset – Upper
EC34/28.6
Headset – Lower
EC34/30
Front Spacing
10 x 100mm
Steerer Tube
Ø28.6mm (1-1/8″)
Crown Race
Ø30mm (1-1/8″)
Stem Clamp
Ø28.6mm (1-1/8″)
Seatpost
Ø27.2mm
Dropper Post Compatible
No internal routing
Seatpost Clamp
Ø30mm
Front Derailleur Clamp
Ø31.8mm
Front Derailleur Type
High direct mount top-pull (Ø31.8mm) / 26mm offset adapter (not included) for 142 or 135mm rear hub spacing / 29mm offset adapter (not included) for 148mm rear hub spacing

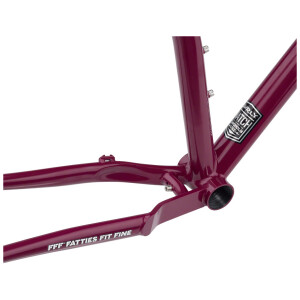

Bottom Bracket
73mm threaded (1.37″ x 24TPI)
Crankset (Max Ring)
1x (Mtn): 42T / 2x (Mtn): 34/46T / 3x (Mtn): 24/36/48T / 1x (Boost): 46T / 2x (Boost): 42/48T
Accessory Mounts
Dedicated Rohloff cable routing and mount for OEM 2 axle plate / Dedicated Surly Trailer mounts
Bottle Mounts
2 Three-Pack (XS-SM) / 1 Standard + 2 Three-Pack (MD – XL)
Fork Mounts
2 Four-Pack / Rack mounts: (upper, lower, and mid-blade threaded)
Front Fender Mounts
Yes
Rear Fender Mounts
Yes
