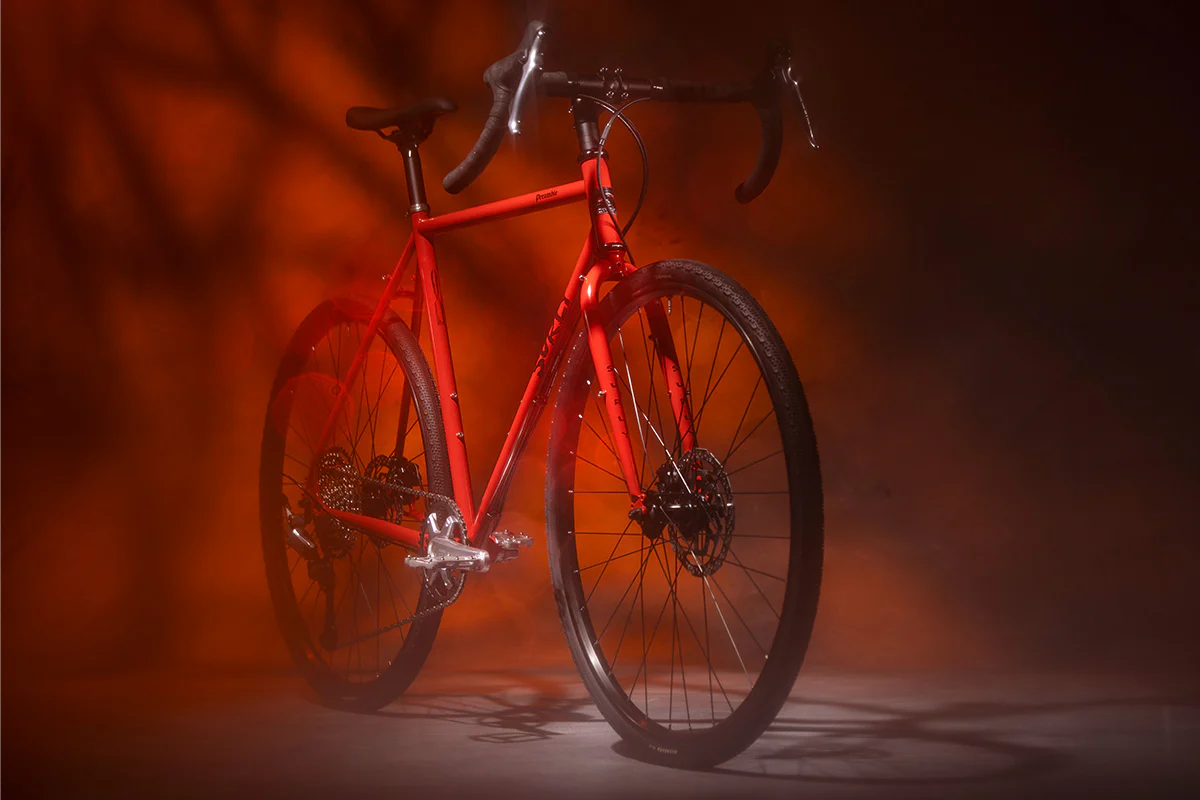

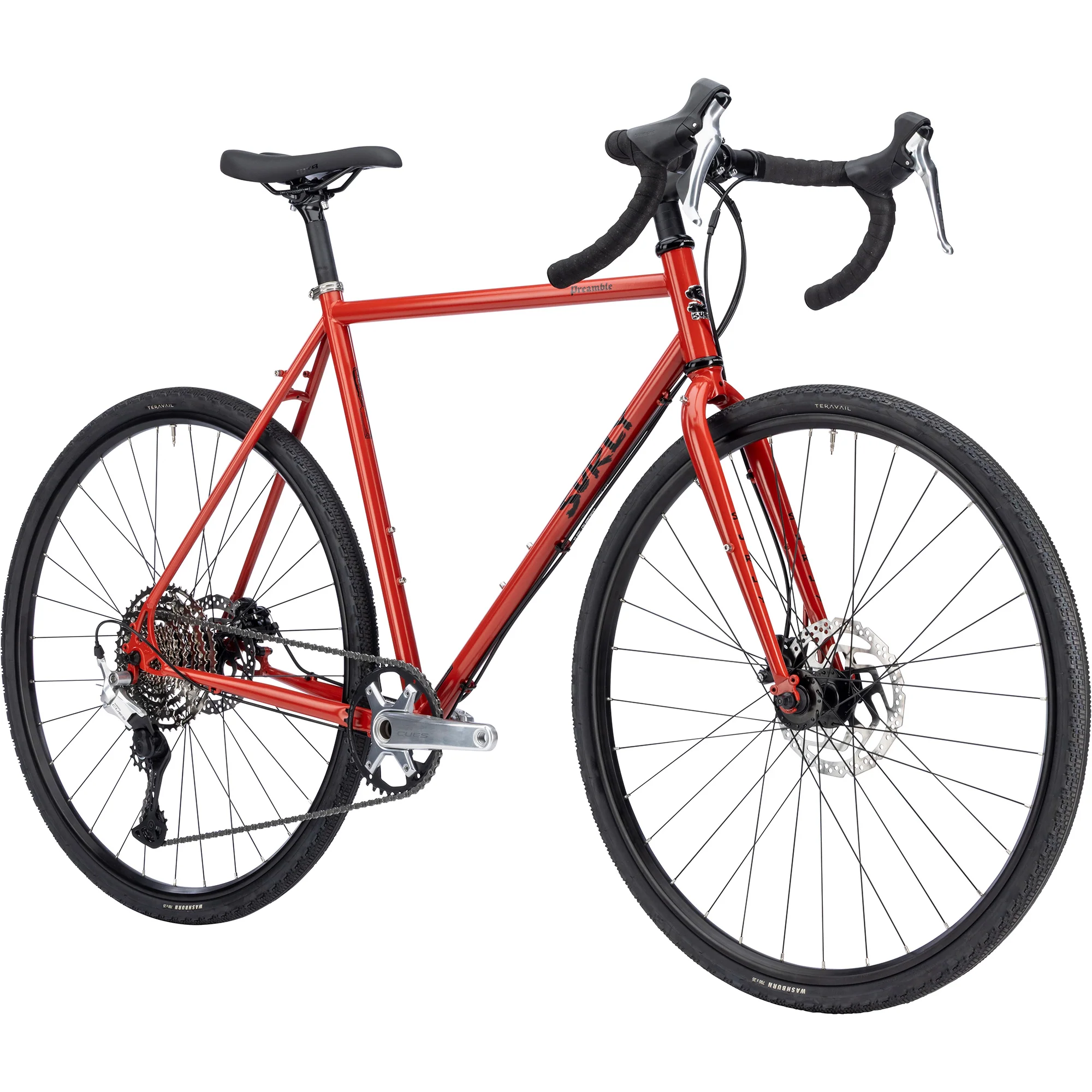

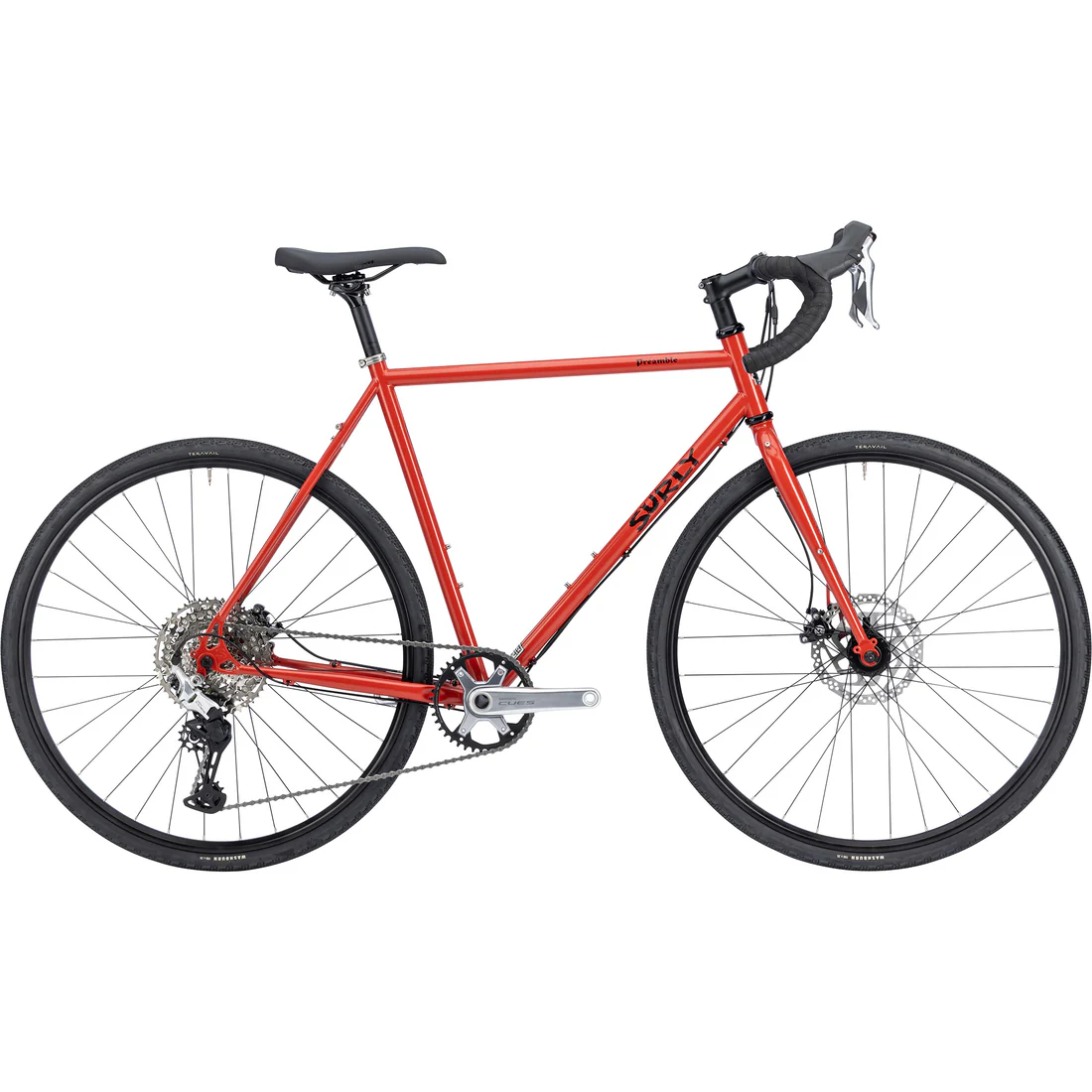

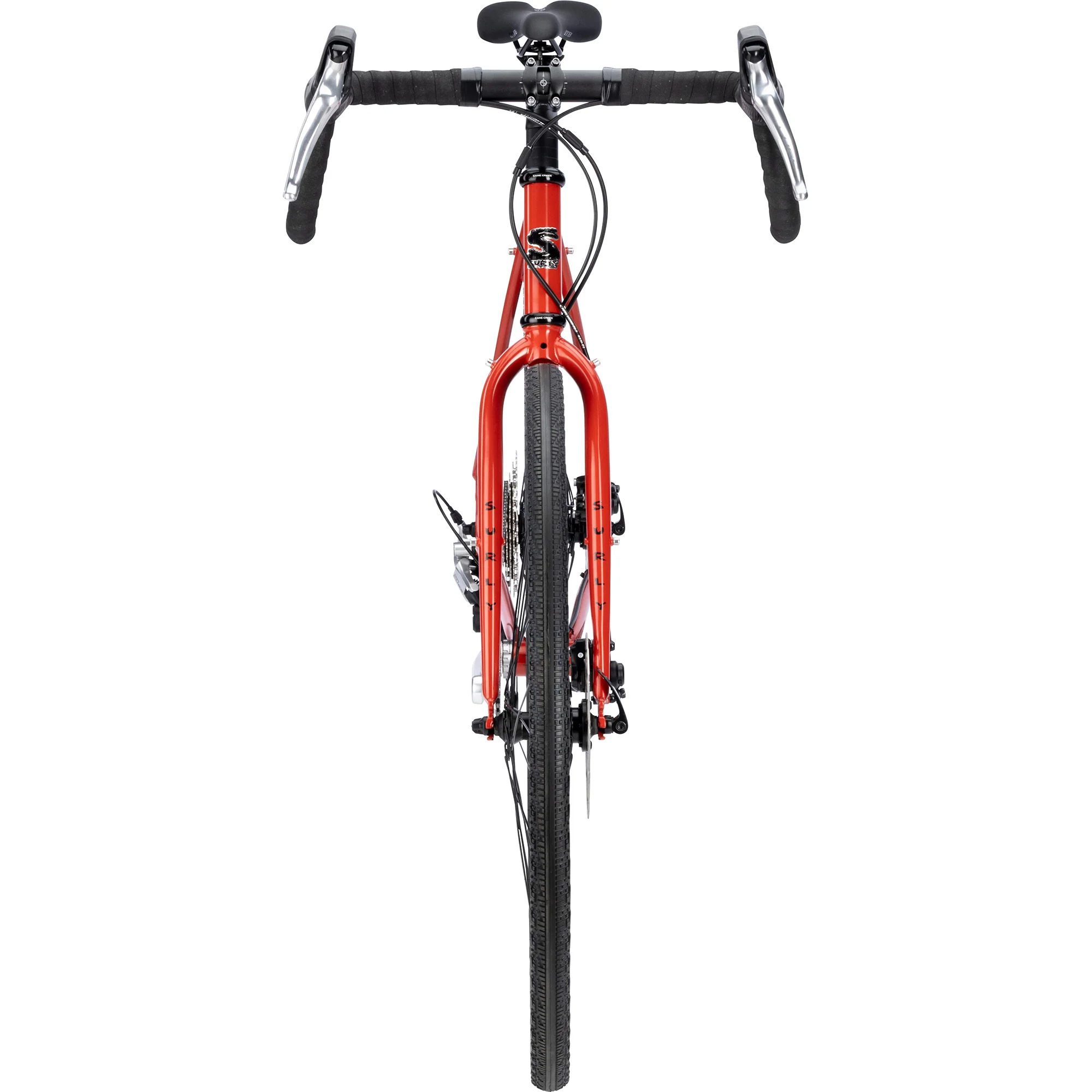

Surly Preamble Drop Bar CUES Red Hot Cheddar

$2,850.00

Nothing More is Needed. Nothing Less Will Do.

The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.

Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.

  • Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
  • Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
  • Sloping top tubes on XS and Small frames for improved standover and comfort
  • To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
  • Custom-cast single-position vertical dropout

https://surlybikes.com/products/preamble-drop-bar-red-hot-cheddar

Please make a selection below:

WANT THIS BIKE??

Fill out the form below to line up a test ride or get a quote on shipping it to you.

Click here to show the enquiry form Click here to hide the enquiry form

This is a bicycle. It is not eligible for free shipping.

We ship bikes Australia wide.

Show Shipping Info & Calculator Hide Shipping Info & Calculator

Returns

Please note that we do not accept change of mind returns on bikes. For more info please read our full returns policy.

Shipping & Delivery

This product is a Complete Bicycle - and can cost a fair bit to package and ship. View our shipping info page for estimates.

Payment Methods
We accept Debit and Credit Cards Apple and Google Pay Paypal and Paypal Pay in 4

Build Kit

Frameset

Frame Surly Preamble, 100% Chromoly steel tubing, E.D. coated

Color Red Hot Cheddar

Fork Surly Preamble, 100% Chromoly steel fork, Disc Only

Components

Headset Cane Creek 40 OR FSA Orbit MX

Seatpost Kalloy 27.2 x 300mm, no offset

Stem TranzX JD-ST123A, Alloy

Grips/Bar Tape Velo Black Cork

Saddle WTB Volt Medium

Handlebar TranzX JD-RA48A, Alloy

Drivetrain

Front Derailleur N/A

Rear Derailleur Shimano CUES U6000 GS, Silver

Cassette Shimano CUES LG400, 11-48t, 10spd, Silver

Chain Shimano LG500

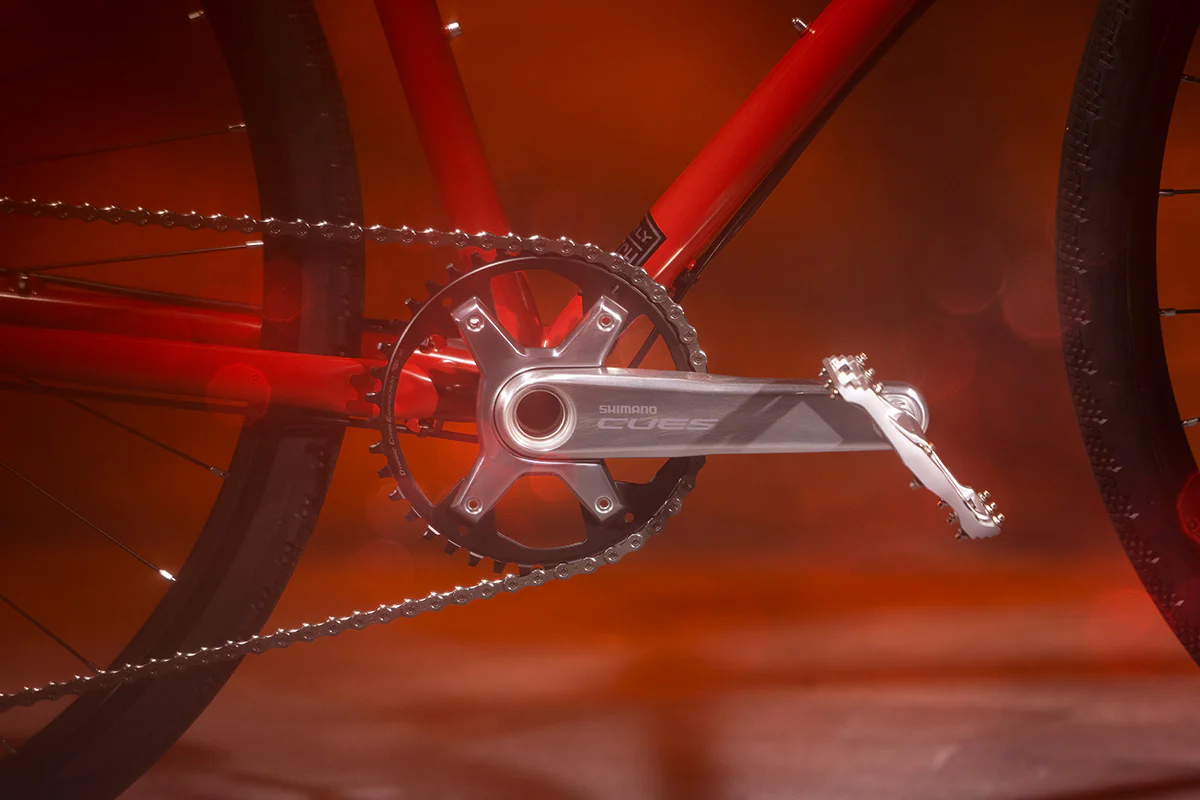

Crankset Shimano CUES U6030, 40T, Silver

Shifter Shimano CUES U3030, Silver

Brake Levers Shimano CUES U3030, Silver

Brake Calipers Shimano RS305, Mechanical

Bottom Bracket Shimano RS501 BSA

Rotors Shimano RT26, 160/160, 6-Bolt

Wheels

Front Tire

Teravail Washburn 650b x 35, 30tpi, Wire Bead (XS-SM)
Teravail Washburn 700c x 35, 30tpi, Wire Bead (MD-XL)

Rear Tire

Teravail Washburn 650b x 35, 30tpi, Wire Bead (XS-SM)
Teravail Washburn 700c x 35, 30tpi, Wire Bead (MD-XL)

Front Hub Novatec QR x 100mm, 32h, 6-Bolt

Rear Hub Novatec QR x 141mm, 32h, 6-Bolt

Spoke 14 Gauge Black

Rim Shining DB-21, 32h

Weight

Complete Bike 12.3kg / 26lb 14oz (Medium)

*Specifications are subject to change without notice

Frame Specs

  • Design Wheel/Tire Sizes 650b x 41mm: XS-SM frames, 700c x 41mm: MD-XL frames
  • Frame Construction 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
  • Rigid Fork Length 380mm: XS-SM, 400mm: MD-XL
  • Fork Offset 47mm: XS-SM, 44mm: MD-XL
  • Rear Spacing “Gnot-Boost” 138mm
  • Rear Axle Size 10 x 135mm or 10 x 141mm
  • Front Brake (Rotor) Disc – 51mm I.S. (203mm max rotor)
  • Headset – Upper EC34/28.6
  • Headset – Lower EC34/30
  • Front Spacing 10 x 100mm
  • Steerer Tube Ø28.6mm
  • Crown Race 30mm (1-1/8″)
  • Seatpost Ø27.2mm
  • Dropper Post Compatible No
  • Seatpost Clamp Ø30.0mm
  • Front Derailleur Clamp High direct mount top-pull (Ø28.6mm)
    26mm offset adapter (not included) for 135mm rear hub spacing
    29mm offset adapter (not included) for 141mm rear hub spacing
  • Bottom Bracket 68mm BSA, threaded
  • Crankset (Max Ring)1x (47CL): 42T
    2x (47CL): 46/36T
  • Bottle Mounts 2 Standard
  • Fork Mounts Fork crown and mid-blade rack mounts
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes
