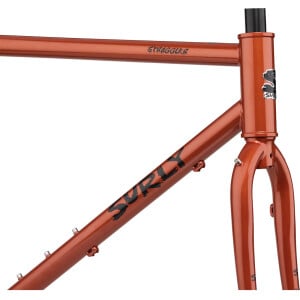

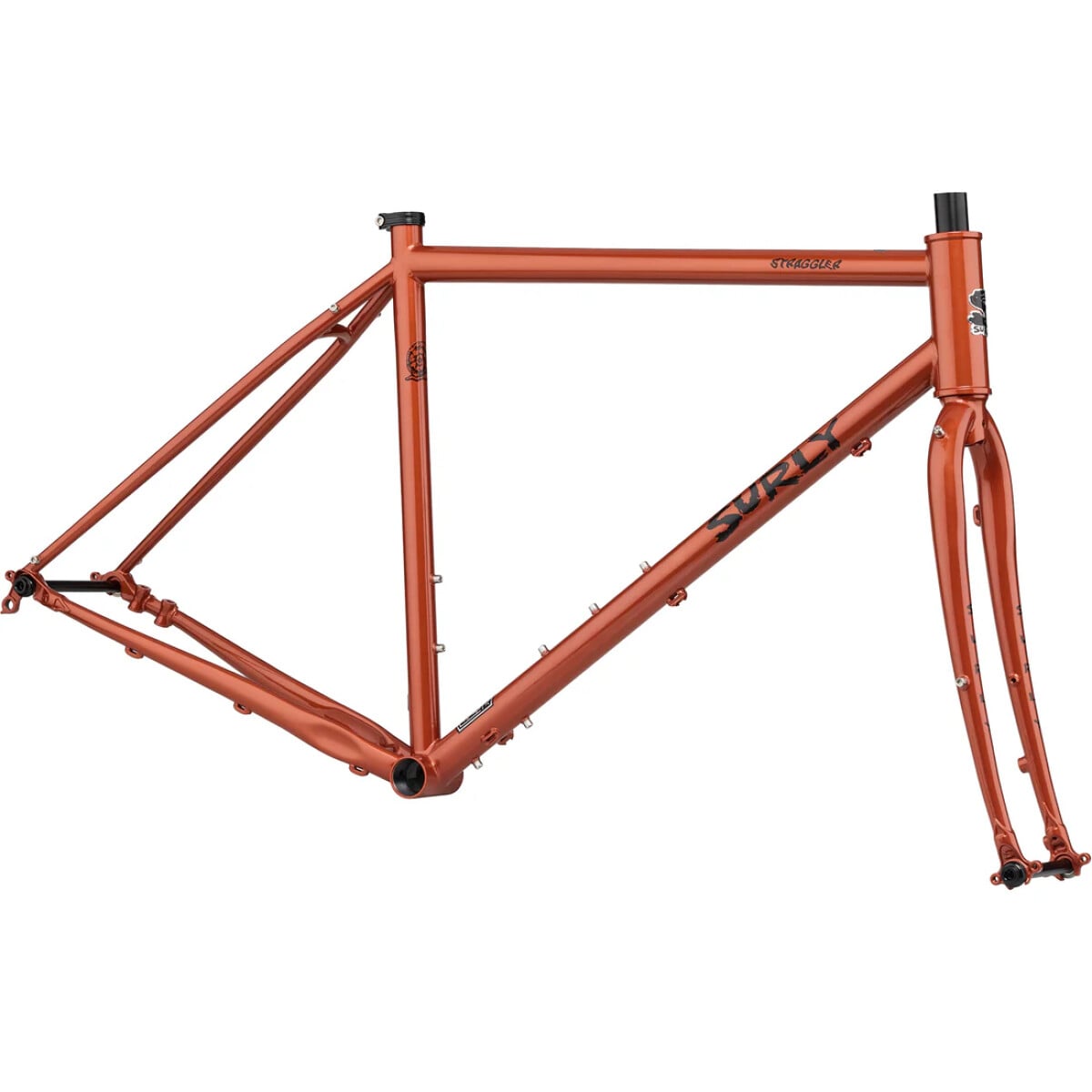

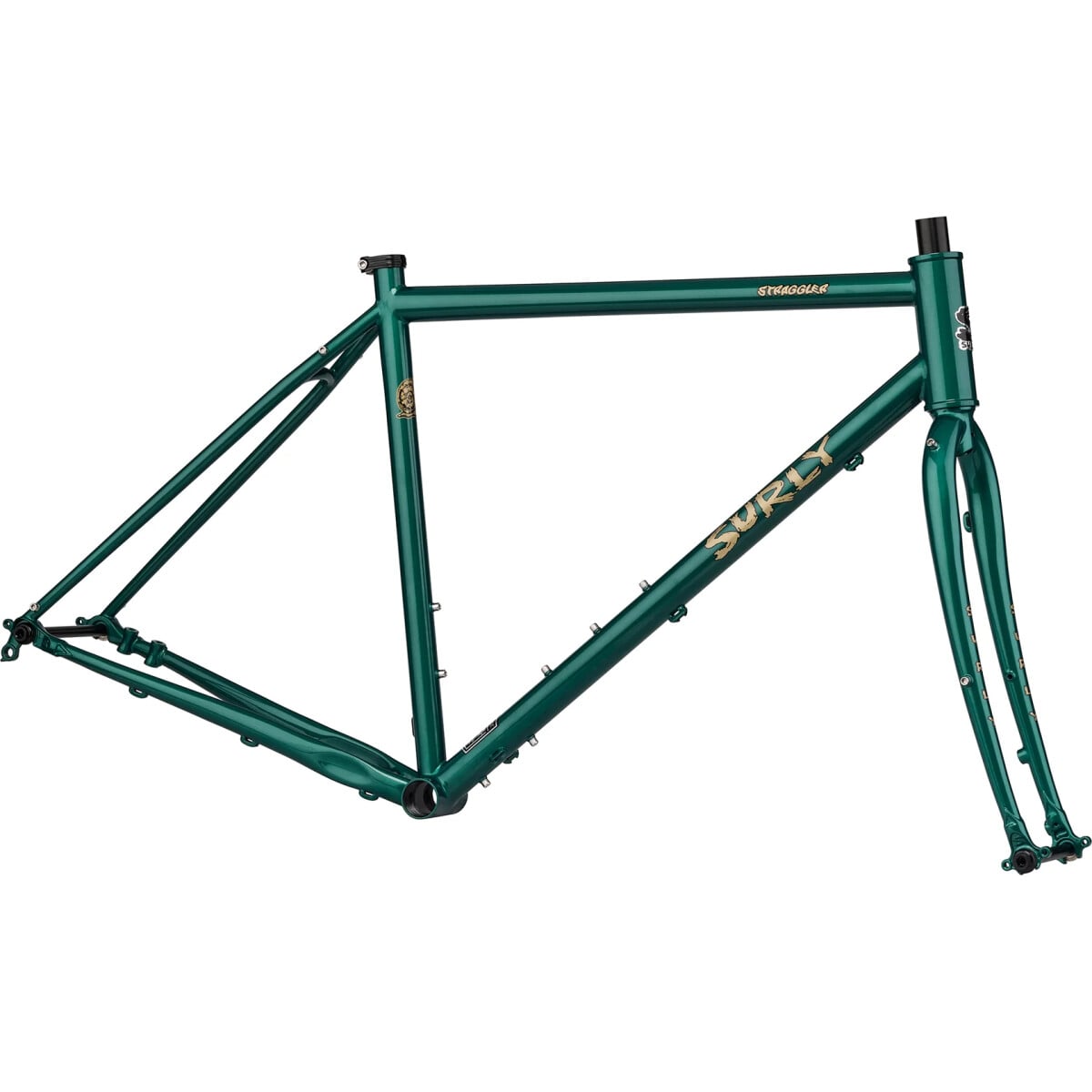

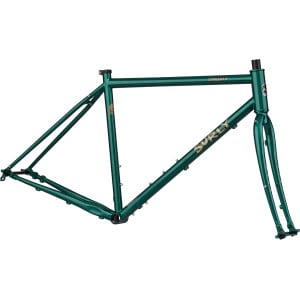

Surly Straggler 2025 Thru-axle Frameset

$1,800.00

The New Straggler is here!!!

Utilitarian with off-road tendencies, the Straggler is a modern-day gravel machine built to span busted pavement and beyond.

Updated frame with improved standover, simplified thru-axle dropouts, and flat mount brake compatible.

If you only have room for one bike in your life, Straggler can (and should) be your one and only.

A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, modern flat-mount controls, and zero ego.

It’s a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready for you to plow through challenges, not obstacles.

Straggler’s capabilities extend into some light cargo setups, so you can do double-duty when hitting the trails and running around town. Tack on one of our Pack Racks and maybe a frame bag when you need to grab some groceries on the way back to civilization –– knowing with Straggler, you always have an exit plan.

650b or 700c wheels (varies by frame size) for optimized rider fit
Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames

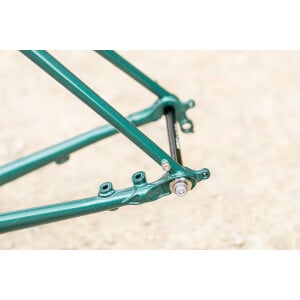

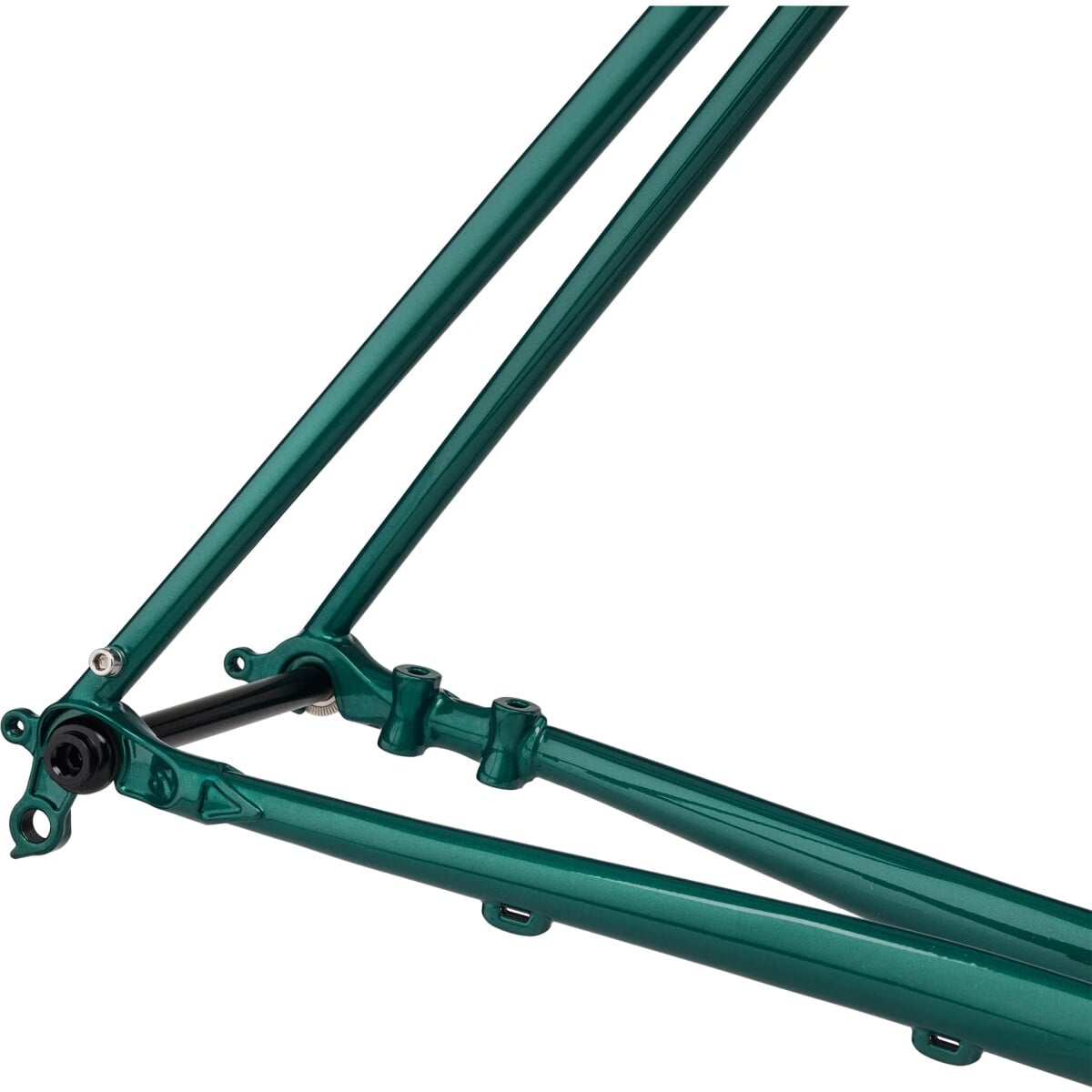

Updated thru-axle dropouts for improved stiffness and handling
Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube

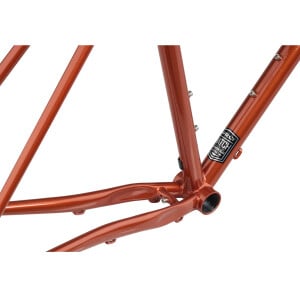

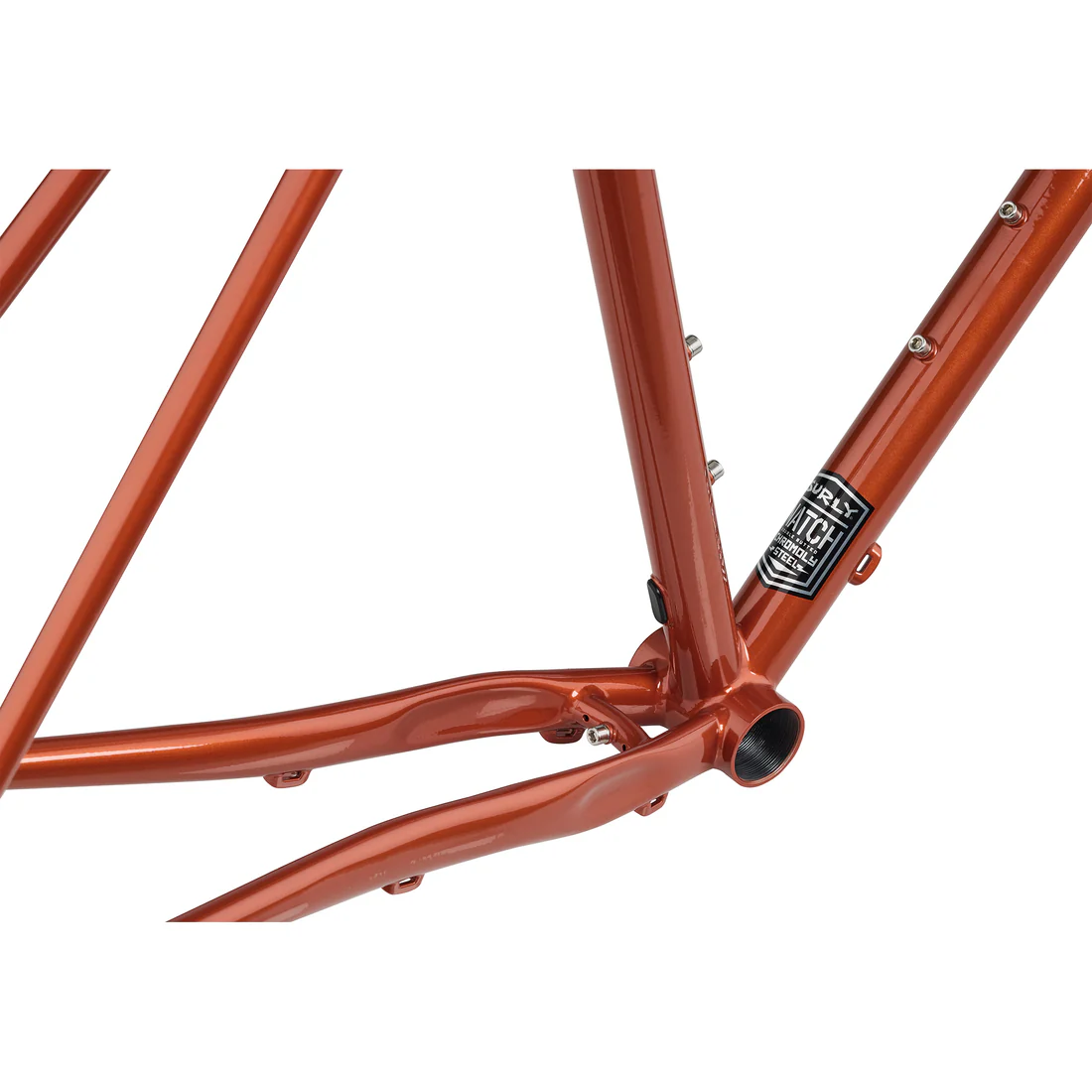

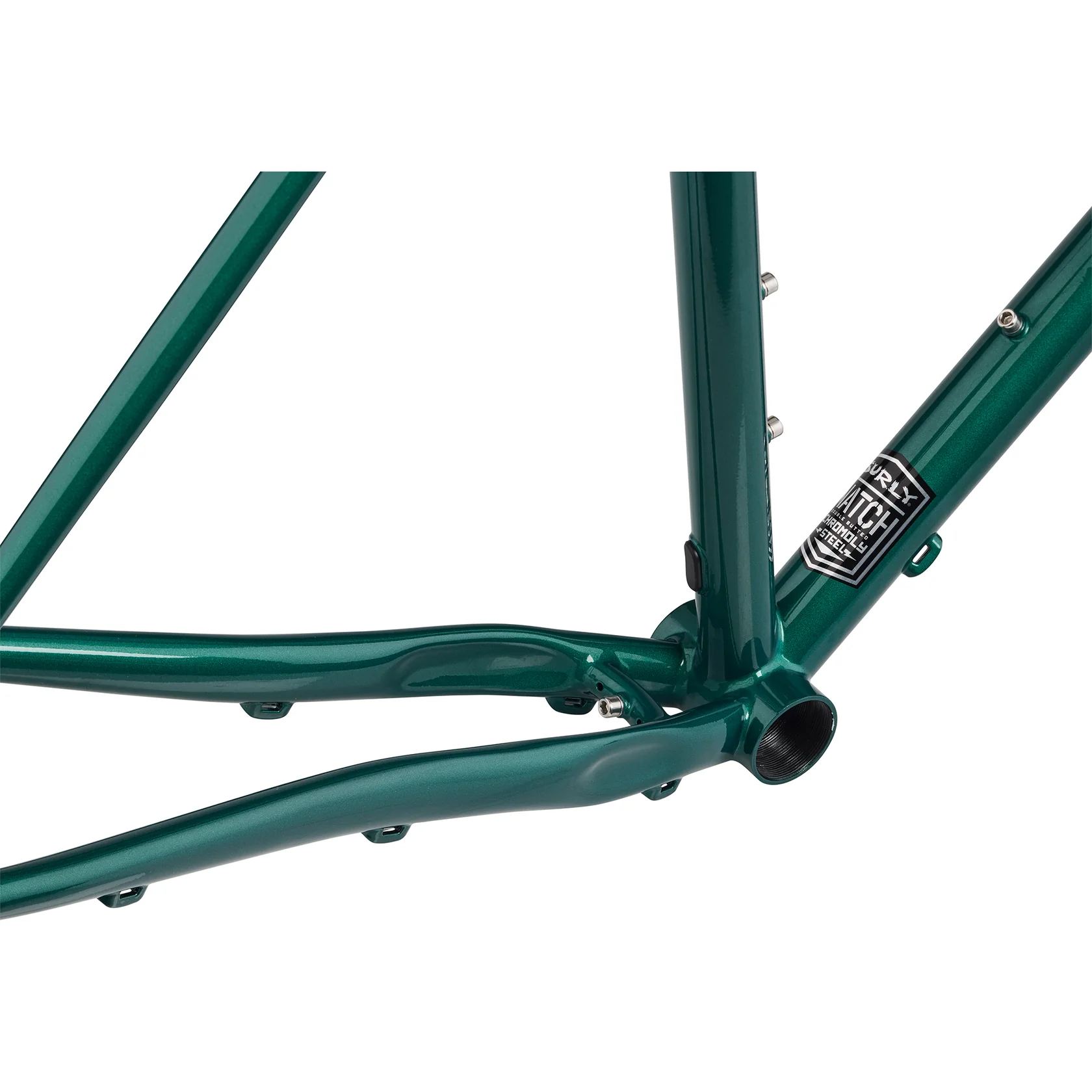

Lower bottom bracket and sloping top tube adds stability and better standover
50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain

Please make a selection below:

Color: No selection

More options

Size: No selection

More options

Clear selection

Add to wishlist

This is a frameset. It is not eligible for free shipping.

We ship frames Australia wide.

Show Shipping Info & Calculator Hide Shipping Info & Calculator

Click & Collect

Click and collect orders with available in-store stock are normally ready within a few business hours.

Pickup at: 14 Prentice St, Brunswick Victoria.
We're open: M-F 9am-5pm, SAT 10am-4pm

Shipping & Delivery

In-store stock: We can dispatch these items within 1 business day.

Warehouse stock: These items will be dispatched in 3-4 business days.

Orders containing warehouse stock will be dispatched from our Brunswick store once all items are received in-store.

This product is a Frameset

View our shipping info page.

Payment Methods

Frameset

Frame

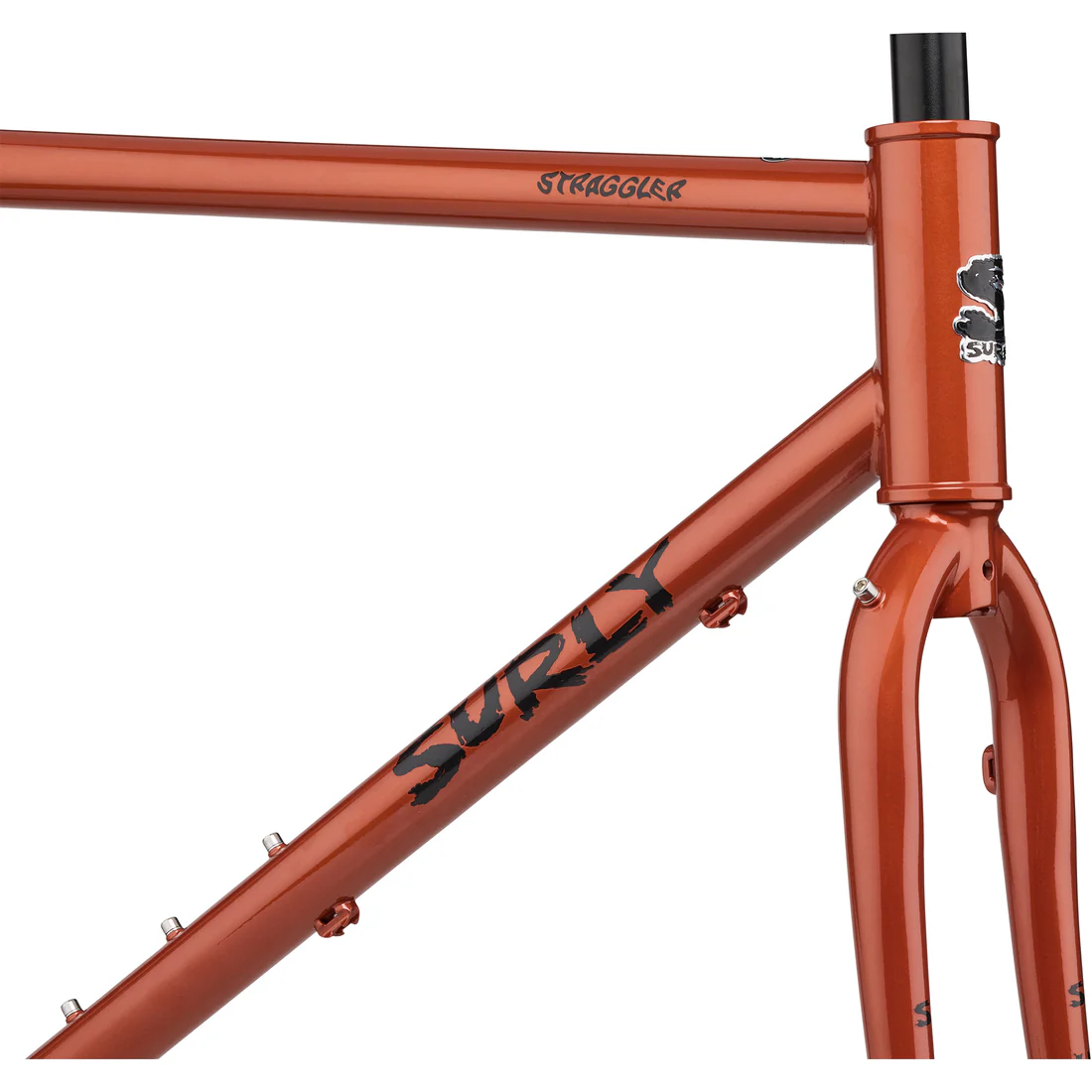

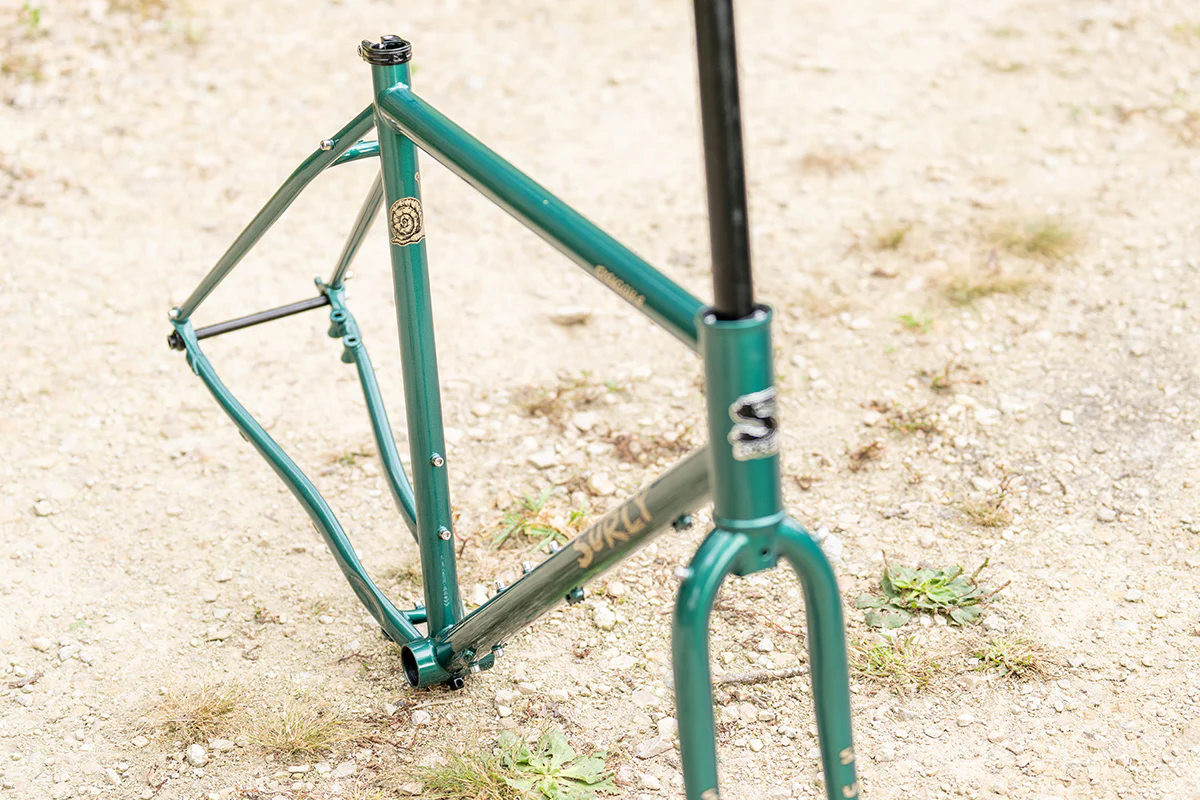

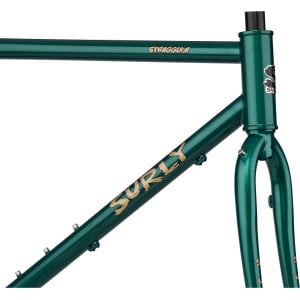

Straggler, Thru-axle, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color

Subtropic Algae

Fork

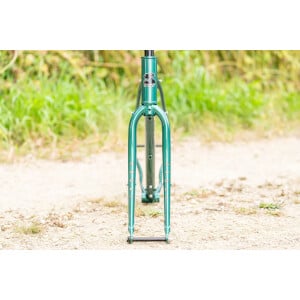

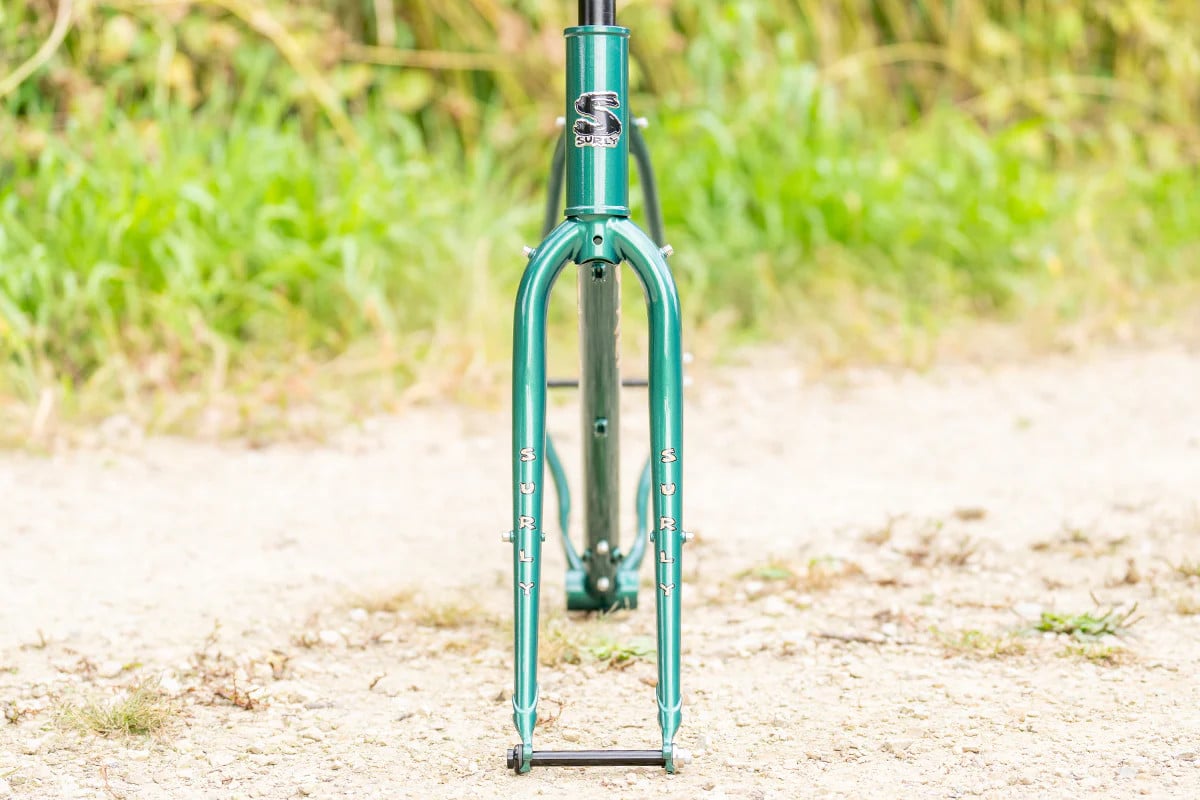

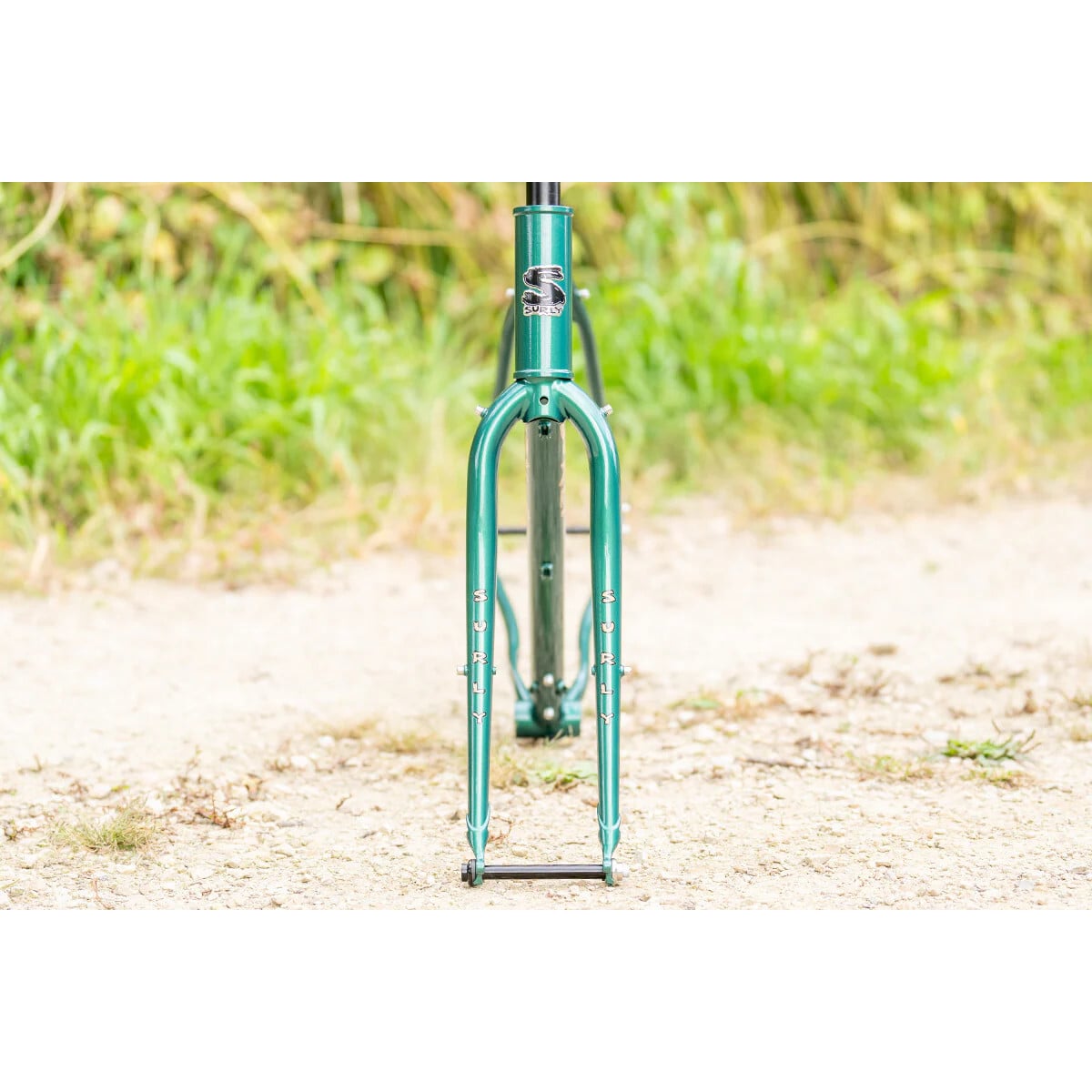

Straggler, Thru-axle, 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated

Components

Seatpost Clamp

Surly Stainless, 30.0mm

DrivetrainWheels

Front Axle

Surly Thru-axle, 12 x 100mm

Rear Axle

Surly Thru-axle, 12 x 142mm

Weight

Frame

9 lb 1 oz (56) with seat collar, and front/rear thru-axles

Frame Specs

Design Wheel/Tire SizesSize 46–52 Frame and Fork Clearance:
650b x 50mm (w/o fenders), 650b x 47mm (w/ fenders)

Size 54–64 Frame and Fork Clearance:
700c x 50mm (w/o fenders), 700c x 47mm (w/ fenders)

Alternate Wheel/Tire SizesSize 46–52 Frame and Fork Clearance:
26in x 50mm (w/ fenders)
700c x 35mm (w/o fenders), 700c x 32mm (w/ fenders)

Size 54–64 Frame and Fork Clearance:
650b x 50mm (w/ fenders)

Max Tire Outer DiameterFrame clearance:
Size 46–52:
26in x 50mm (w/ fenders)
650b x 50mm (w/o fenders)
650b x 47mm (w/ fenders)
700c x 35mm (w/o fenders)
700c x 32mm (w/ fenders)

Size 54–64:
650b x 50mm (w/ fenders)
700c x 50mm (w/o fenders)
700c x 47mm (w/ fenders)

Fork clearance:
Size 46–52:
26in x 50mm (w/ fenders)
650b x 50mm (w/o fenders)
650b x 47mm (w/ fenders)
700c x 35mm (w/o fenders)
700c x 32mm (w/ fenders)

Size 54–64:
650b x 50mm (w/ fenders)
700c x 50mm (w/o fenders)
700c x 47mm (w/ fenders)

Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork Construction 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated

Suspension Fork Length (Travel)436 x 51mm (40mm)

Fork Offset 44mm

Axle to Crown 650b (Size 46–52): 390mm
700c (Size 54–64): 410mm

Rear Spacing 12 x 142mm (Axle included)

Front Brake (Rotor) Disc – Flat Mount Fork 140/160 (160mm max)

Headset – Upper ZS44/28.6

Headset – Lower EC44/30

Front Spacing 12 x 100mm (Axle included)

Steerer Tube Ø28.6mm (1-1/8″)

Crown Race Ø30mm (1-1/8″)

Stem Clamp Ø28.6mm (1-1/8″)

Seatpost Ø27.2mm

Dropper Post CompatibleY es, Internal

Seatpost Clamp Ø30mm

Front Derailleur Clamp High band clamp or braze-on with adapter bottom-pull (Ø28.6mm) 47CL

Bottom Bracket 68mm threaded (1.37″ x 24TPI)

Crankset (Max Ring) Single ring, 47mm chainline crankset: 46T
Double, 47mm chainline crankset: 50/34T

Bottle Mounts 2 Standard + 1 Three-Pack

Fork Mounts Rack mounts: upper, lower, and mid-blade threaded

Front Fender Mounts Yes

Rear Fender Mounts Yes
