You’ll find a full suite of features that include:

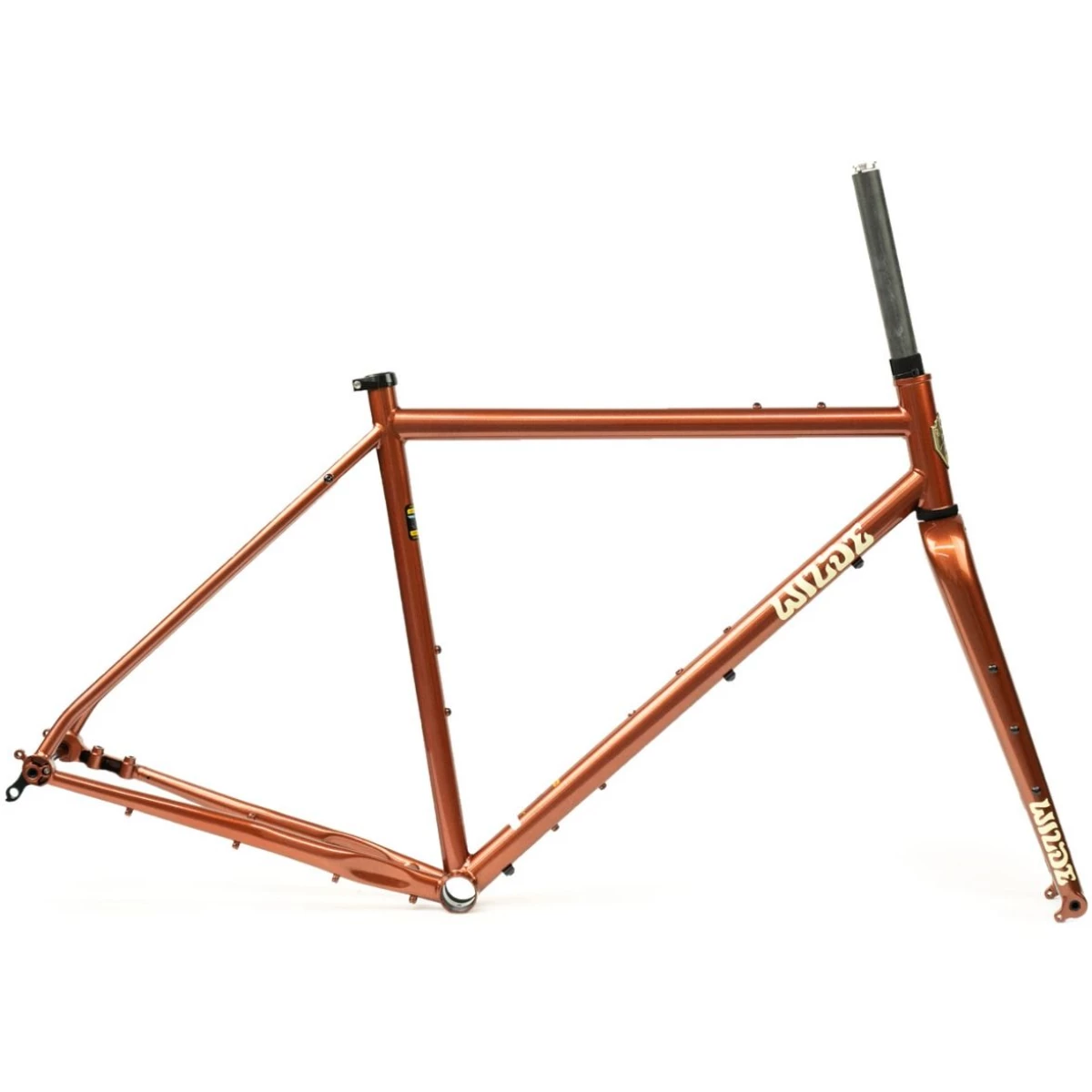

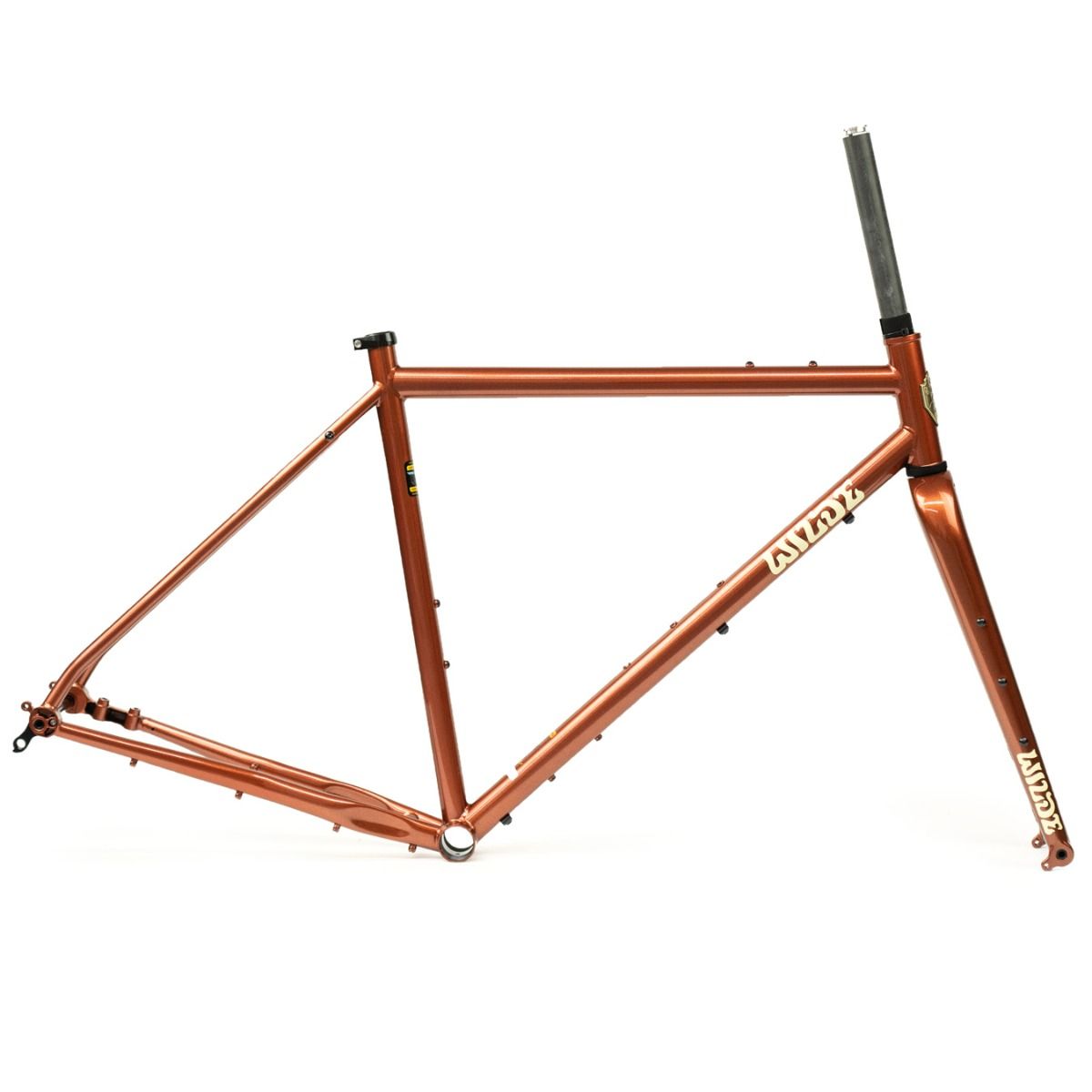

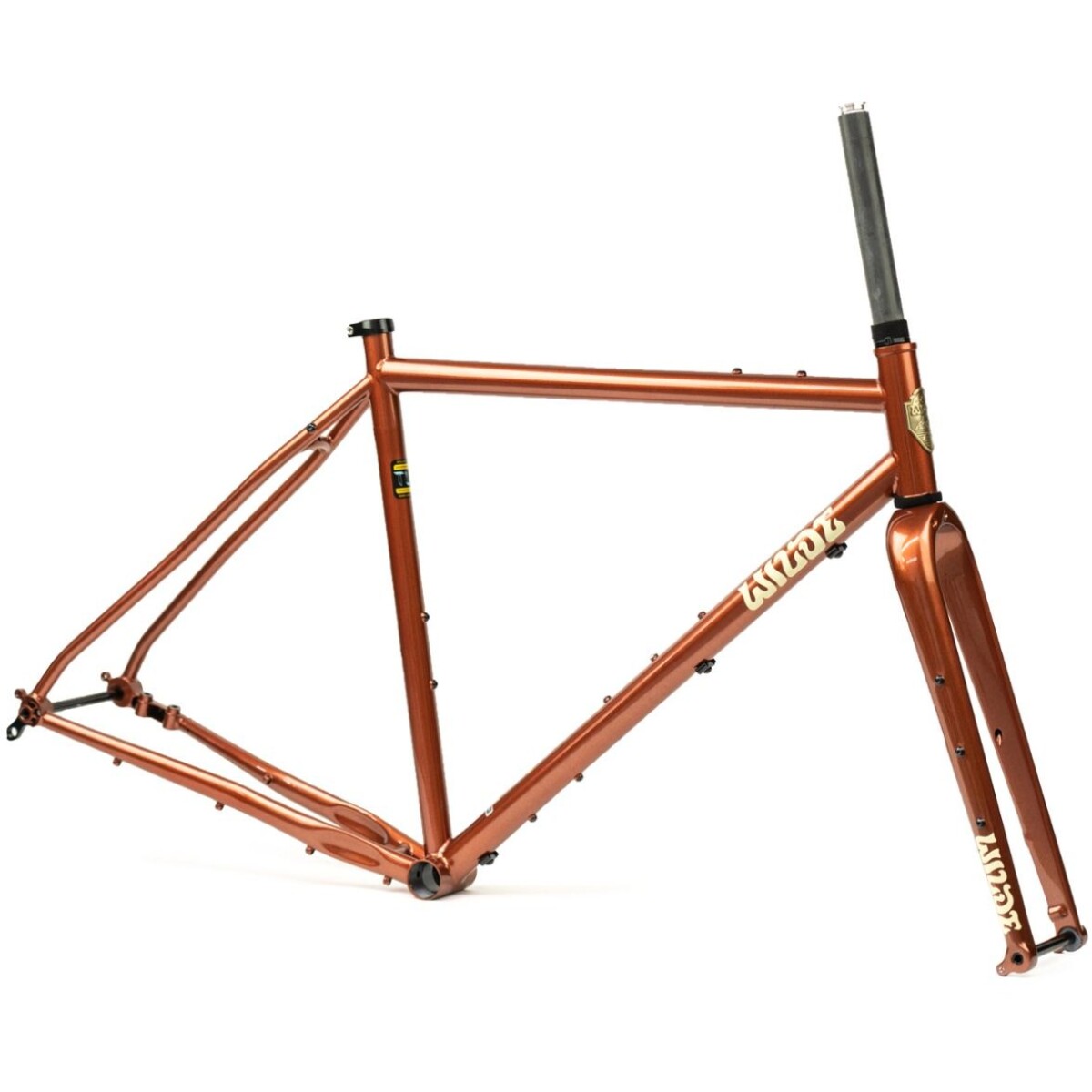

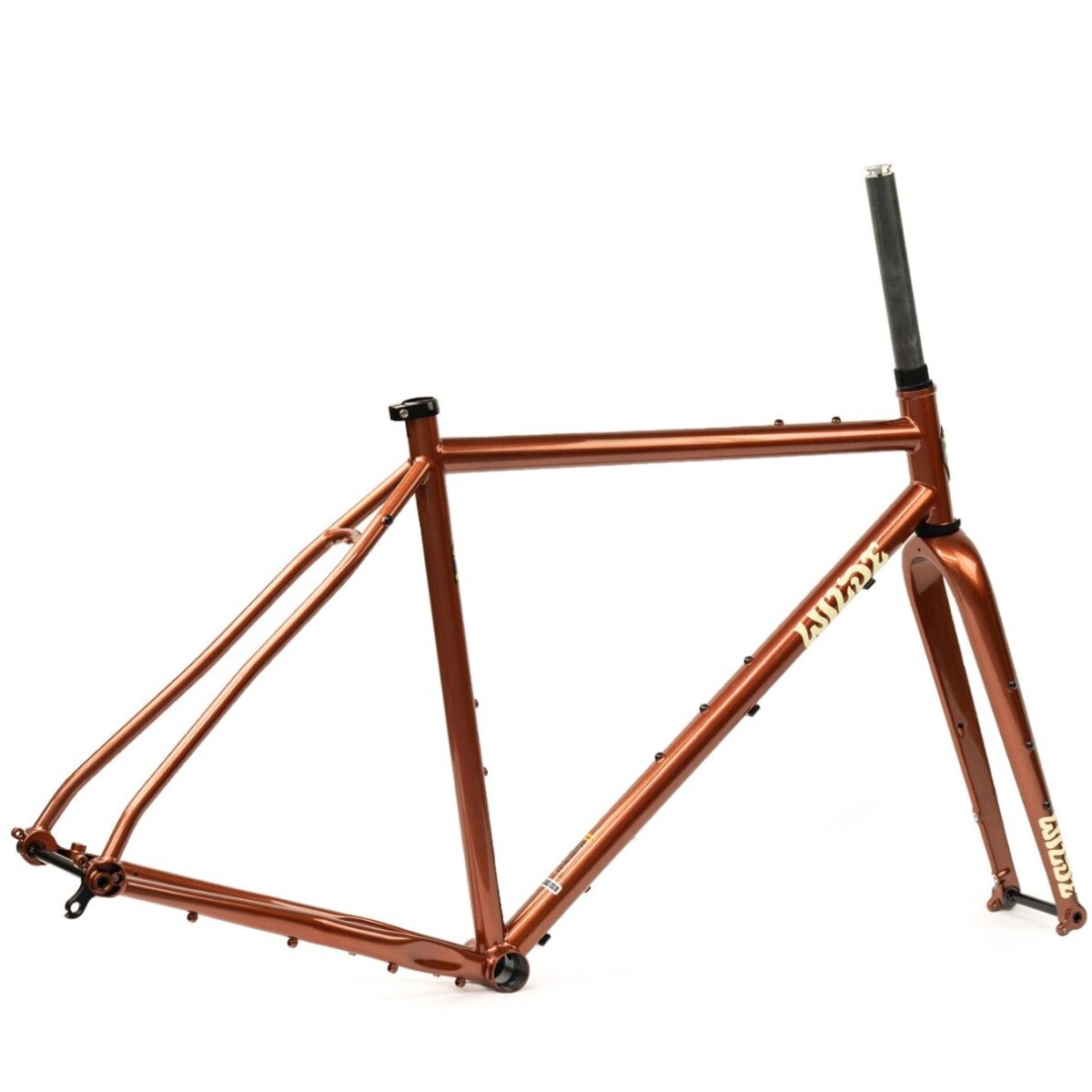

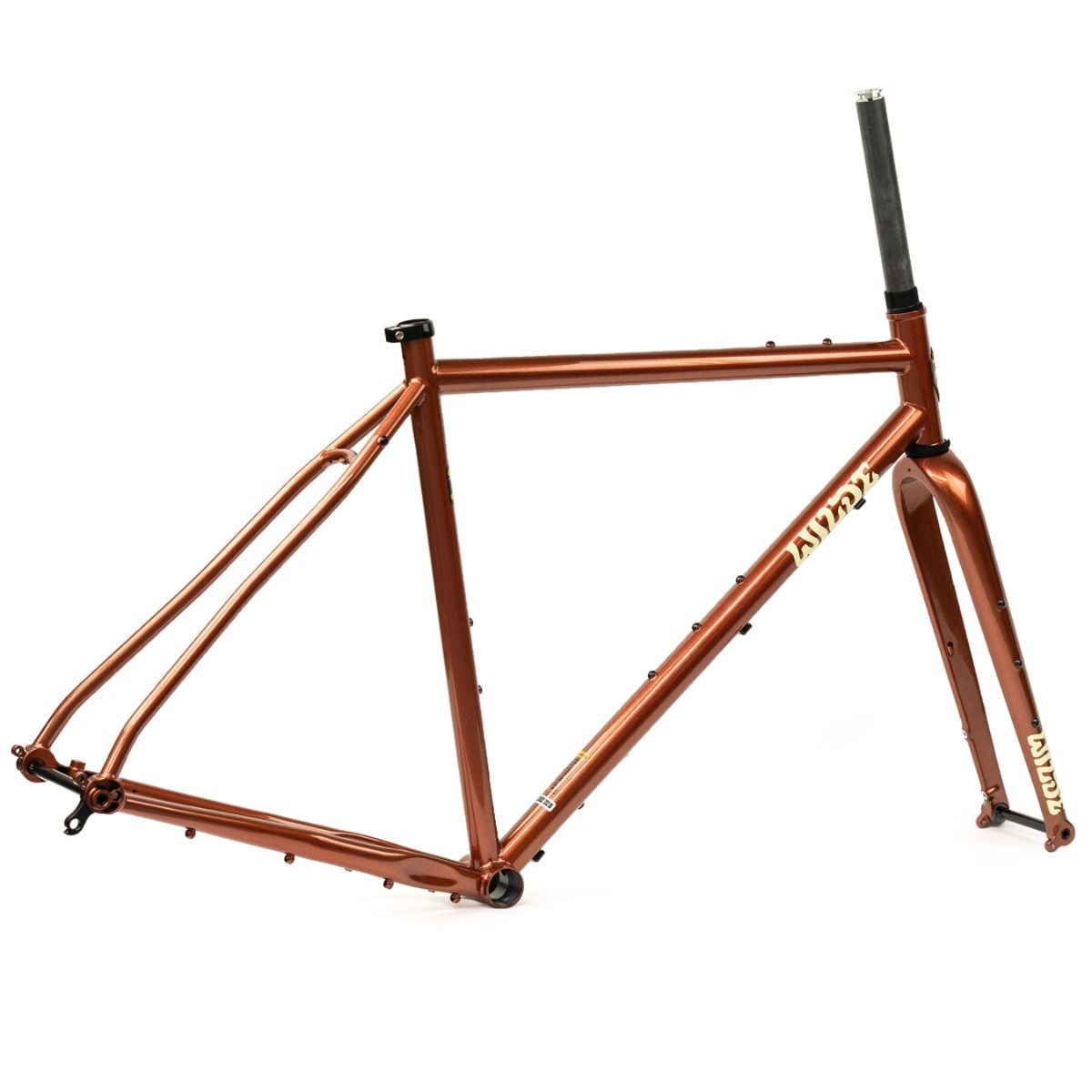

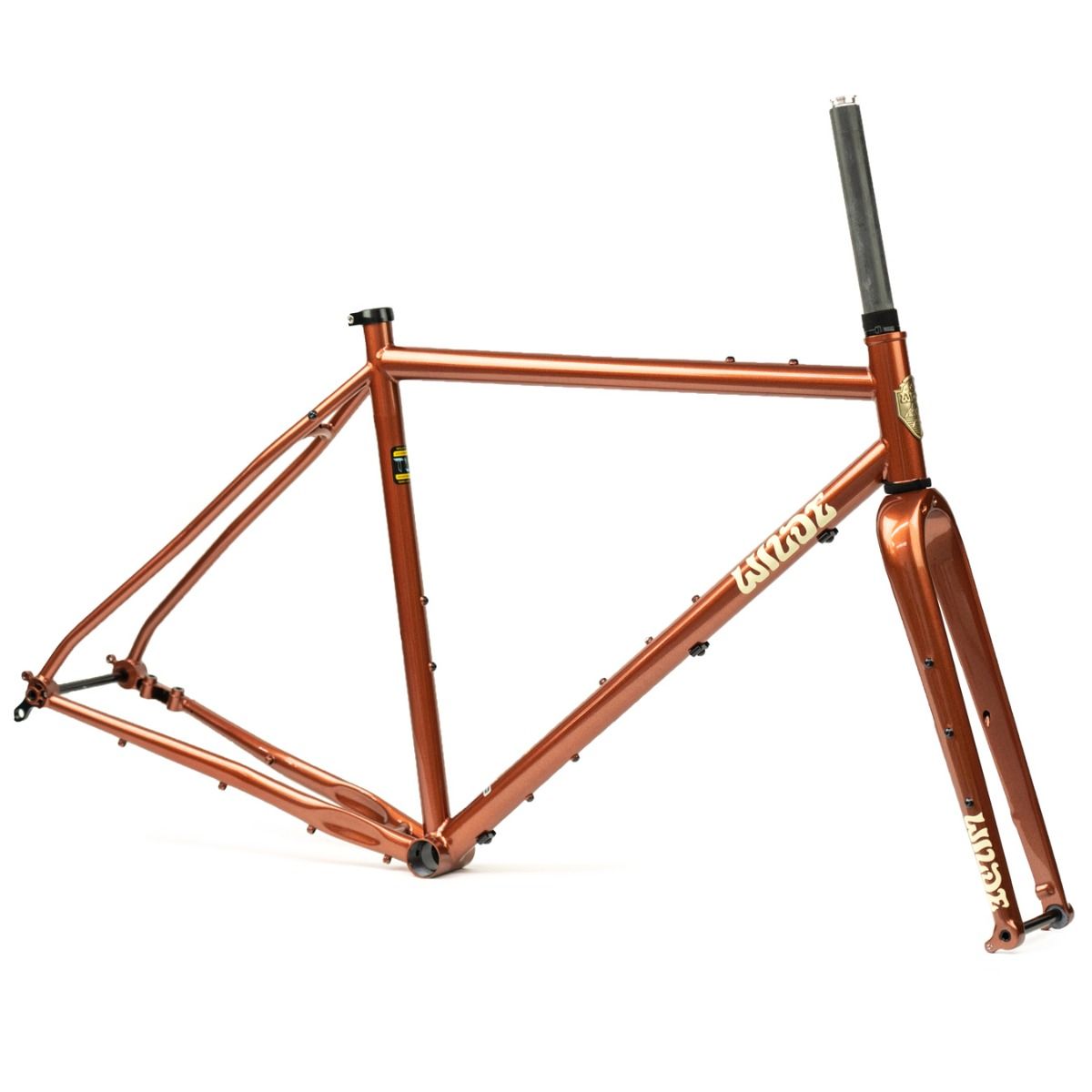

FRAME
- Three pack mounts on top and bottom of down tube, bottle bosses on seat tube
- Top tube feedbag mount
- Fender mounts
- Rack Mounts
- Compatible with 2x and 1x drivetrains
- Frame Weight 5lbs (medium)

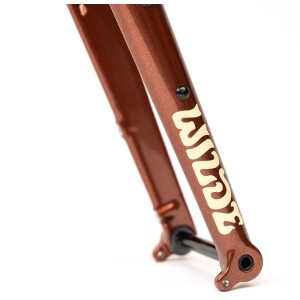

WAYFINDER FORK
- Three pack mounts
- Internal brake routing
- Internal dynamo routing
- Fender mounts
- Fully threaded center mount
- Tire clearance 700c X 2.1″ or 650b X 2.3″
GEOMETRY

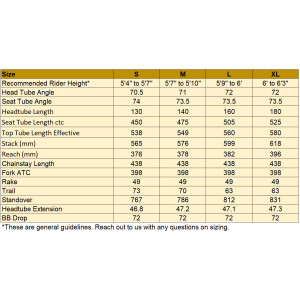

Gravel race geometry with all-day comfort as the priority. A quick handling front end keeps things sporty while a slightly lowered bottom bracket height and 438mm long chainstays provide increased confidence when descending quickly over loose terrain and smooth out the ride. See geometry chart in image gallery.
TUBING
Wilde TLC – Tough, Light, Compliant
Our own proprietary double-butted, chromoly tube set. TLC stands for tough, light, and compliant which are the characteristics we select for. On each model and size, we select the optimum blend of tubing diameters, wall thickness, and butting profiles to yield a frame that is built to last, as light as practical, and exceedingly comfortable for the rider.
FRAME SPEC
- Clearance for up to 700c X 50mm or 650b X 2.2″ tires

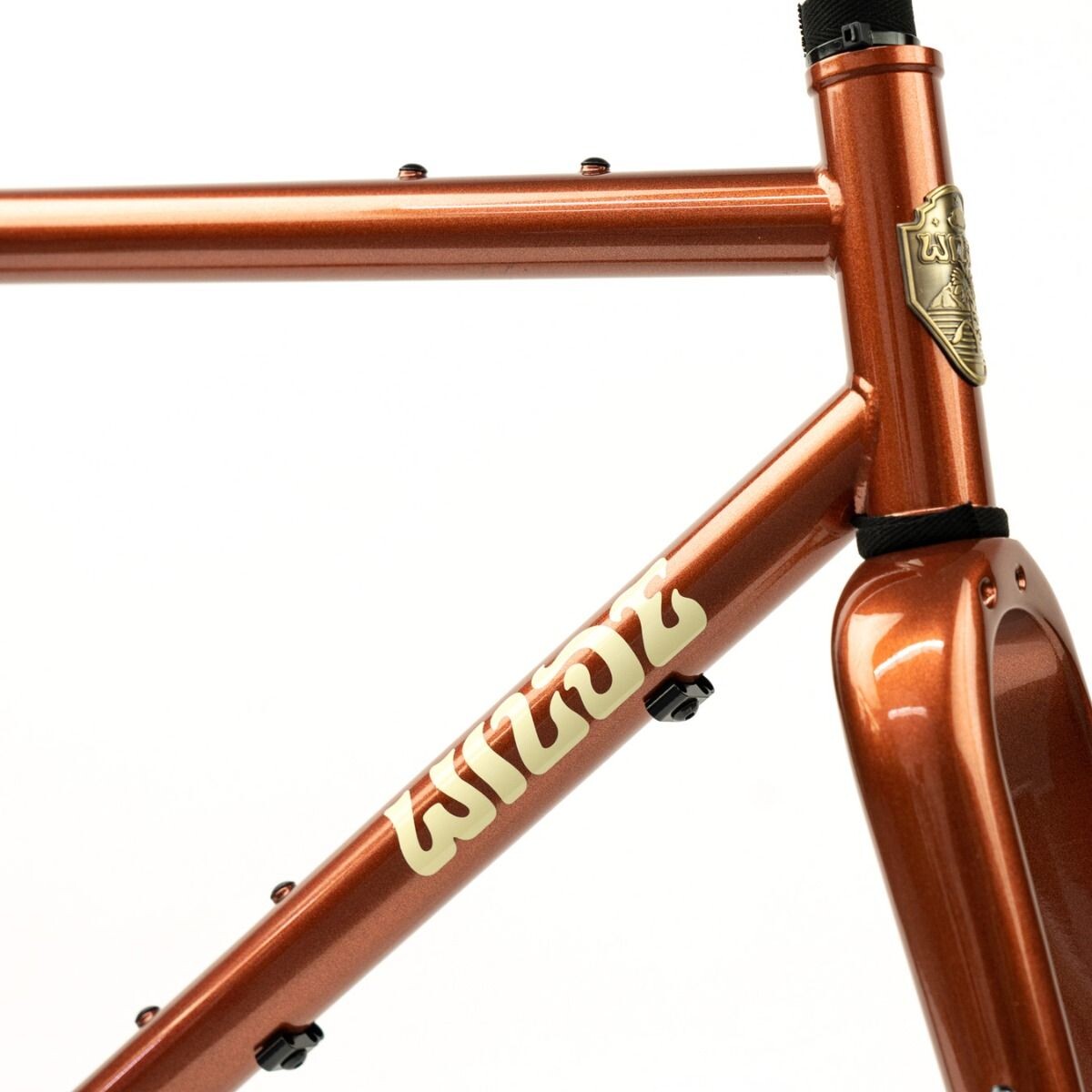

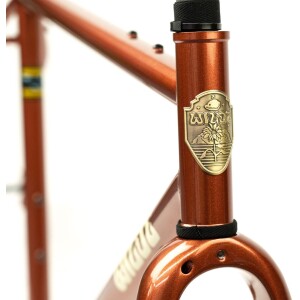

- Traditional straight 1 1/8″ headtube
- 68mm English threaded bottom bracket shell
- Flat mount brake

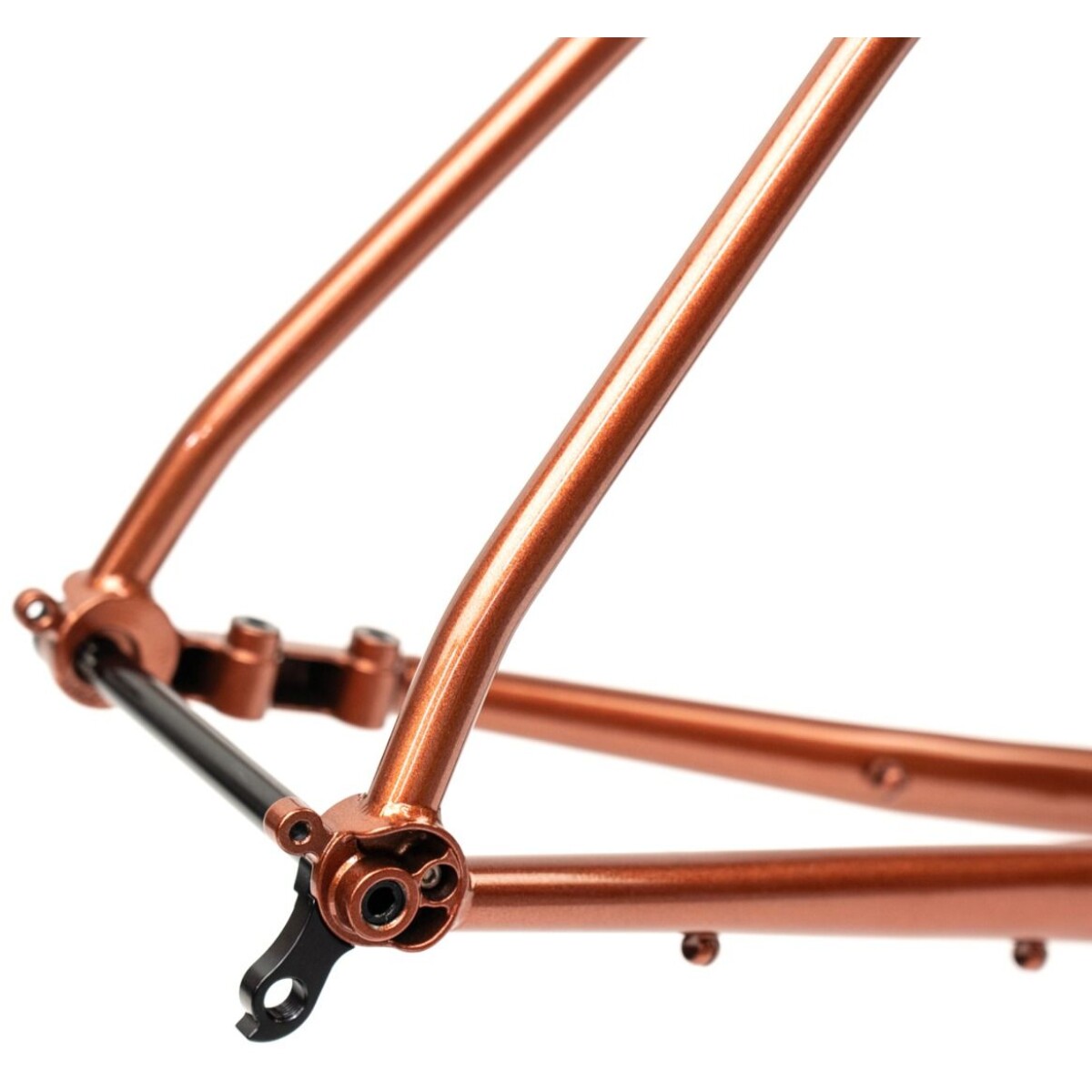

- 142mm rear spacing
- Seatpost: 27.2mm
- Seat Collar: 30.0
- Cable Guides: Modular guides under the downtube, and full loop braze-ons on the stays (No Zip Ties)
- 12mm Thru Axle – 1.5 x 174mm
FORK SPEC
- Flat Mount
- 100mm spacing
- 12mm Thru Axle – 1.5 x 130mm
