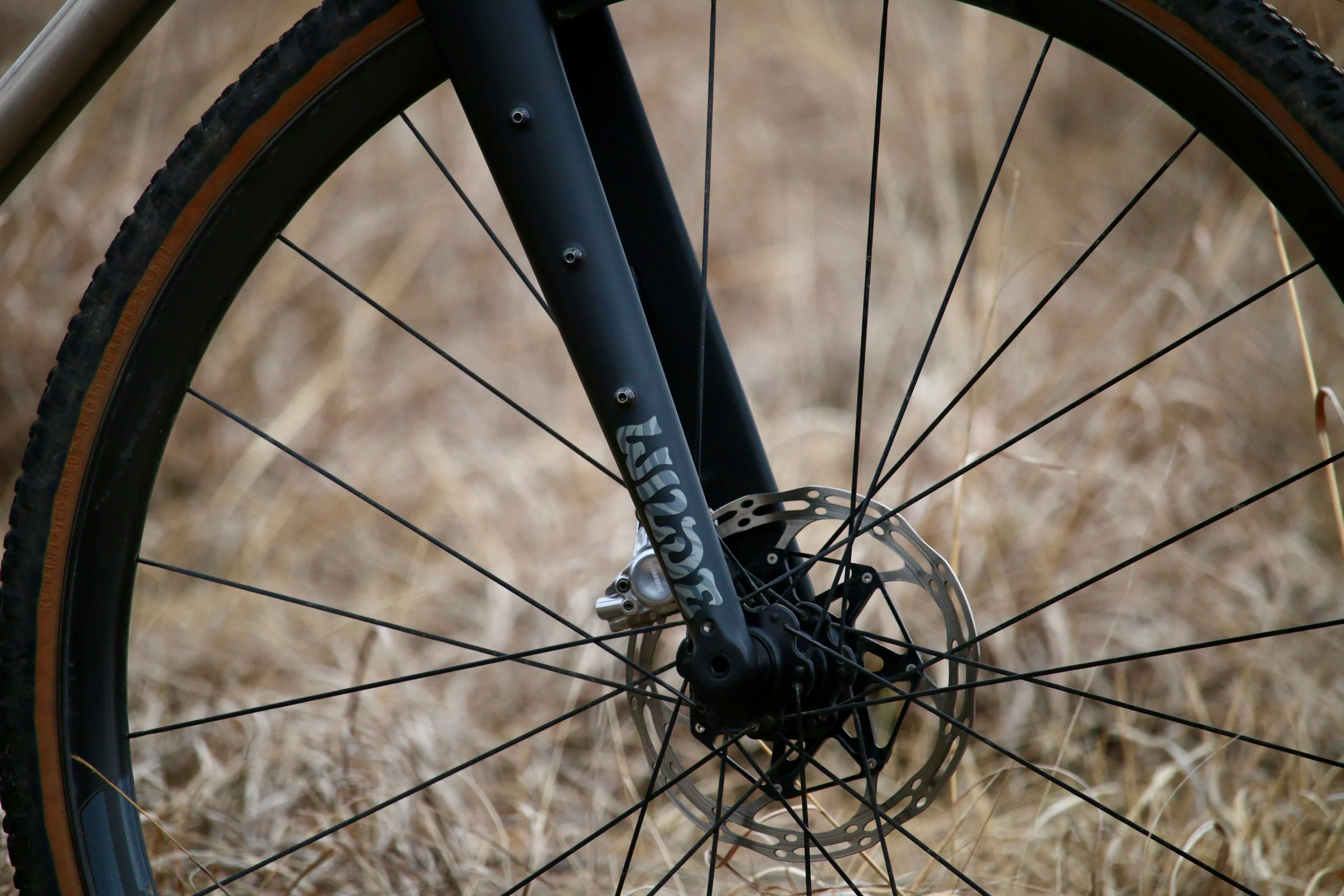

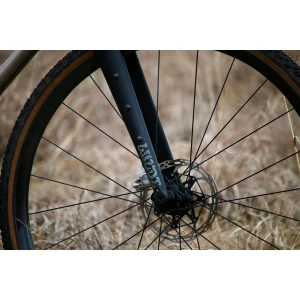

Wilde Waypoint Carbon Fork – Tapered Steerer

New!

$750.00

When looking to refine the next generation of Wilde gravel racer, we felt that the existing offerings in the carbon gravel fork category were a bit stiffer and heavier than we wished. Light weight and suppleness are keys to the Earth Ship’s magic, so we decided to take the leap and design our own fork from the ground up.

Meet the new Waypoint. At 478g with an uncut steerer, it’s among the lightest fully featured forks on the market and was designed with rider comfort and durability in mind. The fork legs were specifically engineered to soak up bumps and isolate the rider from road chatter, allowing you to go longer and in greater comfort, without sacrificing strength or durability.

It has all the features you need for exploration, gravel, and light bike packing applications: three pack mounts, internal dynamo routing, internal brake cable routing, fender mounts, and massive tire clearance.

The Waypoint was designed for bikes with an EC34/44 or straight 44mm headtube that take a tapered steerer. If you need a fork for a standard straight 1 1/8″ steerer or EC34 headtube, the original Wayfinder Carbon Fork is the one you want.

Will work wonderfully to add features and lightness to an existing cross or gravel bike such as the All-City Cosmic Stallion, Surly Midnight Special, etc.

3 in stock - Available in-store and online

This is a extrabulky item. It is not eligible for free shipping.

Same day dispatch if ordered before 1pm AEST.

We ship Australia & New Zealand wide.

Click & Collect

Local pickup available at: 14 Prentice St, Brunswick Victoria.
We're open: M-F 9am-5pm, SAT 10am-4pm

Shipping & Delivery

This product is an Extra Bulky Item

View our shipping info page.

Show shipping calculator

When looking to refine the next generation of Wilde gravel racer, we felt that the existing offerings in the carbon gravel fork category were a bit stiffer and heavier than we wished. Light weight and suppleness are keys to the Earth Ship's magic, so we decided to take the leap and design our own fork from the ground up.

Meet the new Waypoint. At 478g with an uncut steerer, it's among the lightest fully featured forks on the market and was designed with rider comfort and durability in mind. The fork legs were specifically engineered to soak up bumps and isolate the rider from road chatter, allowing you to go longer and in greater comfort, without sacrificing strength or durability.

It has all the features you need for exploration, gravel, and light bike packing applications: three pack mounts, internal dynamo routing, internal brake cable routing, fender mounts, and massive tire clearance.

The Waypoint was designed for bikes with an EC34/44 or straight 44mm headtube that take a tapered steerer. If you need a fork for a standard straight 1 1/8" steerer or EC34 headtube, the original Wayfinder Carbon Fork is the one you want.

Will work wonderfully to add features and lightness to an existing cross or gravel bike such as the All-City Cosmic Stallion, Surly Midnight Special, etc.

Features

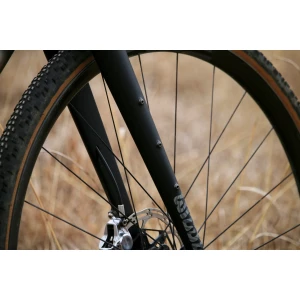

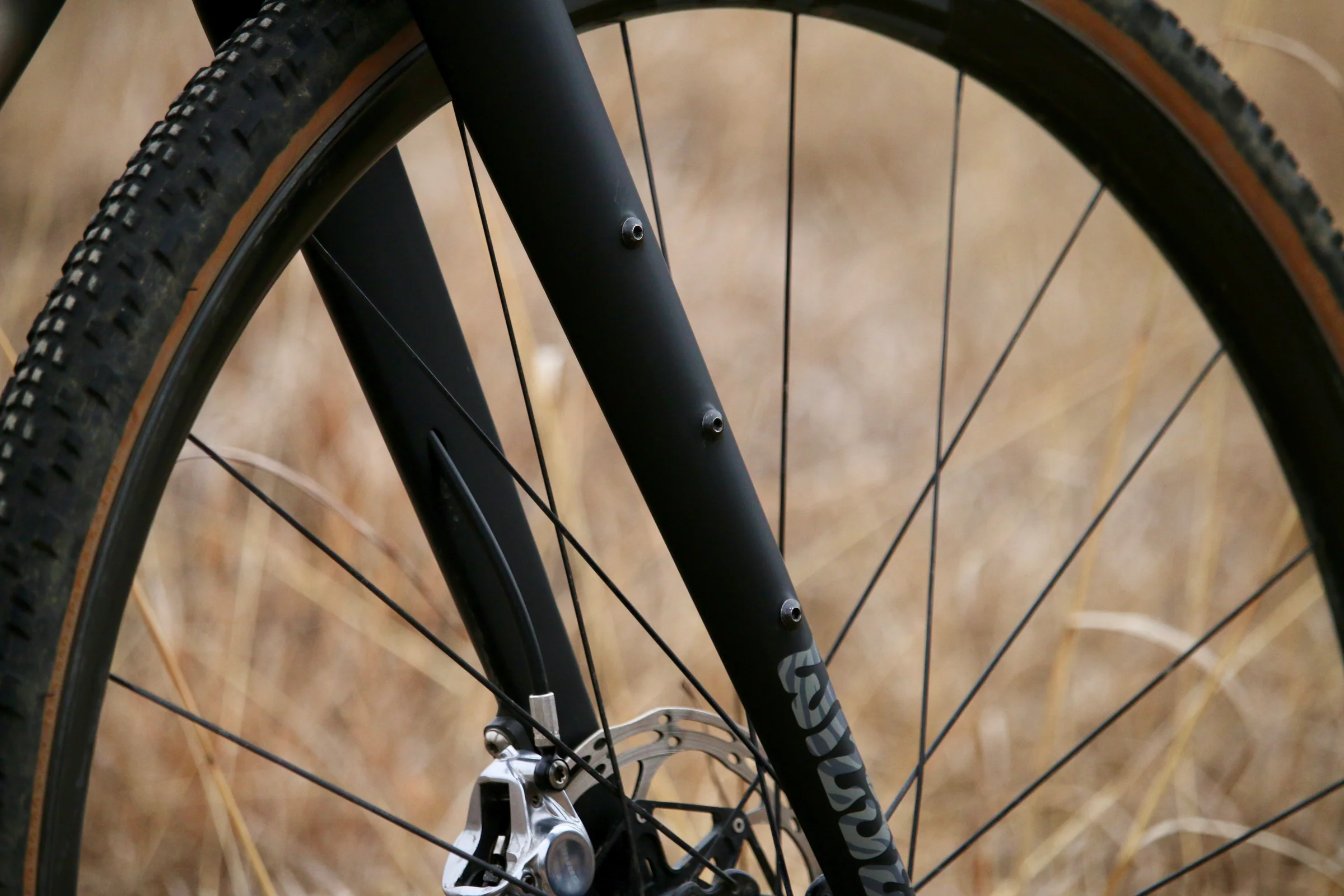

Three Pack Mounts

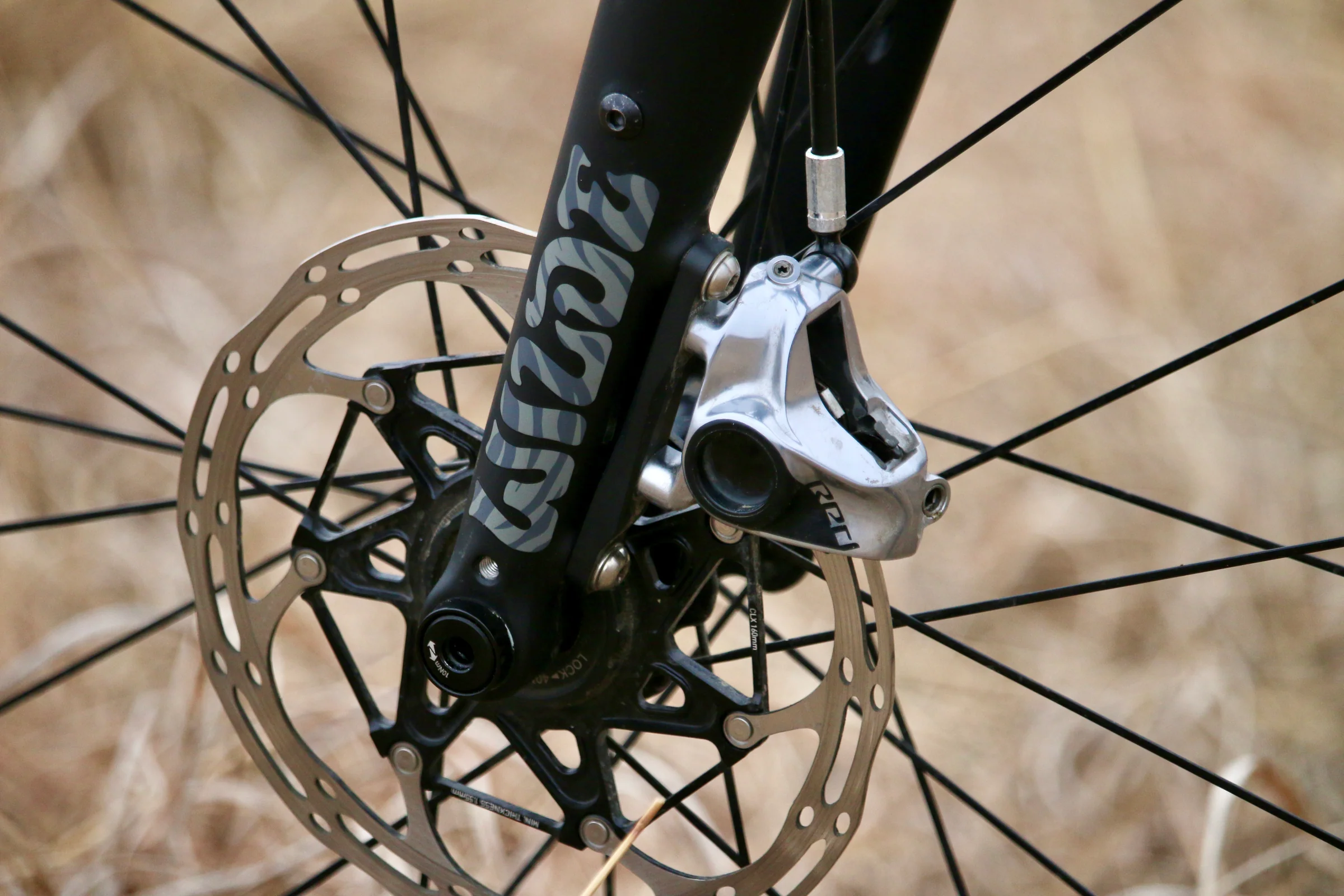

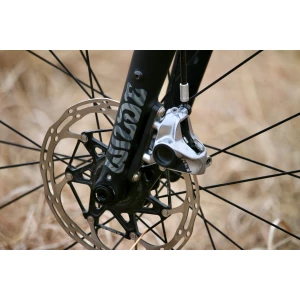

Flat Mount Brake
Thru Axle – 12x100mm

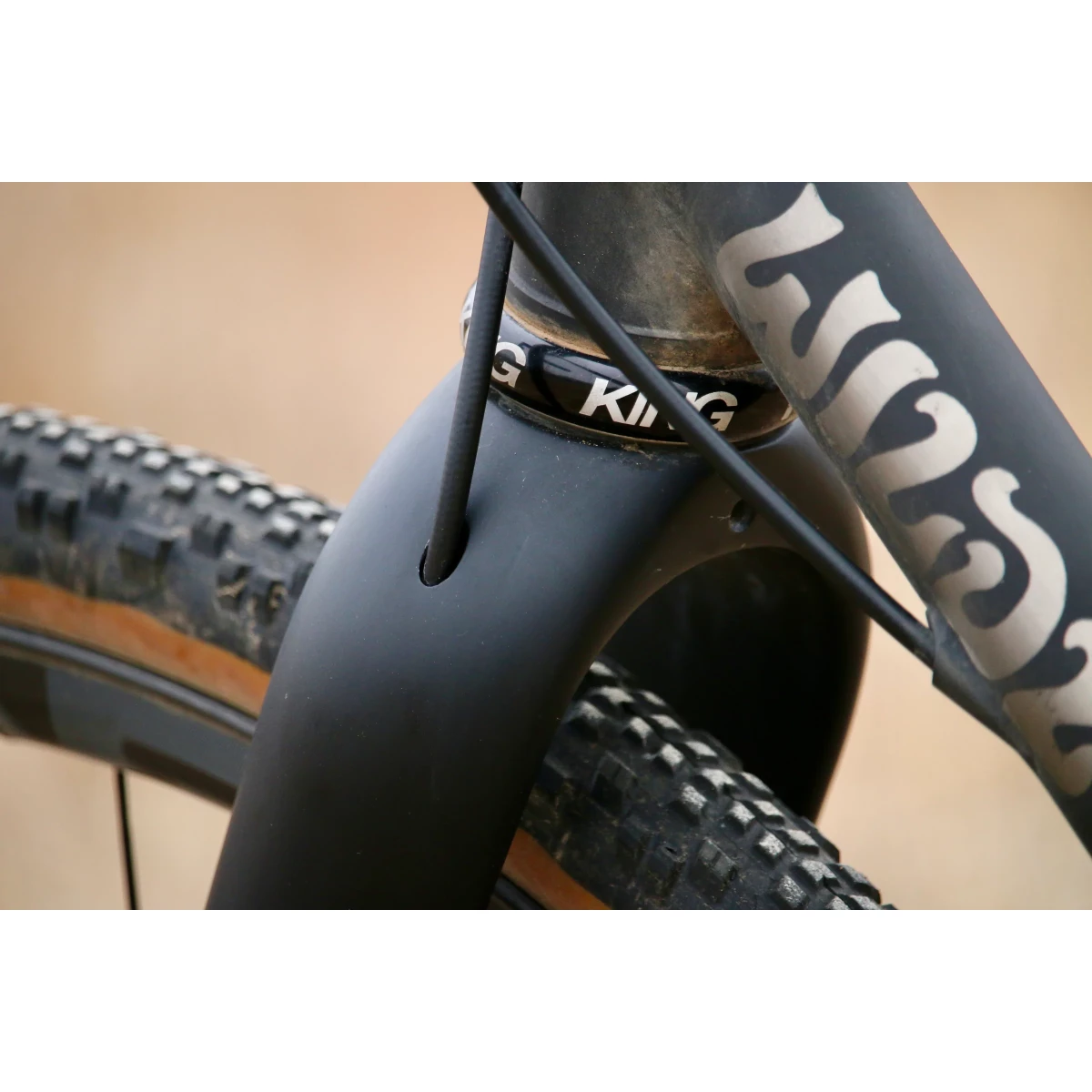

Internal Brake Routing
Internal Dynamo Routing
Fender Mounts
Fully Threaded Center Mount

Specs
Fork Weight: 478g with uncut steerer
Tire Clearance: 700c X 2.1″ or 27.5″ X 2.3″
Axle to Crown – 398mm
Rake – 49mm
Steerer – 350mm length, Taper 1.125″ to 1.5″
Spacing – 100mm
Axle Length – 130mm 12 x 1.5
Compatible Rotor Size – 140mm and 160mm

Capacity
Three Pack Mount – 2.75kg per side
Rack – 9kg

Recommended maximum rider and gear weight 113kg
