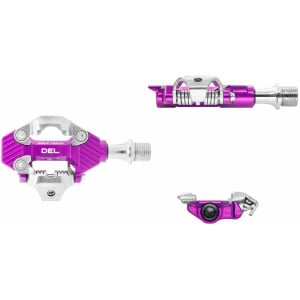

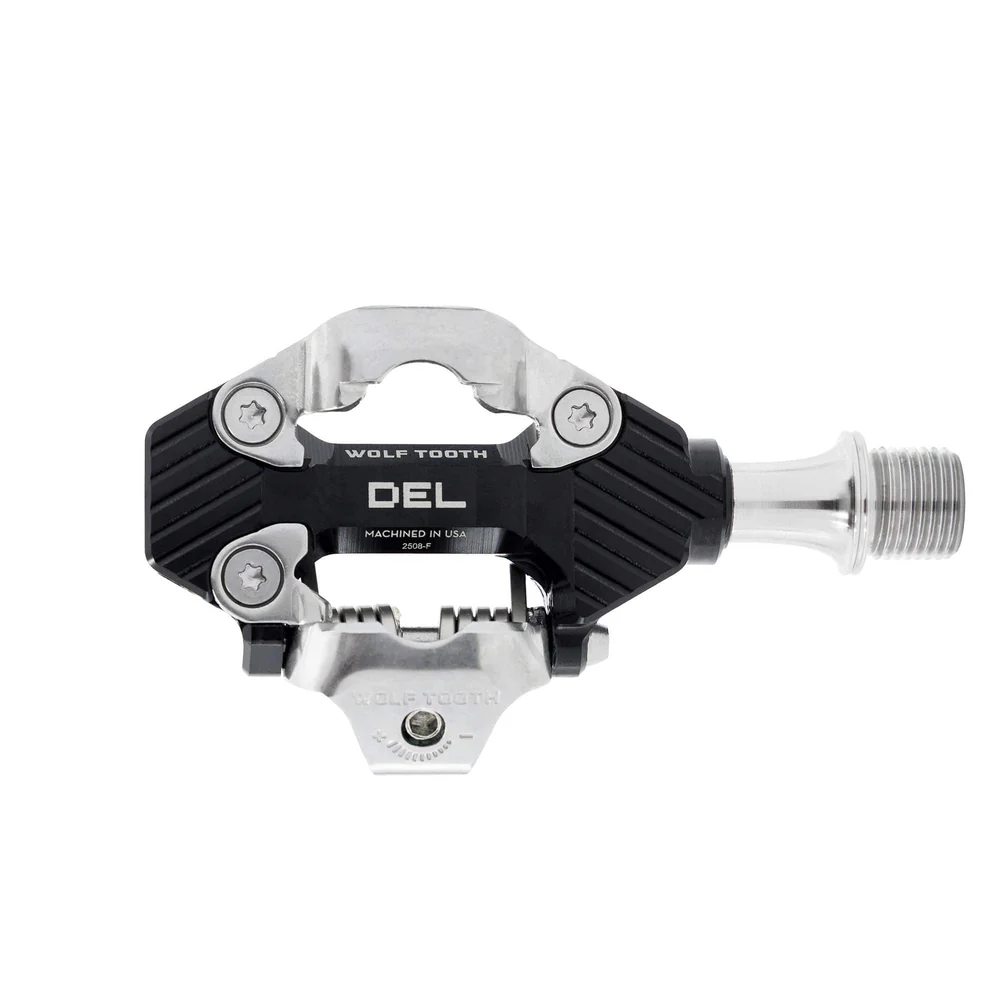

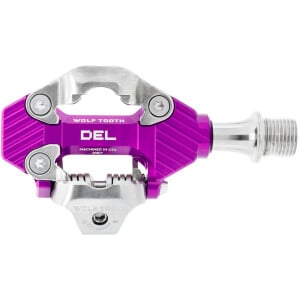

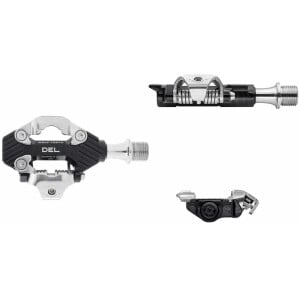

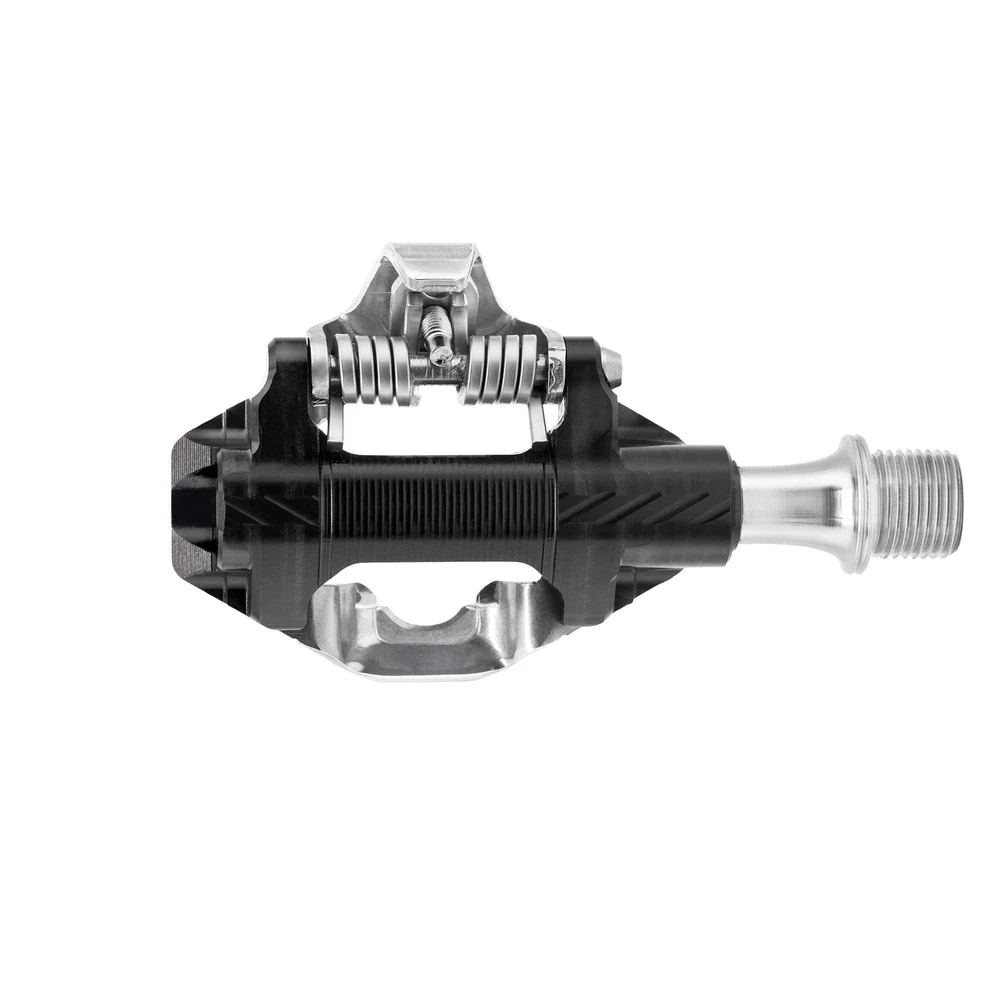

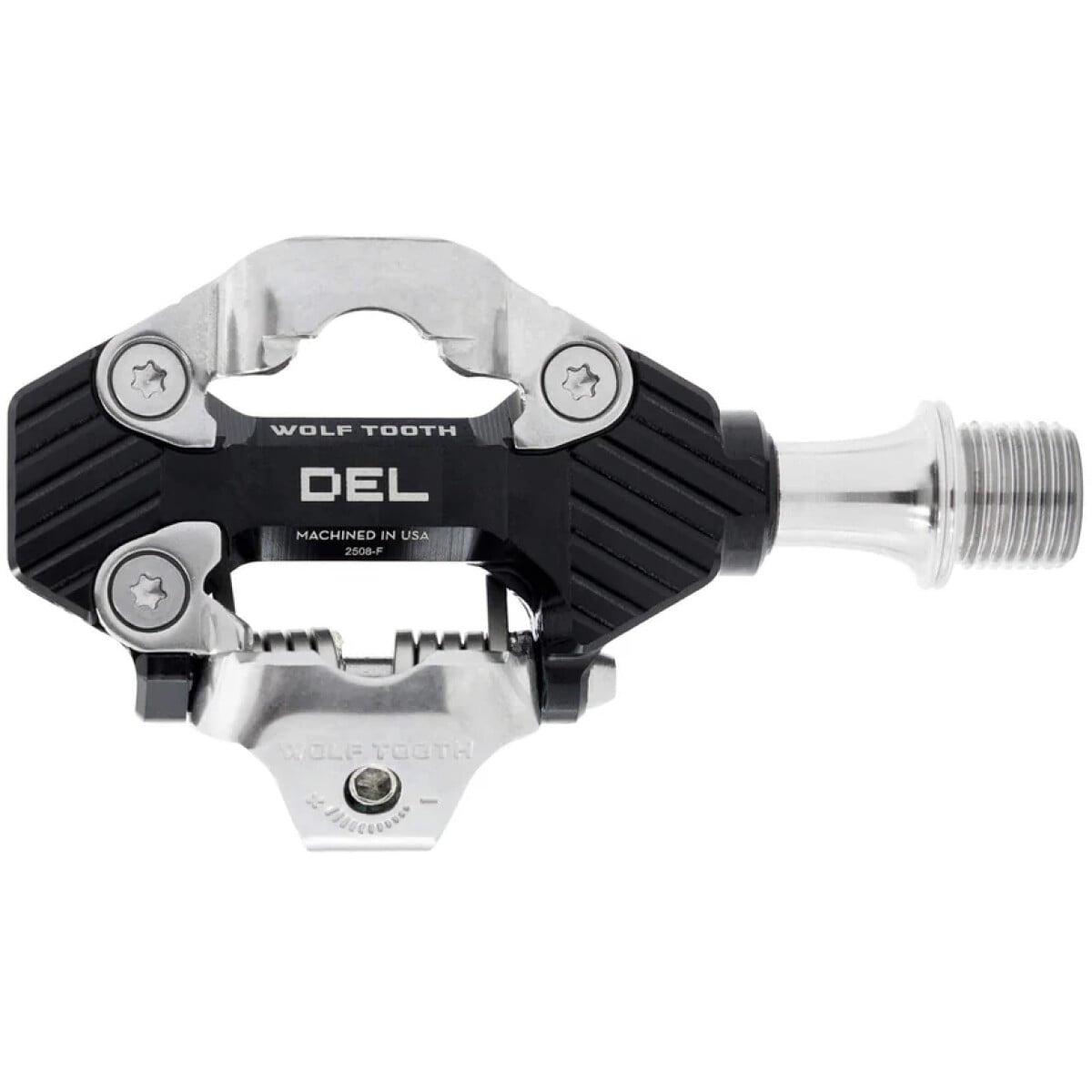

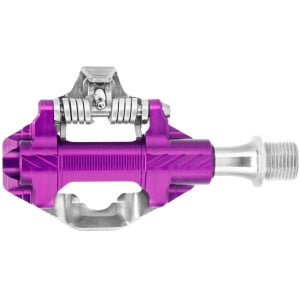

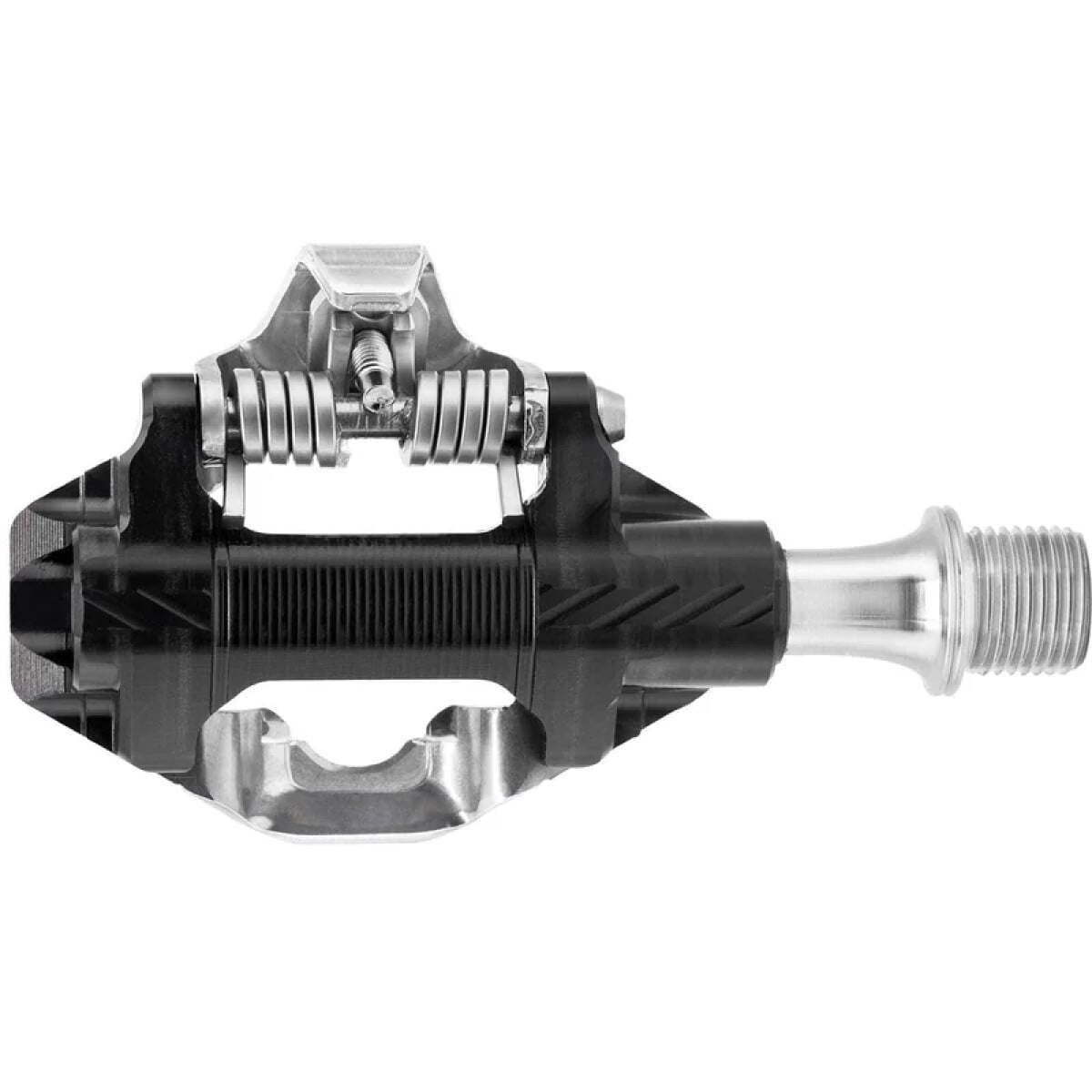

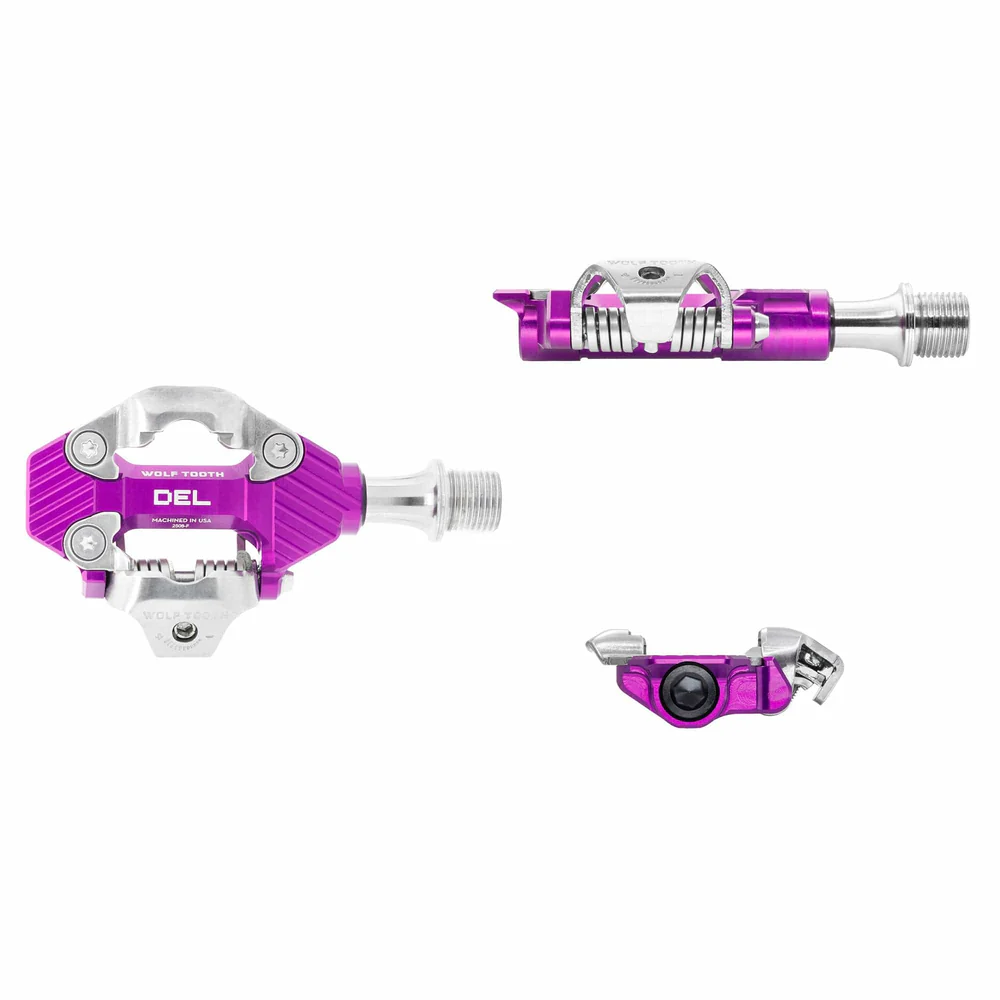

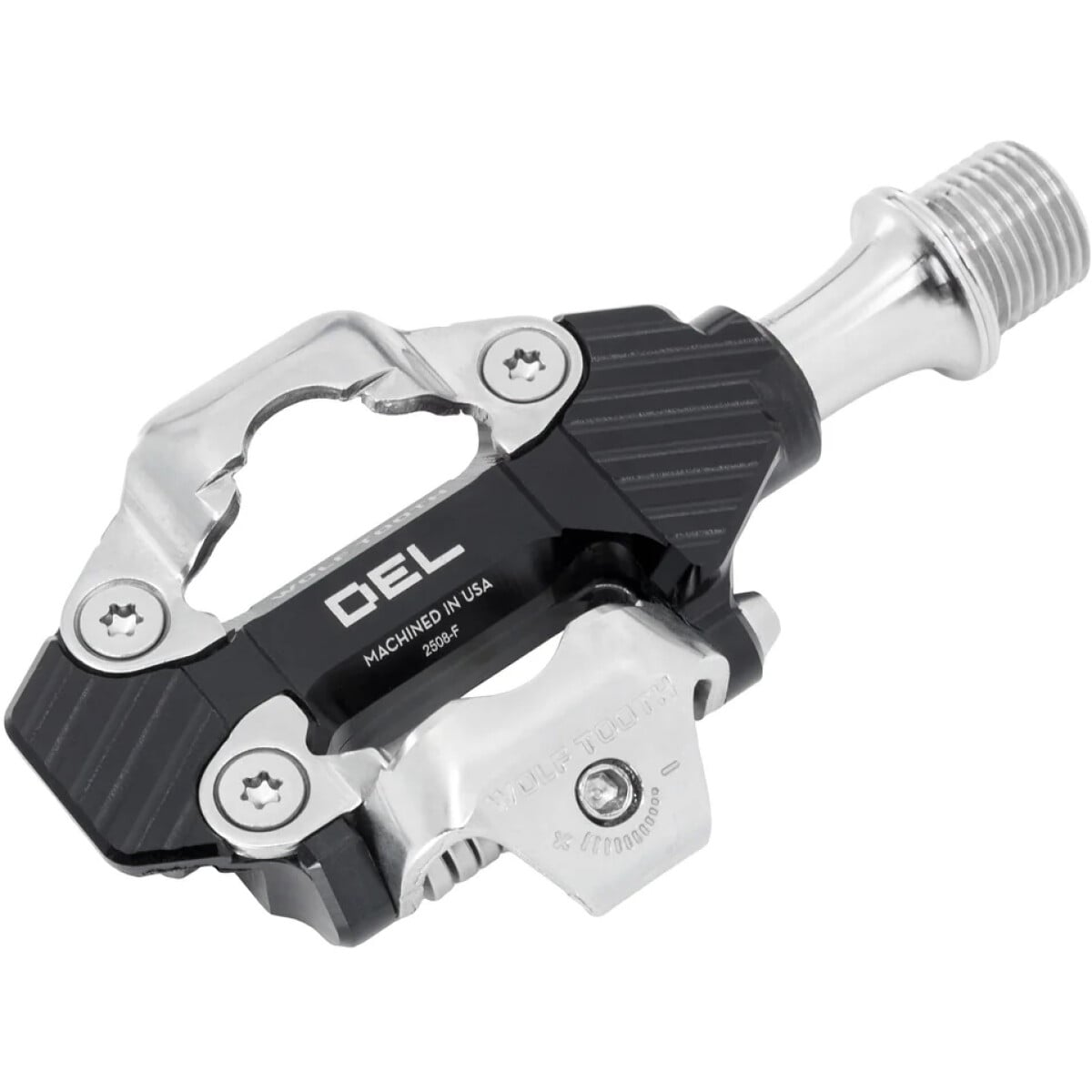

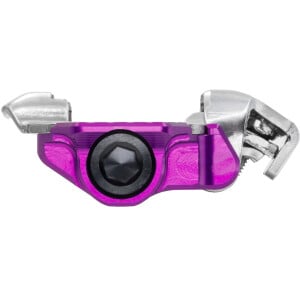

Wolf Tooth DEL Gravel Race Clipless Pedals

Commanding Performance

Riding with DEL Gravel Race Clipless Pedals feels more like riding with road shoes and pedals than standard gravel race shoes and XC pedals. The large platform area maximizes pedal and shoe contact for supreme power transfer.

Master Of All

DEL Gravel Race Pedals are significantly lighter, feature more platform area, and have a lower stack height than any other two-bolt SPD-compatible clipless pedal. Road pedal feel and power transfer with XC and gravel race shoes in any and all conditions.

Stainless Durability

These pedals will outlast your bike. The stainless steel SPD-compatible binding assemblies and axles create strong, rust-free pedals that are ready to ride hard on the nastiest dirt on the map.

Crisp SPD Compatible Interface

Clipping in and out needs to be simple, quick, and reliable. The DEL Gravel Race Clipless Pedals feature an SPD-compatible stainless steel binding that will work with your existing SPD cleats. They are optimized for the Wolf Tooth cleats that are included in the box. We improved the clipping experience so you can swiftly clip in at the start of the race, stay clipped in when it matters most, and unclip as quickly as needed.

Adjustable Q Factor

Adjusting the Q factor (pedal stance width) moves the pedal toward or away from the center of the bike. The DEL Gravel Race Clipless Pedals have Q factor options of 51, 55, and 59mm to fine-tune your fit, and ship set at 55mm. Adjusting Q factor is simple enough to do at home.

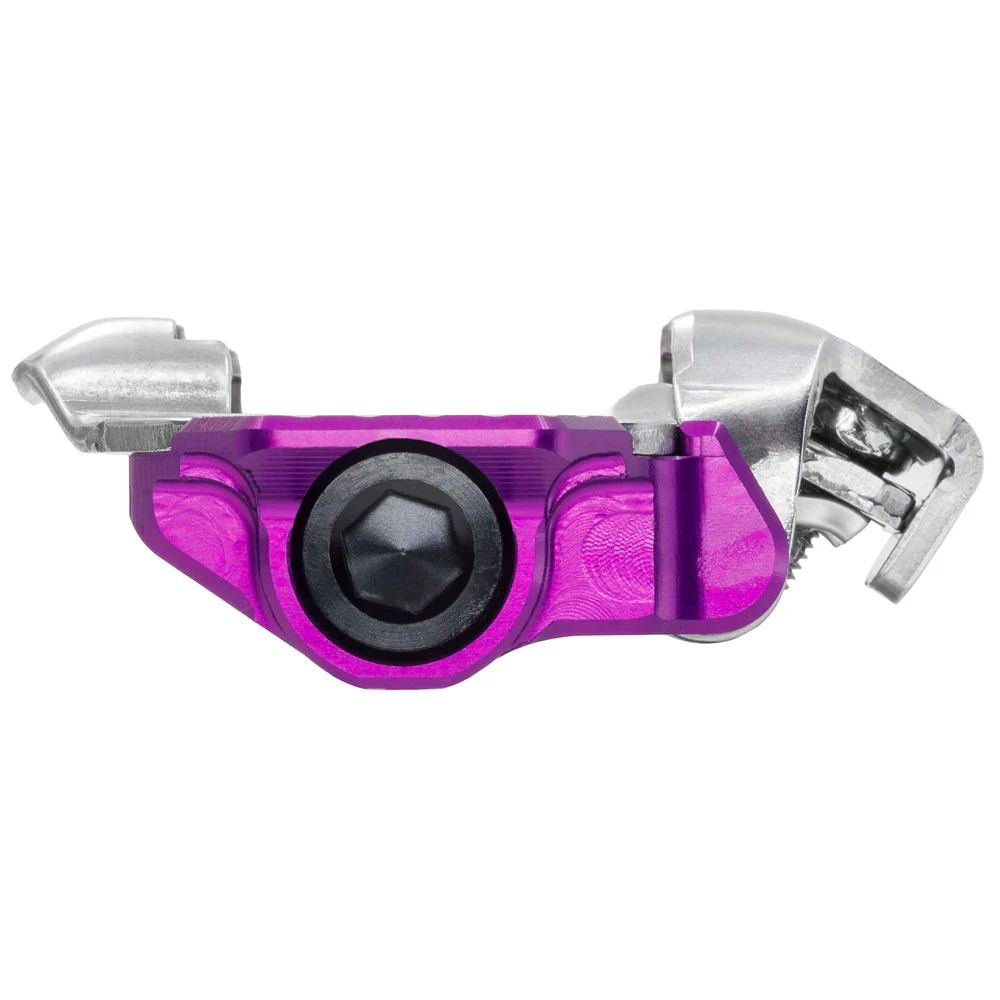

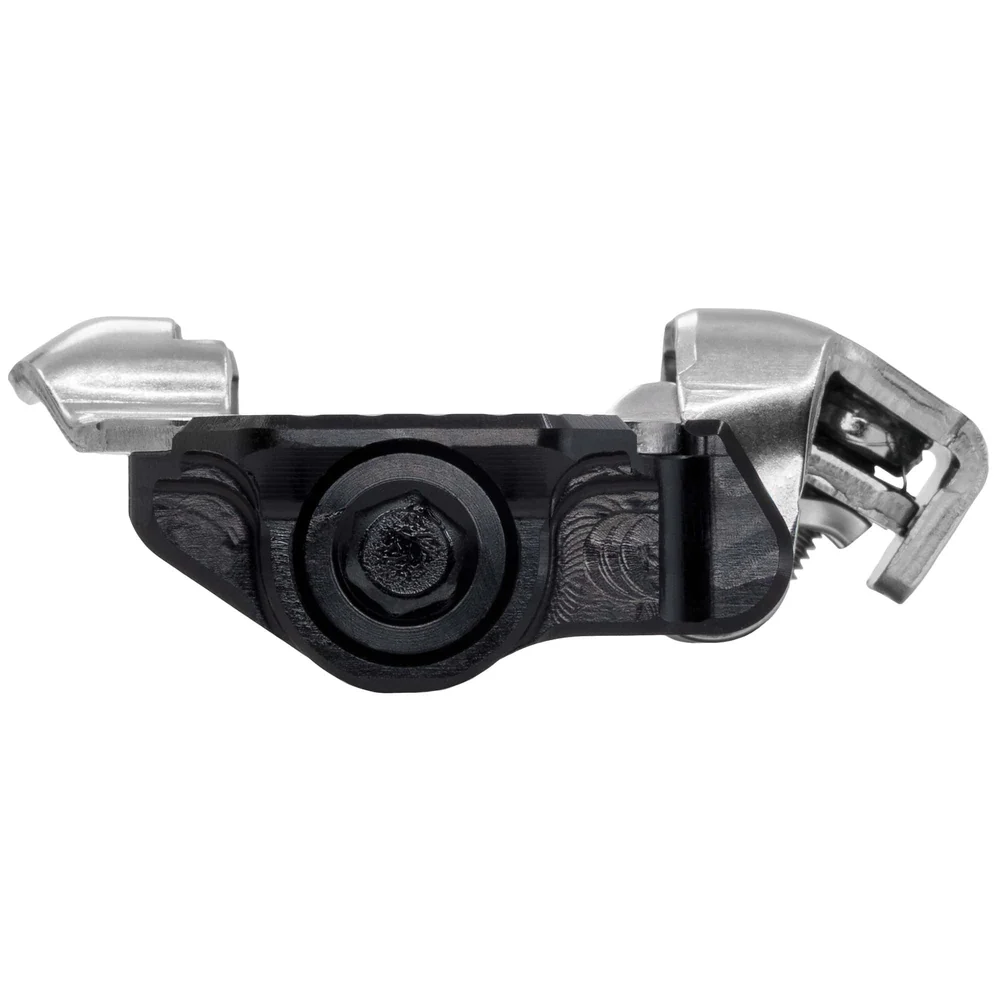

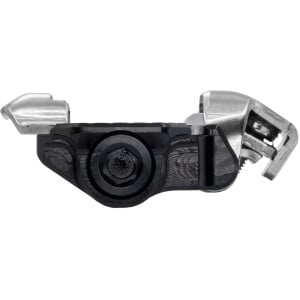

Ground Clearance and Mud Shedding

We designed DEL Gravel Race Clipless Pedals with a thin profile and open center for mud shedding. Your clips and unclips will be quick and reliable, regardless of mud and grit.

Right to Repair

We believe in your right to be able to fix your components. Crashes happen, parts get misplaced, things go bump in the night. All individual parts are available as replacement parts.

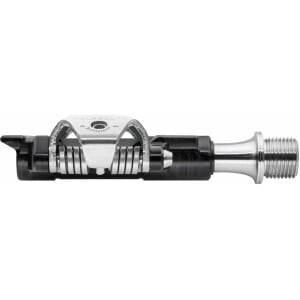

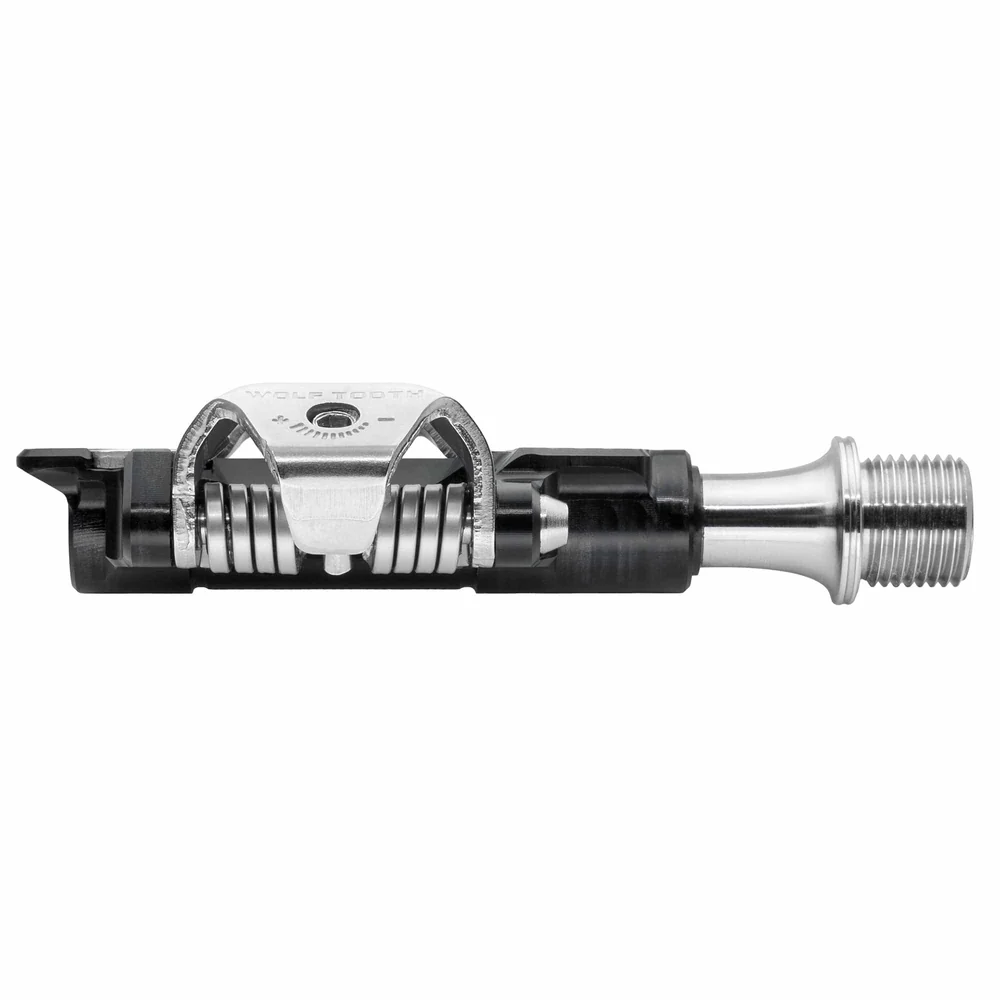

• Thinner than the competition at 14.7 mm (compared to Xpedo MF8 at 17 mm, Shimano XTR 9200 at 16.5 mm, and Eggbeater 3 at 17 mm)
• Lighter weight than the competition at 216 g (compared to Xpedo MF8 at 220 g, Shimano XTR 9200 at 316 g, and Eggbeater 3 at 265 g)
• Larger platform area for power transfer than the competition at 559 mm² (compared to Xpedo MF8 at 46 mm², Shimano XTR 9200 at 144 mm² and Eggbeater 3 at 102 mm²)
• Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately). Pedals ship in 55 mm position.
• 5 degrees float | 12 degrees release
• SPD compatible
• Proven axle and bearing design from Waveform Aluminum Pedals
• Designed, tested, and machined at Wolf Tooth in Minnesota, USA

Weight:  216g

Material:
Body: 6061-T6 aluminum CNC machined
Axle: heat-treated 17-4 PH stainless steel
Binding Cage: stainless steel; Hardware: stainless steel

Included:  pedals, cleats with shims and bolts
