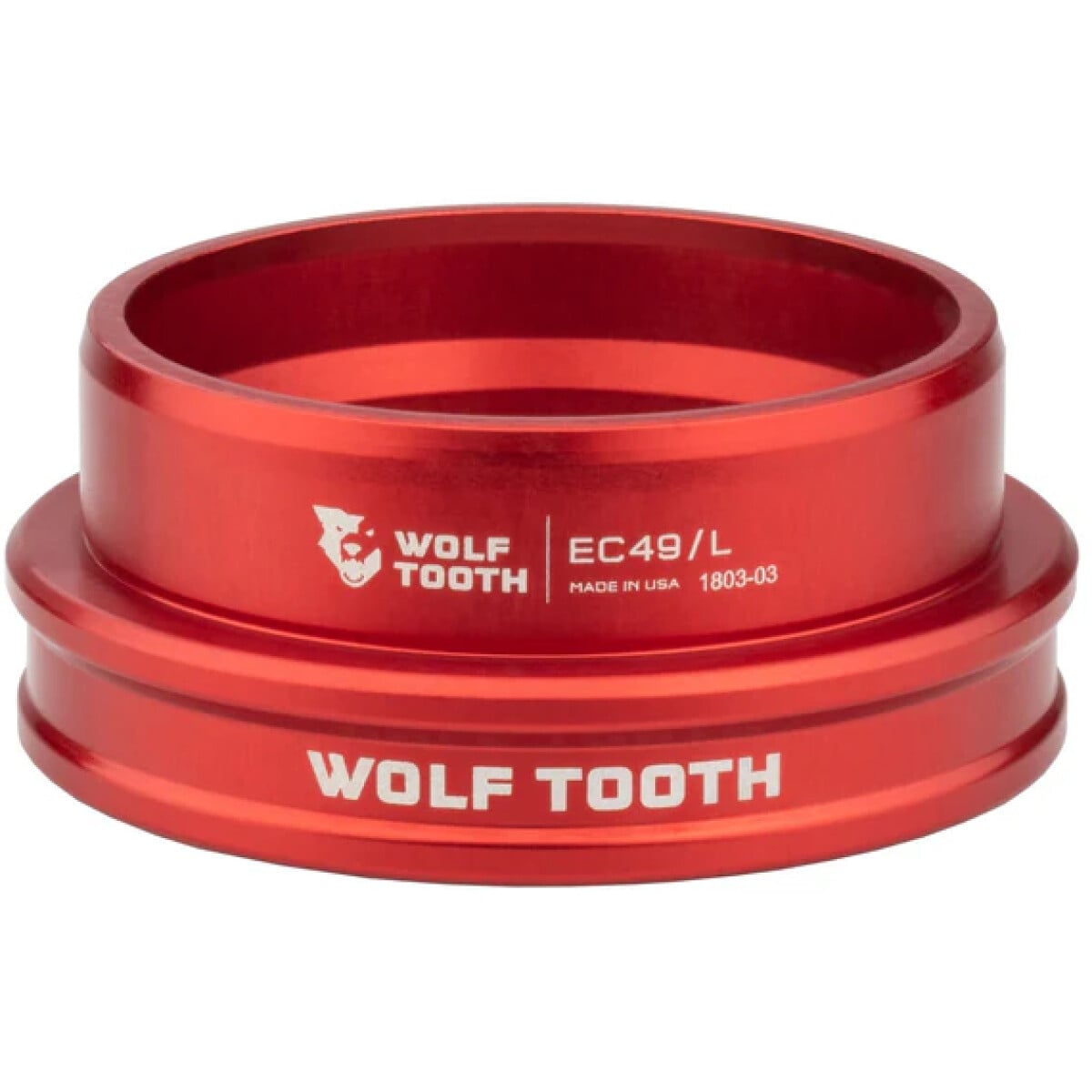

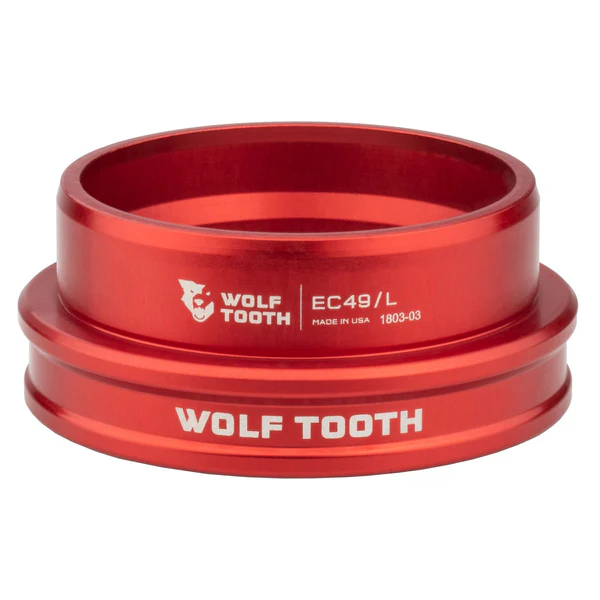

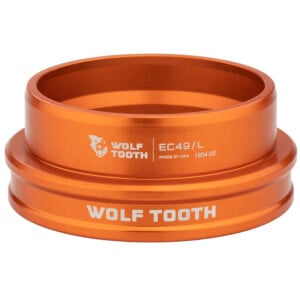

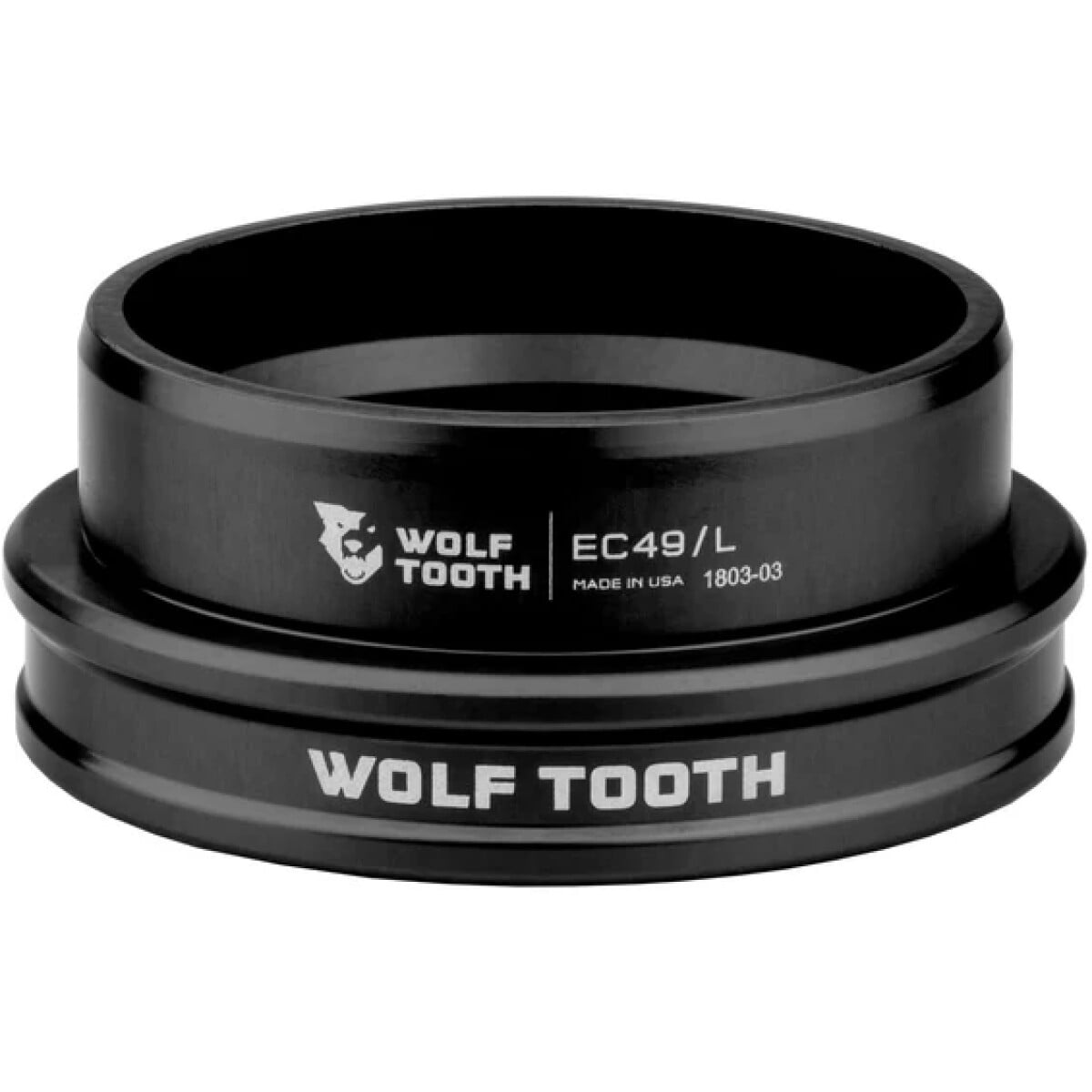

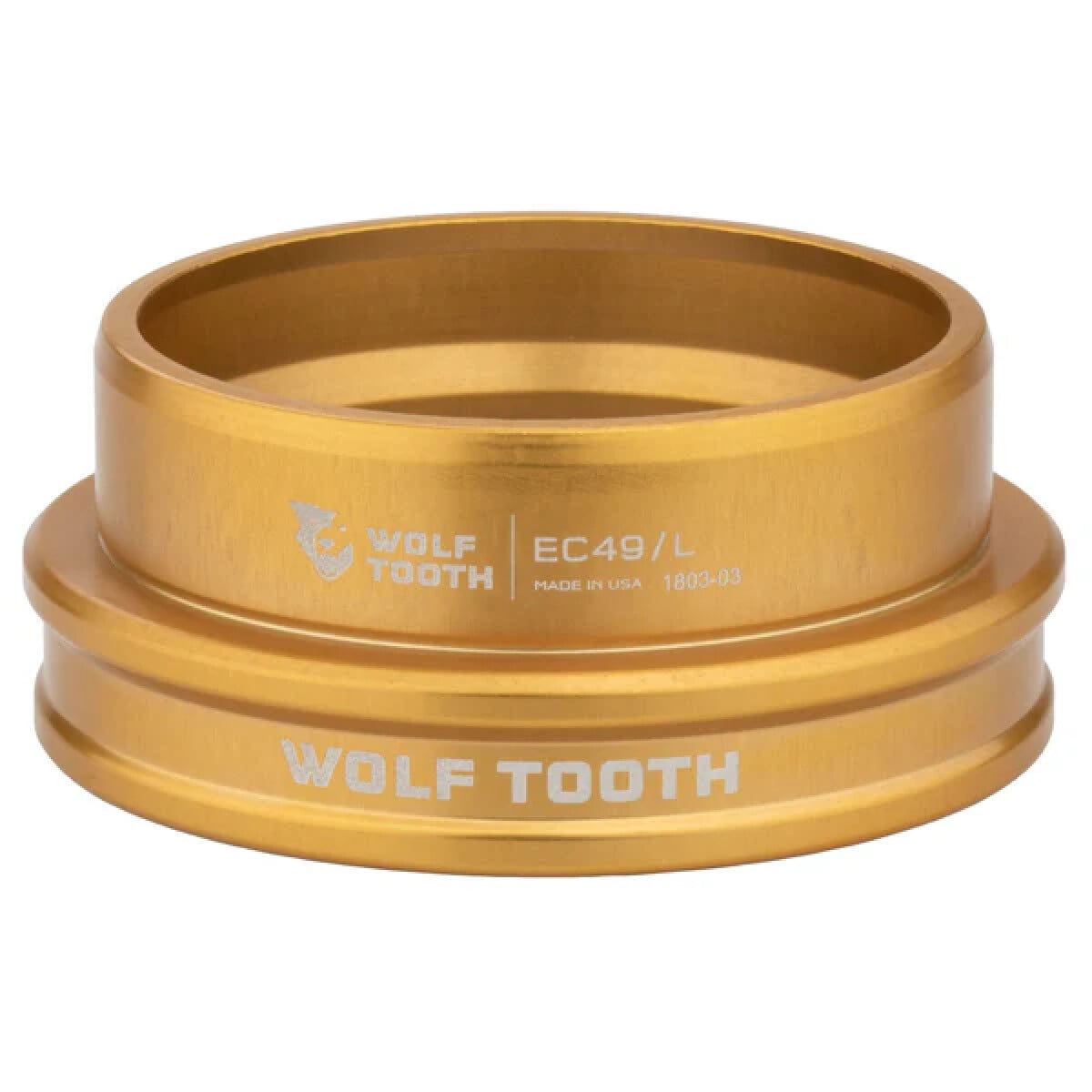

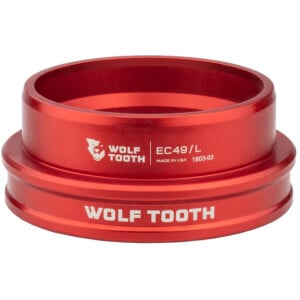

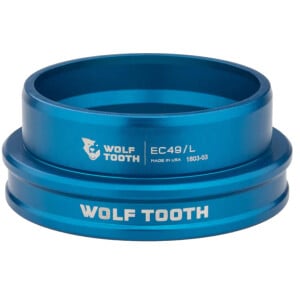

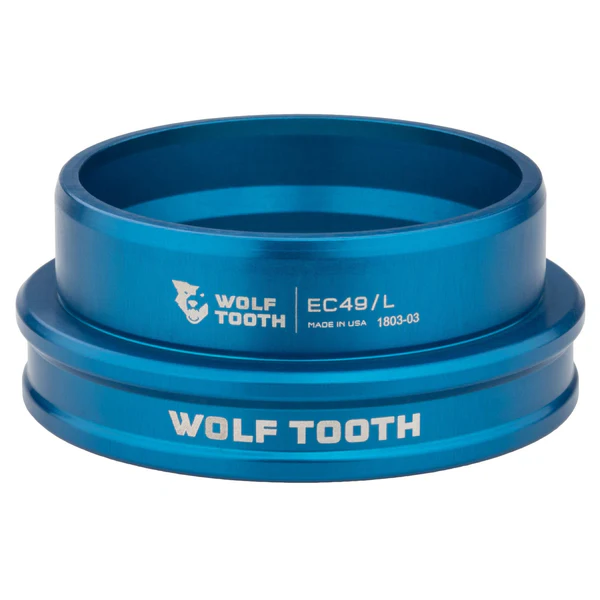

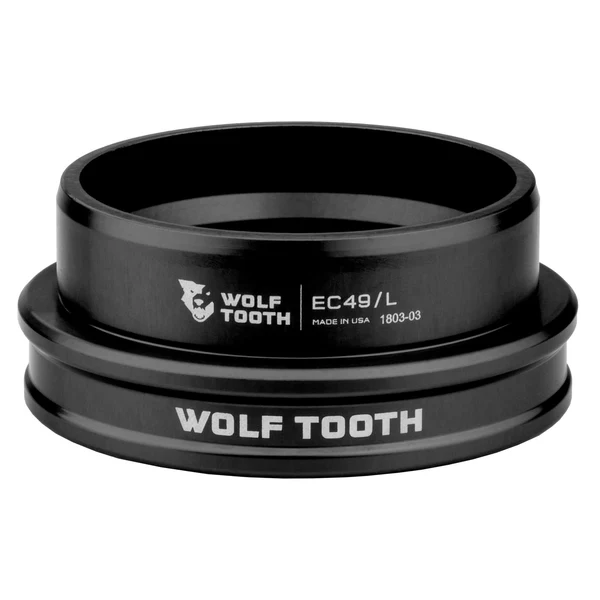

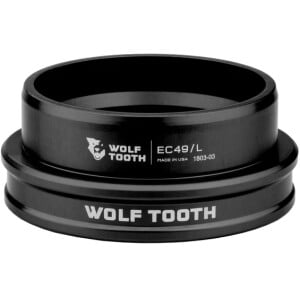

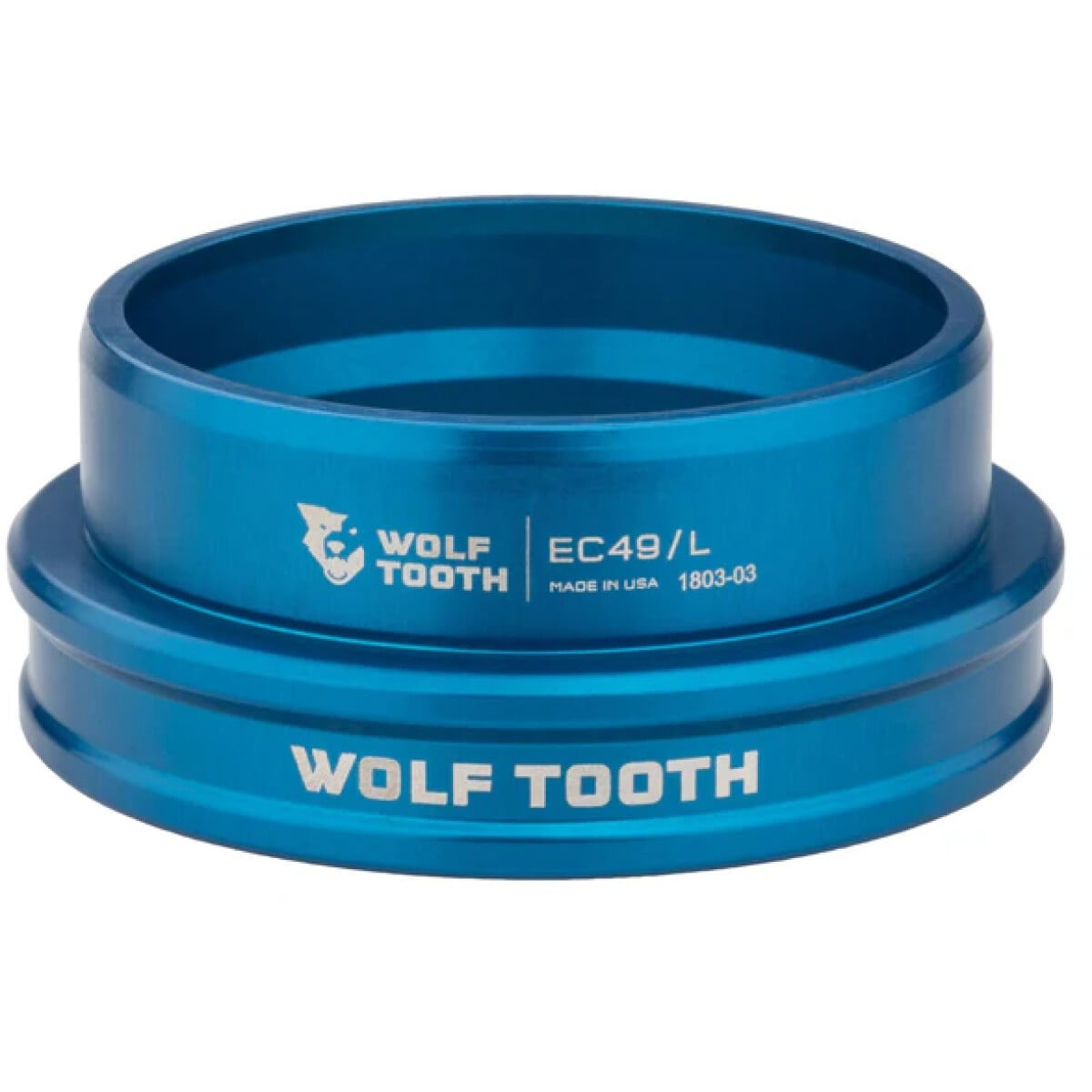

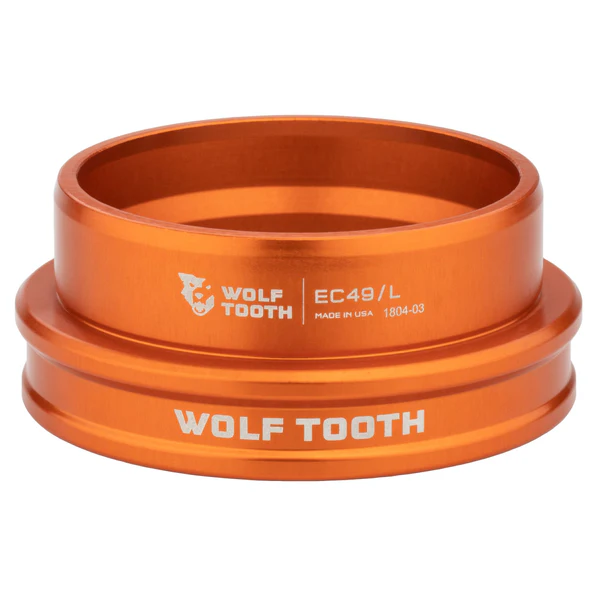

Wolf Tooth Premium Cup EC49/40 Headset Lower

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable. Available in a variety of colors. These EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets. Premium Headsets with Enduro stainless steel bearings have a lifetime warranty on the bearings.

Compatibility

• Stack height designation for EC headsets includes 10mm cup (see tech specs).
• Any frame that uses an external cup headset with a 34mm upper head tube. inner diameter and 34mm, 44mm, or 49mm lower head tube inner diameter
• Uppers and lowers sold separately.
• Enduro stainless steel sealed bearings included on both the upper and lower.
• Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately). (Never use a star nut on a carbon steerer tube).
• A crown race adapter (sold separately)will allow you to use forks with smaller 1-1/8″ or 1-1/4″ steerer tubes with a larger 1-1/2″ bottom headset cup

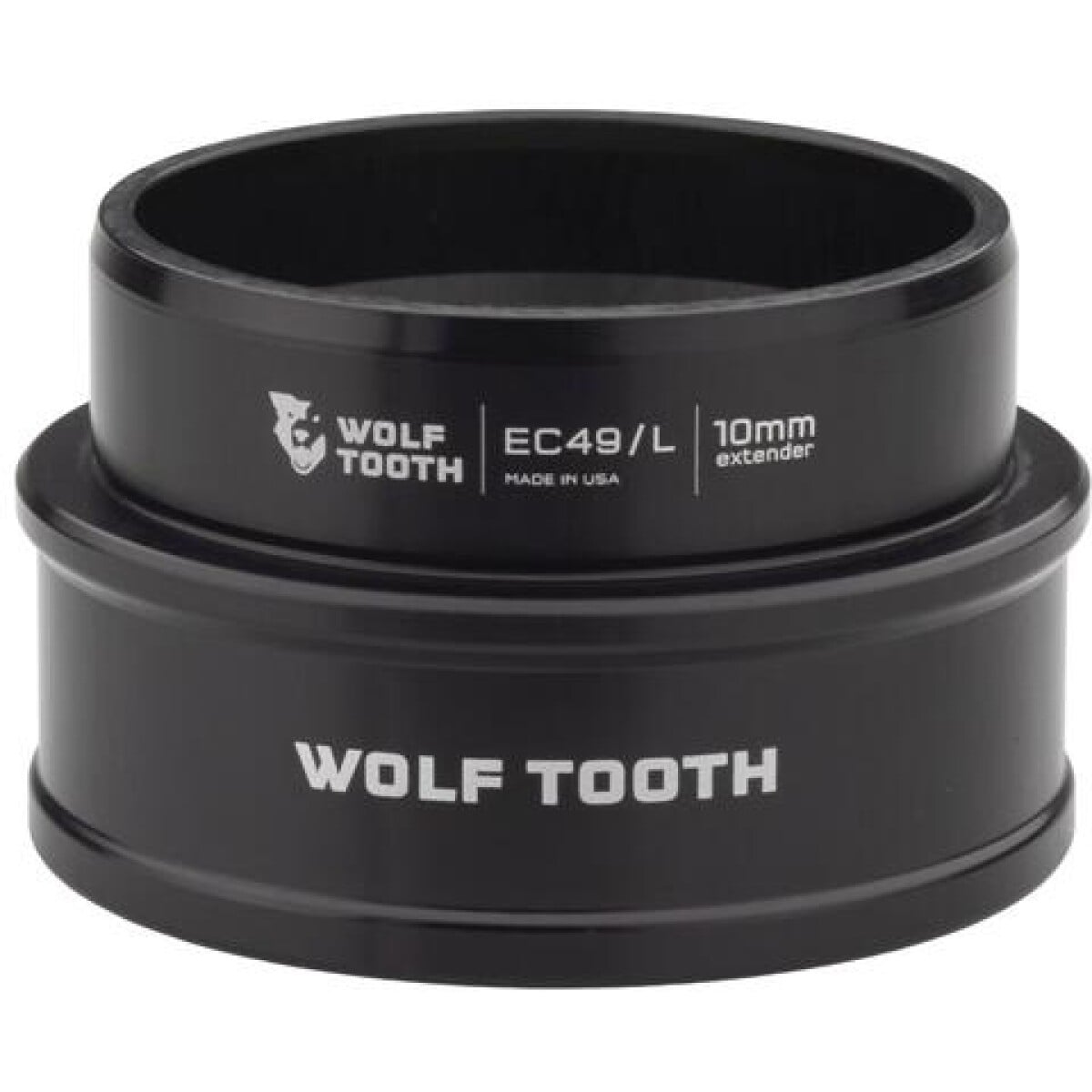

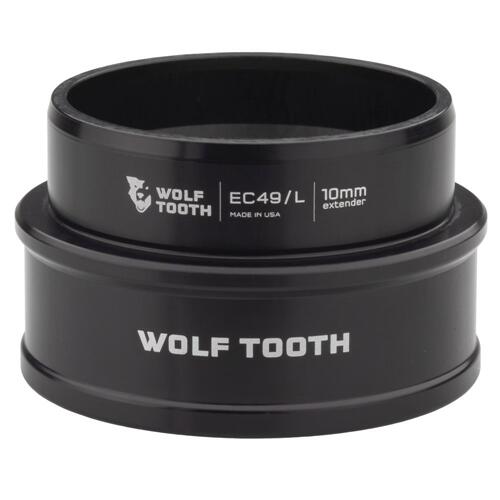

P10 version – These lower headset cup extenders allow you to adjust the geometry of your bike frame by increasing the effective fork length by 10mm. They allow you to do things like use a rigid fork on a suspension-corrected frame or use a fork with a shorter axle-to-crown height rather than what the frame was designed to use. They can also be used to increase the bottom bracket height and lower the headtube angle.
